1. Integrated
Lamp-pumped CW Nd:YAG Lasers
Imported key components used in our
lasers result in high stability, good beam quality & low
maintenances and low cost man-power results in low prices of our
lasers.
The laser typically consists of a laser head
including pump
chamber, Nd:YAG rod, lamp
and laser resonator and a control cabinet including lamp driver,
Q-switch driver (option), control box (option) etc. A
chiller is another option.
The YAG-CW series of lamp-pumped CW Nd:YAG lasers are suitable
for a wide range of precision marking, cutting, trimming,
micro-machining, instrumentation and medical applications in the
electronics, medical, automotive and fine mechanics markets.
| |
YAG-CW-50
|
YAG-CW-100
|
|
Laser type |
Lamp-pumped CW Nd:YAG
lasers
|
|
Laser
wavelength |
1064 nm
|
|
Beam diameter |
3mm
|
5mm
|
|
Beam mode |
Multi-mode (TEM00 mode available upon
request)
|
|
Laser
power |
50W
|
100W
|
|
Output
stability |
+/- 3%
|
|
Cooling
method |
Closed water cooling (a
cooler is included)
|
|
Power requirements |
380VAC, 6.5KVA
|
380VAC, 8KVA
|
|
Dimension |
800x180x180 mm
|
|
Q switching frequency |
1 - 50 kHz
|
|
Accessories:
laser chiller |
|
Laser chiller model No. |
PH-LW52-PF
|
PH-LW72-PF
|
|
Cooling capacity |
5.2kW
|
7.2kW
|
|
Option:
AO Q-switch element |
|
|
|
|
2.

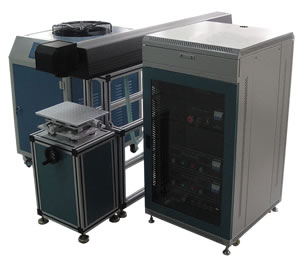

Integrated Lamp-pumped CW Nd:YAG Lasers for Deep
Engraving
The laser is specially designed for deep engraving on
metals. The laser can output long pulse width & high power energy, also
can output short pulse width & high peak power for the deep engraving of
different materials. Through the application of new technology, the peak
power is around 10 times compared to the traditional lasers, reaching
300kW. High beam quality and high conversion efficiency make the laser
the best choice for deep engraving applications. The engraved depth can
reach 5mm.
The laser can be used in deep engraving of parts of
automotive and motors, hardware tools, stainless steel products, medical
parts, clock and watch, industrial bearing, mould. The materials to be
engraved include copper, brass, aluminum, alloy, stainless steel etc.
|
Maximum average laser power |
100W |
|
Maximum peak laser power |
300KW |
|
Laser wavelength |
1064nm |
|
Maximum engraving depth |
�5mm
depending on materials |
|
Input electricity |
380V/50Hz 4.5KW |

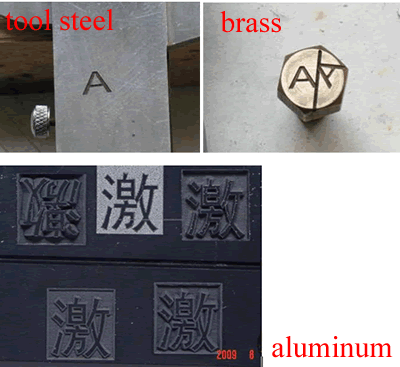

Engraved samples
 |
|
|
|
3.
OEM Lamp-pumped CW Nd:YAG
Lasers
For OEM users or laser integrators, we can provide OEM
and system integrators with a range of high performance components and
sub-assemblies of Nd:YAG laser at more attractive prices. These
components and sub-assemblies include laser head (pump
chamber with Nd:YAG rod and lamp,
laser resonator including rear mirror and output coupler, optional Q-switch cell,
optional aperture, optional beam expander), Q-switch
driver, lamp driver, chiller. |
|
|
|
 |
|
|
|

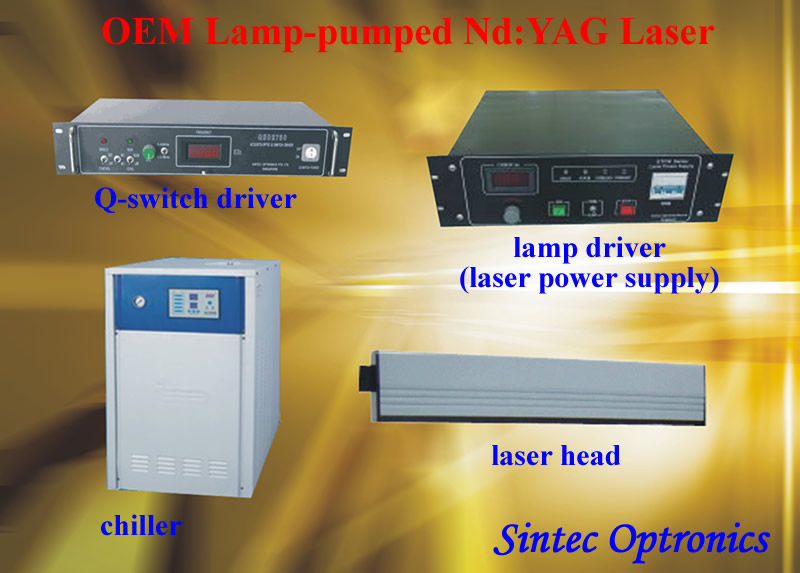

1) Laser Head |
|
 A laser
head consists of laser base
(optical rail), pump chamber,
output coupler and rear
mirror, front plate, rear plate, and cover. Options include
aperture,
AO
Q-switch cell and
beam expander.
|
|
2) Q-switch Driver
The panel is standard 19 inch.
 |
3) Lamp Driver
The panel is standard 19 inch.
|
|
4) Chiller
 |
5) Control cabinet
Used to mount key board, Q-switch driver, computer, lamp driver
(or diode driver) and electrical controller. The electrical
controller is used in YAG laser markers.
|
|
|
