1.

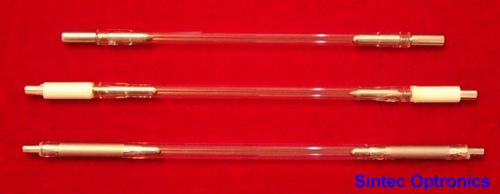

High Performance CW Arc Lamps (Kr lamps) |
|
|
|
Model |
Bore(mm) |
Arc (mm) |
OAL(mm) |
OD(mm) |
End Style |
Parameters |
Equivalent
To |
Typical laser makers |
|

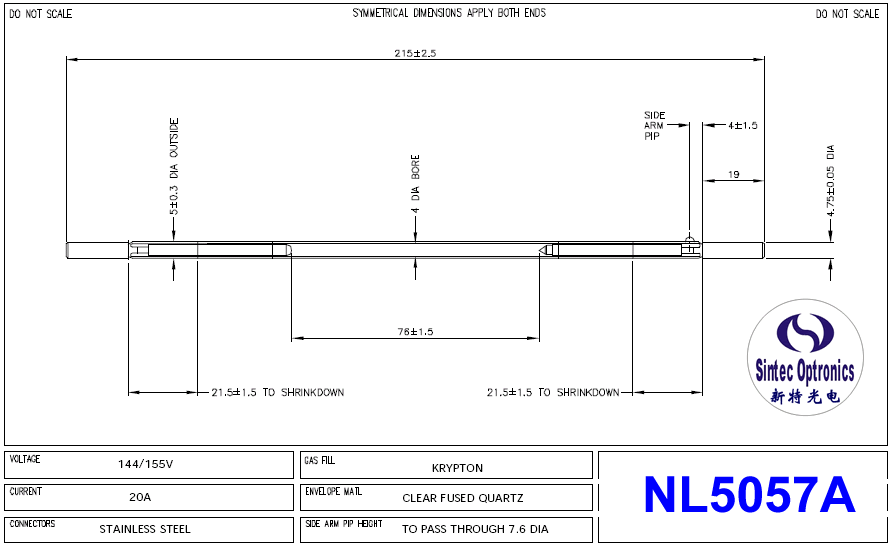

ST166 |
4 |
76 |
215 |
5 |
4.75x19 |
155V/20A |
NL5057A |
Baasel, Rofin |
|
ST512AS
|
4 |
76 |
215 |
6 |
6.35 |
155V/20A |
NL5019 |
Baasel, Rofin, AB Laser, Chicago Laser, Control Laser,
ESI, JEC, Florod, Quantrad, Siemens, Teradyne, GSI |
|

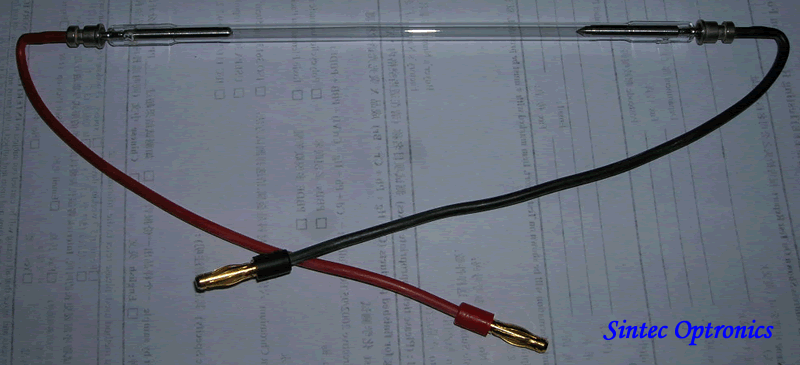

ST5130 |
4 |
98 |
|
|
WIRE |
|
NL5130 |
Electrox |
|

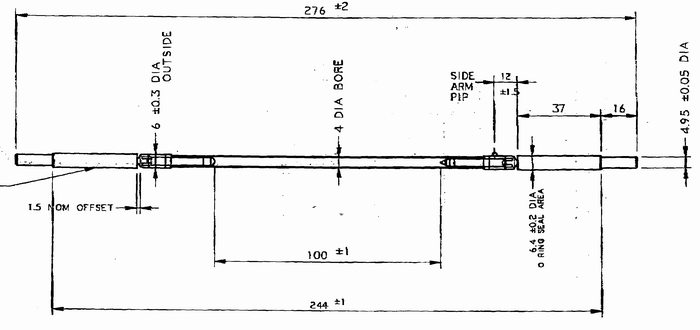

ST5166 |
4 |
100 |
276 |
6 |
BASE |
177V/22A |
CP1920,
NL5166 |

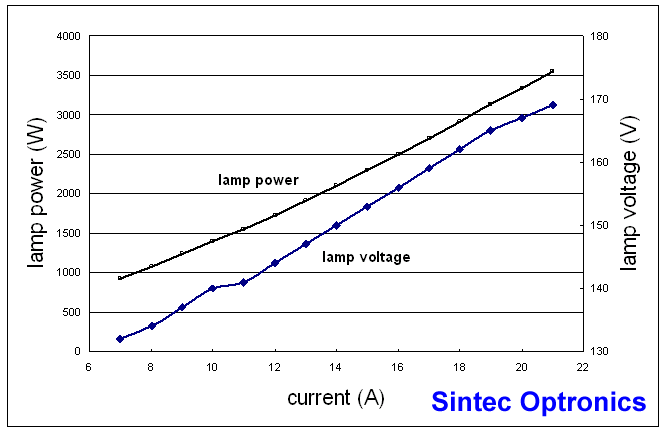

I-V-P curve
Han's Laser |
|

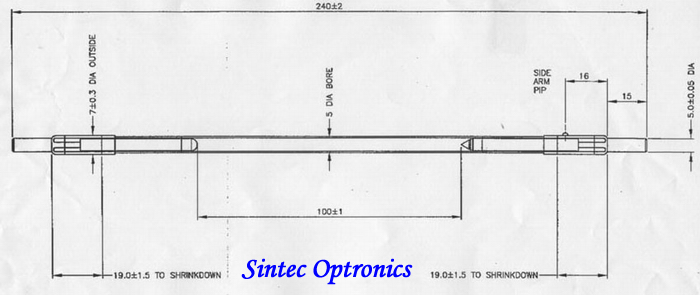

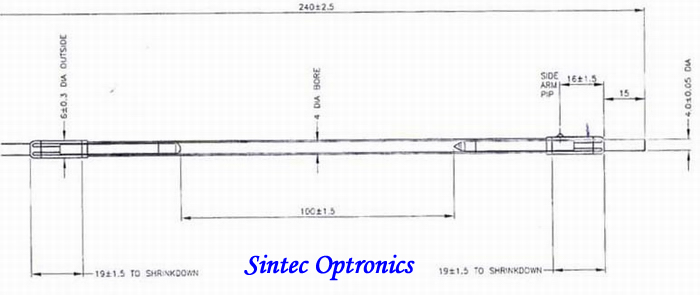

ST2108 |
4 |
100 |
240 |
6 |
BASE |
155V/20A |
|
|
|

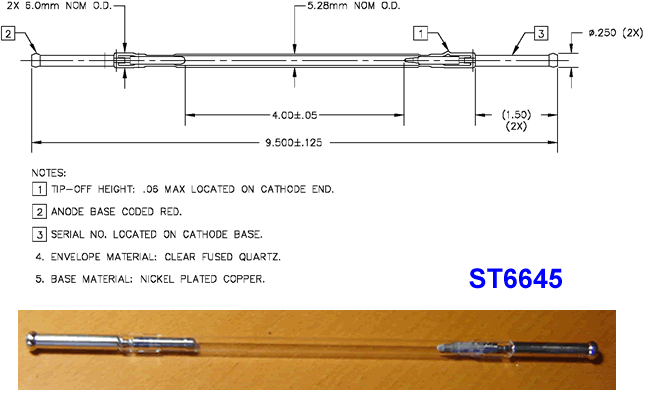

ST6645 |
4 |
102 |
243 |
5 |
BALL |
200V/20A |
NL5039 |
Control Laser |
|
ST1074 |
4 |
120 |
290 |
5.2 |
5x10 |
|
ECW1074 |
Han's Laser |
|
ST209 |
5 |
76 |
215 |
6 |
BASE |
|
|
Rofin, Hysol |
|
ST608 |
5 |
84 |
176 |
6 |
BASE |
155V/30A |
NL4462,
LKA3330 |
Lee Laser |
|
ST5171 |
5 |
100 |
240 |
7 |
BASE |
175V/30A |
NL5171,
CP2310 |

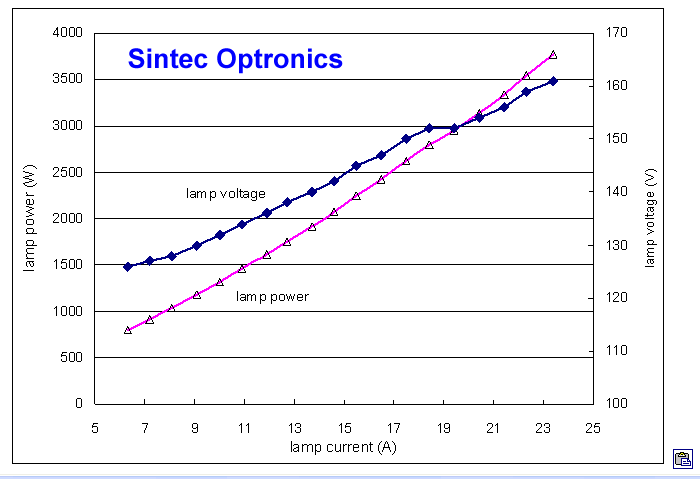

I-V-P curve |
|
ST641 |
5 |
100 |
250 |
6 |
BASE |
175V/30A |
|
Han's Laser |
|
ST726/1129 |
5 |
100 |
|
6 |
WIRE |
162V/30A |
ST726, NL5023 |
Rofin Sinar |
|

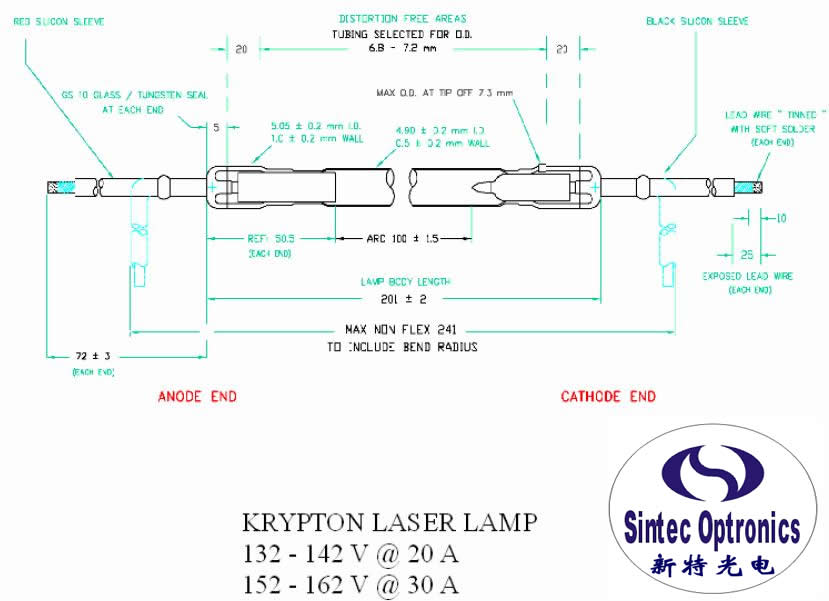

ST5028 |
5 |
102 |
195 |
6 |
BASE |
175V/30A |
NL5028,QCW93,ST9300 |
GSI, Lee Laser, Laser SOS |
|
NL5113 |
5 |
100 |
219 |
7 |
WIRE |
162V/30A |
QCW245 |
FOBA, Laser
SOS |
|

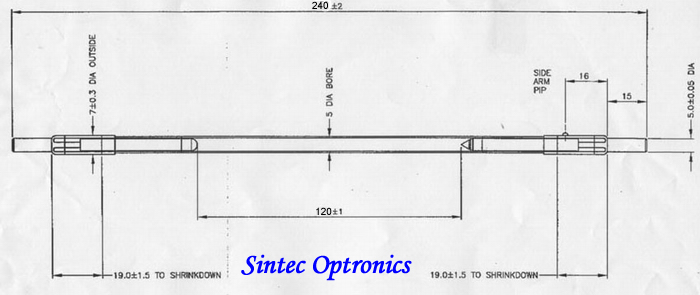

ST5647 |
5 |
120 |
240 |
7 |
BASE |
170V/30A |
|
|
|
NL5142 |
5 |
121 |
251 |
7 |
BASE |
170V/30A |
LL1313 |
Spectron |
|

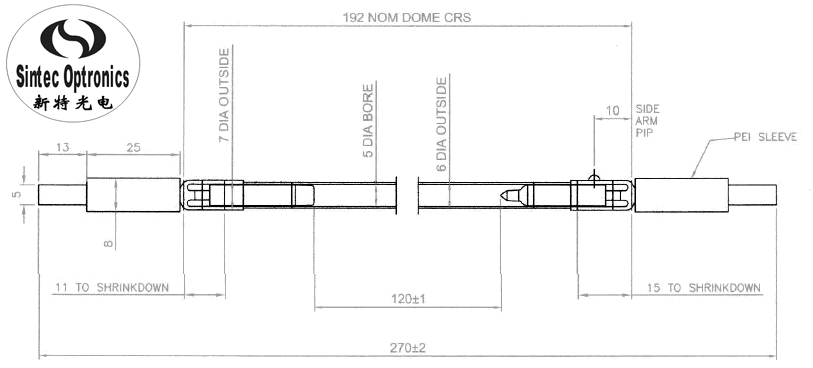

ST256 |
5 |
120 |
270 |
6 |
5x13 |
170V/30A |
|
|
|

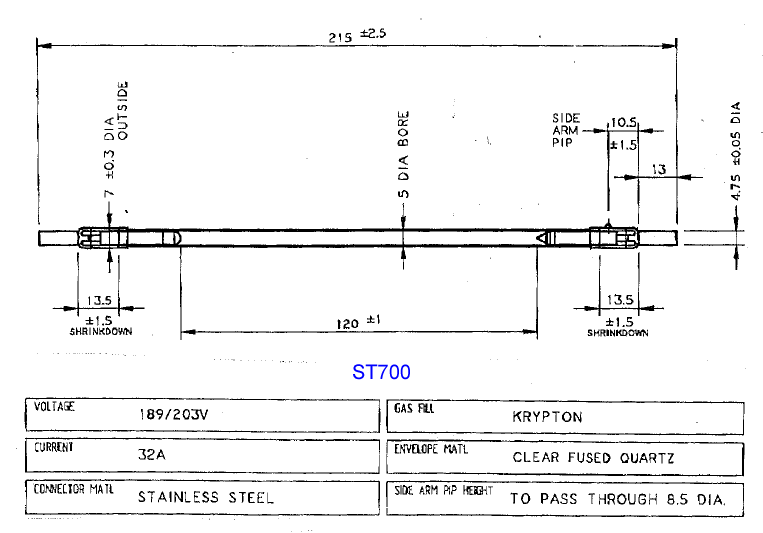

ST700 |
5 |
120 |
215 |
7 |
4.65x13 |
203V/32A |
|
Rofin Bassel |
|

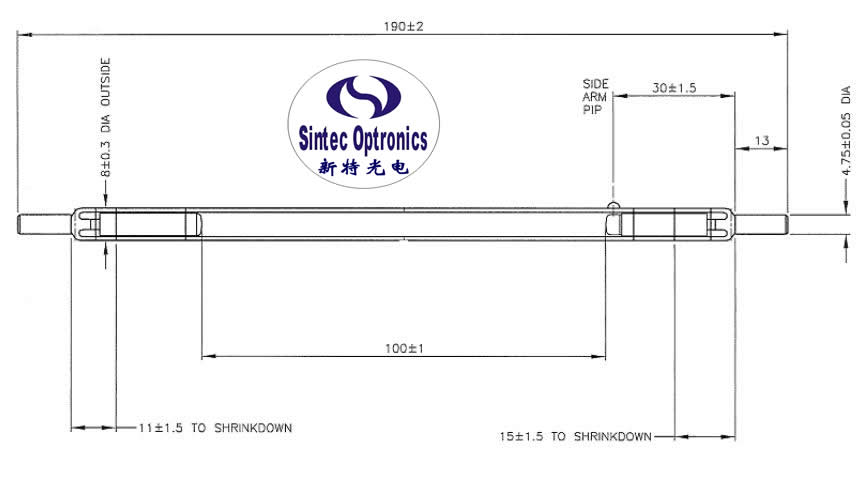

STXF889 |
|
100 |
190 |
8 |
4.75x13 |
|
|
Rofin, Baasel |
|
ST8280 |
6 |
100 |
204 |
7 |
|
158V/40A |
|
Laserscope
Lyra |
|

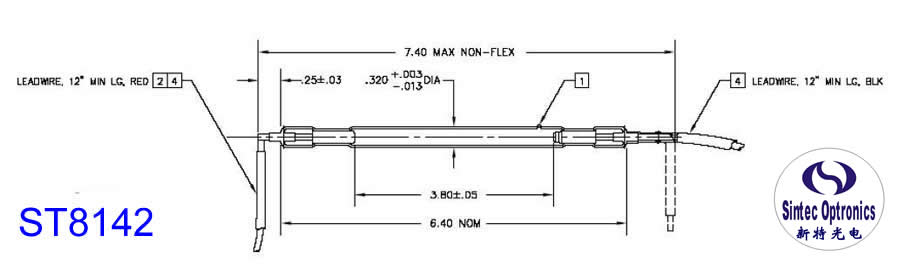

ST8142 |
|
97 |
188 |
8 |
WIRE |
|
|
Big Sky, FOBA |
|
NL5123 |
6 |
102 |
200 |
7 |
BASE |
200V/35A |
|
Nihon
Welding |
|
NL547 |
6 |
100 |
300 |
8 |
BASE |
152V/40A |
P2008E,
QCW190 |
NEC |
|

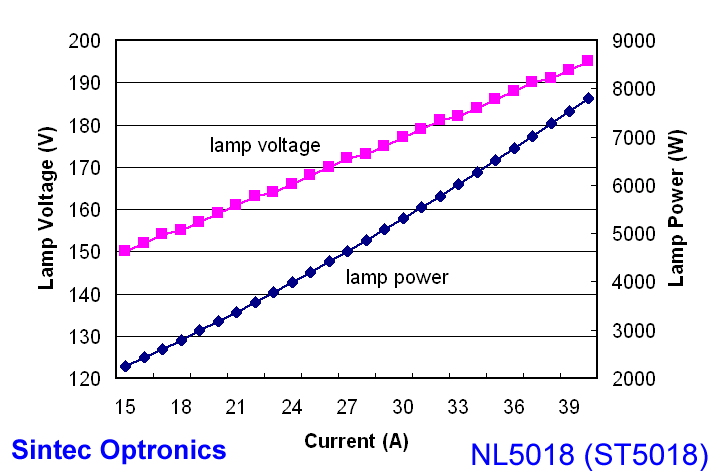

ST5018 |
6 |
150 |
350 |
8 |
5.89x17 |
200V/40A |
NL5018 |
I-V-P curve |
|

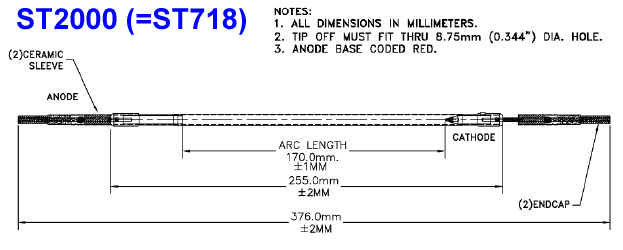

ST718 |
6 |
170 |
376 |
8 |
BASE |
250V/40A |
QCW808, ST2000 |
|
|
STJK310 |
8 |
145 |
270 |
9.2 |
BASE |
|
|
|
|

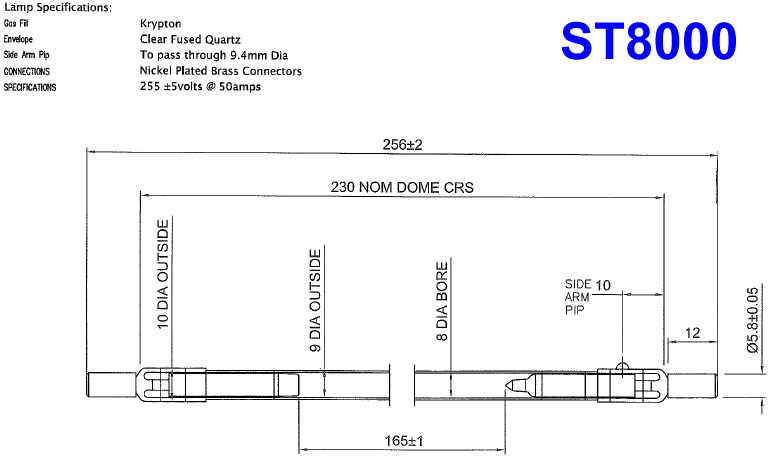

ST8000 |
8 |
165 |
256 |
9 |
BASE |
255V/50A |
|
used in 500W laser |
Note: bore: bore diameter; arc: arc length; OAL:
overall length, OD: outer diameter
|
|

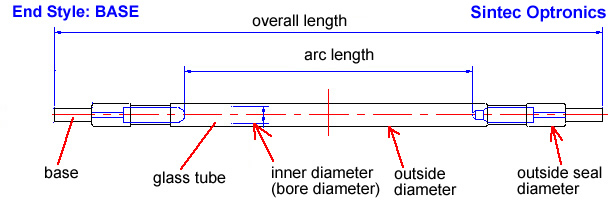

STK Series Krypton Lasers
Description of

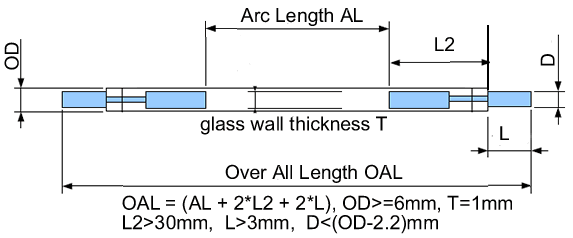

model number: STK-xxx-yyy-zzz-W or STK-xxx-yyy-zzz-DxL
STK ?Kr lamp
xxx ?outside diameter (In general, the thickness of the
glass tube is 1mm)
yyy ?arc length
zzz ?over all length

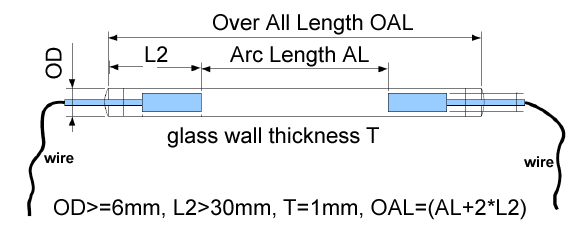

W -- WIRE end style (no W means BASE end style)
DxL ?
diameter and length of BASE if the end is BASE
|
|
Model |
Bore (mm) |
Arc (mm) |
OAL (mm) |
OD (mm) |
BASE (dia.xlength) |
End style WIRE |
|
STK6.5x100x250-4x8 |
4.5 |
100 |
250 |
6.5 |
4x8 |
available upon request |
|
STK6.5x125x270-4x10 |
4.5 |
125 |
270 |
6.5 |
4x10 |
available upon request |
|
STK7x100x210-4x8 |
5 |
100 |
210 |
7 |
4x8 |
available upon request |
|
STK7x100x250-4x8 |
5 |
100 |
250 |
7 |
4x8 |
available upon request |
|
STK7x125x270-4x10 |
5 |
125 |
270 |
7 |
4x10 |
available upon request |
|
STK8x95x214-5x7 |
6 |
95 |
214 |
8 |
5x7 |
available upon request |
|
STK8x100x235-5x8 |
6 |
100 |
235 |
8 |
5x8 |
available upon request |
|
STK8x100x250-5x10 |
6 |
100 |
250 |
8 |
5x10 |
available upon request |
|
STK8x100x256-5x8 |
6 |
100 |
256 |
8 |
5x8 |
available upon request |
|
STK8x100x270-5x10 |
6 |
100 |
270 |
8 |
5x10 |
available upon request |
|
STK8x100x288-5x10 |
6 |
100 |
288 |
8 |
5x10 |
available upon request |
|
STK8x120x260-5x8 |
6 |
120 |
260 |
8 |
5x8 |
available upon request |
|
STK8x120x264-5x10 |
6 |
120 |
264 |
8 |
5x10 |
available upon request |
|
STK8x125x270-5x10 |
6 |
125 |
270 |
8 |
5x10 |
available upon request |
|
STK8x125x280-5x10 |
6 |
125 |
280 |
8 |
5x10 |
available upon request |
|
STK8x150x288-5x8 |
6 |
150 |
288 |
8 |
5x8 |
available upon request |
|
STK8x150x290-5x8 |
6 |
150 |
290 |
8 |
5x8 |
available upon request |
|
STK8x100x210-5x8 |
6 |
100 |
210 |
8 |
5x8 |
available upon request |
|
|
|
|
2
High Performance Pulse Flashlamps (Xe
lamps) |
|
|
|
Model |
Bore(mm) |
OD(mm) |
Arc (mm) |
OAL(mm) |
Gas |
End Style |
Equivalent to |
Remark |
|
ST7047 |
4 |
5 |
48 |
108 |
Xe |
4.75x10 |
|
Continuum,Quantel,Hoya |
|

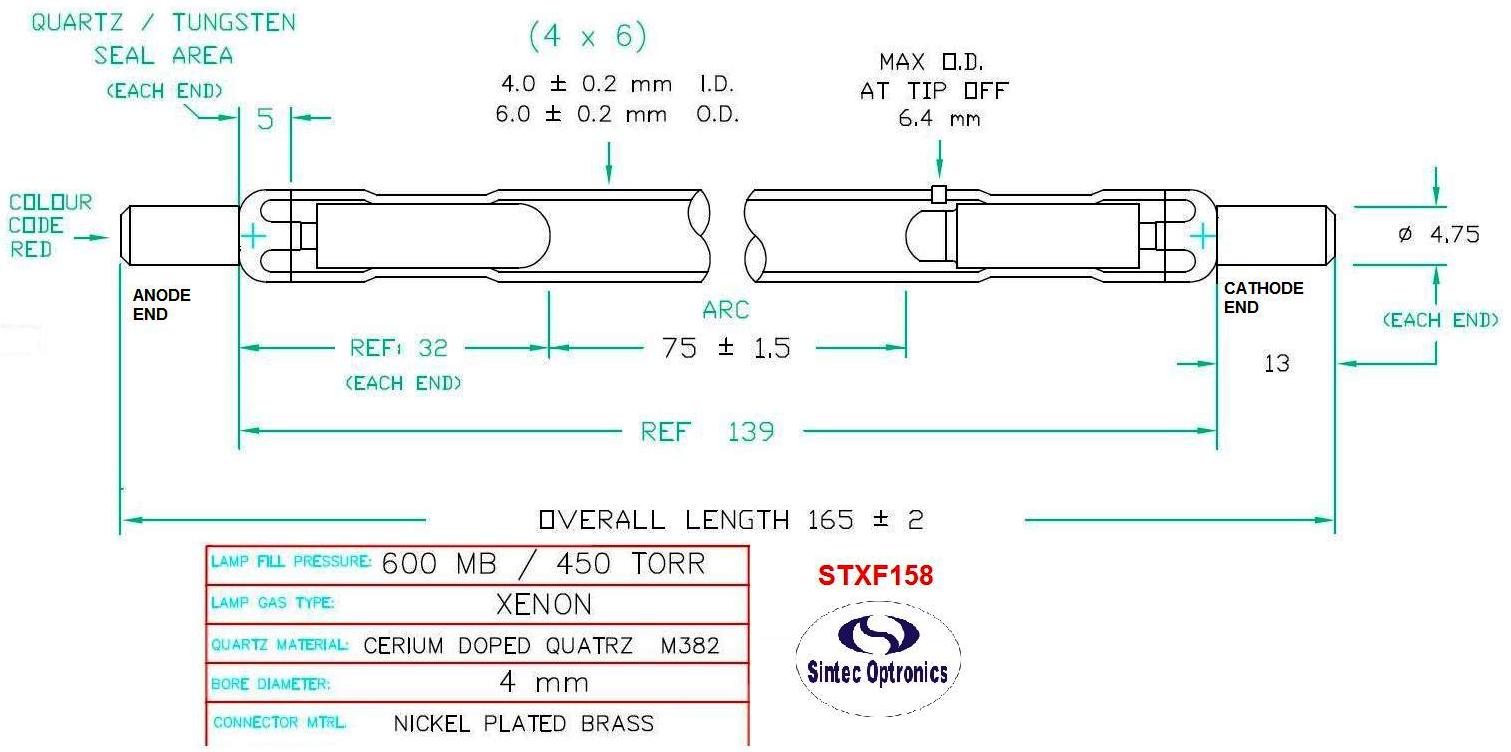

STXF158 |
4 |
6 |
75 |
165 |
Xe, 450
torr |
|
QXF158 |
|
|

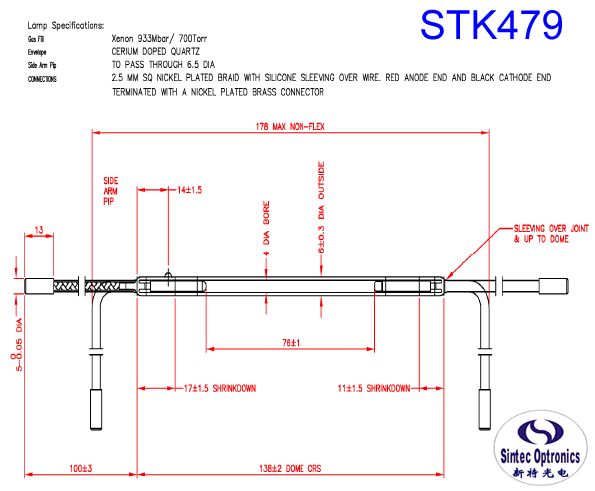

STK479 |
4 |
6 |
76 |
|
Xe |
WIRE |
|
Laservall |
|

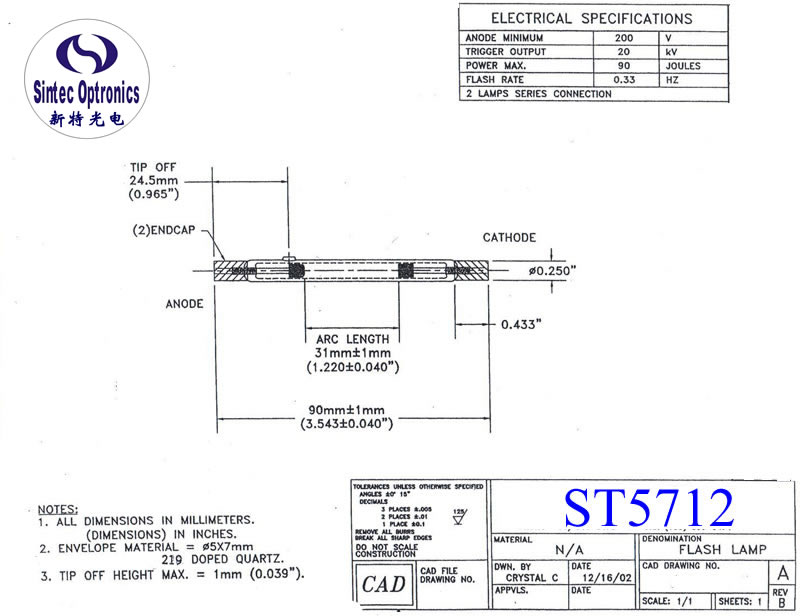

ST5712 |
5 |
7 |
31 |
90 |
Xe, 600PSI |
BASE |
|
Med-Op |
|

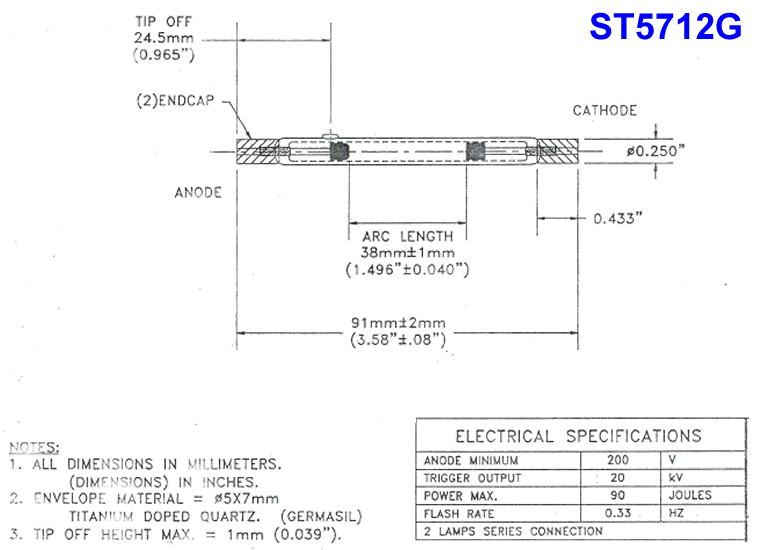

ST5712G |
5 |
7 |
38 |
91 |
Xe, 600PSI |
BASE |
SX-513A |
Med-Op |
|

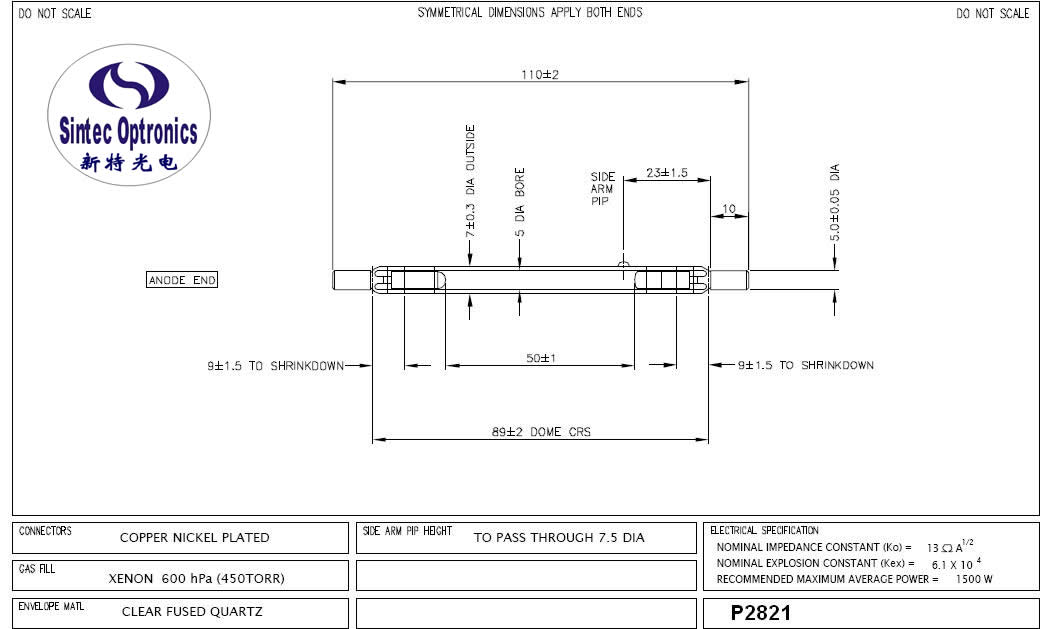

ST2821 |
5 |
7 |
50 |
110 |
Xe, 450 torr |
5x10mm |
P2821 |
|
|
ST7030 |
5 |
7 |
102 |
204 |
Xe, 3atm |
3.95x11.5 |
NL7030 |
|
|

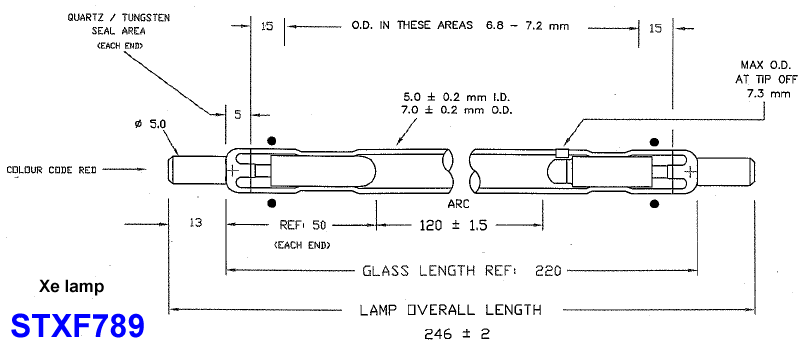

STXF789 |
5 |
7 |
120 |
246 |
Xe |
5x13 |
|
|
|
ST1500 |
6 |
7 |
45 |
105 |
|
|
|
|
|
ST275 |
6 |
8 |
50.8 |
155 |
Xe, 450 torr |
|
|
|
|

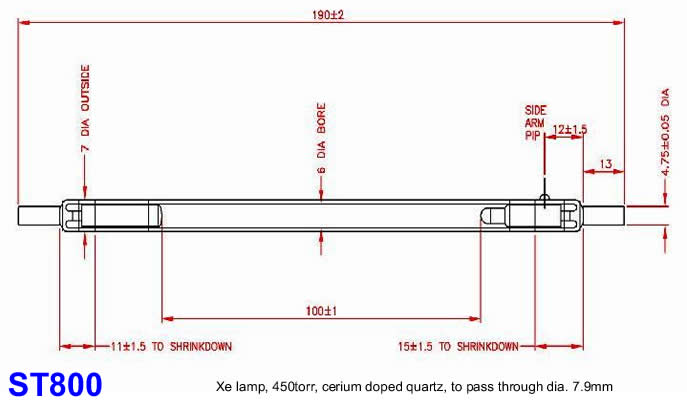

ST800 |
6 |
7 |
100 |
190 |
Xe, 450torr |
4.75x13 |
|
|
|
NL9764 |
6 |
8 |
100 |
246 |
Xe, 450
torr |
BASE |
P2015 |
NEC |
|

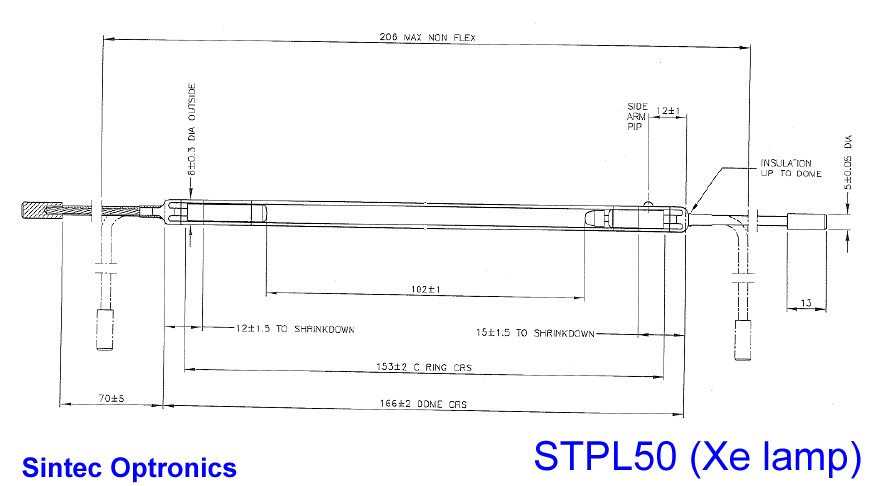

STPL50 |
6 |
8 |
102 |
|
|
WIRE |
|
Laservall |
|
NL9751 |
7 |
9 |
102 |
220 |
Xe, 450
torr |
BASE |
|
Miyachi |
|
ST1500 |
5 |
7 |
45 |
105 |
Xe, 450
torr |
BASE |
QXF1334 |
Quanta
System |
|

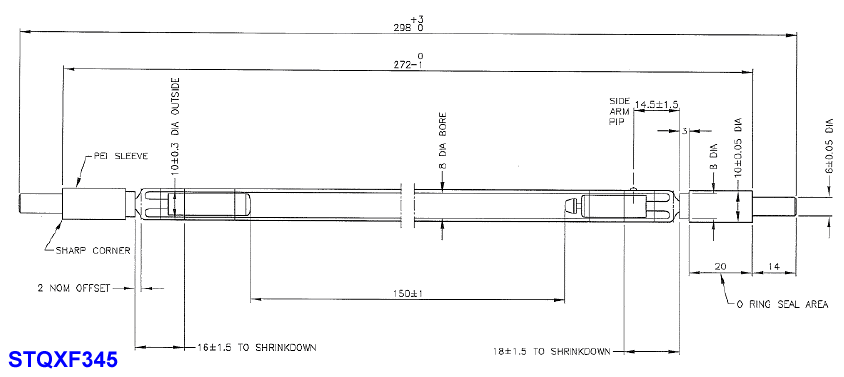

STQXF345 |
8 |
10 |
150 |
298 |
Xe, 450
torr |
BASE |
P2014,
NL9762 |
NEC |
|
ST7000 |
8 |
9 |
170 |
256 |
Xe |
5.8x12 |
|
|
|
ST292 |
8 |
10 |
189 |
333 |
Xe, 450 torr |
BASE |
P2021 |
NEC |
|
ST7083
|
18 |
20 |
5 |
129 |
Xe |
BASE |
NL7083,AQH5618 |
Plasmalite |
|
|
|
|
STX Series Xenon Lamps
Description of model number: STX-xxx-yyy-zzz-W or STX-xxx-yyy-zzz-DxL
STX ?
Xe lamp
xxx ?outside diameter (In general,
the thickness of the glass tube is 1mm)
yyy ?arc length
zzz ?over all length
W -- WIRE end style (no W means BASE end style)
DxL ?diameter and length of BASE if the end is BASE
|
|
Model |
Bore (mm) |
Arc (mm) |
OAL (mm) |
OD (mm) |
BASE (dia.xlength) |
User |
|
STX5x75x140 |
4 |
75 |
140 |
5 |
3x5 |
|
|
STX7x70x150 |
5 |
70 |
150 |
7 |
4x5 |
|
|
STX7x100x210 |
5 |
100 |
210 |
7 |
4x8 |
|
|
STX7x100x186 |
5 |
100 |
186 |
7 |
4x8 |
|
|
STX8x90x220 |
6 |
90 |
220 |
8 |
5x8 |
|
|
STX8x95x237-6x8-B |
6 |
95 |
237 |
8 |
6x8 |
Lelee Laser |
|
STX8x100x230 |
6 |
100 |
230 |
8 |
5x8 |
|
|
STX8x100x250 |
6 |
100 |
250 |
8 |
5x8 |
|
|
STX8x100x288 |
6 |
100 |
288 |
8 |
5x10 |
|
|
STX8x120x240 |
6 |
120 |
240 |
8 |
5x8 |
|
|
STX8x120x260 |
6 |
120 |
260 |
8 |
5x8 |
|
|
STX8x140x280 |
6 |
140 |
280 |
8 |
5x8 |
|
|
STX8x150x297 |
6 |
150 |
297 |
8 |
5x10 |
|
|
STX8x150x330 |
6 |
150 |
330 |
8 |
5x10 |
|
|
STX9x130x264 |
7 |
130 |
264 |
9 |
6x8 |
|
|
STX9x280x390 |
7 |
280 |
390 |
9 |
6x8 |
|
|
STX10x45x125 |
8 |
45 |
125 |
10 |
6.5x5 |
|
|
|
Remark: End style WIRE is
available upon request. |
|
|
|
3. IPL Lamps |
|
|
|
Model |
Bore(mm) |
Arc (mm) |
Quartz type |
Lamp type |
Typical IPL maker & system or equivalent to |
Application |
|
ST670 |
3 |
25 |
CFQ |
XFP |
|
|
|

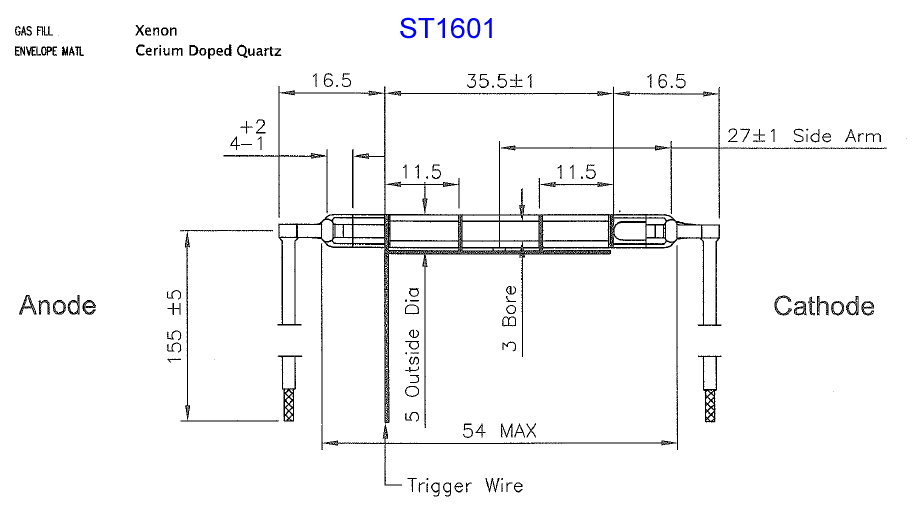

ST1601 |
3 |
35.5 |
CDQ |
XFP |
|
|
|
ST2062 |
4 |
50 |
CDQ |
XFP |
Sciton |
Hair removal & skin rejuvenation |
|
ST7081 (ST1062) |
4 |
50 |
CFQ |
XFP |
DDD,
Ellipse |
Hair removal |
|
ST7079 (ST1062) |
4 |
50 |
CFQ |
XFP |
Energies |
Hair removal |
|
ST7080 (ST1062) |
4 |
50 |
CFQ |
XFP |
Equinox, Light Touch |
Hair removal |
|
ST7081 (ST1062) |
4 |
50 |
CFQ |
XFP |
Greenton |
Hair removal |
|
ST6990 |
4 |
61 |
CFQ |
XFP |
|
|
|
ST7088 |
5 |
16 |
CDQ |
XFP |
MBC, Plasmalite |
Skin rejuvenation |
|
ST7084
|
5 |
16 |
CDQ |
XFP |
MBC, Plasmalite |
Skin rejuvenation |
|
ST7087 |
5 |
18 |
CDQ |
XFP |
MBC, Plasmalite |
Hair removal & skin rejuvenation |
|

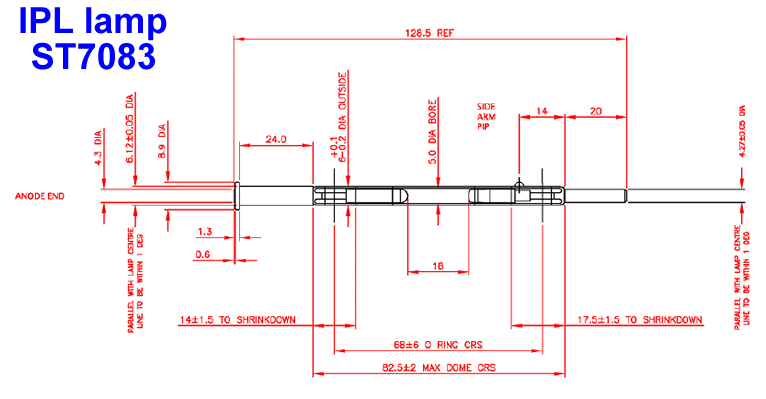

ST7083 |
5 |
18 |
CDQ |
XFP |
MBC, Plasmalite |
Hair removal & skin rejuvenation |
|
ST7086 |
5 |
20 |
CDQ |
XFP |
MBC, Plasmalite |
Hair Removal |
|

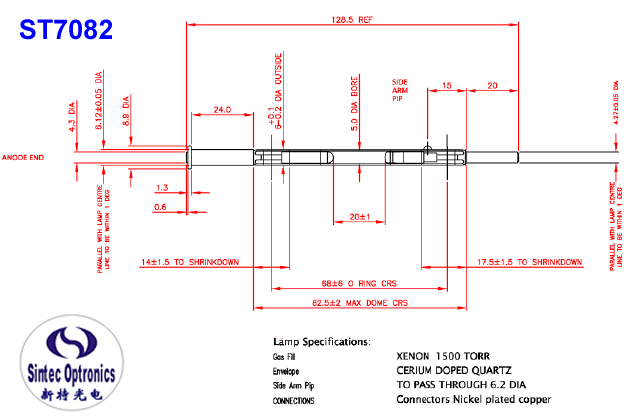

ST7082
|
5 |
20 |
CDQ |
XFP |
MBC, Plasmalite |
Hair removal |
|
ST5712 |
5 |
31 |
CDQ |
XFP |
Med-Op |
Hair removal |
|
ST5712G |
5 |
38 |
CDQ |
XFP |
Med-Op |
Hair removal |
|

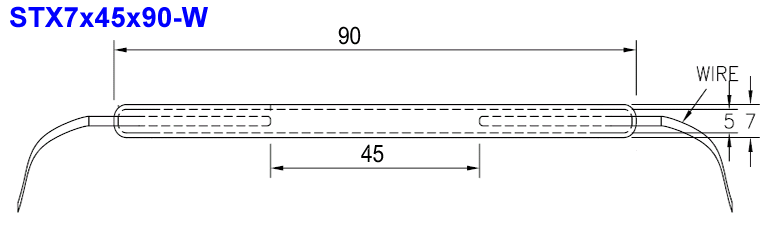

STX-7x45x90-W |
5 |
45 |
CDQ |
XFP |
P3096 |
Hair removal |
|
ST2305 |
5 |
48 |
CDQ |
XFP |
Palomar |
Hair/skin treatments |
|

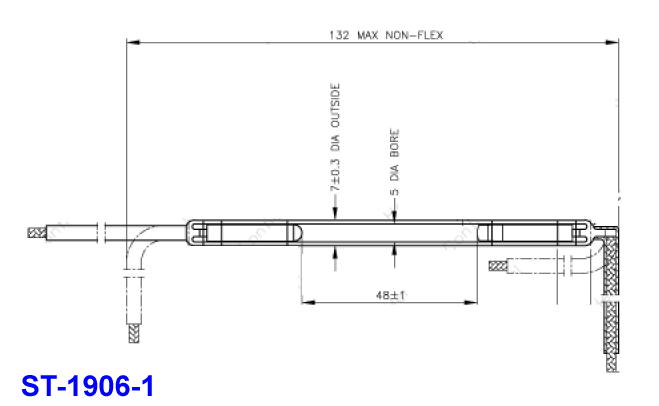

ST-1906-1 |
5 |
48 |
|
XFP |
Syntechlaser, Apollo III |
Hair removal |
|
ST2306/8667 |
5 |
50 |
CDQ |
XFP |
Palomar |
Hair/skin treatments |
|

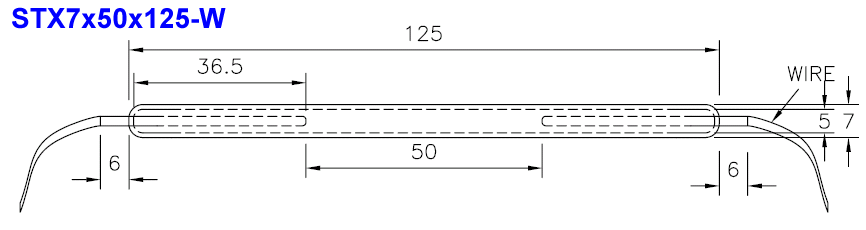

STX-7x50x125-W |
5 |
50 |
CDQ |
XFP |
|
Hair removal |
|
ST2216 (ST2237) |
5 |
76 |
CDQ |
XFP |
Lumenis, Epilight, Vasculite, Photoderm |
|
|
ST2253 |
5 |
45 |
CDQ |
XFP |
Primary Technology |
Hair/skin treatments |
|

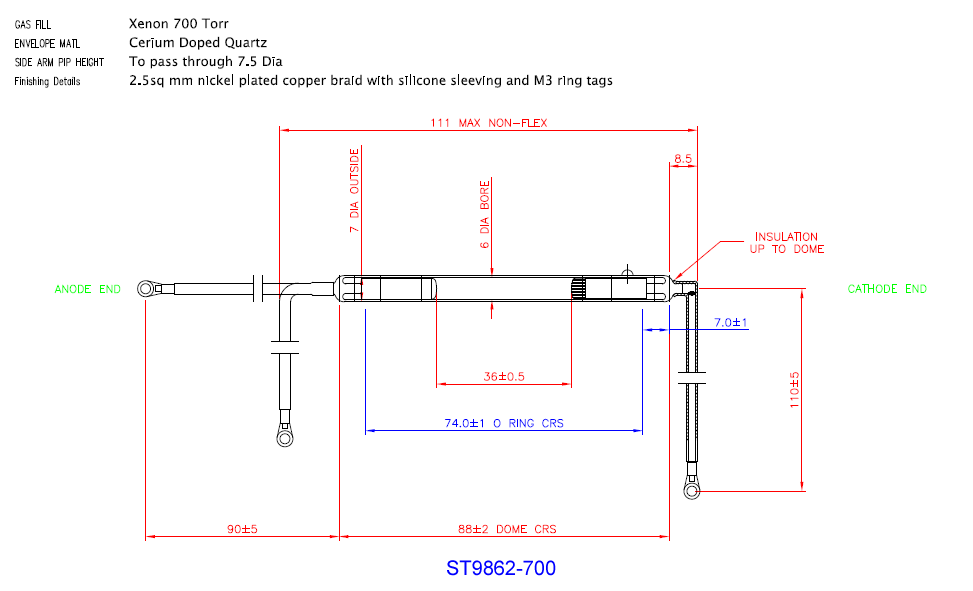

ST9862-700 |
6 |
36 |
CDQ |
XFP |
|
|
|

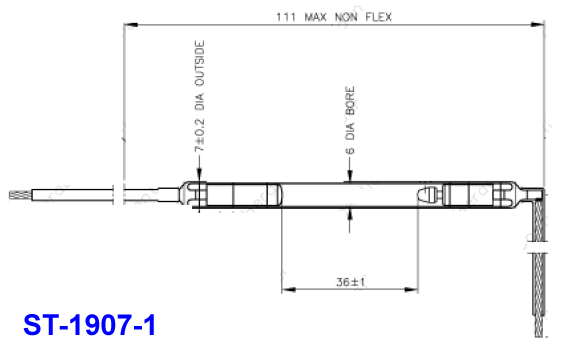

ST-1907-1 |
6 |
36 |
|
XFP |
Sharplight, Beamax |
Hair removal |
|

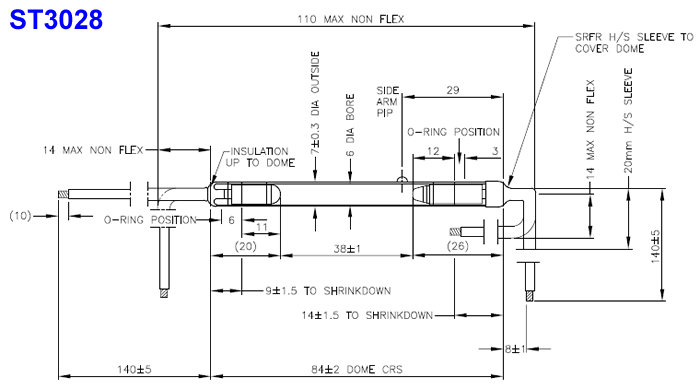

ST3028 |
6 |
38 |
CDQ |
XFP |
|
Hair removal |
|
ST2307 |
6 |
50 |
CDQ |
XFP |
Lord Ingenierie |
Hair removal |
|
ST2308 |
6 |
50 |
CDQ |
KPP |
Lord Ingenierie |
Hair removal |
|
ST2125 |
6 |
50 |
CDQ |
XFP |
Active Beauty |
|
|
ST2252 |
6 |
50 |
CDQ |
XFP |
Primary Technology |
Hair/skin treatments |
|
|
CDQ - UV
absorbing Cerium doped quartz
XFP -
Xenon gas filled |
|
|
|
Model |
Bore (mm) |
Arc (mm) |
OAL (mm) |
OD (mm) |
BASE (dia. mm) |
WIRE |
|
STX-6.5x50x116-3x4 |
4.5 |
50 |
116 |
6.5 |
3x4 |
Available |
|
STX-6.5x50x130-4x8 |
4.5 |
50 |
130 |
6.5 |
4x8 |
Available |
|
STX-6.5x70x135-W |
4.5 |
50 |
135 |
6.5 |
|
WIRE |
|
STX-6.5x50x180-4x8 |
4.5 |
50 |
180 |
6.5 |
4x8 |
Available |
|
STX-6.5x70x180-4x8 |
4.5 |
70 |
180 |
6.5 |
4x8 |
Available |
|
STX-7x50x116-4x8 |
5 |
50 |
116 |
7 |
4x8 |
Available |
|
STX-7x60x156-4x8 |
5 |
60 |
156 |
7 |
4x8 |
Available |
|
STX-7x75x160-4x8 |
5 |
75 |
160 |
7 |
4x8 |
Available |
|
STX-7x100x184-4x8 |
5 |
100 |
184 |
7 |
4x8 |
Available |
|
STX-7x100x186-4x8 |
5 |
100 |
186 |
7 |
4x8 |
Available |
Remark: 1)
UV
absorbing cerium doped quartz is used in the STK series lamps.
2) End style WIRE is available upon request. |
|
|
|

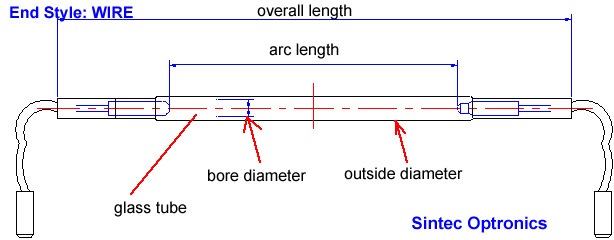

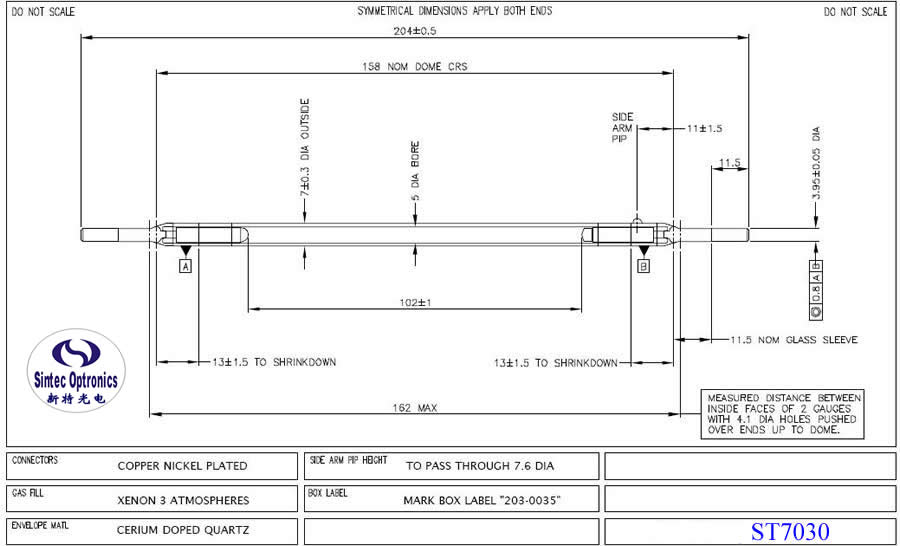

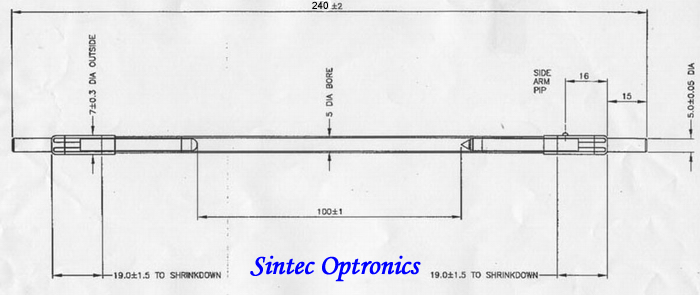

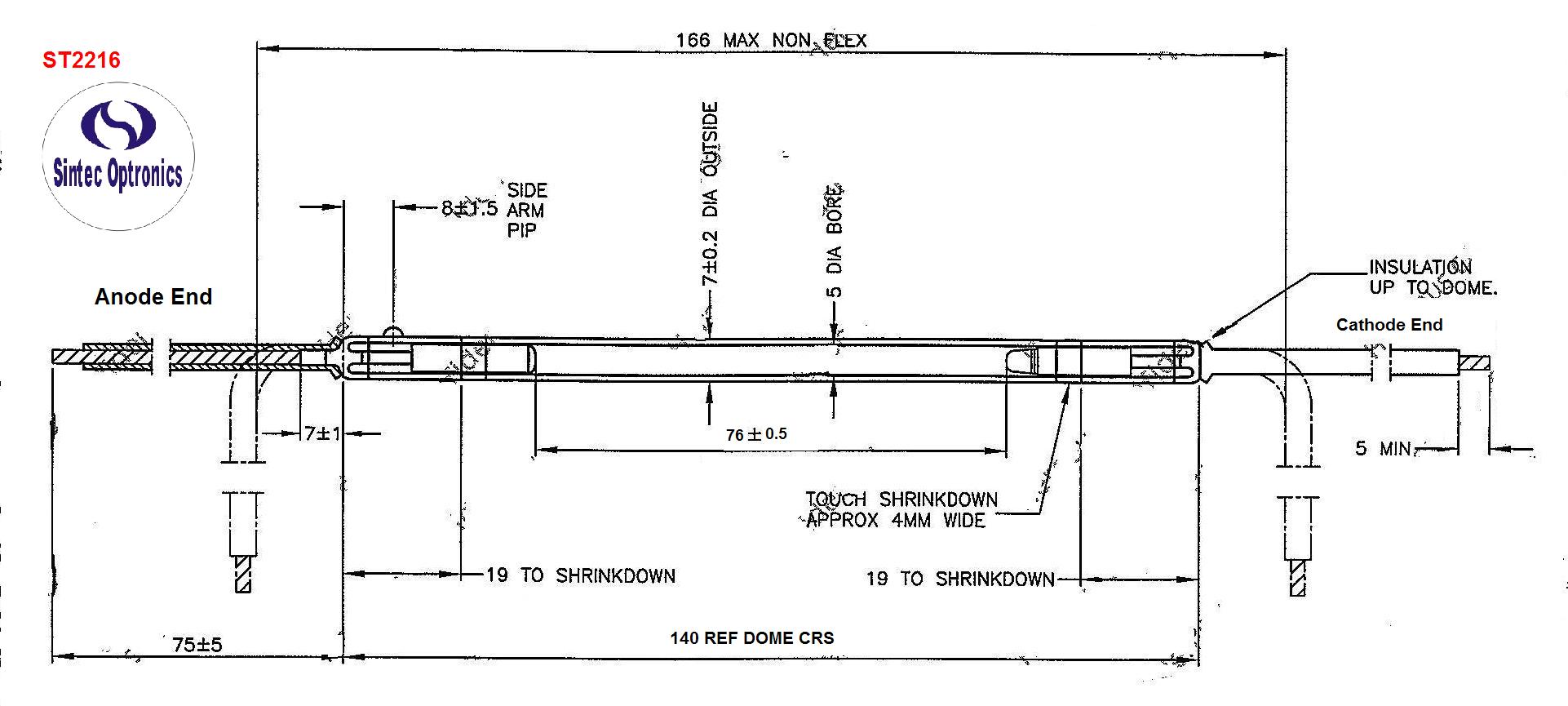

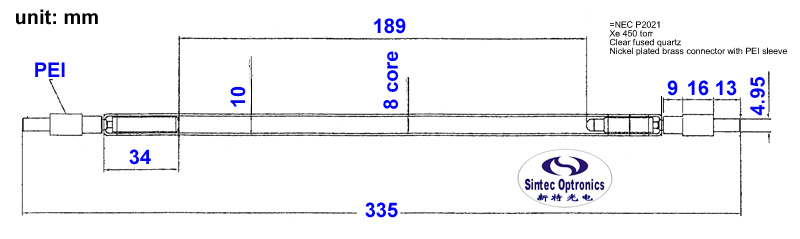

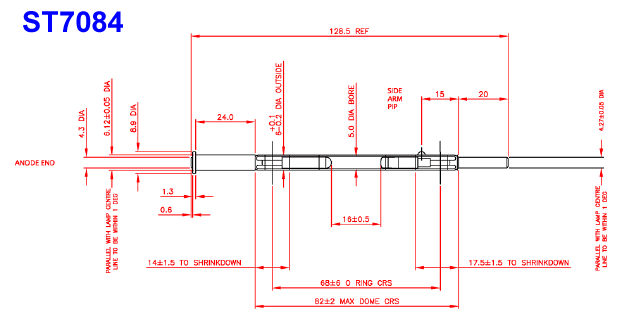

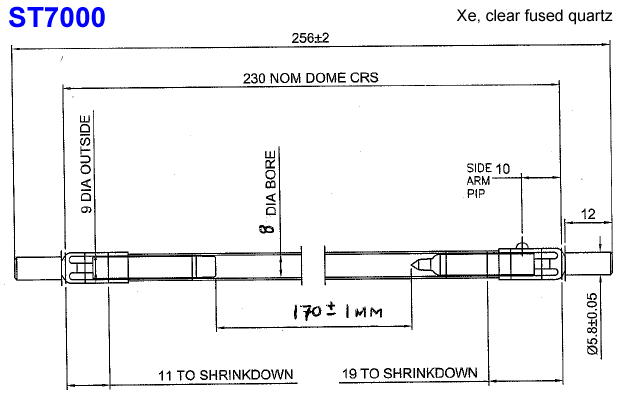

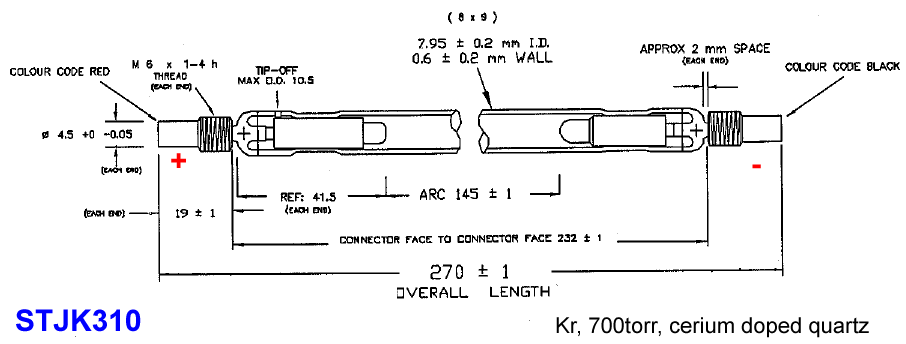

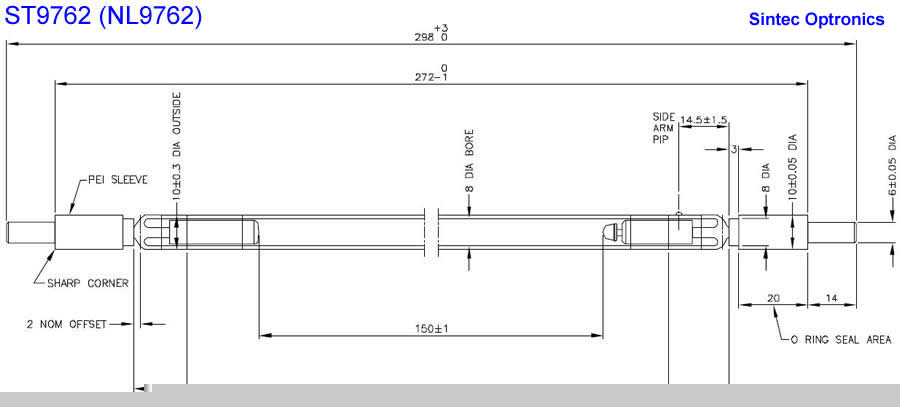

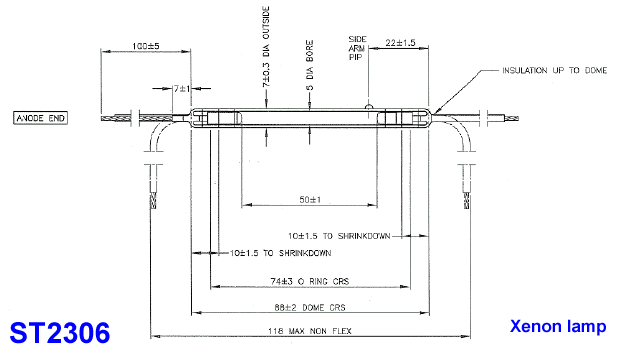

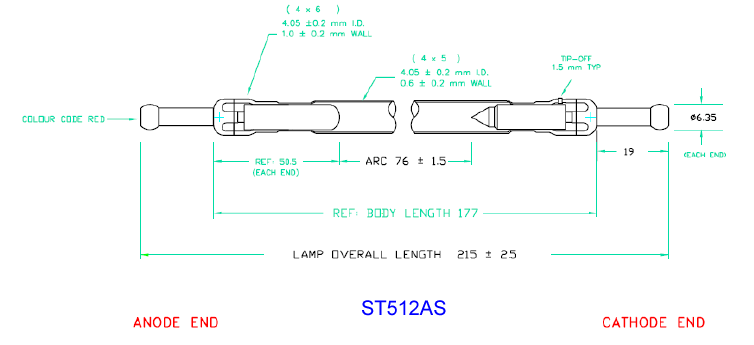

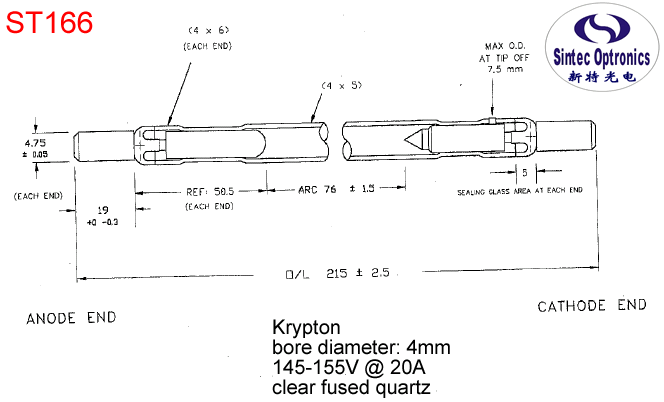

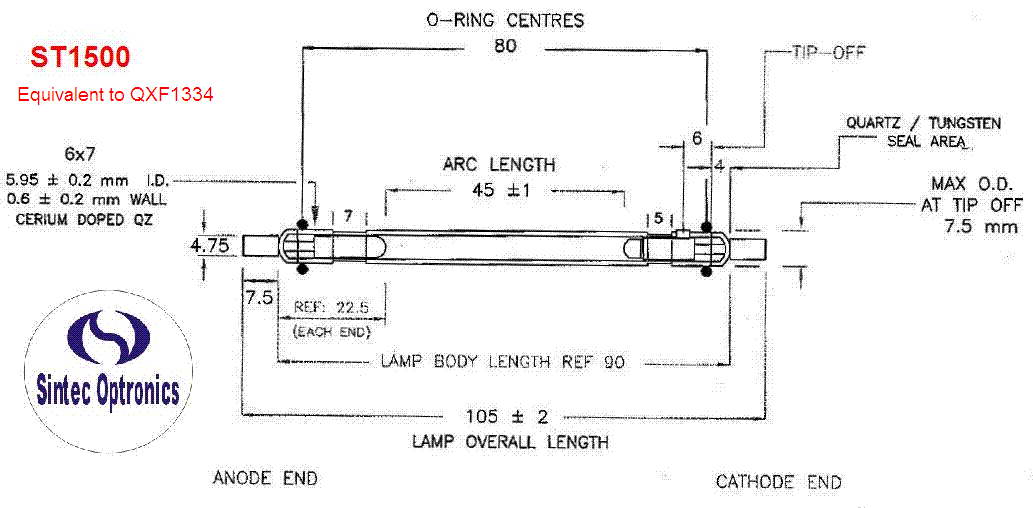

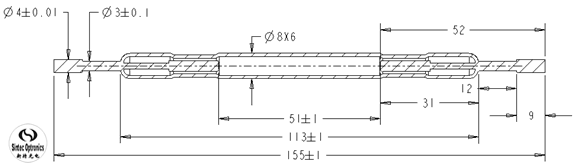

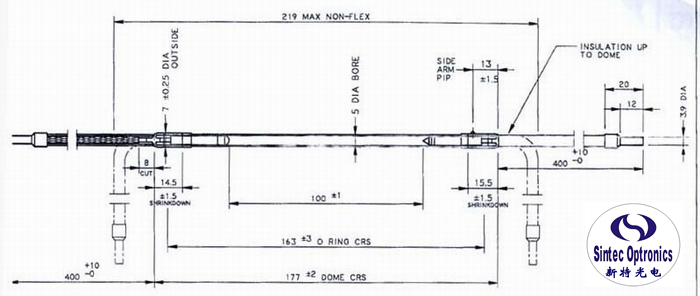

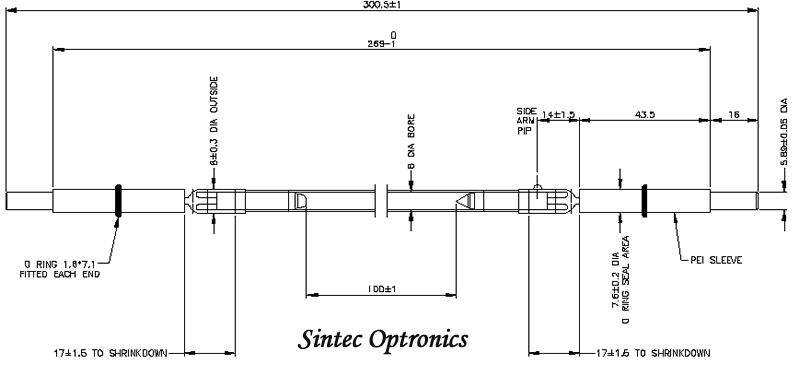

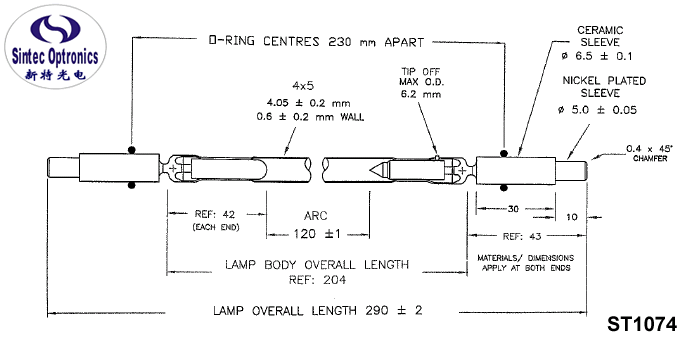

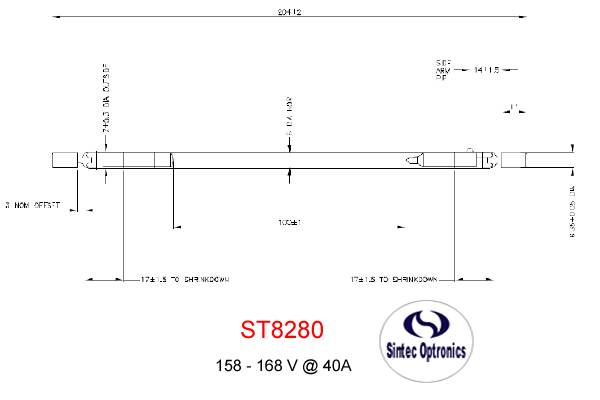

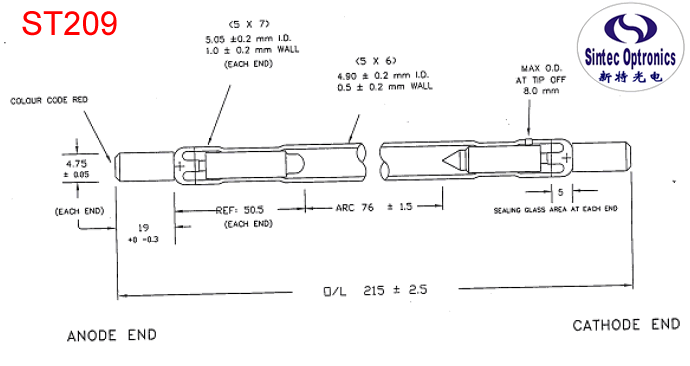

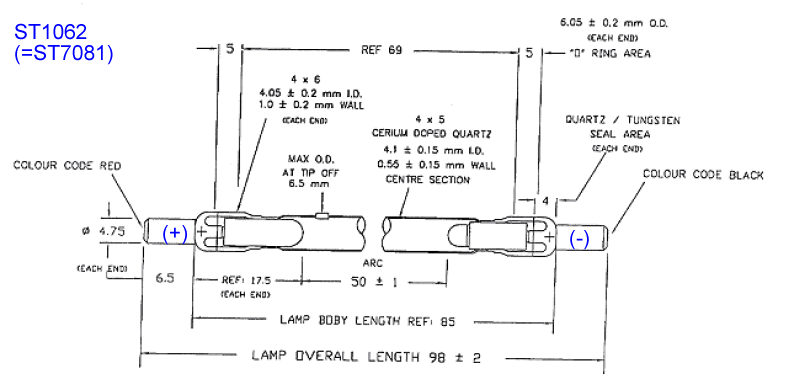

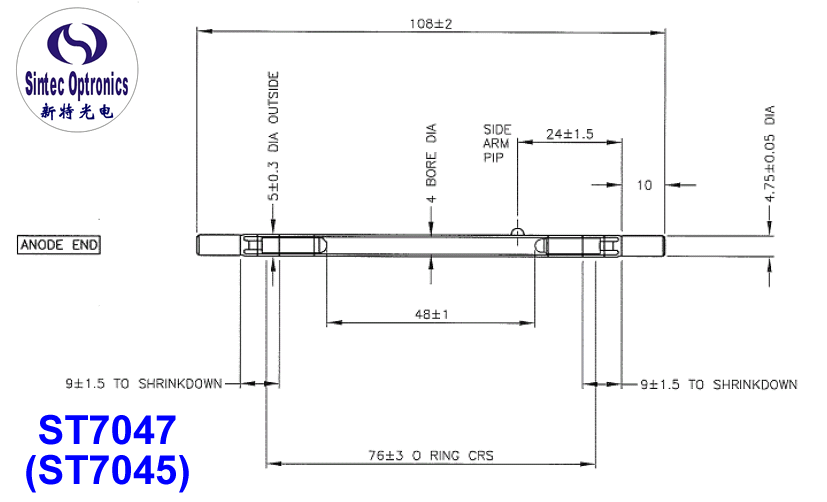

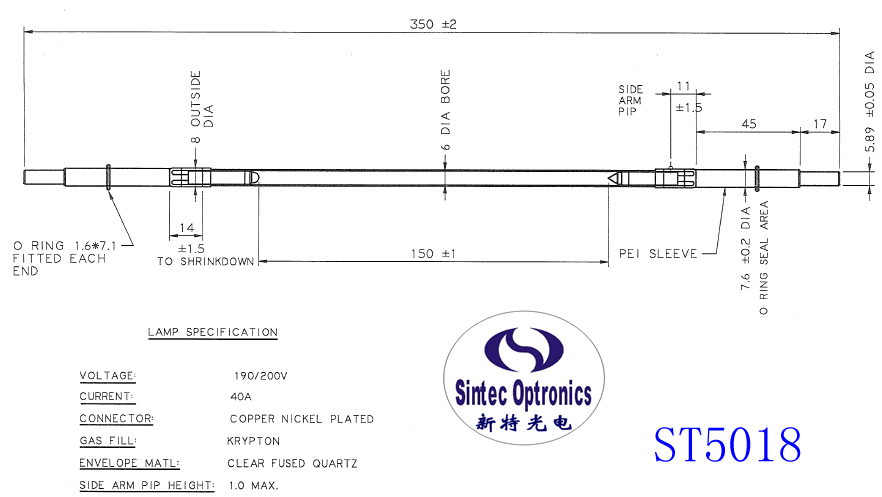

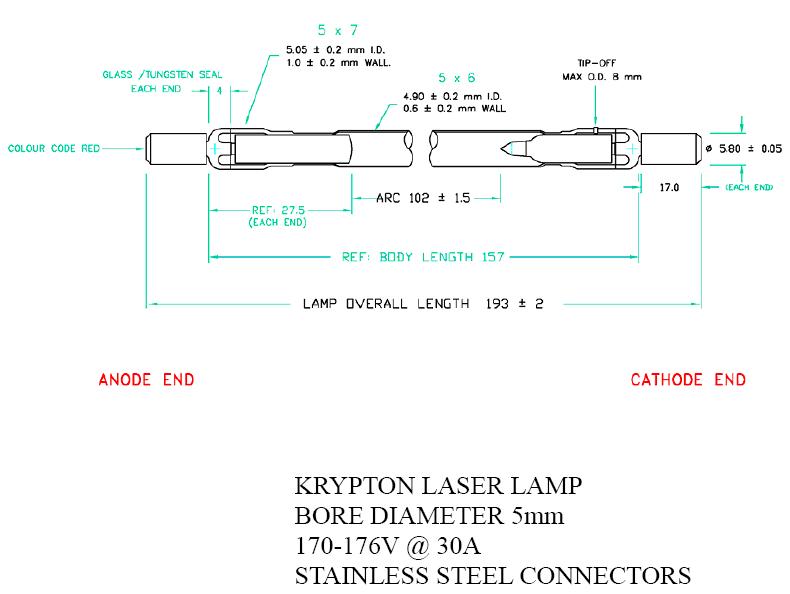

For STX and STK series lamps, please refer to the
following figures to tell us what you want if you can not find the lamps
from the above tables. We may custom-design and �make the lamps for you.
 |
|
|
|
If you are using a laser and
know the brand, please refer to the following
table which shows the lamp models used in individual laser machines.
Please fill the detailed requirement
form (PDF) or requirement
form (DOC) of the lamps for quotation.
|
|
|
|
More Lamps
CW
Arc Lamp Drivers Pulse Flashlamp
Drivers
Download Catalogue "Lamps"
(PDF)
|
|
Reference Basics of Laser Lamps
Lifetime of Laser Lamps |
|
|
|
|
