         List of Products             Flat Metalenses


Our flat lenses are perfect for laser processing tools. They provide extended depth-of-field, making it easy to mark a variety of objects with precision. Whether you need to mark a metal part with a serial number or weld a plastic part together, this lens will make the job easy. It is a new generation of ultralight, low cost, high performance metalens surfaces.

Our lenses are perfect for applications where high resolution over an extended depth of field is required. Each lens has a very low profile, making it easy to integrate into your system. It is also customizable for any laser wavelength and beam diameter, making it perfect for your needs. Our lenses are carefully crafted via lithography to provide the best results each time. With our lenses, you can experience enhanced precision, quality, and reliability in a variety of laser processing tools.

We have created an advanced optical surface design technology that enables ultralight, low cost and high performance metalens surfaces. Our domain expertise in optical design and high precision volume manufacturing allows us to deliver optical performance and capability previously unachievable with traditional refractive, diffractive or metalens methods.

1.     STOB Series Flat Lenses for Extended Depth of Field

Flat lenses are perfect for laser processing tools, they provide extended depth-of-field, making it easy to mark a variety of objects with precision. Whether you need to mark a metal part with a serial number or weld a plastic part together, this lens will make the job easy. This lens boasts the following advantages:

  • Extended depth of field (>75 mm)

  • Excellent PSF performance

  • Ultralow profile

  • Low-cost, large volume manufacturing

  • Customizable for any laser wavelength

  • Tolerant to high laser fluences

Specifications:

Optical Specifications

Wavelength

1064nm

EFL

195-270mm

DOF (extended)

75mm

Lens Diameter

3mm

Transmission Efficiency

>90%

Tolerant to High Laser Power



Mechanical Specifications

Diameter

3mm

Thickness

<1mm

Weight

<1gram

PSF Spot Size (FWHM)

195mm from lens

78μm

225mm from lens

103 μm

270mm from lens

98 μm

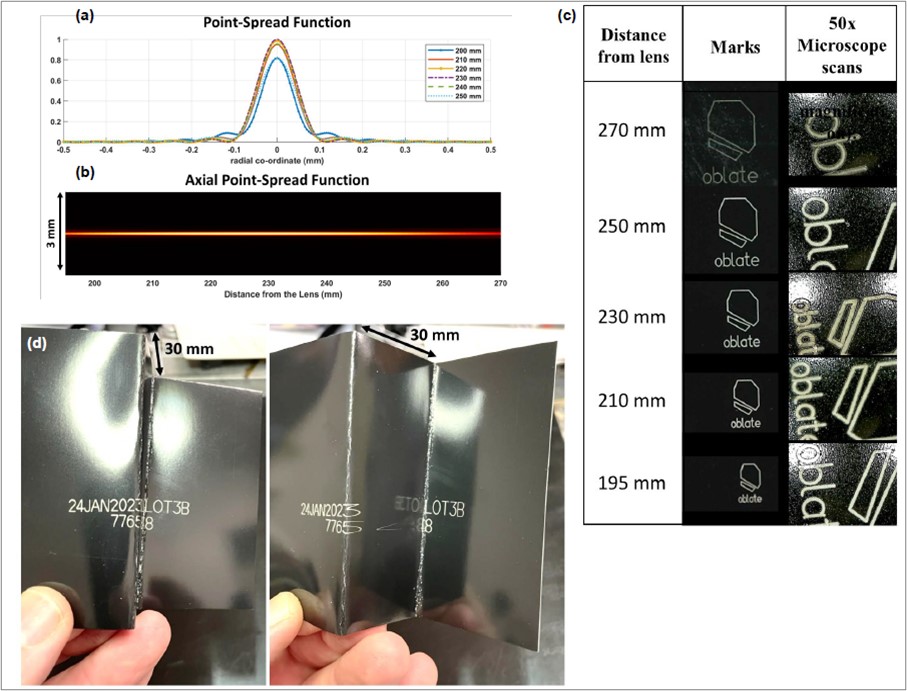

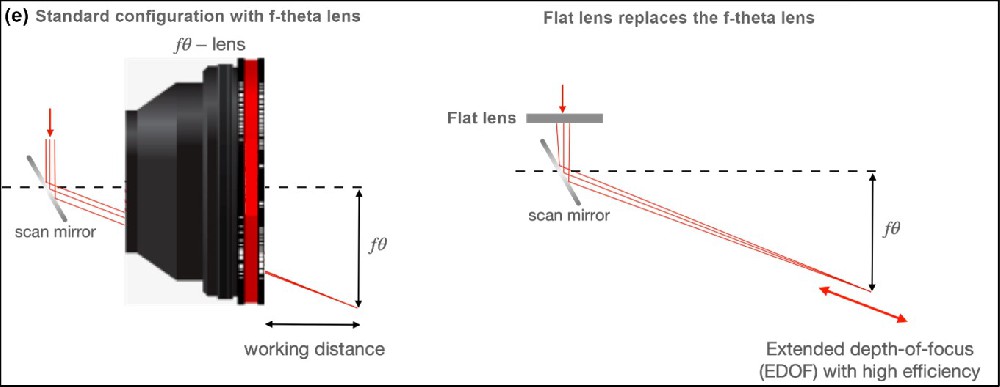

The performance of the extended depth of field (EDOF) flat lens is shown below. The calculated Point-Spread Function (PSF) shows good focusing for the extended depth of focus range in Fig. (a). The calculated PSF as a function of distance from the lens is also shown in Fig. (b). To the right Fig. (c), standard black-card mark tests are shown from 195 - 270 mm from the lens as well as microscope scans of the marks (50x magnification). No refocusing was performed as the target distance was changed. While the size of the mark varies due to galvo drawing, the spot size remains uniform. In the lowermost photographs Fig. (d), a standard black-card mark test was made on a folded card where the two surfaces of the card were spaced 30 mm apart. The markings are clear and distinct on both surfaces.  Besides, the flat lens can replace the f-theta lens which is more space-saving and cost-effective, as shown in Fig. (e).

Ordering number:

STOB-EDF-WW-XX-YY

  • WW : wavelength

  • XX : effective focal length (EFL)

  • YY : Depth of field

Example: STOB-EDF-1064-195-55

  • Wavelength = 1064nm

  • EFL =>195mm

  • Depth of field = 55mm

The table showing some of our capability is below

Wavelength

EFL

DOF

Diameter

Spot Size

355 nm

25 - 100 mm

25, 50 mm

3 - 6 mm

25 - 250 um

532 nm

25 - 100 mm

25, 50 mm

3 - 6 mm

25 - 250 um

1064 nm

25 - 100 mm

25, 50 mm

3 - 6 mm

25 - 250 um

10.6 um

25 - 100 mm

25, 50 mm

3 - 6 mm

50 - 250 um

For ordering a metalens, please tell us your requirements on laser wavelength, effective focal length, depth of focus, beam diameter, required focal beam diameter and quantity.

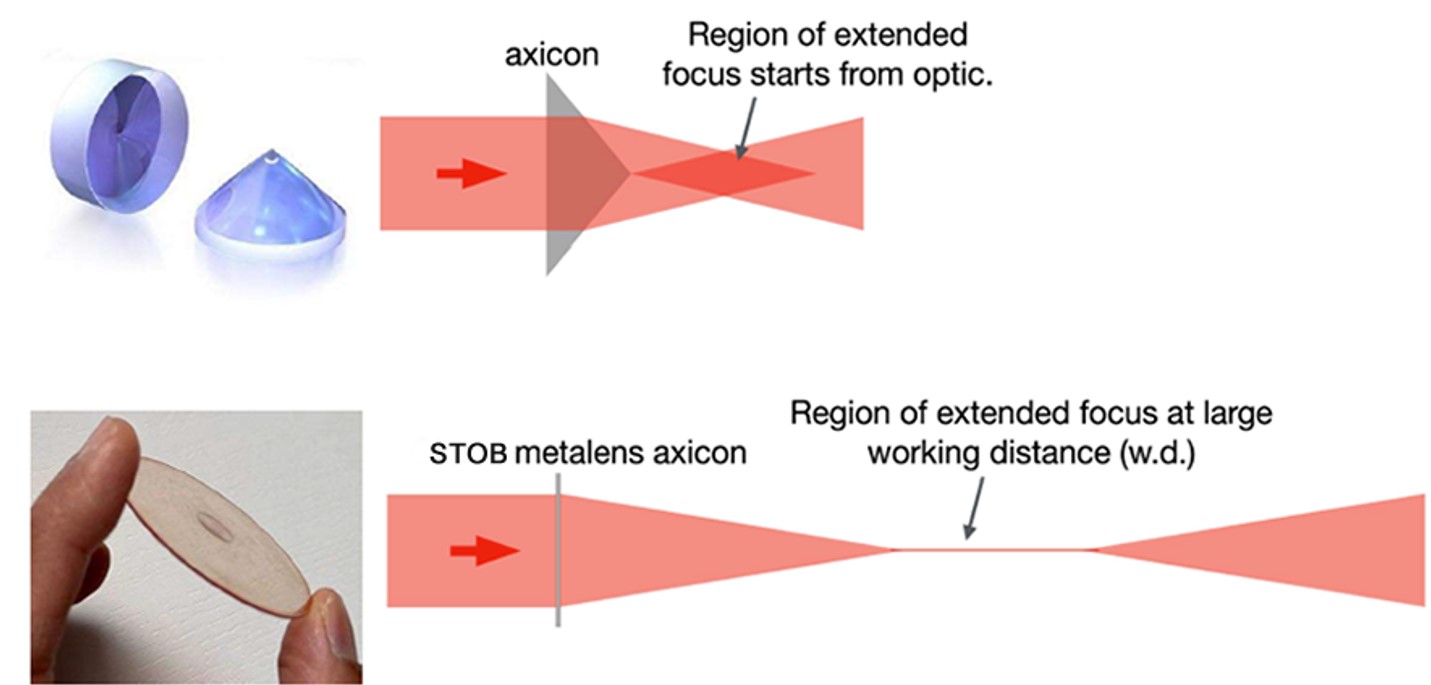

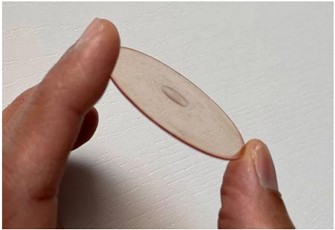

2.     STOB Series Metalens Axicon Lenses for Extended Depth-of-field Application

We are the exclusive manufacturer of metalens axicon lenses suitable for applications where high resolution over an extended depth-of-field is desired. Applications include laser marking, machining, welding, microscopy, imaging & ophthalmology.

Such lenses afford the following advantages:

  • Extended depth-of-focus (for example >70mm @ w.d. of 125mm).

  • No need for slow & expensive refocusing mechanisms.

  • Larger working distances than conventional axicons (>250mm possible)

  • Uniform peak intensity over the extended depth-of-focus (DOF)

  • High efficiency & diffraction-limited spot sizes.

  • Low cost, thin (<1mm) & lightweight (1g)

  • Customizable for any laser wavelength & beam diameter

  • Tolerant to high laser fluences

The following lens specification are representative of our axicon metalens technology capability. Please contact us for other specifications.

Part Number

STOB-1064-6-280

Wavelength

1064nm

Diameter

6mm

EFL

280mm

DOF (extended)

50mm

Spot Size (FWHM)

<67 Ám

On-Axis Intensity Variation

+/- 10%

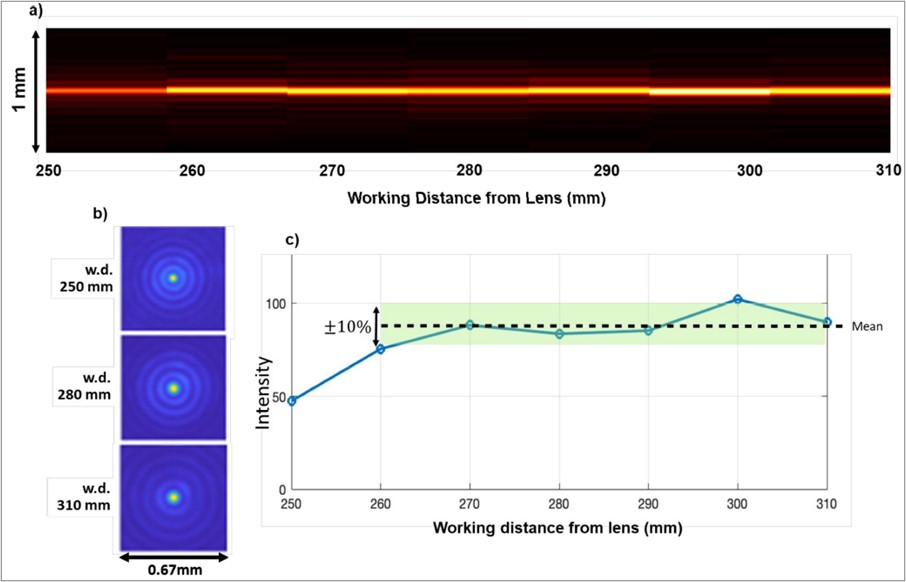

Experimental Data

a) Axial Point-Spread Function

b) Point-Spread Function at three distances from the lens,

c) Peak intensity of on-axis spot. Variation along the working distance is +/-10%

Part Number

STOB-10.6-8-64

Wavelength

10.6 Ám

Diameter

8mm

EFL

64mm

DOF (extended)

16mm

Spot Size (FWHM)

<85 Ám

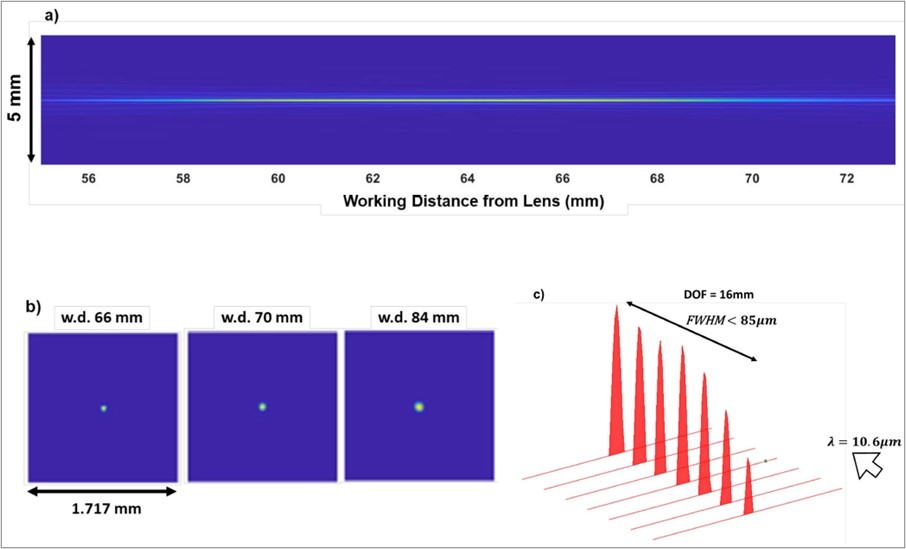

Experimental Data and Compute Simulations

a) Computer simulation of axial point-spread function

b) Experimental data of point-spread function at three distances from the lens

c) Experimental data showing measured depth of field and FWHM of spot size.



3.     STOB Series FOV Infrared Lenses for Time-of-Flight Applications

We have designed and built an ultra-low profile diffractive metalens suitable for applications where an extended field of view is required. This technology boasts the following advantages:

  • Field of view of 80 degrees

  • Excellent PSF performance

  • Ultralow TTL (< 2.5 mm)

  • Low-cost, large volume manufacturing

  • Customizable for any wavelength

The following lens specifications are representative of our infrared metalens technology capability. Please contact us for custom requirements and design capabilities.

Specifications of the STOB Series Infrared TOF metalens with Large Field of View

Optical Specifications

Wavelength

850nm

EFL

1.5mm

FOV

80 degrees

Spot size (FWHM)

Diffraction limited

Lens Diameter

0.42mm

Transmission Efficiency

>90%

Mechanical Specifications

Diameter

0.42mm

Thickness

<1mm

Weight

<1gram

Spot Size (FWHM)

0 degrees

7.3μm

40 degrees

10.7μm

80 degrees

22.4μm

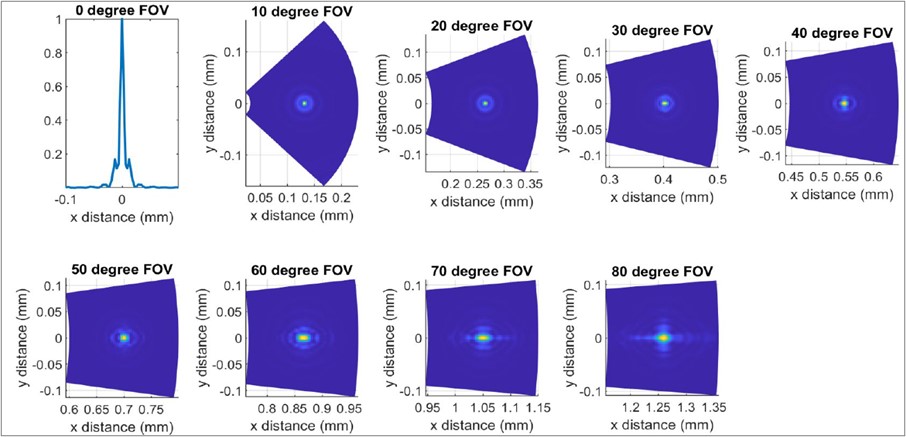

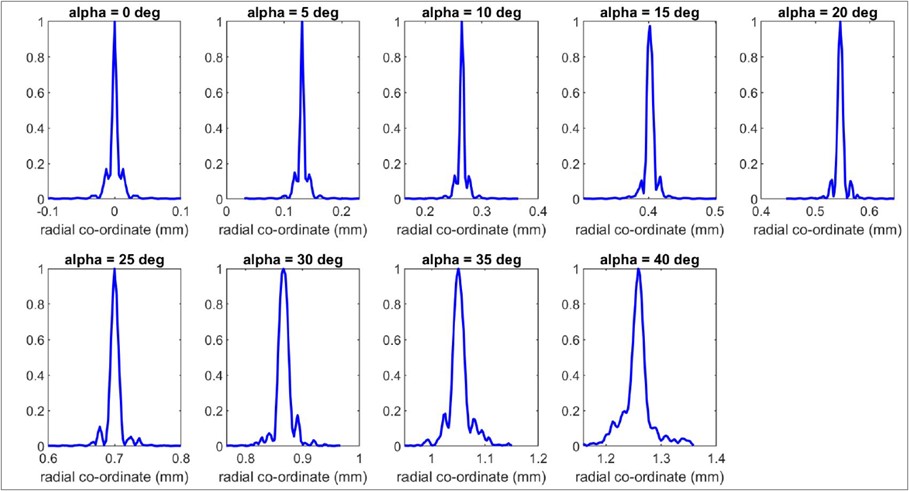

The performance of the large field-of-view TOF metalens is shown below as Point-spread Function

 (PSF) at 850 nm. The PSF shows high performance focusing for the entire field of view 80 degrees.

Ordering number:

STOB-LFV-WW-XX-YY

  • WW : wavelength

  • XX : effective focal length (EFL)

  • YY : field of view (FOV)

Example:

STOB-LFV-1064-2-70

  • Wavelength = 1064nm

  • EFL = 2mm

  • FOV = 70 degree

4.     STOB Series Metalens-Enabled Microlens Arrays for Imaging Applications

We have designed and built a freeform diffractive microlens array suitable for multiple applications in 3D integral imaging including:

  • Anti-counterfeiting technology

  • Physical security

  • 3D displays

  • Lightfield cameras

  • Wavefront sensors

  • Fiber coupling

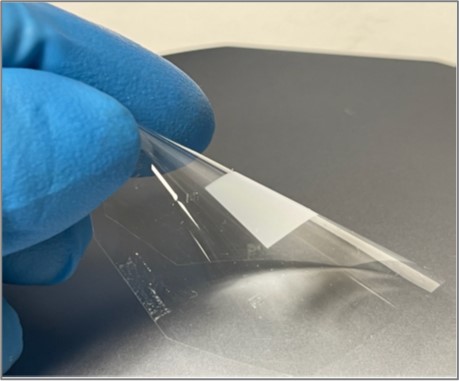

Metalens-enabled microlens array on a flexible substrate for imaging applications.

(Microlens pitch = 70μm, F-number: f/0.5, Substrate thickness 40μm)

Integral imaging demonstrated using a metalens-enabled microlens array and a high-resolution color print. As the print plus the microlens array is tilted three dimensional patterns and colors change. This demonstration has applications in document security.

Major advantages of STOB Series Metalens technology:

  • Low f# (0.5 and larger)

  • Extended depth of focus for high robustness

  • Broadband performance in the visible, NIR, or LWIR

  • 100% fill factor

  • Flexible device with ultra-low profile

  • Low-cost, large volume manufacturing with nano imprint lithography

  • Simplified alignment
