         New Products             Fiber-coupled Diode Lasers

STFB series Fiber Coupled Lasers Diode

Single Mode FP Laser Diode

Wavelengths range - 980-1790 nm
CW optical output power - up to 200 mW
Types of packages: SOT-148 (9mm), C-mount and other packages on request



Multi Mode FP Laser Diode

Wavelengths range - 940-1790 nm
CW optical output power - up to 4 W
Pulse output power - up to 100 W
Types of packages available: HHL w/window, HHL w/fiber, C-mount, TO-3 and other packages on request



Main Applications:

  •  Fiber and Solid-State Lasers Pumping

  •  Telecommunications

  •  Metrology (Location, Optic Fiber Quality Check, Range Finding)

  •  Medicine (Therapy, Acupuncture, Microsurgery)

  •  Material Proccesing (Cutting and Welding of Metals, Engraving)

  •  Tactical purposes (Night Viewing Devices, Laser Sights)

Part No. Wavelength(nm) Mode Output Power(mW) Typical
Drive Current(mA)
Package Types Available '2
FB-S1060-20SOT148 1060 SM 20 70 SOT-148(9mm) or C-mount
FB-S1060-50SOT148 1060 SM 50 100 SOT-148(9mm) or C-mount
FB-S1300-10SOT148 1300 SM 10 80 SOT-148(9mm) or C-mount
FB-S1300-20SOT148 1300 SM 20 100 SOT-148(9mm) or C-mount
FB-S1300-30SOT148 1300 SM 30 145 SOT-148(9mm) or C-mount
FB-S1300-40SOT148 1300 SM 40 195 SOT-148(9mm) or C-mount
FB-S1300-50SOT148 1300 SM 50 250 SOT-148(9mm) or C-mount
FB-S1550-10SOT148 1550 SM 10 80 SOT-148(9mm) or C-mount
FB-S1550-20SOT148 1550 SM 20 120 SOT-148(9mm) or C-mount
FB-S1550-30SOT148 1550 SM 30 165 SOT-148(9mm) or C-mount
FB-S1600-10SOT148 1600 SM 10 80 SOT-148(9mm) or C-mount
FB-S1600-20SOT148 1600 SM 20 130 SOT-148(9mm) or C-mount
FB-S1600-30SOT148 1600 SM 30 180 SOT-148(9mm) or C-mount
FB-S1600-40SOT148 1600 SM 40 250 SOT-148(9mm) or C-mount
FB-M1060-2000HO 1060 MM 2000 3000 HHL w/window
FB-M1060-2000HF 1060 MM 2000 3000 HHL w/fiber
FB-M1060-2000TO3 1060 MM 2000 3000 TO-3
FB-M1060-2000CM 1060 MM 2000 3000 C-Mount
FB-M1060-3000HO 1060 MM 3000 4000 HHL w/window
FB-M1060-3000HF 1060 MM 3000 4000 HHL w/fiber
FB-M1060-3000TO3 1060 MM 3000 4000 TO-3
FB-M1060-3000CM 1060 MM 3000 4000 C-Mount
FB-M1260-500HO 1260 MM 500 2750 HHL w/window
FB-M1260-500HF 1260 MM 500 2750 HHL w/fiber
FB-M1260-500TO3 1260 MM 500 2750 TO-3
FB-M1260-500CM 1260 MM 500 2750 C-Mount
FB-M1470-1000HO 1470 MM 1000 3000 HHL w/window
FB-M1470-1000HF 1470 MM 1000 3000 HHL w/fiber
FB-M1550-500HO 1550 MM 500 3000 HHL w/window
FB-M1550-500HF 1550 MM 500 3000 HHL w/fiber
FB-M1550-500TO3 1550 MM 500 3000 TO-3
FB-M1550-500CM 1550 MM 500 3000 C-Mount
FB-M1550-2000HO 1550 MM 2000 7500 HHL w/window
FB-M1550-1500HF 1550 MM 1500 7800 HHL w/fiber
FB-M1600-500TO3 1600 MM 500 2500 TO-3
FB-M1600-500CM 1600 MM 500 2500 C-Mount
FB-M1600-500HO 1600 MM 500 2500 HHL w/window
FB-M1600-500HF 1600 MM 500 2500 HHL w/fiber
FB-M1600-1000TO3 1600 MM 1000 2500 TO-3
FB-M1600-1000CM 1600 MM 1000 2500 C-Mount
FB-M1600-1000HO 1600 MM 1000 2500 HHL w/window

Notes:

1. All prices are subject to negotiate depending on quantities.

2. Datasheet for single mode C-mount on request. Other packages on request.

For products specification and dimension. Please refer HERE!



STBWT series Fiber Coupled Diode Lasers



Our STBWT series fiber-coupled diode laser can be divided into two categories:

Single Emitter Diode Laser

Single emitter diode lasers can provide multi-wavelength covering 405nm to 976nm, output power from 2mW to 10W. Mainly used in the area of fiber laser pumping ,computer to plate(CTP), DPSS laser pumping, medical use, aiming beam, industry etc. For different application, varieties of packages with optional functions of aiming beam, photo detector, TEC, fiber detector, thermistor and other functions are available.

405nm

450nm

520nm

635nm

6xxnm

808nm

830nm

9xxnm

976nm

160mW

800mW

2mW
5mW
15mW

2mW
5mW
15mW
20mW
400mW
500mW

2mW
4mW
5mW
10mW
20mW
30mW
40mW
60mW

2W
4W
8W

1W
2W

4W
10W
11W

3W
9W



Multi-Single Emitter Diode Laser

Multiple single emitter diode lasers build upon the foundation of multi-emitter coupling technology, to obtain high power and high brightness diode laser. Varieties of packages with optional functions of aiming beam, photo detector, TEC, fiber detector, thermistor and other functions are available. Multi single emitter diode lasers have great advantages in high reliability and high performance. In multi-single emitter diode laser, BWT have patented many improved optical designs. And these compact packages and commercially recognized formats allow easy integration into the existing products.
Multi single emitter diode lasers include wavelengths from 635nm-976nm, output power from 1.6W-200W.

635nm

793nm

808nm

915nm

940nm

976nm

635nm

5W


7W
7.5W
17W
30W
55W

3W
15W
20W
30W
35W
40W
50W
60W
100W

20W
25W
30W
50W
65W
70W
110W
150W
158W
200W

18W
20W
25W
70W
200W

15W
20W
25W
30W
60W
70W
200W

18W
27W
50W
60W
80W
85W
180W



STBWT Series Fiber Coupled Diode Lasers Rack Mounted Systems

We offer diode laser rack mounted subsystems ranging from wavelength 450nm to 1550nm and the output can be up to 300 watt. The system can integrate several functions upon customizable request. Compact and operate-friendly designs make it very easy to use. To meet customer’s specific demanding and provide high quality products and laser solutions are our eternal pursuit.



Wavelength

Power

Fiber

635nm

400mW

105μm,200μm,400μm 0.22

808nm

2mW-300W

Customizable

105μm,200μm,400μm 0.22

915nm

2mW-300W
Customizable

105μm,200μm,400μm 0.22

980nm

2mW-300W
Customizable

105μm,200μm,400μm 0.22



ST Series High-Power Fiber-coupled Diode Lasers



The diode laser offers remarkable laser beam quality with high brightness and high optical power density. The CW optical power of up to 1000 W is delivered through various fibres with small fibre core diameter from 100 µm to 600 µm. Small numerical aperture of 0.22 yields the perfect beam source for your application.



All systems are also available with power supply and/or cooling unit. We can offer you our fibre-coupled laser systems with the wavelengths of 808 nm, 915 nm, 940nm and 980 nm.



Features

  • fibre easily replaceable due to plug & play fibre connector

  • fibre-coupled output

  • optical power 10...1000 W

  • small NA of 0.22

  • conductively cooled package

  • maintenance-free

  • long lifetime

Applications

  • pumping solid state lasers

  • material processing

  • soldering

  • inspection

  • medicine

  • printing

  • plastics welding



Fiber output power [W]

Fiber core diameter (NA 0.22)

Series

100μm

200μm

400μm

30





STFB

32





STFB

35





STFB, STFO

35





STFG

40





STFB, STFO

45





STFG

50





STFG

60



STFG

60





STFP

70





STFP

80





STFP

100





STAV5

120





STAV5

180





STAV5

200





STAV10

350





STAV10



1. STFB Series Fiber-coupled Diode Lasers



· High brightness laser for medical, pump and material processing applications

· SMA905 Plug & Play connector for optical fibers

· Compact dimensions

· Passively cooled

· 2 temperature sensors (NTC/PT100)





Optical Data

CW-nominal output power (W)

30

32

Central wavelength l  (nm)

805-810, 915, 940, 975-9801

Tolerance of l (nm)

±10 (±3, ±2)2

Spectral width (FWHM) (nm)

< 5 (<4)2

Temperature drift of l3 (nm/K)

~0.3, ~0.35, ~0.4

Fiber data

Fiber core diameter (um)

200

400

Fiber-optic connector

SMA905

Electrical data

Typical operation current (start of lifetime) (A)

40

40

Max. operation current (start of lifetime) (A)

50

50

Max. operation current (end of lifetime) (A)

60

60

Typical threshold current (A)

5 - 8

Typical efficiency (%)

42

44

Typical slope efficiency (W/A)

0.7 – 1.0

Operation voltage (V)

< 2

Reverse voltage (V)

< 2

Thermal conditions

Diode operation temperature4 (oC)

+15 … 30

Storage temperature (oC)

-20 … +60

Recommended heat sink capacity (W)

> 80

Recommended heat sink thermal resistance (K/W)

< 0.1

Other specifications

Expected lifetime5 (hours)

20,000

RoHS 2002/95/EC and CE compliant

YES

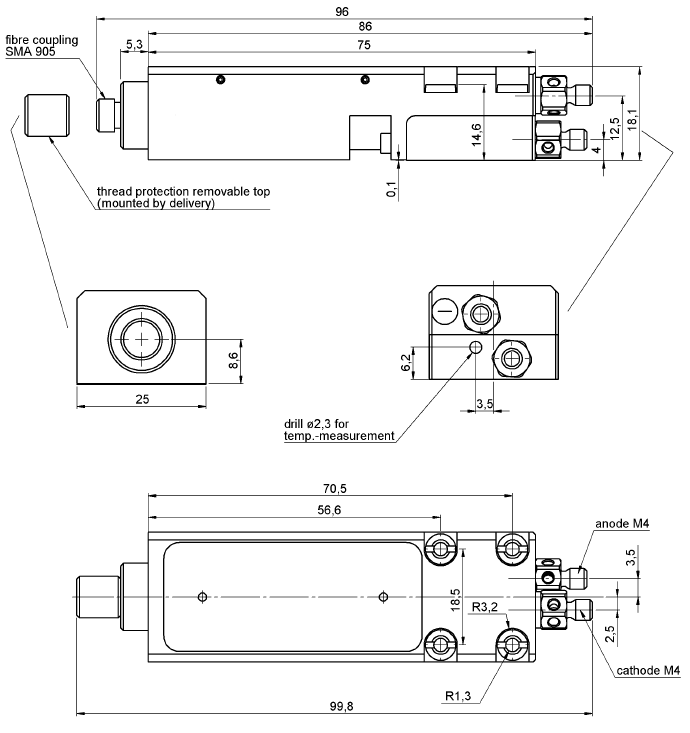

Dimension of laser head (connector not included) (mm)

75x25x18 (without pilot beam)

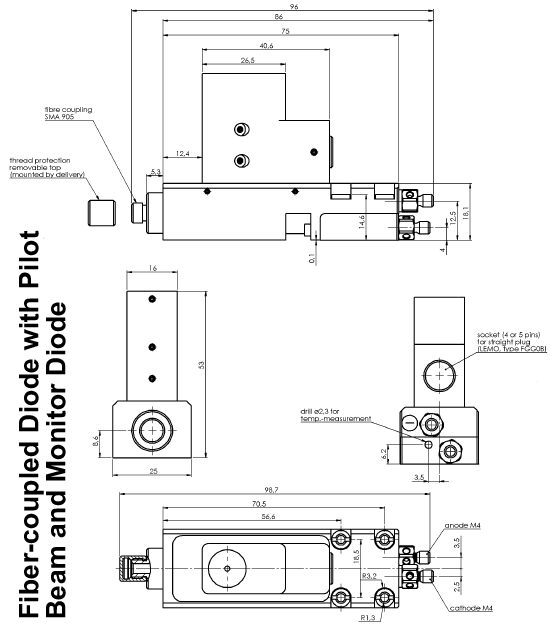

75x25x53 (with pilot beam)

Weight (g)

300

1 Other wavelength on request; 2 optional; 3 Depending on wavelength; 4 Measured by NTC/PT100 at temperature measurement hole defined in drawing; 5 According ISO 17526:2003 (E)



Optional accessories

Pilot beam

Pilot beam output power (mW)

> 0.7

Pilot beam wavelength (nm)

635 ± 5

Pilot beam voltage (V)

3-5

Pilot beam current (mA)

< 120

Monitor diode

Operation voltage (Vdc)

5

Monitor diode signal (V)

0-2



Product Name Identification:

STFBxxx

F-xxxx

- xxxx

- xxxx

- xxxx

- xxx

Power

Fiber core diameter

Wavelength

Wavelength tolerance

Feature monitor diode

Feature pilot laser

30

32

200

400

808, 806, 807, 808, 809, 810, 915, 940

T0=±10nm

T2=±2nm

T3=±3nm

M0=no monitor diode

M3=monitor diode

P0=no pilot laser

P2=pilot laser

Example: STFB30F200-980-T3M3P0



Accessories

l  Fiber STF-SMA905-F, 1.5m or 3m

l  Diode driver with TEC-cooler

l  Integrated Volume Holographic Grating for wavelength stabilization

l  Different beam shaping optics (focusing, collimating, fibre-fibre) available

l  Installation service and personal introduction on request

l  Turn-key systems available

l  Customized laser modules and fibers on request



2. STLM Series Fiber-coupled Diode Lasers



·   High brightness laser for, pump applications

·   SMA905 Plug & Play connector for optical fibres

·   Compact dimensions

·   Passively cooled

·   Dual temperature sensor (NTC/PT100)

·   Hermetically sealed laser head

·   External radiation filter



Optical data1

CW – nominal output power  (W)

30

35

32

40

Centre wavelength λ  (nm)

805-810, 915, 940, 975-9812

Tolerance of λ  (nm)

± 3 (or ± 2)3

Spectral width (FWHM)  (nm)

< 4

Temperature drift of λ4  (nm/K)

 0.3, ~0.35, 0.4

Fibre data

Fibre core diameter  (μm)

200

400

Numerical aperture

0.22

Fibre-optic connector

SMA905

Electrical data

Typical operation current (start of lifetime)  (A)

40

45

40

50

Max. Operation current (start of lifetime)  (A)

43

48

43

53

Max. Operation current (end of lifetime)  (A)

52

58

52

64

Typical threshold current  (A)

5 -  8

Typical efficiency  (%)

42

43

44

44

Typical slope efficiency  (W/A)

0.7 - 1.0

Operation voltage  (V)

<2

Reverse voltage

0

Thermal conditions

Diode operation temperature5  (° C)

+15….30

Storage temperature  (°C)

-20….+60

Recommended heat sink capacity  (W)

> 64

> 70

> 62

> 76

Recommended heat sink thermal resistance (K/W)

< 0.1

Other specifications

Expected lifetime6 (hours)

 20000

RoHS 2002/95/EC and CE compliant

YES

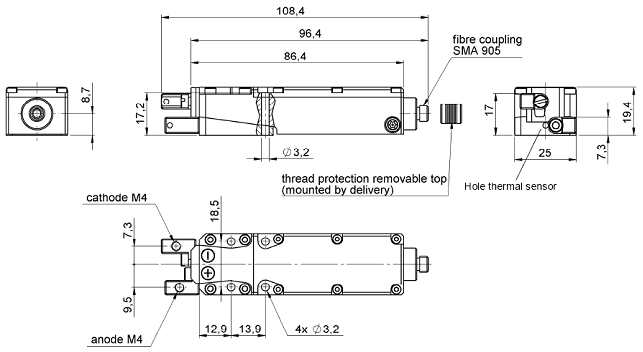

Dimensions of laser head

(connectors not included)  (mm)

 87x25x20

Weight (g)

300

External radiation filter

Filter 1600.014, HR@1050-1130nm >99.0% (s+p pol.)

or

Filter 1600.036, HR @ 1025-1080nm >99.0% (s+p pol.)

Other filters on request

1Optical data @ 25°C diode heat sink temperature,

2Other wavelength on request,

3optional,

4Depending on wavelength,

5Measured by NTC/PT100 at temperature measurement hole in the diode heat sink (defined in drawing)

6According ISO 17526:2003(E);



Optional

Monitor diode

Operation voltage  (VDC)

5

Monitor diode signal  (V)

0-2



Product Name Identification:

STLM  xxx

F-xxxx

-DL xxxx

- xxxx

- xxxx

- xxx

Power

Fiber core diameter

Wavelength

Wavelength tolerance

Feature monitor diode

Feature filter

30

32

35

40

200

400

808, 806, 807, 808, 809, 810, 915, 940, 975, 976, 977, 978, 979, 980, 981

T2=±2nm

T3=±3nm

M0=no monitor diode

M3=monitor diode

F0=no filter

F14=filter 1600.014

F36=filter 1600.036



Example: STLM30-F200-DL980-T3M3F0



Accessories

  • Fibre SMA905-F, 1m, 2m or 3m

  • Diode driver with TE-cooler

  • Integrated Volume Holographic Grating for wavelength stabilization

  • Different beam shaping optics (focussing, collimating, fibre-fibre) available

  • Installation service and personal introduction on request

  • Turn-key systems available

  • Customized laser modules and fibres on request

   High-power fiber coupled diodes                diode driver       fibers      optical collimated diodes
