Single- or dual-lamp high-efficiency laser pump chambers/cavities can accommodate laser rods of 3 to 10mm in diameter and up to 180mm in length. A laser pump chamber consists of
  Click for enlarged photo!

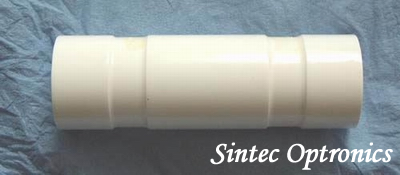

ceramic reflector

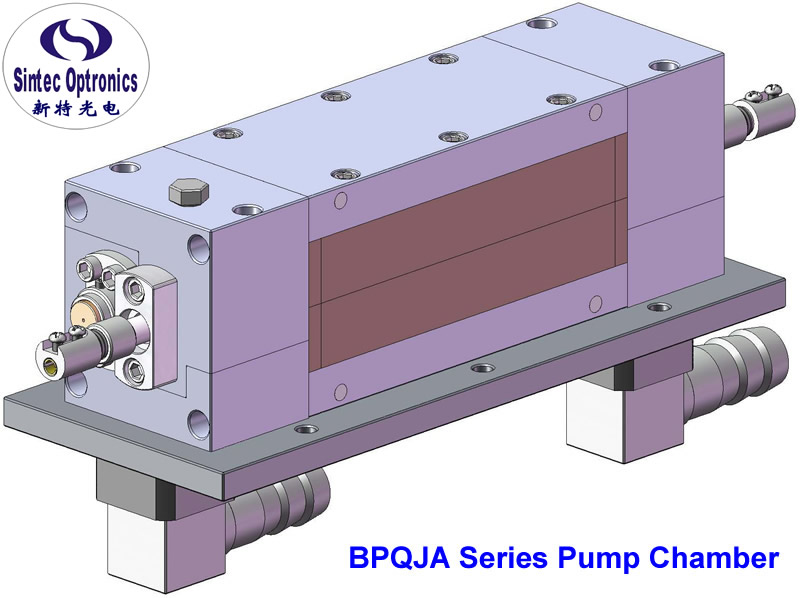

 1. Gold-coated laser pump chambers/cavities

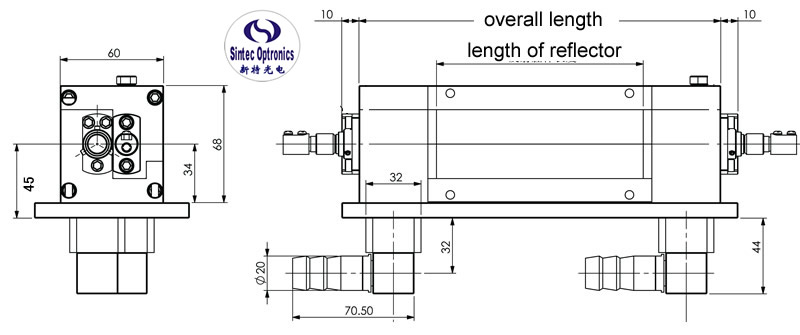

(1)  single-lamp cavity (single lamp and single rod)


Model

Length of  reflector

Overall length

YAG rod length

Typical lamp

BPQJA-100

100mm

190mm

≥110mm

ST5171, ST5166, NL9764

BPQJA-110

110mm

200mm

≥120mm

STX6x110x250

BPQJA-120

120mm

210mm

≥130mm

ST5647

BPQJA-130

130mm

220mm

≥140mm

STX8x130x270

Remark: suitable to YAG rods of 3-9mm in diameter and lamps of 4-10mm in outside diameter.

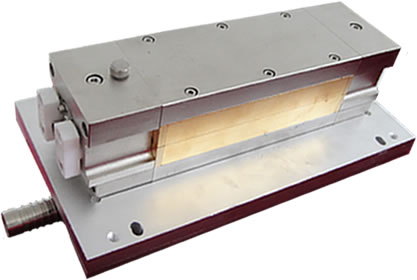

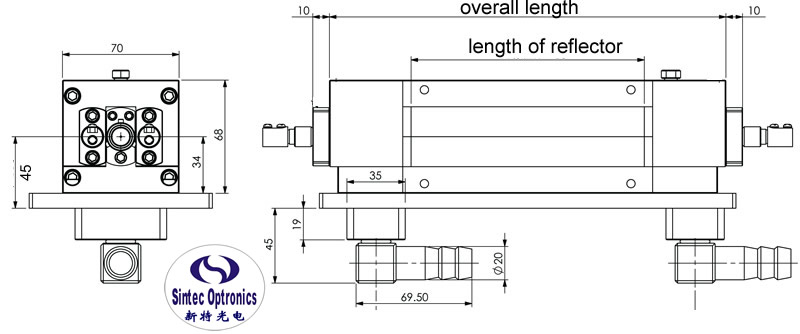

(2) dual-lamp cavity (two lamps and single rod)


Model

Length of reflector

Overall length

YAG rod length

 Typical lamp

BPQJB-130

130mm

228mm

≥140mm

STX8x130x270

BPQJB-140

140mm

238mm

≥150mm



BPQJB-150

150mm

248mm

≥160mm

NL9762, ST5108

BPQJB-170

170mm

268mm

≥180mm



  Remark: suitable to YAG rods of 3-9mm in diameter and lamps of 4-10mm in outside diameter.


If you want to custom-design and make a specific pump chamber, please download "form to order specific pump chamber" and email us filled form.

 2. Ceramic laser pump chambers/cavities



(1) single-lamp cavity (single lamp and single rod)chamber.gif (73536 字节)

  • Model: BPQT-97

  • Ceramic reflector TCT97 used

  • Matchable YAG rods: dia. 3-7mm, length 120mm or longer

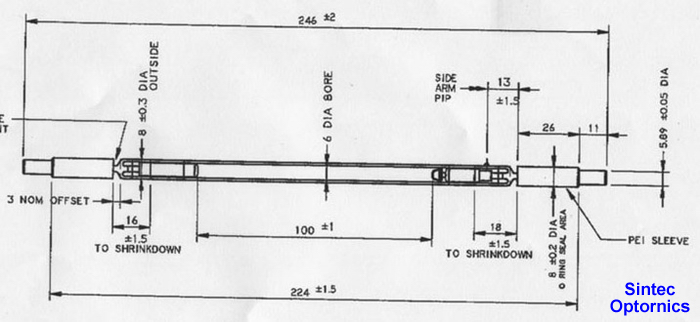

  • Matchable lamps: ST5166, NL9764 or lamps with arc length 100mm

  • Suitable for 50W to 150W YAG lasers

(2) single-lamp cavity (single lamp and single rod)

  • Model: BPQT-117

  • Ceramic reflector TCT117 used

  • Matchable YAG rods: dia. 3-7mm, length 140mm or longer

  • Matchable lamps: F256, ST5647 or lamps with arc length 120mm

  • Suitable for 80W to 200W YAG lasers

(3)  dual-lamp cavity (double lamp and single rod)

  • Model: BPQT-142D

  • Ceramic reflector TCT142D used

  • Matchable YAG rods: dia. 3-8mm, length 165mm or longer

  • Matchable lamps: NL9762, ST5108 or arc length 140-150mm or longer,

  • Suitable for 250W to 450W YAG lasers

(4)  dual-lamp cavity (double lamp and single rod)

  • Model: BPQT-130D

  • Ceramic reflector BAB-350 used

  • Matchable YAG rods: dia. 3-8mm, length 140mm or longer

  • Matchable lamps: arc length 130-140mm or longer & OAL 270mm.

  • Suitable for 200W to 400W YAG lasers

(5)  dual-lamp pump chamber (2pcs lamps and one rod)

  • Model: BPQT-150DW

  • Ceramic reflector BAB492

  • Matchable YAG rods: f(3-8)x160mm or longer

  • Matchable lamps: lamps with the arc length of  around150mm and overall length of 310mm, typically STK-8x150x310-5x10, STX-8x150x310-5x10.

  • Suitable for 450W to 500W YAG lasers

(6)  dual-lamp pump chamber (2pcs lamps and one rod)

  • Model: BPQT-170DW

  • Ceramic reflector BAB497

  • Matchable YAG rods: f(3-8)x180mm or longer

  • Matchable lamps: lamps with the arc length of  around170mm and overall length of 330mm, typically STK-8x170x330-5x10, STX-8x170x330-5x10.

  • Suitable for 500W to 600W YAG lasers

Combination of Typical Pump Chambers

Model

Reflector

YAG rod

Lamp model

Typical laser power

BPQT-97

BAB192

4x120mm

CW:     STK-8x100x256-5x10

            ST5166

Pulsed: STX-8x100x256-5x10

            NL9764

50-70W

BPQT-117

BAB330

4x140mm

CW:     STK-8x125x270-5x10

Pulsed: STX-8x125x270-5x10

80-150W

BPQT-130DC

BAB350

6x140mm

CW:     STK-8x130x270-5x10

Pulsed: STX-8x130x270-5x10

150-300W

BPQT-130DW

BAB350

6x140mm

CW:     STK-8x130x285-5x10

Pulsed: STX-8x130x285-5x10

250-300W

BPQT-142D

ZAB146

8x165mm

CW:     STK-8x150x310-5x10

Pulsed:STX-8x150x310-5x10

            NL9762

400-450W

BPQT-150DW

BAB492

8x160mm

CW:     STK-8x150x310-5x10

Pulsed: STX-8x150x310-5x10

450-500W

BPQT-170DW

BAB497

8x180mm

CW:     STK-8x170x330-5x10

Pulsed: STX-8x170x330-5x10

500-600W

Remark: For a same pump chamber, larger rod will output much higher laser power but laser beam quality becomes worse.



Dimension and Weight of Package:



The pump chamber will be packed using a cartoon box 380x175x249mm. Typical weights are given as follows:



BPQT-97 or -117

BPQT-142D

BPQJA-110

BPQJB-150

4kg

10kg

7kg

15kg

Note:
1. External mechanical dimensions can be changed to meet customer's exact requirements;
2. Laser rods customized to your exact requirements available upon request.
3.
If you want us to design a specific pump chamber, you need to tell us the specifications of the YAG rod and the lamps as follows:
    1)   YAG rod: diameter and length;
    2)
Lamp, dimension of arc length, outside diameter, overall length, end type (base diameter and length) etc or model number.
    3) or download "form to order specific pump chamber" and email us filled form.



more pump chambers used in branded lasers
