         Products             Ceramic Reflector  (Ceramic Diffuse Reflector)

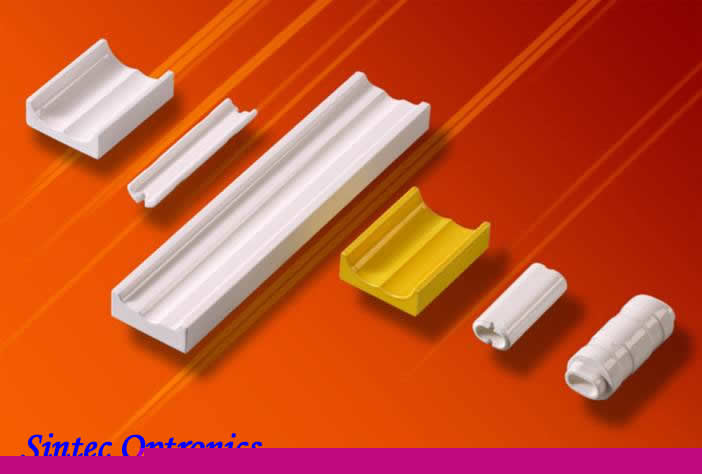

Ceramic reflectors are recently used in laser pump chambers. Its main advantages are long life time.




Description

A porous alumina ceramic of 99.7% Al2O3 content, used extensively for long-life laser reflectors. This material is sintered at high temperatures to achieve a controlled porosity.



Prime features

  • Surfaces can be sealed and coated with a solarization-resistant glaze to give high bulk refectivity

  • 97.8% reflectance efficiency at 1000nm

  • Reflectance efficiency exceeds 96% across the wavelength range 500-2000nm (see curve)

  • Controlled porosity

  • Good thermal conductivity

  • High electrical resistivity



Typical applications

Pumping chambers for Nd:YAG lasers � low to high power, single or multiple lamp designs. Pumping chamber reflectors of this material are virtually indestructible, and prove a highly cost effective alternative to metal coated types.



Specifications

Quality Assurance to BS EN 9001:2000



Production capabilities

  • Components up to 250mm long and 80mm wide/diameter manufactured as standard

  • Larger components manufactured to development contracts

  • One-piece or split-cavity designs

  • Prototype, batch and volume production.



Physical properties*

Color: White

Bulk density (fired), Mg/m3    :3.2

Porosity (apparent), % nominal :20

Flexural strength (ASTM C1161, 3-point), MPa :150

Thermal expansion coefficient

                 200-500C, 10-6/C      7.9

                 200-1000C, 10-6/C      9.0

(* Please note that all values quoted are based on test pieces and may vary according to component design. These values are not guaranteed in any way and should only be treated as indicative values. They should be used for guidance only and for no other purpose whatsoever.)

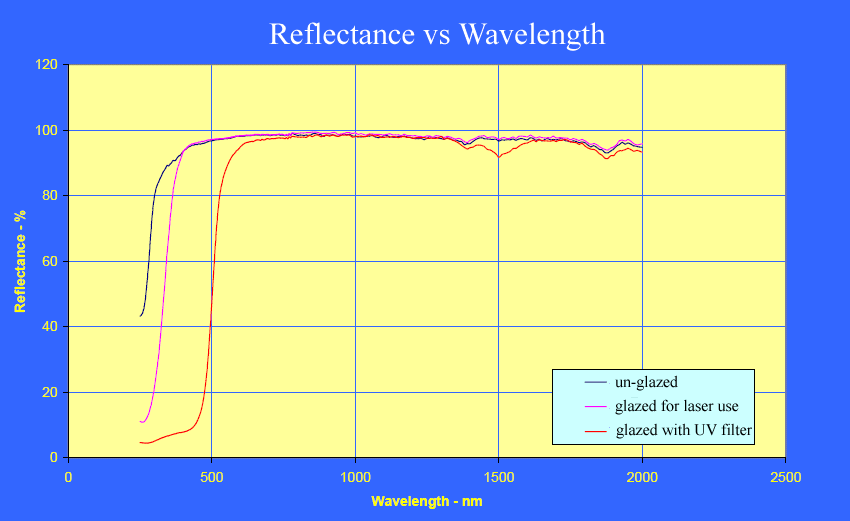

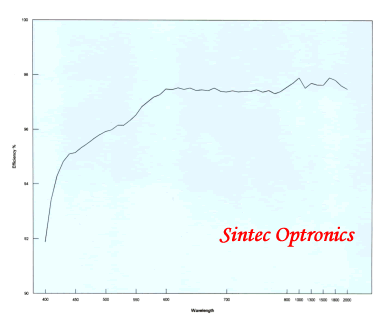

Reflectance curve

(Efficiency : Wavelength, from independent tests carried out at the UK�s National Physical Laboratory)






Ceramic Reflectors For Lamp-pumped Solid-state Lasers



BAB � the external shape is round;
ZAB � the external shape is irregular;
LAK � the external shape is rectangular but one side is concave;
EAB - the external shape is rectangular;
GAZ - the external shape is triangular.



Model

Length

Distance*

Hole height

Hole length

Remark

ZAB-S04-30 30 6 8 12 Rectangle + circular
ZAB-S05-30 30 7.62 8 12 Rectangle + circular

ZAB-S03

45



6

16

Rectangle + circular

ZAB-S04-50 50 6 8 12 Rectangle + circular
ZAB-S05-50 50 7.62 8 12 Rectangle + circular

ZAB-S01

59.5



8

17

Rectangle + circular

ZAB-S02

60



9

30

Rectangle + circular

ZAB205

77

11

11

22

Rectangle, single lamp & single rod

ZAB198

115

26

16

 42

Rectangle, single lamp & single rod

ZAB146 (TCT142D)

142

27

39

 43

Rectangle, dual-lamp & single rod

LAK396

70



12

21

Elliptic, single lamp & single rod

LAK046

94

8



Rectangle,  single lamp & single rod

LAK396-100

100



12

21

Elliptic, single lamp & single rod

LAK396-120

120



12

21

Elliptic, single lamp & single rod

LAK396-140

140



12

21

Elliptic, single lamp & single rod

LAK311

145

32





Rectangle, dual-lamp & single rod

LAK396-150

150



12

21

Elliptic, single lamp & single rod

LAK331

160.5

27.5





Rectangle, dual-lamp & single rod

BAB259

64

8.5

8

16.5

Cylinder, single lamp & single rod

BAB-S04

92



Elliptic

BAB192 (TCT97, BAB349)

97



12

22

Cylinder, single lamp & single rod

BAB311

97

12.7

15

27.7

Cylinder, single lamp & single rod

BAB275

100



14.4

28.4

Cylinder, single lamp & single rod

BAB283

100



17

32

Cylinder, single lamp & single rod

BAB299

100



17

45

Elliptic, single lamp & single rod

BAB281

100



18

34

Cylinder, single lamp & single rod

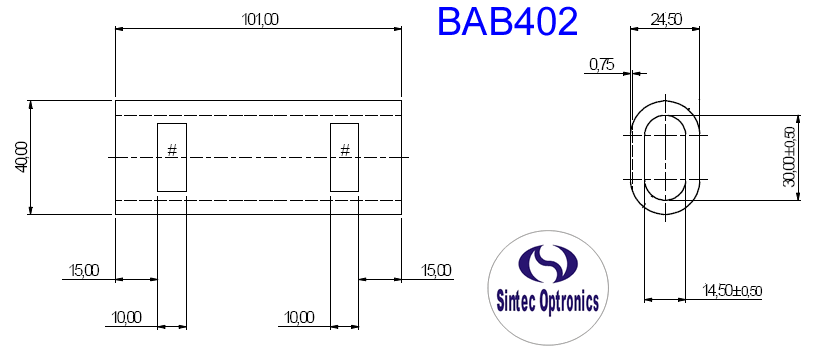

BAB402

101



14.5

30

Elliptic, single lamp & single rod

BAB228

115



12

22

Cylinder, single lamp & single rod

BAB330 (TCT117)

117



12

22

Cylinder, single lamp & single rod

BAB399

120



16

43

Cylinder, single lamp & single rod

BAB350

130



17

45

Elliptic, dual lamp & single rod

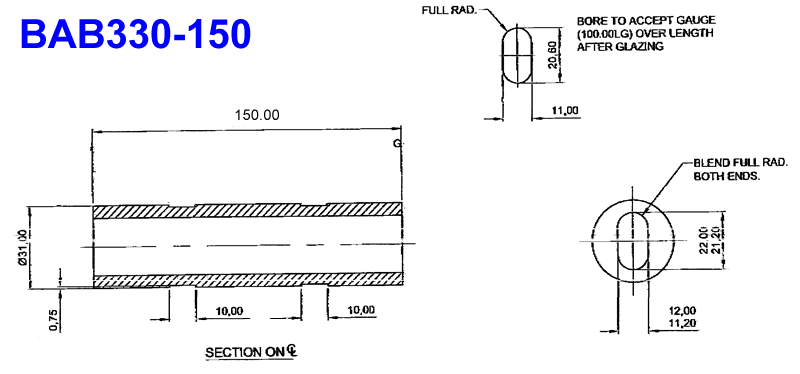

BAB330-150

150



12

22

Cylinder, single lamp & single rod

BAB492

150



17

45

Elliptic, dual lamp & single rod

BAB496

160



17

45

Elliptic, dual lamp & single rod

BAB497

170



17

45

Elliptic, dual lamp & single rod

Remark: 1) unit: mm; 2) Distance means the distance between lamp and rod in sing-lamp configuration and the distance between two lamps in dual-lamp configuration.






Ceramic Reflectors For Diode-pumped Solid-state Lasers:

Description of part number: CRDP-XX-YY-Z-AAA-BBB

CRDP: ceramic reflector for diode-pumped solid-state laser

XX � internal diameter of the reflector in mm.

YY -  reflector length in mm.

Z � number of the diodes to be placed around the laser rod.

AAA � related to the cross section of the reflector such as  TRI (triangle shape), CRL (round shape), PLT (plate shape)

BBB � variant for remarks



Model

Internal Diameter

(mm)

Length

(mm)

Remark

CRDP-12-25-3-PLT

12

25

Suitable for diode side-pumped solid-state lasers, 3 group diode bars placed around the YAG rod

CRDP-12-65-3-PLT

12

65

Suitable for diode side-pumped solid-state lasers, 3 group diode bars placed around the YAG rod

CRDP-12-115-3-PLT

12

115

Suitable for diode side-pumped solid-state lasers, 3 group diode bars placed around the YAG rod

CRDP-6.07-32.26-3-TRI

6.07

32.26

Triangle, offering FF ceramic alumina to give better strength, reflectance would be 95/96%. Suitable for diode side-pumped solid-state lasers, 3 group diode bars placed around the YAG rod

CRDP-12.2-67-3-TRI

12.2

67

Triangle, offering FF ceramic alumina to give better strength, reflectance would be 95/96%. Suitable for diode side-pumped solid-state lasers, 3 group diode bars placed around the YAG rod

CRDP-12.2-76.3-5-CRL

12.2

76.3

Circle reflector, suitable for diode side-pumped solid-state lasers, 5 group diode bars placed around the YAG rod






Ceramic Reflectors For Beauty and IPL Applications:

Description of part number: CRIPL-XX-YY-BBB

CRIPL: ceramic reflector for beauty and IPL applications

XX � internal diameters or angler of the reflector in mm/degree

YY -  reflector length in mm.

BBB � variant for remarks



Model

Internal radius/angle

(mm/degree)

Length

(mm)

Remark

CRIPL-4.27/3.28-48/60

4.27-3.28

 48 to 60

EAB-074, tear shape reflector

CRIPL-23-46

230 46�

  46

LAK-404, glazed, taped ends, 5 holes

CRIPL-19-48-5

190 52�

  48

LAK-409, unglazed, with 5 holes

  CRIPL-19-48-5G

        190 52�

48 LAK283, glazed, with 5 holes
  CRIPL-19-48-3

       190 52�

48 LAK306, unglazed, with 3 holes
   CRIPL-19-48-3G

      190 52�

48 LAK317, glazed, with 3 holes



As far as the IPL parts are concerned, there are many �variation on the same theme� in order words the angle may be slightly different, length could vary and some parts have no holes, others have several holes.  Parts could also be glazed or un-glazed.  We can make any parts and we could adapt the drawings to customer�s requirements�.
