Product Characteristics
1. Smooth thrust.
2. Non-ripple thrust and electromagnetic force.
3. Light motion mass.
4. High acceleration.
5. Modular designed, freely extended working stroke.
|
Application
1. Semiconductor manufacturing equipment, including the
wafer fabrication and crystal wafer package equipment.
2. Flat Panel Display (FPD) industry precision testing
equipment, hard disk and connector production, printing plate making
equipment.
3. Life science ,medical equipment ,machine vision
detection equipment, and various taking and placing device.
4. Electronic component surface mounting, PCB detection
equipment
5. Logistics equipment. |
Comparison between
Linear Motor and Rotary Motor + Ball Screw
|
Contents
|
Linear
Motor |
Rotary
Motor + Ball Screw |
|
Max. Thrust
(N) |
<22000 |
<24000 |
|
Max.
Acceleration (g) |
>10 |
>1Δ |
|
Max. Speed
(m/s) |
5 |
1.5Δ |
|
Max. Stroke
(m) |
No
limitation |
<6 |
|
Accuracy
(μm/300mm) |
0.5 |
10 |
|
Repeatability (μm) |
0.1 |
5 |
|
Backlash |
No
(directly drive) |
3~50
(Mechanical transmission components) |
|
Running
Stability |
High
|
Low |
|
Efficiency
|
High
|
Low |
|
Stiffness |
High
|
Low |
|
Life Span |
Long
|
Short
|
|
Cost
|
High |
Low |
|
Main
Application |
High
accuracy, high speed and fast response equipment |
Normal
|
Δ: Typical value
E.g.:
STLC-XXXX-XXX-(A) -02-00 and STLF-XXX-(A)-00, letter inside the ( ) have to be
relatively matched.
*** For the
specific parameters, please contact with our sales person.

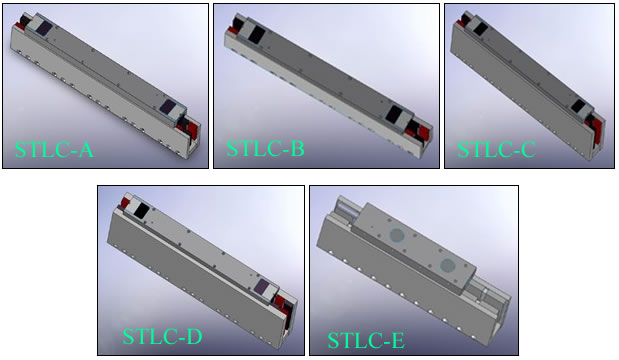

Linear Motor

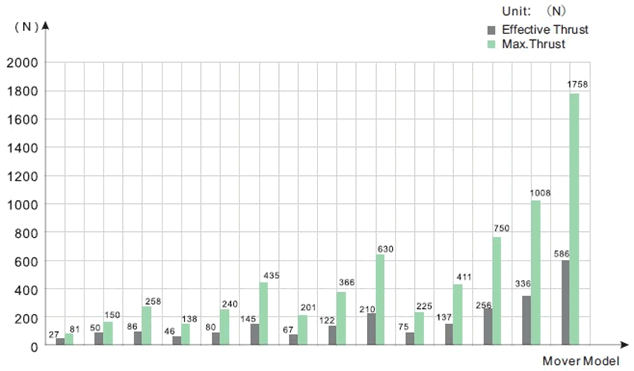

Thrust Schedule
STLC-A Series
Technical Specification
|
Items
|
Unit
|
STLC-0027
078-A-02-00 |
STLC-0050
135-A-02-00 |
STLC -0086
255-A-02-00 |
|
Continuous
Thrust |
N |
27 |
50 |
86 |
|
Continuous
Current |
Arms |
1.8 |
1.68 |
1.45 |
|
***Max.
Thrust |
N |
81 |
150 |
258 |
|
***Max.
Current |
Arms |
5.4 |
5.05 |
4.35 |
|
Power Loss |
W |
22.73 |
39.47 |
57.69 |
|
Mechanical
Parameter |
|
Length of
the Coil Plate |
mm |
78 |
135 |
255 |
|
Width of
the Coil Plate |
mm |
30 |
|
Height of
the Coil Plate |
mm |
63.5 |
|
Weight of
the Coil Plate |
Kg |
0.22 |
0.39 |
0.72 |
|
Weight of
the Magnetic Board |
Kg/m |
7.92 |
|

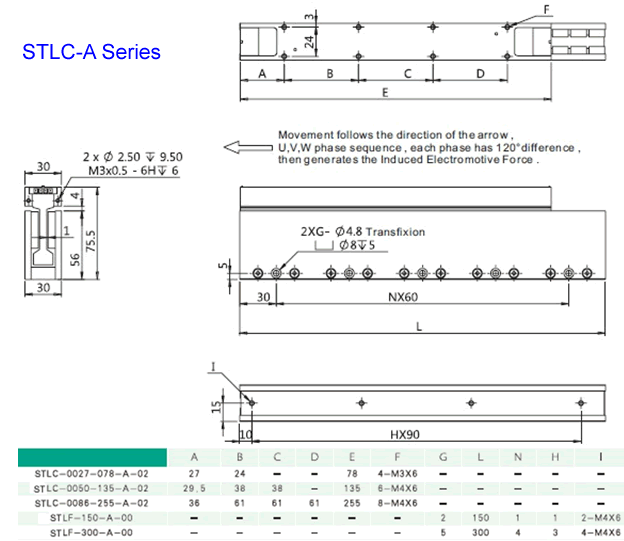

Layout & dimension |
|
click here |
|
Electrical
Parameter |
|
Motor
Constant
(DC Motor
Conversion / 3Phase) |
N/√W |
5.74 |
7.93 |
11.3 |
|
Thrust
Constant |
N/ Arms |
15.2 |
29.6 |
59.5 |
|
Back
Electromotive Force Constant (Line to Line) |
Vp/m/s |
12.4 |
24.2 |
48.6 |
|
Resistance
(Line to Line) @25℃ |
Ω |
4.64 |
9.3 |
18.6 |
|
Inductance
(Line to Line) |
mH |
1.51 |
3.04 |
6.02 |
|
Exothermic
Coefficient |
℃/W |
*3.3 |
*1.9 |
**1.3 |
1. Exothermic
coefficient has exothermic board (*: 200*200*15, **: 250*250*12).
2. *** The using
time is 1 second.
3. All the
specifications have 10% error.
STLC-B Series
Technical Specifications
|
Items
|
Unit
|
STLC-0046
078-B-02-00 |
STLC-0080
135-B-02-00 |
STLC-0145
255-B-02-00 |
|
Continuous
Thrust |
N |
46 |
80 |
145 |
|
Continuous
Current |
Arms |
1.85 |
1.6 |
1.5 |
|
***Max.
Thrust |
N |
138 |
240 |
435 |
|
***Max.
Current |
Arms |
5.55 |
4.8 |
4.5 |
|
Power Loss |
W |
30 |
40.54 |
78.13 |
|
Mechanical
Parameter |
|
Length of
the Coil Plate |
mm |
78 |
135 |
255 |
|
Width of
the Coil Plate |
mm |
30 |
|
Height of
the Coil Plate |
mm |
83.5 |
|
Weight of
the Coil Plate |
Kg |
0.28 |
0.5 |
0.95 |
|
Weight of
the Magnetic Board |
Kg/m |
12.6 |
|

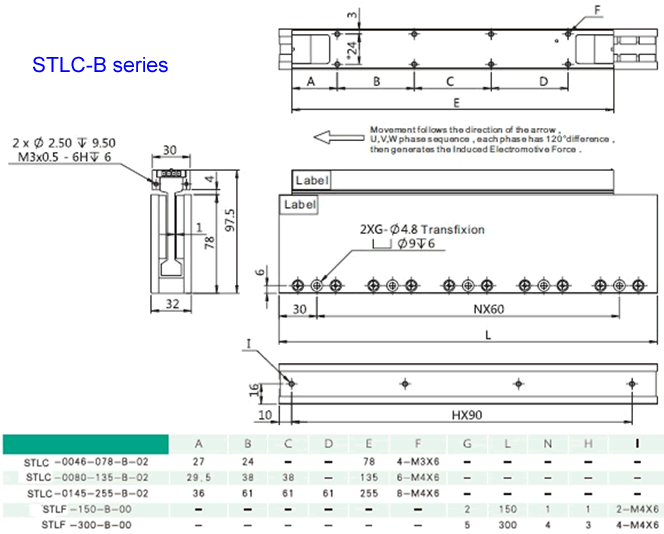

Layout & dimension |
|
click here |
|
Electrical
Parameter |
|
Motor
Constant
(DC Motor
Conversion / 3Phase) |
N/√W |
8.4 |
11.66 |
16.3 |
|
Thrust
Constant |
N/ Arms |
24.8 |
48.6 |
95.83 |
|
Back
Electromotive Force Constant (Line to Line) |
Vp/m/s |
20.3 |
39.7 |
78.25 |
|
Resistance
(Line to Line) @25℃ |
Ω |
5.84 |
11.56 |
23.02 |
|
Inductance
(Line to Line) |
mH |
1.86 |
3.77 |
7.53 |
|
Exothermic
Coefficient |
℃/W |
*2.5 |
*1.85 |
**0.96 |
1. Exothermic
coefficient has exothermic board (*: 200*200*15, **: 250*250*12).
2. *** The using
time is 1 second.
3. All the
specifications have 10% error.
STLC-C Series
Technical Specifications
|
Items
|
Unit
|
STLC-0067
078-C-02-00 |
STLC-0122
135-C-02-00 |
STLC-0210
255-C-02-00 |
|
Continuous
Thrust |
N |
67 |
122 |
210 |
|
Continuous
Current |
Arms |
1.63 |
1.5 |
2.6 |
|
***Max.
Thrust |
N |
201 |
366 |
630 |
|
***Max.
Current |
Arms |
4.89 |
4.5 |
7.8 |
|
Power Loss |
W |
32.33 |
51.37 |
78.95 |
|
Mechanical
Parameter |
|
Length of
the Coil Plate |
mm |
78 |
135 |
255 |
|
Width of
the Coil Plate |
mm |
30 |
|
Height of
the Coil Plate |
mm |
113.5 |
|
Weight of
the Coil Plate |
Kg |
0.38 |
0.68 |
1.29 |
|
Weight of
the Magnetic Board |
Kg/m |
20.6 |
|

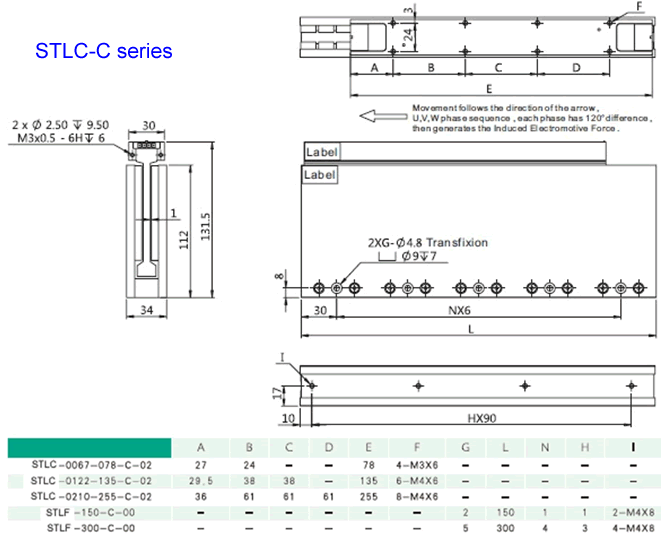

Layout & dimension |
|
click here |
|
Electrical
Parameter |
|
Motor
Constant
(DC Motor
Conversion / 3Phase) |
N/√W |
11.77 |
16.62 |
23.35 |
|
Thrust
Constant |
N/ Arms |
40.98 |
81.77 |
81.2 |
|
Back
Electromotive Force Constant (Line to Line) |
Vp/m/s |
33.46 |
66.77 |
66.3 |
|
Resistance
(Line to Line) @25℃ |
Ω |
8.07 |
16.13 |
8.06 |
|
Inductance
(Line to Line) |
mH |
2.79 |
5.7 |
2.85 |
|
Exothermic
Coefficient |
℃/W |
*2.32 |
**1.45 |
**0.95 |
1. Exothermic
coefficient has exothermic board (*: 200*200*15, **: 250*250*12).
2. *** The using
time is 1 second.
3. All the
specifications have 10% error.
STLC-D Series
Technical Specifications
|
Items
|
Unit
|
STLC-0075
078-D-02-00 |
STLC-0137
135-D-02-00 |
STLC-0250
255-D-02-00 |
|
Continuous
Thrust |
N |
75 |
137 |
250 |
|
Continuous
Current |
Arms |
1.6 |
1.45 |
2.6 |
|
***Max.
Thrust |
N |
225 |
411 |
750 |
|
***Max.
Current |
Arms |
4.8 |
4.35 |
7.8 |
|
Power Loss |
W |
33.33 |
56.39 |
104 |
|
Mechanical
Parameter |
|
Length of
the Coil Plate |
mm |
78 |
135 |
255 |
|
Width of
the Coil Plate |
mm |
30 |
|
Height of
the Coil Plate |
mm |
133.5 |
|
Weight of
the Coil Plate |
Kg |
0.45 |
0.8 |
1.52 |
|
Weight of
the Magnetic Board |
Kg/m |
29.1 |
|

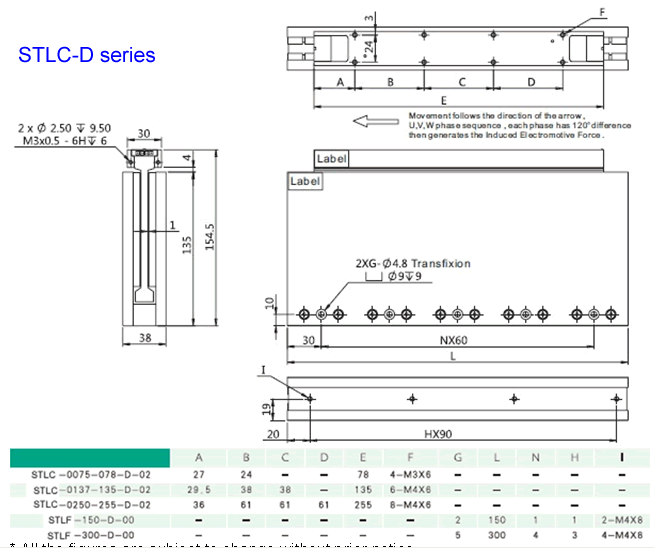

Layout & dimension |
|
click here |
|
Electrical
Parameter |
|
Motor
Constant
(DC Motor
Conversion / 3Phase) |
N/√W |
12.95 |
18.29 |
25.81 |
|
Thrust
Constant |
N/ Arms |
48.05 |
95.68 |
94.42 |
|
Back
Electromotive Force Constant (Line to Line) |
Vp/m/s |
39.23 |
78.12 |
77.09 |
|
Resistance
(Line to Line) @25℃ |
Ω |
9.17 |
18.23 |
8.91 |
|
Inductance
(Line to Line) |
mH |
3.06 |
6.15 |
3.09 |
|
Exothermic
Coefficient |
℃/W |
**2.25 |
**1.33 |
**0.85 |
1. Exothermic
coefficient has exothermic board (*: 200*200*15, **: 250*250*12).
2. *** The using
time is 1 second.
3. All the
specifications have 10% error.
STLC-E Series
Technical Specifications
|
Items
|
Unit
|
STLC-0336
215-E-02-00 |
STLC-0586
378-E-02-00 |
|
Continuous
Thrust |
N |
336 |
586 |
|
Continuous
Current |
Arms |
3.9 |
6.5 |
|
***Max.
Thrust |
N |
1008 |
1758 |
|
***Max.
Current |
Arms |
11.7 |
19.5 |
|
Power Loss |
W |
131 |
188 |
|
Mechanical
Parameter |
|
Length of
the Coil Plate |
mm |
215 |
378 |
|
Width of
the Coil Plate |
mm |
|
49.5 |
|
Height of
the Coil Plate |
mm |
|
126 |
|
Weight of
the Coil Plate |
Kg |
2.45 |
4.85 |
|
Weight of
the Magnetic Board |
Kg/m |
|
27.1 |
|

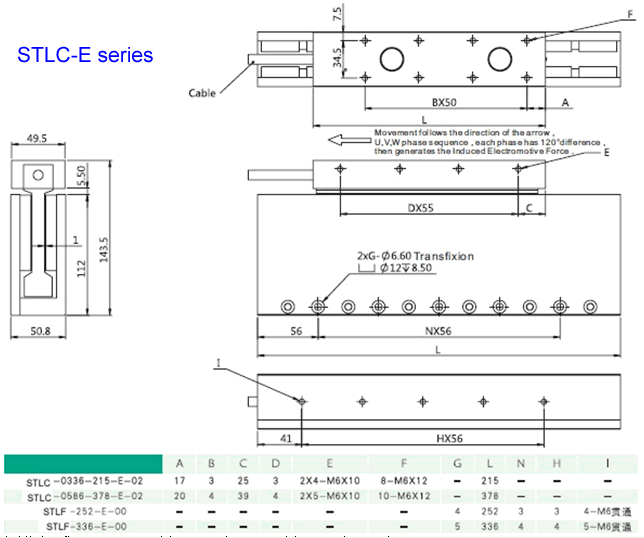

Layout & dimension |
|
click here |
|
Electrical
Parameter |
|
Motor
Constant
(DC Motor
Conversion / 3Phase) |
N/√W |
29.4 |
41.86 |
|
Thrust
Constant |
N/ Arms |
86.3 |
90.3 |
|
Back
Electromotive Force Constant (Line to Line) |
Vp/m/s |
70.5 |
73.7 |
|
Resistance
(Line to Line) @25℃ |
Ω |
5.73 |
3.1 |
|
Inductance
(Line to Line) |
mH |
11.03 |
5.91 |
|
Exothermic
Coefficient |
℃/W |
0.8 |
0.56 |
1. Exothermic
coefficient has exothermic board (*: 200*200*15, **: 250*250*12).
2. *** The using
time is 1 second.
3. All the
specifications have 10% error.
