         List of Products             Lab Jack

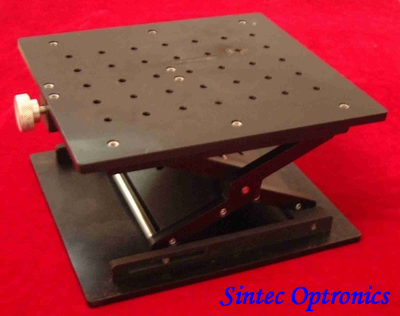

The lab jack utilizes a dual pantograph design. The adjustment mechanism uses a lead screw to close the angle between the opposing pairs of supporting struts. The top plate has an array of 35 M6 tapped mounting holes on 50mm centers.

Model number:        LJ-80
Z adjustment range: 80mm
Top plate:             190x210x6mm
Top mounting holes: M6, spacing 25mm
Minimum height:      50mm
Maximum height:     130mm
Loading:                 20kg

Other Z adjustment ranges and top plates available upon request.

Manually-adjustable Z  stage
