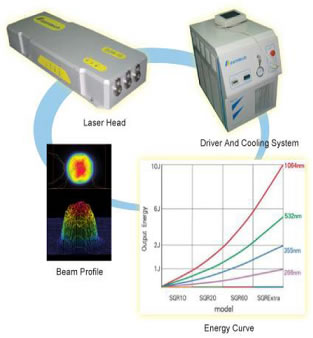

STGR
Series Super-Gaussian Resonator series Q-Switched Nd:YAG lasers combine VRM
(variable reflectivity mirror) with unstable resonator design creating a cavity
with large TEM00 mode volume for excitation and energy extraction. A
�flat-top-hat� can be specified with uniform energy distribution or �VRM
Gaussian� profiles.
STGR
Series close-coupled diffuse pump chamber delivers uniform pumping of the laser
rod for optimum lasing excitation efficiency and allows for higher stored energy
by eliminating parasitic oscillations within the pump chamber. The pump chamber
uses chemically inert materials to withstand high pumping energy and absorb
unwanted UV and IR radiation emitted by the flash lamps. One or more amplifiers
can be added to the oscillator for higher energy output. With scientific or
industrial grade models available, the STGR series will
fit right in with your scientific research, medical or OEM industrial
application.
Features:
-> 1064nm, 532nm,
355nm, 266nm option
-> Energy up to 10J
at 10Hz 1064nm
-> Repetition rate
up to 30Hz
->
VRM mode
-> High reliability
and stability
-> Superior beam
quality
-> Compact design
-> Easy to use
-> Analog or
digital remote controller
Applications:
->Photo chemistry
->Molecular
chemistry
->Non-linear optics
->Laser
illumination
->LIDAR
->Laser cleaning
->Laser ablation
->Optical remote
sensing
->LIF (Laser
Induces Florescence)
->PLD (Pulsed Laser
Deposition)
Technical
specifications:
|
|
STGR-10 |
STGR-20 |
STGR-60 |
STGR-EXTRA |
STGR-OPO |
|
Repetition Rate (Hz) |
1-20 |
1-20 |
1-10 |
1-10 |
Same as pumping source |
|
Tunable |
NA |
NA |
NA |
NA |
410-2200nm
OPO SHG Option |
|
Energy (mJ)*1
1064nm
532nm
355nm
266nm |
1000
500
200
80 |
2000
1000
400
150 |
6J
3J
Option
Option |
6-10J
3-5J
Option
Option |
20mJ@Peak |
|
Beam Diameter (mm)
*2 |
9 |
10 |
20 |
22 |
3-4 |
|
Spatial Profile:
*3
Near Field
Far Field |
>70%
>90% |
>70%
>90% |
>70%
>90% |
>70%
>90% |
NA |
|
Divergence (mrad)
*4 |
<=0.5 |
<=0.5 |
<=0.5 |
<=0.5 |
Vertical: ~2
Horizontal:~10 |
|
Energy Stability (RMS)
*5 |
2-3% |
2-3% |
2-3% |
2-3% |
10% |
|
Pulse Duration (ns)
*6 |
~8 |
~8 |
~10 |
~10 |
3-5 |
*1. Maximum output
energy optimum repetition rate
*2. Beam diameter
at the output
*3. Fit to Gaussian
*4. Full angle for
86% energy
*5. The RMS
stability at 1064nm, 2%>@532nm, 4%>@355nm or 266nm
*6. FWHM (Full
Width Half Maximum) at 1064nm, 1-2ns<@532nm, 3-4ns<@355nm or 266nm
Specifications are
subject to change without prior notice.

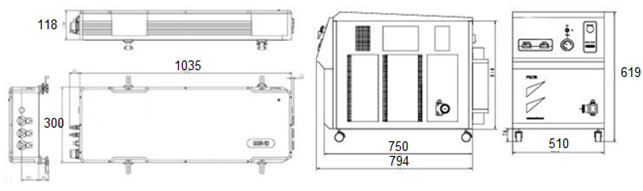

Dimensions:
High Peak Power DPSS
Lasers
