          Diode Pumped Lasers (1064/532/355nm)



Diode Pumped Lasers (1064nm)



Diode End-pumped lasers adopt full sealed-off design with small volume and low power consumption as well as fiber-coupled pumping, which is easily for the integration of system and equipment. The modularized design provides the convenience for changing by customers. The laser beam is TEMoo with high beam quality, high peak power and short pulse width. Excellent resonator design can keep average laser power and pulsed peak power stable & constant. This laser can meet the requirements of most industrial precision processing. What's more, it's absolute air cooling, the micro-optics design of key pumping  source is the most advanced all over the world.



Features



l  Diode pumped air cooling technology - low power

    consumption

l  Unique split type design

l  Good beam quality. It is TEM00 with M²≤1.2. It can be used

    to mark fine lines, suitable for high precision marking

    applications.

l  Fiber coupled diode pumping with high pumping efficiency &

    long lifetime(>20,000 hrs).

l  The laser is sealed and it is ante-dusty.

l  High performance price ratio.





Applications

End-pumped diode laser is suitable for marking on various materials, such as nylon, ABS, PVC, PES, steel, titanium, copper, plating materials, coating materials, sprayed materials, plastic, rubber, epoxy resin etc.

Diode end-pumped laser has excellent applications in various fields, such as mobile phone, jewellery, crafts, scribing, film engraving, laser marking & engraving, resistance trimming, range finding, scientific research etc.



Comparison between End-Pumped Lasers and Other Lasers

Machine Type

M2

Frequency(Hz)

Power consumption

Features

End-pumped

(Air-cooling)

1.2

50k

0.5kw

Long lifetime,

Maintenance-free

Side-pumped

(Water-cooling)

3

10k

2.0kw

Change water per 3 months

Fiber laser

(Air-cooling)

1.5

20k~50k

0.5kw

Long lifetime, high price

Lamp-pumped

(Water-cooling)

10

10k

5.0kw

Change lamp per 2000 hrs



The above table shows that the end pump laser is significantly better than any other lasers whether in terms of laser characteristics or in the use and maintenance.



Specifications



Part number

DPSS-1064-12

DPSS-1064-15

DPSS-1064-30

Laser wavelength

1064nm

1064nm

1064nm

Average laser power

12W@CW

4.3W@5kHz

6.3W@10kHz

8.5W@20kHz

15W@CW

4.3W@5kHz

6.8W@10kHz

10.5W@20kHz

34W@CW

31.2W@50kHz

32.6W@70kHz

Laser beam diameter

~0.8mm

~0.8mm

~0.8mm

Beam divergence

≤1mrad

≤1mrad

≤1mrad

Pulse width

10~30ns

10~30ns

10~30ns

Pulse energy

0.86mJ@5kHz

0.63mJ@10kHz

0.43mJ@20kHz

0.86mJ@5kHz

 0.68mJ@10kHz

0.53mJ@20kHz

0.62mJ@50kHz

 0.47mJ@70kHz

Peak power

76.1kW@5kHz

47.7kW@10kHz

26kW@20kHz

78kW@5kHz

52kW@10kHz

33kW@20kHz

30kW@50kHz

15kW@70kHz

Beam mode

TEM00

TEM00

TEM00

Beam quality M2

M2≤1.2

M2≤1.2

M2≤1.2

Modulation frequency range

1kHz~60kHz

1kHz~60kHz

1kHz~100kHz

Power stability

≤2%

≤2%

≤2%

Pointing RMS

≤10μrad

≤10μrad

≤10μrad

Cooling

Air

Air

Water

Warming time

35min

35min

35min

Input electricity

220VAC/50Hz

220VAC/50Hz

220VAC/50Hz

Environmental temperature

15~30

15~30

15~30



Laser Beam Energy Distribution

The beam energy distributions along X axis and Y axis are symmetric.



IL Series Diode End-pumped Lasers (1064nm)

Features:

● All-sealed laser cavity design, anti-dust and no dewing. Long lifetime and reliable.

● No any wires outside and suitable industrial applications.

● Air-cooled using thermal electronic cooling. High control accuracy and stable output laser power.

● New design diode driver and low operation current. Longer diode lifetime.

● Module design and easy to system integration.



Applications:

Due to short pulse width, excellent laser beam quality and high peak power, these lasers are suitable to laser marking to metals, plastics such as copper, tedium, steel, aluminum, ABS, nylon, PES, PVC etc.





Specifications:

model

DPSS-1064-10-IL

DPSS-1064-15-IL

DPSS-1064-20-IL

DPSS-1064-25-IL

DPSS-1064-30-IL

Laser power

10W

15W

20W

25W

30W

Wavelength

1064nm

Beam quality

M2<1.2

M2<1.2

M2<1.4

M2<1.6

M2<2

Power stability

<2%

Modulation

3kHz-200kHz

Pulse width

8-40ns

Peak power

25-200KW/10KHz

Dimension

L540×W176×H489mm

Weight

28.5kg

Power supply

220V/50-60Hz

Power consumption

600W

700W

800W

1200W

1200W

Cooling

Air

Water





Diode Pumped Lasers (532nm)



Diode end-pumped lasers adopt full sealed-off design with small volume and low power consumption as well as fiber-coupled pumping, which is easily for the integration of system and equipment. The modularized design provides the convenience for changing by customers. The laser beam is TEMoo with high beam quality, high peak power and short pulse width. Excellent resonator design can keep average laser power and pulsed peak power stable & constant. This laser can meet the requirements of most industrial precision processing. What's more, it's absolute air cooling, the micro-optics design of key pumping  source is the most advanced all over the world.

Features

l     Diode pumped air cooling technology - low power consumption

l     Unique split type design

l     Good beam quality. It is TEM00 with M²≤1.2. It can be used to mark fine lines, suitable for high precision marking applications.

l     Fiber coupled diode pumping with high pumping efficiency & long lifetime(>20,000 hrs).

l     The laser is sealed and it is anti-dusty.

l     High performance price ratio.



Applications

End-pumped diode laser is suitable for marking on various materials, such as nylon, ABS, PVC, PES, steel, titanium, copper, plating materials, coating materials, sprayed materials, plastic, rubber, epoxy resin etc.

Diode end-pumped laser has excellent applications in various fields, such as mobile phone, jewellery, crafts, scribing, film engraving, laser marking & engraving, resistance trimming, range finding, scientific research etc.



Laser Beam Energy Distribution



The beam energy distributions along X axis and Y axis are symmetric.


Specifications

Product model

DPSS-532-5

DPSS-532-15

Laser wavelength

532nm

532nm

Output average power

0.83W@2kHz

2.11W@5kHz

3.8W@10kHz

4.84W@20kHz

16W@30kHz

15W@50kHz

12W@70kHz

Beam diameter

0.8mm

0.8mm

Beam divergence

≤1mrad

≤1mrad

Pulse width

6~30ns

6~30ns

Pulse energy

415uJ@2kHz

422uJ@5kHz

380uJ@10kHz

242uJ@20kHz

540uJ@30kHz

300uJ@50kHz

200uJ@70kHz

Peak power

47kW@2kHz

46kW@5kHz

37.2kW@10kHz

19.8kW@20kHz

50kW@30kHz

16kW@50kHz

7.2kW@70kHz

Beam mode

TEM00

TEM00

Beam quality M2

M2≤1.2

M2≤1.2

Pulse modulation

1kHz~30kHz

1kHz~100kHz

Power stability

≤2%

≤2%

Pointing RMS

≤10μrad

≤10μrad

Cooling

air

water

Warm-up time

35min

35min

Electrical input

220VAC/50Hz

220VAC/50Hz

Operation environment

15~30 (non dewing)

15~30 (non dewing)

Dimension (L×W×H)

Driver 415×425×127mm

Laser head 270×130×109mm

Driver 415×425×127mm

Laser head 436×250×88mm

Weight

Driver 24kg

Laser head 7kg

Driver 15kg

Laser head 10kg



IL Series Diode End-pumped Lasers (532nm)



MODEL

DPSS-532-7-IL

DPSS-532-10-IL

DPSS-532-15-IL

DPSS-532-20-IL

Average power @30kHz

7W

10W

15W

20W

Beam Mode

TEM00-M2<1.2

TEM00-M2<1.3

TEM00-M2<1.5

TEM00-M2<1.8

Peak power@ 30kHz

11.7 kW

16.7 kW

25 kW

33.3 kW

Pulse Energy@ 30kHz

0.23mJ

0. 33mJ

0.5mJ

0.67mJ

Wavelength

532nm

Pulse width

20ns@30Khz

Beam Diameter

1.0mm

Beam Divergence

2.5mrad

Polarization Ratio

100:1 Vertical

Average Power Stability

<2%

Beam-Pointing stability

25μrad

Pulse Repetition Rate Range

5K - 200KHz / CW

Cooling

Air-cooling

Ambient Temperature

15~300C

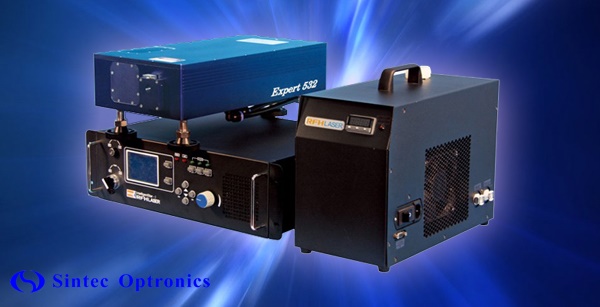

STRFH 532nm Series

532 Series

Parameter

Unit

Description

Laser wavelength

532

nm



Average Output Power

1.0, 3.0, 5.0

W

@30kHz

Pulse Width

<40

ns

@30kHz

Pulse Repetition Rate

10-200

kHz



Spatial Mode

TEM00





M2

<1.3





Beam Diameter

2.0±0.2

mm

@1m measured from window

Beam Full Divergence Angle

<0.5

mrad



Beam Circularity

>0.8





Pulse-to-Pulse Stability

<3

%

RMS

Average Power Stability

<5

%

RMS/8hr

Beam-Pointing Drift

<25

μrad/oC



Polarization Ratio

>100:1





Polarization Orientation

Horizontal





Operating Temp. & RH

10 to 35
<90

oC
%



Storage Temp. & RH

-20 to 65
<90

oC
%



Electricity Requirement

100-240
50/60

VAC
Hz

Single phase

Power Consumption

<500

W



Warranty

10,000 or

18

Hr
months

Whichever comes first.



Diode Pumped Lasers (355nm)

ST Series DPSS UV Lasers

Features:

Unique split type design

Good beam quality. It is TEM00 with M²≤1.2. It can be used to mark fine lines, suitable for high precision marking applications.

Fiber coupled diode pumping with high pumping efficiency & long lifetime (>20,000 hrs).

The laser is sealed and it is anti-dusty.

High performance price ratio.

● Simple control design for easy installation and operation.

Application:

End-pumped diode laser is suitable for marking on various materials, such as nylon, ABS, PVC, PES, steel, titanium, copper, plating materials, coating materials, sprayed materials, plastic, rubber, epoxy resin etc.

Diode end-pumped laser has excellent applications in various fields, such as mobile phone, jewellery, crafts, scribing, film removing, laser marking & engraving, resistance trimming, range finding, scientific research, LED scribing, FPC cutting, micro-drilling (<10um in diameter), flexible PCB marking & scribing, silicon wafer micro-drilling and blind hole drilling etc.





Product number DPSS-355-3A DPSS-355-3W DPSS-355-5W
Laser wavelength 355nm 355nm 355nm
Average power >3W@20kHz >3W@20kHz >5W@20kHz
Beam diameter <0.8mm <0.8mm <0.8mm
Beam divergence <1mrad <1mrad <1mrad
Pulse width <15ns@20kHz <15ns@20kHz <15ns@20kHz
Beam mode TEM00 TEM00 TEM00
Beam quality M2≤1.2 M2≤1.2 M2≤1.2
Pulse repetition rate 5kHz~100kHz 5kHz~100kHz 5kHz~100kHz
Power stability <2% <2% <2%
Pointing RMS <10urad <10urad <10urad
Cooling Air-ccoling Water-cooling Water cooling
Warm-up 3~5min 3~5min 3~5min
Input power 220VAC/50Hz 220VAC/50Hz 220VAC/50Hz
Environment temp. 15℃~30℃ 15℃~30℃ 15℃~30℃

Laser head dimension

290x150x110mm

380x250x84m

380x250x84m

Laser head weight

7.8kg

15kg

15kg

Driver dimension

445x405x140mm

445x405x140mm

445x405x140mm

Driver weight

12kg

9kg

9kg



IL Series DPSS UV Lasers

MODEL

DPSS-355-4-IL

DPSS-355-7-IL

DPSS-355-10-IL

Average power @20kHz

4W

7W

10W

Beam Mode

TEM00-M2<1.2

TEM00-M2<1.3

TEM00-M2<1.5

Peak power@ 20kHz

13.3 kW

17.5 kW

25 kW

Pulse Energy

0.2mJ

0. 35mJ

0.5mJ

Pulse width

15ns@20kHz

20ns@20kHz

20ns@20kHz

Wavelength

355nm

Beam Diameter

1.0mm

Beam Divergence

2.5mrad

Polarization Ratio

100:1  Horizontal

Average Power Stability

<3%

Beam-Pointing stability

25μrad

Pulse Repetition Rate Range

5K - 200KHz / CW

Cooling

Water-cooling

Ambient Temperature

15~300C

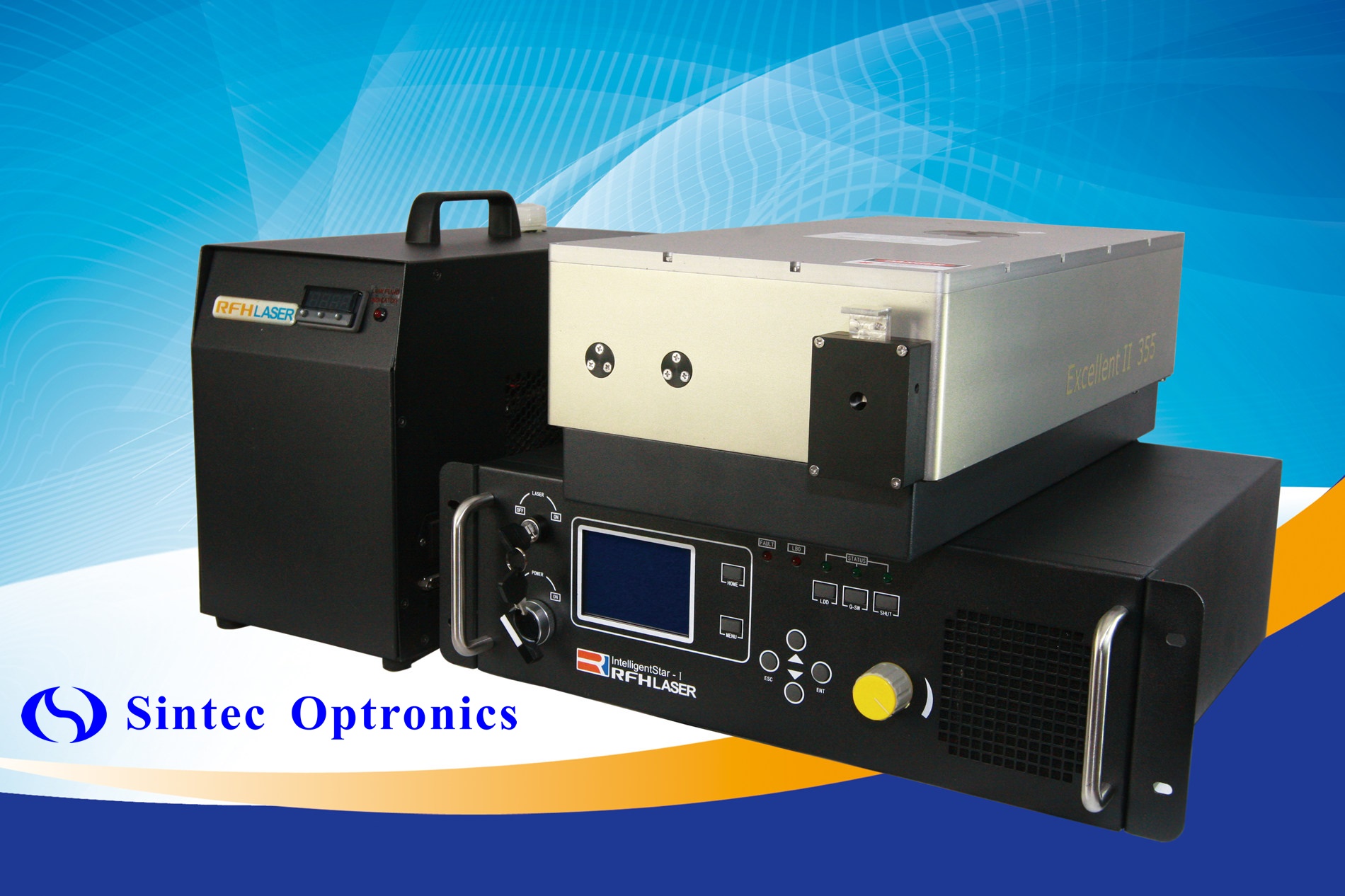

STRFH Excellent II 355 series

ExcellentⅡ355 UV series DPSS lasers include 8.0W to 10.0W models. With relatively short pulse width (<20ns@50K), superior beam quality(M2<1.2)and perfect beam spot quality (Beam Circularity>90% ). This series lasers are widely used in precisely marking on non-metal materials, LED etching, glass marking and FPC cutting applications.

Features:

● Laser wavelength 354.7nm. Repetition rates cover a wide

   range (single pulse to 200 kHz).

● Short pulse width (<20ns@50K), small thermal effect on

   operation field.

Fiber coupled diode pumping with high pumping efficiency

   & long lifetime (>20,000 hrs).

Superior beam quality (M2<1.2), absolutely assured in

   all repetition rates.

● ORHAC (online refreshment for harmonic coupling)

   technology, long term power stability.

Unique Q-switching technology, adapts a variety of control

   requirements of laser applications.

● Whole process intelligent digital power control technology,

   which can control lasers through RS232 external controller.

● Industrial production process control technology, provides

   quality stable products.

Higher powers require chiller

Application:

● LGlass Scribing and marking

Milipore punching

Removal of metal and non-metal coating

● Flexible PCB marking and scribing

● Omaterial micromachining



Excellent II 355 Series Parameter Unit Description
Laser wavelength 354.7 nm
Average Output Power 1 8.0-10.0 W @30kHz
Pulse Width 1 <20 ns @30kHz
Pulse Repetition Rate 10-120 kHz
Spatial Mode TEMoo
M2 <1.2
Beam Diameter 2.5±0.2 mm @1m measured from window
Beam Full Divergence Angle <0.5 mrad
Beam Circularity >0.90
Pulse-to-Pulse Stability <3 % RMS/@40KHz
Average Power Stability <5 % RMS/8hr
Beam-Pointing Drift 2 <25 μrad/℃
Polarization Ratio >100:1
Polarization Orientation Horizontal
Operating Temp. & RH 10 to 30
<80

%

Storage Temp. & RH -20 to 65
<90

%

Electricity Requirement 100-240
50/60
VAC
Hz
Single phase
Power Consumption <800 W
Warranty 12 months

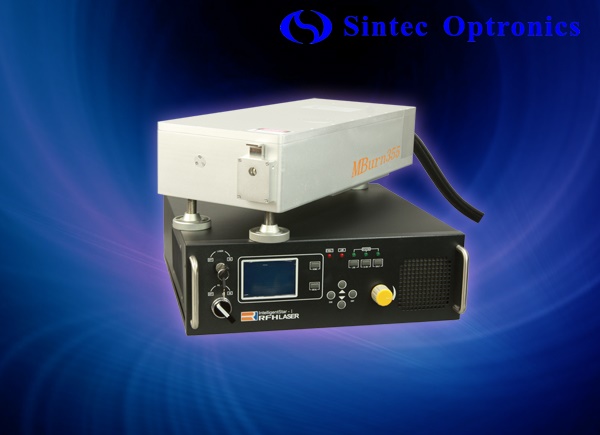

STRFH Mburn355 DPSS series

MBurn355 UV series DPSS lasers include models from 1.5W to 5W. With shorter pulse width (<6ns@40K), superior beam quality (M2<1.2) and perfect beam spot quality (Beam Circularity>95%). This series lasers are especially suitable for precisely marking on nonmetal materials, high-speed etching and cutting thin materials.

Features:

l  Laser wavelength 354.7nm. Repetition rates cover a wide range (single pulse to 200 kHz).

l  Short pulse width (<16ns@40K), small thermal effect on operation field.

l  Superior beam quality (M2<1.2), absolutely assured in all repetition rates.

l  ORHAC (online refreshment for harmonic coupling) technology, long term power stability.

l  Unique Q-switching technology, adapts a variety of control requirements of laser applications.

l  Whole process intelligent digital power control technology, which can control lasers through RS232 external controller.

l  Industrial production process control technology, provides quality stable products

l  Higher powers require chiller

MBurn 355 Series
Parameter Value Description
Laser wavelength 354.7 nm
Average Output Power 1 1.5-5.0 W @30kHz
Pulse Width 1 <6.0 ns @30kHz
Pulse Repetition Rate 10-100 kHz
Spatial Mode TEMoo
M2 <1.2
Beam Diameter 2.0±0.2 mm @1m measured from window
Beam Full Divergence Angle <0.5 mrad
Beam Circularity >0.90
Pulse-to-Pulse Stability <3 % RMS
Average Power Stability <5 % RMS/8hr
Beam-Pointing Drift 2 <30 μrad/℃
Polarization Ratio >100:1
Polarization Orientation Horizontal
Operating Temp. & RH 10 to 30℃
<80

Storage Temp. & RH -20 to 65℃
<90

Electricity Requirement 100-240VAC
50/60Hz
Single phase
Power Consumption <300W
Warranty 12

1. Laser power and other characteristics can be optimized in different repetition rates.
2. The temperature referred is ambient temperature.

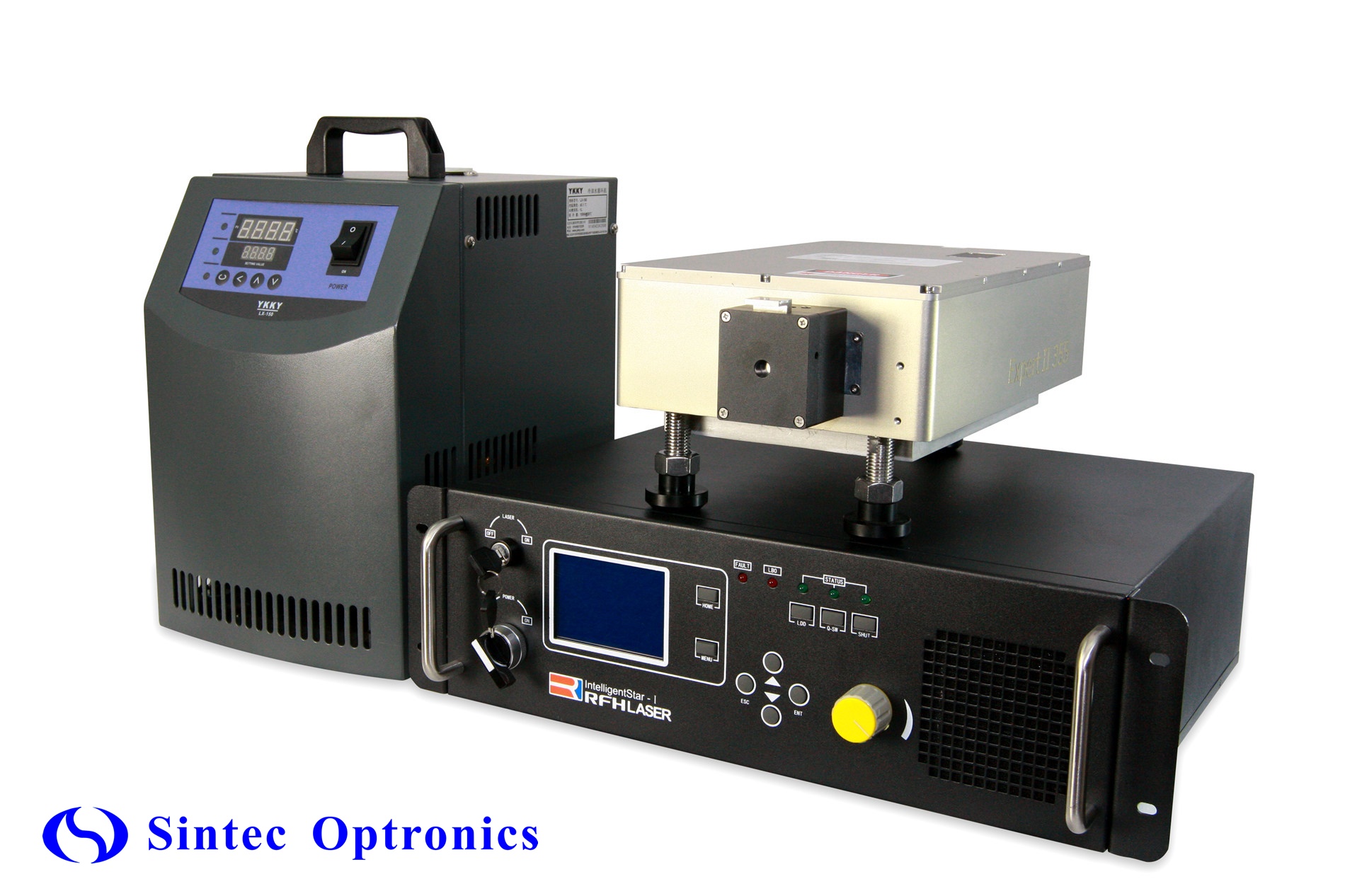

STRFH ExpertII 355 DPSS series

Expert 355 Series

Parameter

Unit

Description

Laser wavelength

354.7

nm



Average Output Power 1

3.0 - 5.0

W

@30kHz

Pulse Width 1

<25

ns

@30kHz

Pulse Repetition Rate

10-200

kHz



Spatial Mode

TEMoo



M2

<1.2



Beam Diameter

1.8±0.1

mm

@1m measured from window

Beam Full Divergence Angle

<2.0

mrad



Beam Circularity

>0.90



Pulse-to-Pulse Stability

<3

%

RMS

Average Power Stability

<5

%

RMS/8hr

Beam-Pointing Drift 2

<30

μrad/℃



Polarization Ratio

>100:1



Polarization Orientation

Horizontal



Operating Temp. & RH

10 to 30
<80


%



Storage Temp. & RH

-20 to 65
<90


%



Electricity Requirement

100-240
50/60

VAC
Hz

Single phase

Power Consumption

<500

W



Warranty

10,000 or

18

Hr
months

Whichever comes first.

1. Laser power and other characteristics can be optimized in different repetition rates.
2. The temperature referred is ambient temperature.



Diode Side-pumped DPSS Lasers    Lamp-pumped YAG Lasers    DPSS Lasers (532/671/473nm)    Ceramic Lasers

     High Peak Power DPSS Lasers      High Repetition Rate DPSS Lasers    CW DPSS Lasers (266nm)    Thin Disk Lasers

     EO Q-Switched Nd:YAG Lasers

Sintec Optronics Pte Ltd

10 Bukit Batok Crescent #07-02 The Spire Singapore 658079

Tel: +65 63167112 Fax: +65 63167113

E-mail: sales@sintec.sg sales@SintecOptronics.com

URL: http://www.sintec.sghttp://www.SintecOptronics.com

For more and updated information, please go to our New Websites.
