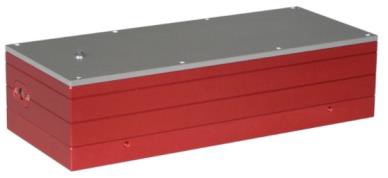

          High Peak Power DPSS Lasers



Features:

 high peak power solid-state diode pumped Q-switched lasers

 fundamental 1064 nm, green 532 nm and UV 355 nm available

 air-cooled, compact laser for micro and precision processing

 no additional cooling unit required

 excellent beam quality

 short pulses at high repetition rates

 high peak power

 pulse on demand

 high reliability for 24/7 operation

 ports for TTL, analog and RS 232 control

 cost-effective operation



Applications:

 rapid prototyping

 micro-machining

 thin film solar cell scribing

 marking, structuring, trimming

 glass engraving



Specifications of Series CP400



Model

CP400-1064

CP400-532

CP400-355

Wavelength

1064 nm

532 nm

355 nm

Power

4W @ 4 kHz

2W @ 4 kHz

1W @ 4 kHz

Pulse Repetition Rate

1 - 4 kHz

1 - 4 kHz

1 - 4 kHz

Pulse Width

10 ns @ 4 kHz

8 ns @ 4 kHz

8 ns @ 4 kHz

Pulse Energy

1000 μJ @ 4 kHz

500 μJ @ 4 kHz

250 μJ @ 4 kHz

Peak Power

100 kW @4kHz

60 kW @ 4kHz

30 kW @ 4kHz

Beam Quality

M < 1.3

M < 1.3

M < 1.3

Polarization

linear

linear

linear

Dimension Laser Head (W/H/L)

125x129x410mm

125x129x410mm

125x129x410mm

Dimension Power Supply (W/H/L)

280x130x240mm

280x130x240mm

280x130x240mm

Power Consumption

24 V DC, 300 W

24 V DC, 300 W

24 V DC, 300 W

Operating Temperature

15 - 35

15 - 35

15 - 35



Specification of Series CP600



Model

CP600-1064

CP600-532

Wavelength

1064 nm

532 nm

Power

7.5W @ 10 kHz

3W @ 10 kHz

Pulse Repetition Rate

1 - 10 kHz

1 - 10 kHz

Pulse Width

4 ns @ 10 kHz

3.5 ns @ 10 kHz

Pulse Energy

750 μJ @ 10 kHz

300 μJ @ 10 kHz

Peak Power

180 kW @ 10kHz

75 kW @ 10 kHz

Beam Quality

M < 1.4

M < 1.6

Polarization

linear

linear

Dimension Laser Head (W/H/L)

125 x 119 x 300 mm

125 x 119 x 300 mm

Dimension Power Supply (W/H/L)

19, 3U

19, 3U

Power Consumption

110-240V, 50-60 Hz, 300W

110-240V, 50-60 Hz, 300W

Operating Temperature

15 - 35

15 - 35



 Amplifiers

       ultra compact DPSS amplifiers

       fundamental wavelength 1064 nm

       Peltier-cooled

       high amplification

       easy to integrate

       version CA40 sealed design

       developed for amplification of short pulse lasers



Model

CA30-YAG

CA40-YAG

Wavelength

1064 nm

1064 nm

Amplification @ 50 μJ 1kHz Input

20

20

Amplification @ 150 μJ 5kHz Input

8

8

Input Beam Diameter

350 - 400 μm

350 - 400 μm

Angle of Incidence

18.6

18.6

Diode Current

0 - 60 A

0 - 60 A

TEC Cooling Requirement

120 W

120 W

Dimension

55 x 35 x 22 mm

70 x 40 x 28 mm

Operating Temperature

15 - 35

15 - 35
