          ShapeShifter� Ultrashort Pulse Nonlinear Spectrometer



l         Transient Absorption Spectroscopy (TA)

l         Pump-Dump-Probe Spectroscopy

l         Coherent Anti-Stokes Raman Spectroscopy (CARS)

l         Femtosecond Stimulated Raman Spectroscopy (fsSRS)

l         4-Wave Mixing Spectroscopy

l         Surface-Specific Vibrational Sum Frequency Generation Spectroscopy (Vib-SFG)

l         Two Photon Fluorescence Spectroscopy (TPF/TPEF)

l         Fluorescence Lifetime Imaging Microscopy (FLIM)

l         Photoluminescence Spectroscopy

l         Second Harmonic Generation Spectroscopy (SHG)

l         Third Harmonic Generation Spectroscopy (THG)

l         Laser Induced Breakdown Spectroscopy (LIBS)

l         Heat-Affected-Zone-Free, Embrittlement-Free Ablation (Micromachining)

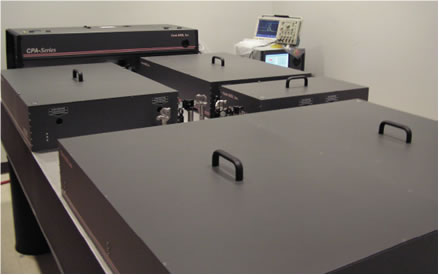

ShapeShifter� is a state-of-the-art research tool that can be configured to perform experiments using many different types of nonlinear processes. It is designed, fabricated and tested using field-proven components from a single manufacturer, thereby minimizing your technology adoption risk.


ShapeShifter� is capable of meeting your current needs while retaining the flexibility to add options1 that include pulsewidth as short as 15fs2, a large range of pump and probe wavelengths (e.g. sub-200 nm to beyond 10 microns) with decay times ranging from sub-30 femtoseconds to nanoseconds, and at user-selectable repetition rates that are variable from single-shot to multiple kHz. It can be used to explore heat-affected-zone and embrittlement-free structuring in a wide variety of materials using pulse widths that are variable from 30fs to 10ps.


ShapeShifter� begins with the field proven Model CPA-series patented, fiber-oscillator- seeded, Ti:Sapphire amplifier3. The output beam of the Model CPA can be split into as many as seven beams to pump as many as seven tunable, non-collinear OPAs (NOPAs). Or you can use one beam to generate multiple continua and/or you can microstructure materials to create features smaller than 1 micron. Clearly, ShapeShifter� is the ideal tool for a user facility.


Why limit your future options when ShapeShifter� offers you unmatched flexibility to go where your research takes you?


Only an introduction to ShapeShifter� can be provided here due to space limitations. Please contact us to find out how ShapeShifter� can be configured to meet your specific needs.


1 May require some additional components. Please contact us for more information.

2 Riedle, M. E. Beutter, S. Lochbrunner, J. Piel, S. Schenkl, S. Sp�rlein, W. Zinth Appl. Phys. B 71, 457 - 465 (2000) Generation of 10 to 50 fs pulsestunable through all of the visible and the NIR.

3 Patent #5,530,582
