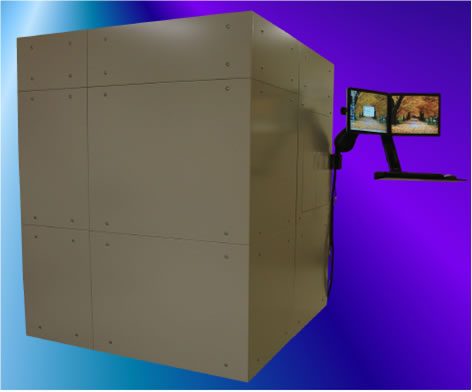

          Model UMW-Series Ultrafast Micromachining Workstation





l         Fully-integrated system including

l         Field-proven laser source technology (Model CPA-Series)

l         Multi-axis positioning system

l         Beam delivery system

l         Selection of processing parameters

l         Class I enclosure

l         Integrated, intelligent, on-axis machine vision and inspection system

l         Motion control

l         Pulses “on-demand” (1, 2, … 64,000 at user- selectable repetition rate1)

l         Optional digital and/or analog IO

l         Complete computer control

l         Granite base mounted on pneumatic vibration isolators

l         Small footprint



Over twenty years experience with ultrashort pulse lasers combined with hundreds of real world projects and years of processing knowhow have led to our latest generation of femtosecond micromachining workstations. The Model UMW-Series encompasses everything you need to micromachine with ultrashort pulse lasers. This design benefits from our years of experience learning the optimum combination of components, performance parameters, and software required to micromachine materials with ultrashort pulses of light. The Model UMW Series provides ample space for custom beam delivery and manipulation, and includes a sophisticated machine vision and inspection system, and complete computer control. The software interface provides powerful and intuitive access to all system functionality including the laser, motion, and machine vision systems, and provides advanced intercommunication between them.



Performance Parameters:



Positioning System2:

X, Y Axis



Z Axis



Max. Travel:

300mm

Max Travel:

 100mm

Repeatability:

0.5μm

Repeatability:

 1.0μm

Accuracy:

1.0μm

Accuracy:

 +/-1μm

Orthogonality:

5arc sec

Max. Velocity:

 5cm/sec

Max. Velocity

5cm/sec







Vision System:

Zoom Lens: 12x

Resolution3: 1μm

Field of View3: 4mm

Lighting: LED Ring and Coaxial Light

Inspection System: Pattern recognition, edge location, part rotation, part measurement



Laser:

See Model CPA-2101 & CPA-2110 brochures for performance parameters & features.



Enclosure:

Class I Laser Enclosure



Warranty

Please contact us for details.

This product protected under US patent numbers: 5,530,582; 5,572,358; 5,592,327; 5,594,256.



1. TTL-0,+1 ΔT = 1/repetition rate

2. Values are for the base system. Other configurations are available upon request.

3. Resolution is for maximum magnification and depends on focusing objective; FOV is for minimum magnification.
