          Lamp-pumped Pulsed Nd:YAG Lasers



 Integrated Lamp-pumped Pulsed Nd:YAG Lasers





The flashlamp-pumped pulsed Nd:YAG laser typically consists of laser head (pump chamber and laser resonator), switching power supply, control & closed water cooling system. The YAG-P series of flashlamp-pumped pulse Nd:YAG lasers are suitable for a wide range of precision welding, cutting and drilling applications in the electronics, medical, automotive and fine mechanics markets. The maximum output average power can reach 500-600W.



Model

YAG-P-50

YAG-P-100

YAG-P-200

Laser type

Lamp-pumped pulse Nd:YAG lasers

Laser wavelength

1064nm

Laser beam diameter

4mm

6mm

7mm

Laser power

50W

100W

200W

Laser energy

25J

50J

80J

Pulse width

0.1-10ms (others available upon request)

Pulse repetition rate

1-200Hz (others available upon request)

Cooling

Closed water cooling system

Power requirements

3-phase, 380VAC, 6KVA

3-phase, 380VAC, 8KVA

Dimension of laser head

900180180mm

Options

Laser chiller, optical beam delivery, XY table, XYZ table



For OEM users or laser integrators, we can provide OEM and system integrators with a range of high performance components and sub-assemblies at more attractive prices. These components and sub-assemblies include laser head (pump chamber, Nd:YAG rod, lamp, laser resonator, optional aperture), lamp driver and chiller.



Application notes: Based on our experience, ceramic chambers are better used in welding machines and gold-coated chambers are better used in cutting machines.



Typical Applications:



Laser cutting, welding & drilling of metals and components such as stainless steel, aluminium alloy, containers, electronic guns, lithium battery, fiber coupler etc.



 OEM Lamp-pumped Pulsed Nd:YAG Lasers



For OEM users or laser integrators, we can provide you with a range of high performance components and sub-assemblies at more attractive prices. The OEM pulsed laser consists of a laser head (pump chamber, Nd:YAG rod, lamp, laser resonator, optional aperture and optional beam expander), a lamp driver (power supply) and an optional chiller. These lasers can be used for laser welding and cutting.

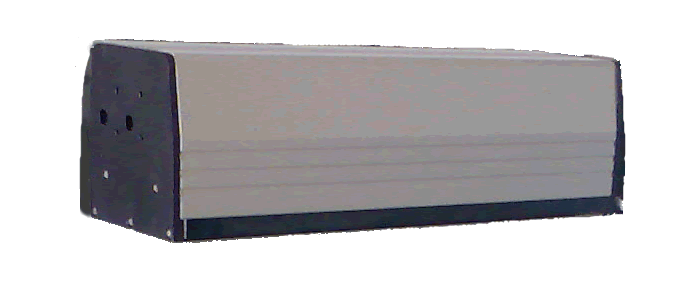

laser head

power supply

chiller





Model

YAG-P-100OEM

YAG-P-200OEM

YAG-P-350OEM

YAG-P-500OEM

Laser type

Flashlamp-pumped pulse Nd:YAG lasers

Laser wavelength

1064nm

Laser beam diameter

4mm

6mm

8mm

8mm

Laser power

100W

200W

350W

500W

Pulse width

0.1-10ms (others available upon request)

Pulse repetition rate

1-300Hz (others available upon request)

Cooling

Closed water cooling system

Power requirements

3-phase, 380VAC

Dimension of laser head

900180180mm



The customer can use these OEM lasers to develop its own laser welding or cutting systems by adding beam delivery, frame, chiller and relevant motorized or hand-adjustable tables as shown in the following picture.



 Lamp-pumped CW Nd:YAG Lasers     Download "Pulsed Nd:YAG Lasers" data sheet (PDF)
