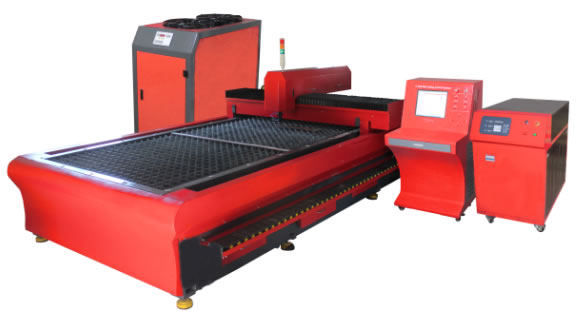

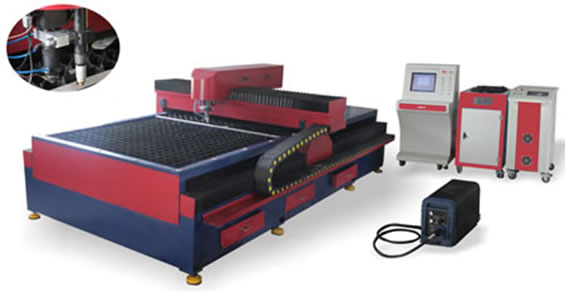

Fiber Laser Sheet Metal Cutting
Machine

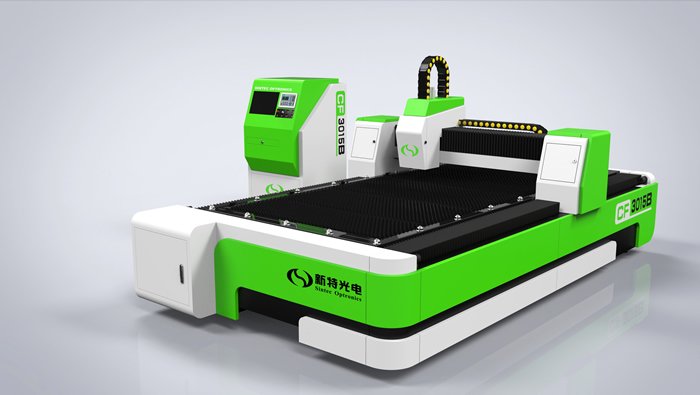

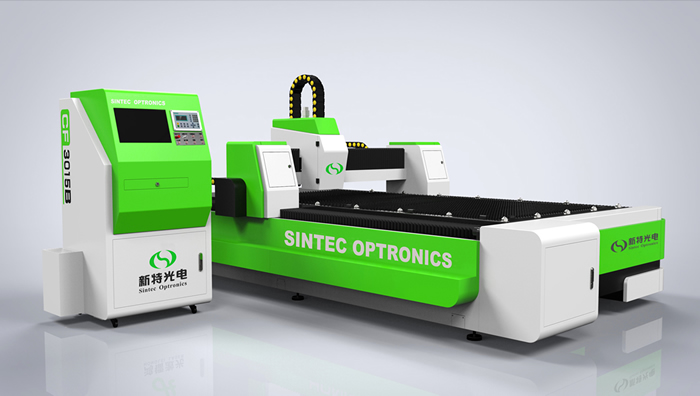

C-F500
Series Fiber Laser Cutting Machine, absorbed advanced technology from
Europe & USA, is high end NC
machine domestically. Product, certificated by ISO9000 Quality
Management System, is presenting stable cutting performance with 90%
imported brand components from overseas, such as laser source, cutting
head, NC controller & auto-nesting software etc. Cutting machine is
structured with gantry frame, which has excellent strength and
stability, and high precision ball screw with linear slider driven.
Machine has
been well calibrated to achieve fast cutting speed without compromising
high precision, for sheet metal cutting less than 4mm applications.
Furthermore, fiber laser, which is a new technology with best beam
quality, perfect focused beam spot size, high plug efficiency,
maintenance free, cost effective and compact size, no lasing gas
required, is deemed to be a revolutionary manufacturing tool of
machinery.
Features:
-
A
perfect combination of fiber laser with CNC technique
-
Professional CNC control system with user friendly HMI
-
Gantry
structure
-
Shuttle
loading table
-
AC
servo motion control with fully enclosed high precision ball screw
and linear slider
-
Auto
tracking capacitor sensor to maintain constant focus position
-
High
pressure of assisted gas, up to 20Bar
-
Suction
system to remove fume and dust
-
Can be
extended for pipe cutting
Applications:
Cutting
sheet metal like, mild steel, stainless steel, titanium, zinc coated
steel, etc.
Technical specifications:
|
Model |
C-FIBER-500-3000x1500 |
C-FIBER-500-1250x1250 |
|
Laser Source |
Fiber Laser |
Fiber Laser |
|
Wavelength |
1070nm |
1070nm |
|
Laser Power |
500W (1000W) |
500W (1000W) |
|
Positioning accuracy |
≤�0.05mm |
≤�0.05mm |
|
Repeatability |
≤�0.03mm |
≤�0.03mm |
|
Max
sheet weight |
800kg |
800kg |
|
Max
positioning speed |
60m/min |
60m/min |
|
X
Stroke |
3000mm |
1250mm |
|
Y
Stroke |
1500mm |
1250mm |
|
Z
Stroke |
120mm |
120mm |
|
Power supply |
380VAC/50Hz/60A/3phase |
380VAC/50Hz/60A/3phase |
Remark:
1.
1000W fiber
laser available upon request.
2.
Other size
tables available upon request.

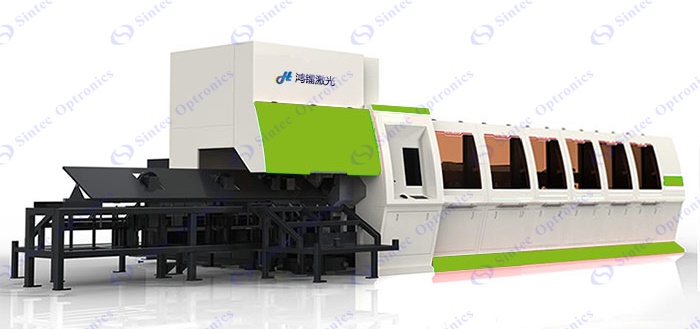

Enclosed Fiber laser Pipe Cutting
Machine
Technical Specification:
| Laser power |
500W-3000W |
| Laser source |
High quality fiber laser
resonator |

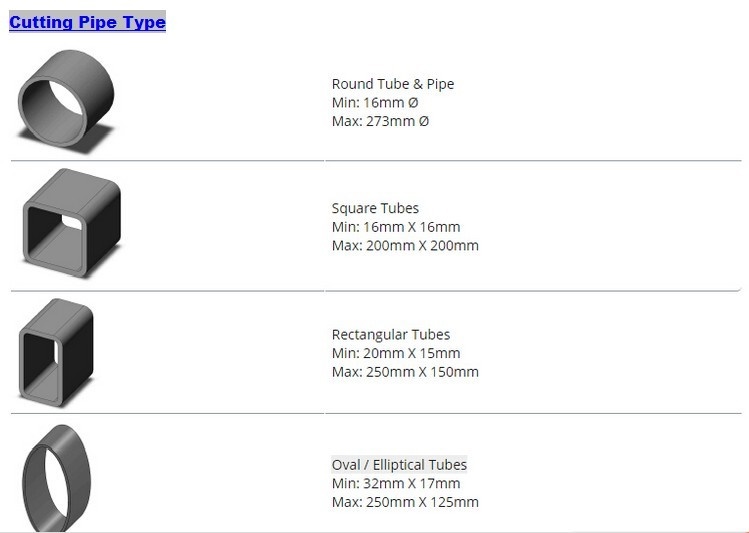

| Pipe/Tube processing (L � Φ) |
L3000mm, Φ20-180mm, (Φ20-200mm
for option) |
| CNC control |
Shanghai FISCUT
CypCut |
| Power supply |
AC380V�5% 50/60Hz (3 phase) |
| Total electric power |
16KW-22KW |
| Position accuracy |
+0.03mm |
| Repeat
position accuracy |
+0.02mm |
| Maximum position speed |
72m/min |
| Max load
of working table |
1000kg |
| Drawing programming mode |
AI, DWG, PLT, DXF format import
directly |
| Machine weight |
5.3T |
Cutting
capabilities:
|
Material |
Thickness
（mm） |
Speed
(mm/min) |
Gas
Pressure (Bar) |
Nozzle diameter |
Gas |
|
SS |
0.5 |
8000 |
15 |
1mm |
O2 |
|
SS |
1.0 |
6000 |
15 |
1mm |
O2 |
|
SS |
2.0 |
3600 |
15 |
1mm |
O2 |
|
SS |
3.0 |
1700 |
15 |
1mm |
O2 |
|
SS |
4.0 |
800 |
15 |
1mm |
O2 |
|
MS |
1.0 |
8000 |
12 |
1mm |
O2 |
|
MS |
1.5 |
5000 |
10 |
1mm |
O2 |
|
MS |
2.0 |
4200 |
8 |
1mm |
O2 |
|
MS |
3.0 |
2400 |
8 |
2mm |
O2 |
|
MS |
4.0 |
1500 |
8 |
2mm |
O2 |
|
MS |
5.0 |
1000 |
6 |
2mm |
O2 |
The above data are for your reference only.

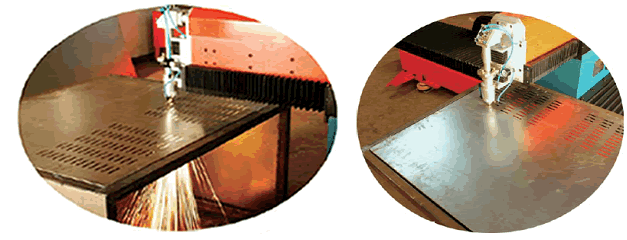

Cutting Solutions-----Metal sheet being processed

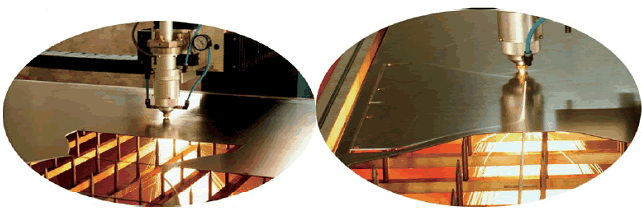

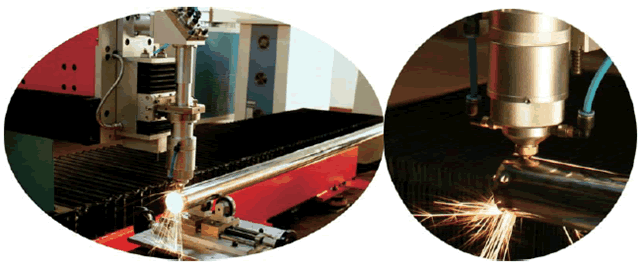

Cutting solutions-----Metal tube being processed
Cutting solutions-----Metal racks and cabinets being
processed

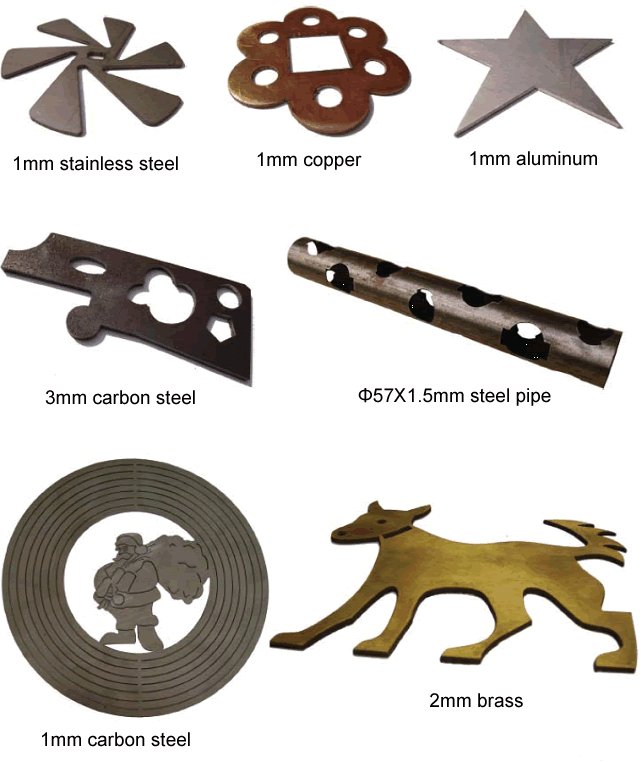

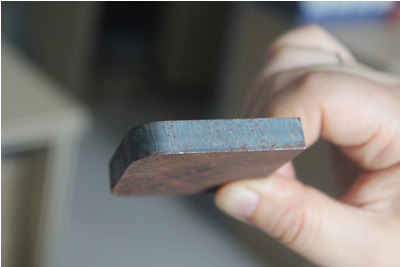

Cut Samples
Please
click
here to
download the video (22MB) to show laser cutting processing. Click
here (1.5MB) to online watch cutting process.
