          Laser Safety Goggles



Laser Safety Goggles (STSD Series)



STSD series laser protective goggles are made of a sort of special plastics, which appends several well selected laser-absorbing dyes. They provide excellent filters to protect your eyes against laser beams used in scientific, industrial and medical applications. The protective characters and safety won’t change at different incident angles.



These goggles are CE-certified.



Model

Wavelength range(nm)

Laser

Wavelength (nm)

OD

V.L.T. (%)

ST-SD1

200-540

SHG Nd:YAG

532

³4

50

Ar+

514

³4

ST-SD2

600-700

He-Ne

633

³4

30

ST-SD3

800-1100

Nd:YAG

1064

³4

40

ST-SD4

200-540

800-1100

Ar+

514

³4

30

SHG Nd:YAG

532

Diode

808, 810

904, 980

Nd:YAG

1064

ST-SD5

10600

CO2

10600

³4

90

ST-SD6

2100

Ho

2100

³4

30

ST-SD7

200-450

He-Cd

441

³4

70

Ar+

488

FHG Nd:YAG

266

ST-SD8

800-1700

Diode

1510

³4

28

1530

1610

ST-SD9

750-820

diodes

808

³4

25

Remark:

1. OD³6 available for above items upon request.

2. V.L.T. means visible light transmission percentage.



Available Frames:

Model

Filter

Frame 1

Frame 2

Frame 3

Frame 4

Frame 5

Frame 6

ST-SD1

Orange

Y

Y

Y

Y

Y

Y

ST-SD2

Blue

Y

Y

Y

Y

Y

N

ST-SD3

green

Y

Y

Y

N

Y

Y

ST-SD5

gray

Y

N

Y

N

N

N

ST-SD6

green

N

Y

N

N

N

N

ST-SD7

orange

N

Y

Y

N

N

N

ST-SD8

Deep green

N

Y

Y

N

Y

Y

ST-SD9

green

N

Y

Y

N

Y

N



ST-SD3 Nd:YAG 1064nm Laser Safety Goggles





ST-SD5 CO2 Laser 10.6um Safety Goggles

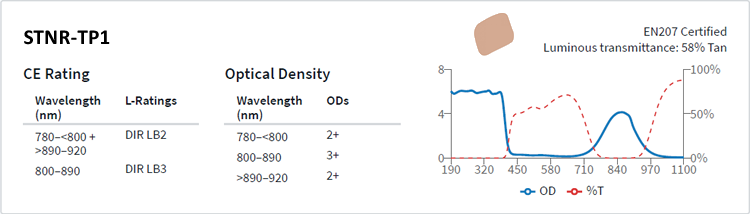

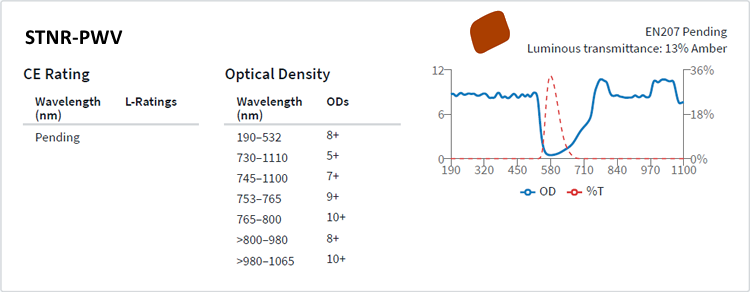

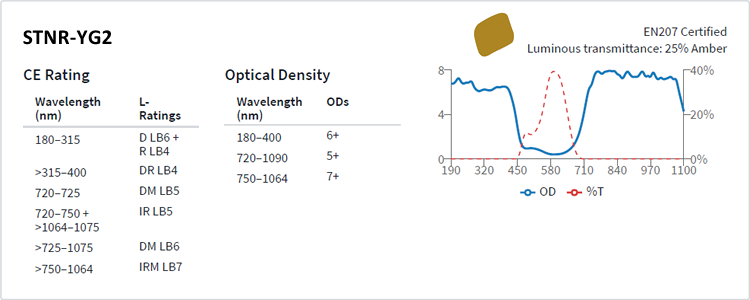

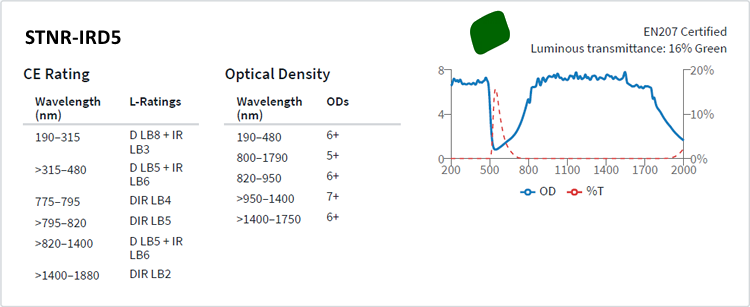

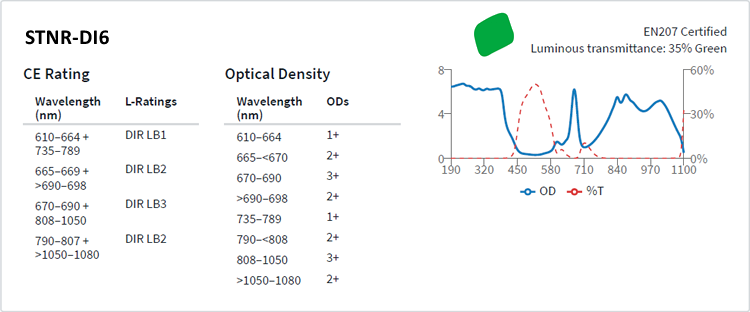

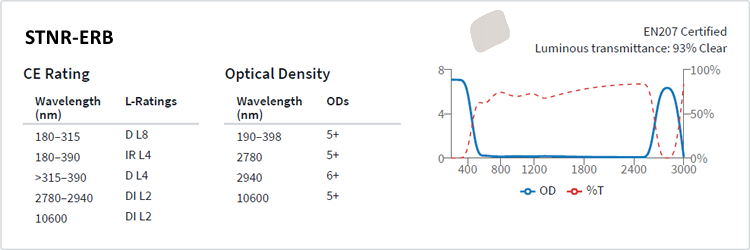

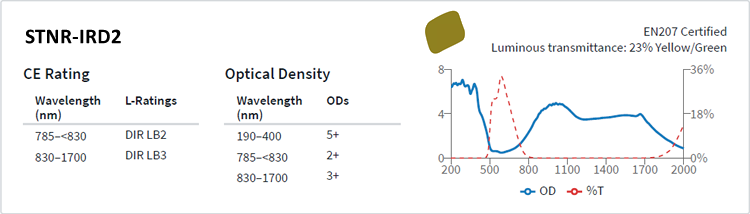

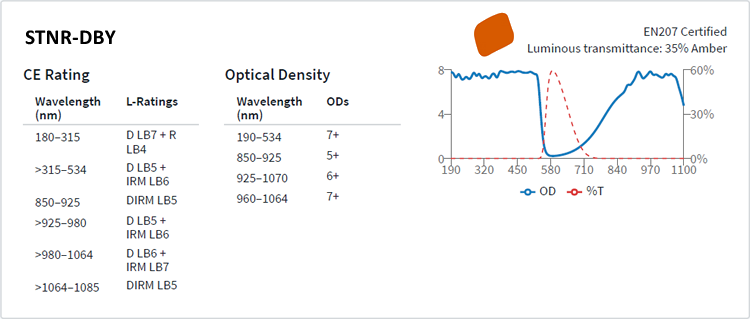

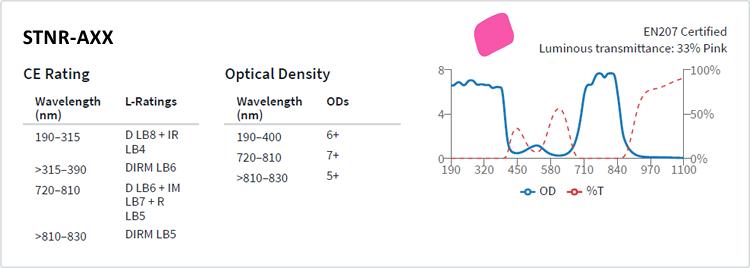

Laser Safety Goggles (STNR Series)

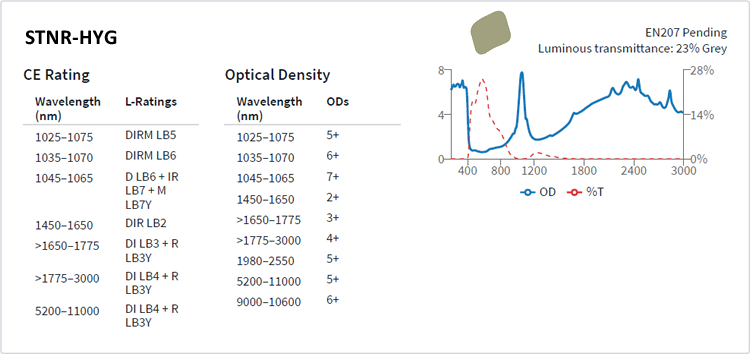

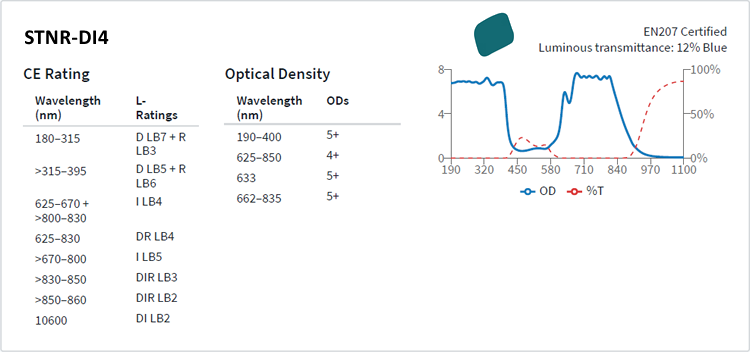

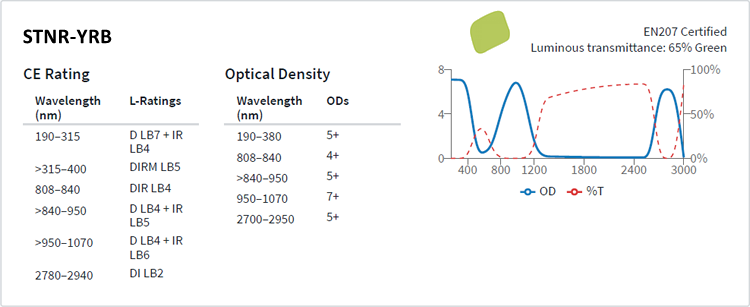

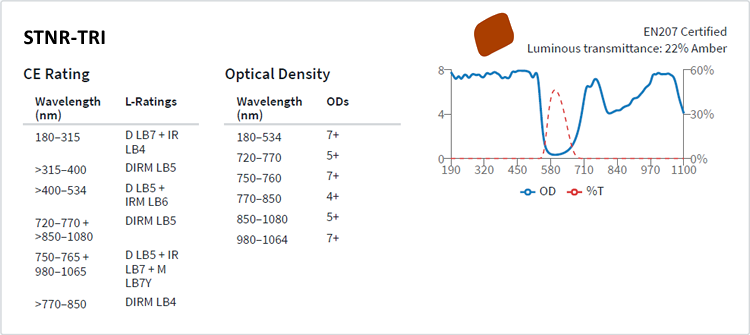

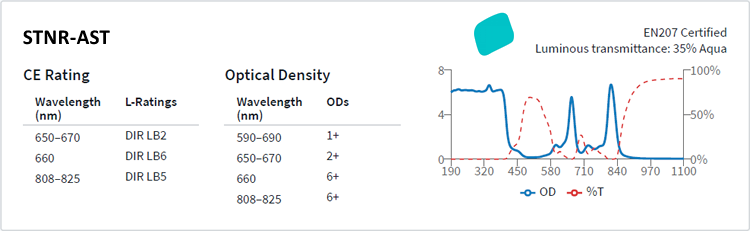

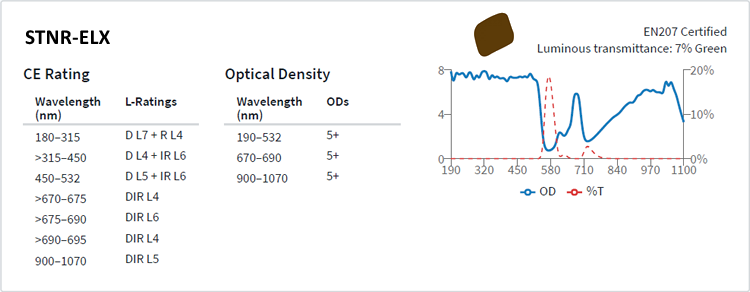

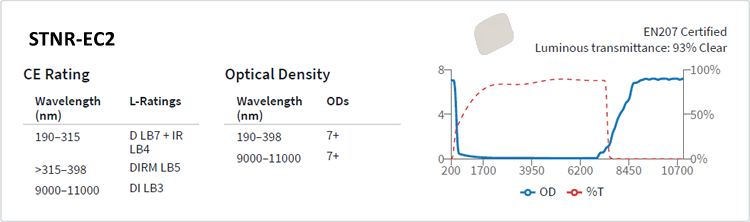

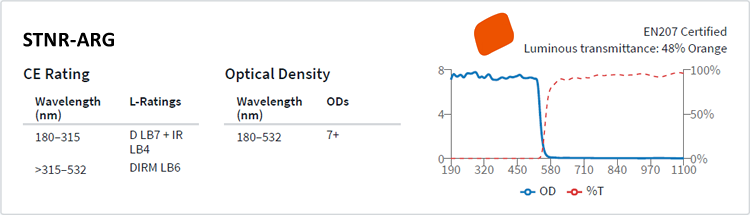

STNR laser safety goggles have found applications in nearly every discipline that employs coherent or non-coherent light, including enhancement of fluorescence of bodily fluids and latent fingerprints for forensics; enhancement of chemiluminesence and fluorescence in medical, biological and even marine biological applications; dye enhancement in leak detection, patient protection in post-treatment pharmaceutical applications, UV protection in dental and industrial bonding/curing/whitening applications and more. Our standard goggles are listed below. Other wavelengths and styles available on request.



* most popular frame styles.

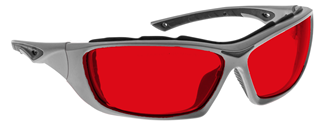

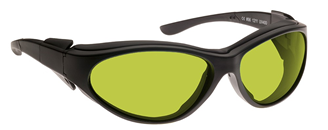

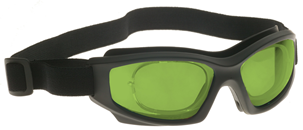

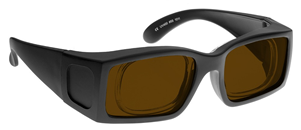

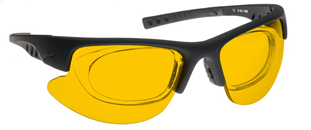

Frame Style Options



Specifications of Acrylic Filters

Model

Wavelength

OD

%VLT

Color

Thickness

Dimension





ECW125

200-360nm

5+

5+

84%

Clear

0.125"

up to 24"x36"

61 x 91cm



10600nm



ARW140

190-375nm

5+

41%

Orange

0.14"

up to 24"36"

61 x 91cm



376-532nm

4+



DOW125

730-855nm

5+

30%

Rose

0.125"

up to 24"x24"

61 x 61cm



750-840nm

7+



10600nm

5+



YGW125

190-360nm

5+

65%

Green

0.125"

up to 24"x36"

61 x 61cm



800-1080nm

3+



860-1070nm

4+



1064nm

6+



YGW250

190-360nm

5+

65%

Green

0.25"

up to 24"x36"

61 x 91cm



800-1080nm

3+



860-1070

4+



1064nm

6+



YDW150

190-375nm

5+

44%

Amber

0.125"

up to 24"x36"

61 x 91cm



760-1070nm

5+



1064nm

5+



DBW125

190-532nm

5+

25%

Amber

0.125"

up to 24"x36"

61 x 91cm



532nm

6+



850-879nm

4+



880-1070nm

5+



IRW140

830-1700nm

5+

35%

Green

0.140"

up to 24"x36'

61 x 91cm



10600nm

5+





Specifications of Glass Filters

KGW235

900-950nm

4+

70%

Clear

0.235"

100x200 mm

950-1,000nm

5+

1,000-1,600nm

6+

1,600-2,400nm

4+

2,400-3,800nm

3+

3,800-4,000nm

4+

4,000-5,200nm

5+

10,600nm

5+



  Laser safety shields/windows/curtains
