 ZnSe (Zinc Selenide) CO2 Laser Focusing Lenses (Plano-convex Lenses)


Specifications

Standards

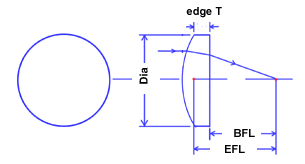

Effective Focal Length (EFL)

Tolerance: �2%

Dimensional Tolerances

Diameter: +0.000'' -0.005''
Thickness: �0.010''

Edge Thickness Variation (ETV)

 �0.002''

Parallelism

Plano: <3 arc minutes

Surface Figure (power-irregularity) at 0.63 microns

Plano: 1 fringe - 0.5 fringe
Radiused: depending on radius

Surface Quality: Scratch-Dig

60-40

AR Coating Reflectivity Per surface at 10.6 microns

0.25%





Description of Part Number: FL-xxxx-F-D-T-EN-yy

FL: single-element focusing lens

Xxxx: laser wavelength, 10.6um.

F: focal length, mm

D: lens diameter, mm

T: lens edge thickness, mm

EN: inch unit (If there is no EN, it means metric unit in mm).

yy: others

Coating: di-electric coating at 10.6nm.



Part number

Material

FL

mm/inch

BFL

mm

Dia.

mm/inch

Edge T

mm

FL-10.6-5.0ZLP25

ZnSe

25



12.7/0.5

2.5

FL-10.6-F25.4-D12.7-JS

ZnSe

25.4/1



12.7/0.5



FL-10.6-F40-D16-T2-CC

ZnSe

40

39.1

16

2.0

FL-10.6-F40-D18-JS

ZnSe

40

39.1

18



FL-10.6-F50-D16-T2-CC

ZnSe

50

49.1

16

2.0

FL-10.6-F50-D18-JS

ZnSe

50

49.1

18



FL-10.6-F50-D25-JS

ZnSe

50

49.1

25



FL-10.6-F55-D20-JS

ZnSe

55



20



FL-10.6-F60-D18-T2-CC

ZnSe

60

59.1

18

2.0

FL-10.6-F60-D18-JS

ZnSe

60

59.1

18



FL-10.6-F74-D30-T2.5-JS

ZnSe

75



30

2.5

FL-10.6-F80-D25-T2.5-CC

ZnSe

80

78.8

25

2.5

FL-10.6-F80-D25-JS

ZnSe

80

78.8

25



FL-10.6-F95.25-D25.4-JS

ZnSe

95.25/3.75



25.4/1.0



FL-10.6-15ZLP95-1106

ZnSe

95/3.75



38.05/1.5

3

FL-10.6-F100-D25-T2.5-CC

ZnSe

100

98.9

25

2.5

FL-10.6-F100-D25-JS

ZnSe

100

98.9

25



FL-10.6-F100-D25.4-WT

ZnSe

100

98.9

25.4

3

FL-10.6-15ZLP100/7-10UM

ZnSe

100



38.05/1.5

3

FL-10.6-F127-D27.95-JS

ZnSe

127/5



27.95/1.1



FL-10.6-F127-D25.4-JS

ZnSe

127/5



25.4/1.0



FL-10.6-11EX1ZLP127

ZnSe

127/5



28/1.1

3.17

FL-10.6-11PHGP127-BE

ZnSe

127/5



28/1.1

4

FL-10.6-11ZLP127

ZnSe

127/5



28/1.1

3

FL-10.6-15HGPP127

ZnSe

127/5



38.05/1.5

6

FL-10.6-15PHGP127

ZnSe

127/5



38.05/1.5

7.6

FL-10.6-15ZLP127

ZnSe

127/5



38.05/1.5

3

FL-10.6-20PEHGP127

ZnSe

127/5



50.8/2

9.58

FL-10.6-20PHGP127

ZnSe

127/5



50.8/2

7.87

FL-10.6-15CIN130

ZnSe

130



38.05/1.5

7.1

FL-10.6-20CIN132

ZnSe

132



50.8/2

9.68

FL-10.6-15ZLP175

ZnSe

175



38.05/1.5

3

FL-10.6-6.7ZLP178

ZnSe

178



17

1.79

FL-10.6-15HGPP190

ZnSe

190/7.5



38.05/1.5

6

FL-10.6-20PEHGP190

ZnSe

190/7.5



50.8/2

9.58

FL-10.6-15EXZLP190

ZnSe

190/7.5



38.05/1.5

2

FL-10.6-20PHGP190

ZnSe

190.5/7.5



50.8/2

7.87

FL-10.6-15PHGP190

ZnSe

190.5/7.5



38.05/1.5

7.6

FL-10.6-15CIN194

ZnSe

194/7.64



38.05/1.5

7.1

FL-10.6-20CIN195

ZnSe

195/7.68



50.8/2

9.68

FL-10.6-20PHGP222

ZnSe

222/8.74



50.8/2

7.87

FL-10.6-20PHGP254

ZnSe

254/10



50.8/2

7.87

FL-10.6-11ZLP254

ZnSe

254/10



28

3

FL-10.6-5.9ZLP2800

ZnSe

280/10



15

2.5

FL-10.6-15HGPP381

ZnSe

381/15



38.05

6

FL-10.6-20ZLP1700

ZnSe

1700/66.9



50.8/2

3.5

FL-10.6-20PMGP15000

ZnSe

15000/590.5



50.8/2

4.06

1. FL=focal length; BFL-back focal length.

2.  There are too many items and models and welcome to call us or send us an email if you have any further enquiry or question!



LPZ Series Plano-convex ZnSe Lenses Coated AR-AR @ 10.6um



This wide range of CO2 plano-convex lenses have been prepared to fit most OEM, Industrial and Medical laser systems. All have been manufactured to high-quality laser specifications for high-power applications.



Made with laser grade zinc selenide with computer optimized anti-reflection coatings.



Specifications:
 Material: ZnSe Laser Grade C.V.D. type

Diameter Tolerances: +0.000", -0.005"

Thickness: �.010"

Surface Figure: < 1/40 wavelength @ 10.6�m

Centration: < 0.001"

Focal Length Tolerance: �1.0%

Surface Quality: < 40/20 scratch-dig Laser Finish



Spectral Performance:

Standard AR Coating type Both Sides @ 10.6�m (AR)

Absorption: < 0.25 % total

Reflectance: < 0.20% per surface @ 10.6�m

Transmittance: > 99.0% typical

Ultra Low Absorption AR Coating type Both Sides @ 10.6�m (ULA)

Absorption: < 0.15 % total

Reflectance: < 0.25% per surface

Transmittance: > 99.0% typical

Dual Band AR Coating type Both Sides @ 10.6�m and .633�m (DBAR)

Absorption: < 0.30 % total

Reflectance: < 0.25% per surface @ 10.6�m

Transmittance: > 98.5% @ 10.6�m with > 90% @ .633�m



Model Number

Diameter

Focal Length

Edge Thickness

FL-10.6-LZP-0710-DBAR

0.750"

1.00"

0.070"

FL-10.6-LZP-0715-DBAR

0.750"

1.50"

0.070"

FL-10.6-LZP-0720-DBAR

0.750"

2.00"

0.070"

FL-10.6-LZP-0720-ET2.0

0.750"

2.00"

0.080"

FL-10.6-LZP-0725-DBAR

0.750"

2.50"

0.070"

FL-10.6-LZP-0730-DBAR

0.750"

3.00"

0.070"

FL-10.6-LZP-0730-ET3.0

0.750"

3.00"

0.120"

FL-10.6-LZP-0735-DBAR

0.750"

3.50"

0.070"

FL-10.6-LZP-0740-DBAR

0.750"

4.00"

0.070"

FL-10.6-LZP-0750-DBAR

0.750"

5.00"

0.070"

FL-10.6-LZP-0775-DBAR

0.750"

7.50"

0.070"

FL-10.6-LZP-07A0-DBAR

0.750"

10.0"

0.070"

FL-10.6-LZP-07A2-DBAR

0.750"

12.0"

0.070"

FL-10.6-LZP-07A5-DBAR

0.750"

15.0"

0.070"

FL-10.6-LZP-07B0-DBAR

0.750"

20.0"

0.070"

FL-10.6-LZP-1010-ET2.0

1.00"

1.00"

0.080"

FL-10.6-LZP-1015-ET2.0

1.00"

1.50"

0.080"

FL-10.6-LZP-1025-ET3.0

1.00"

2.50"

0.120"

FL-10.6-LZP-1030-ET3.0

1.00"

3.00"

0.120"

FL-10.6-LZP-1035-ET3.0

1.00"

3.50"

0.120"

FL-10.6-LZP-1040-ET3.0

1.00"

4.00"

0.120"

FL-10.6-LZP-1050-ET3.0

1.00"

5.00"

0.120"

FL-10.6-LZP-1060-ET3.0

1.00"

6.00"

0.120"

FL-10.6-LZP-1075-ET3.0

1.00"

7.50"

0.120"

FL-10.6-LZP-10A0-ET3.0

1.00"

10.0"

0.120"

FL-10.6-LZP-10A5-ET3.0

1.00"

15.0"

0.120"

FL-10.6-LZP-10B0-ET3.0

1.00"

20.0"

0.120"

FL-10.6-LZP-10B5-ET3.0

1.00"

25.0"

0.120"

FL-10.6-LZP-1115-ET2.0

1.10"

1.50"

0.080"

FL-10.6-LZP-1125-ET3.0

1.10"

2.50"

0.120"

FL-10.6-LZP-1125-ET4.0

1.10"

2.50"

0.160"

FL-10.6-LZP-1125-ET6.0

1.10"

2.50"

0.236"

FL-10.6-LZP-1135-ET3.0

1.10"

3.50"

0.120"

FL-10.6-LZP-1138-ET3.0

1.10"

3.75"

0.120"

FL-10.6-LZP-1138-ET4.0

1.10"

3.75"

0.160"

FL-10.6-LZP-1150-ET3.0

1.10"

5.00"

0.120"

FL-10.6-LZP-1150-ET4.0

1.10"

5.00"

0.160"

FL-10.6-LZP-1150-ET6.0

1.10"

5.00"

0.236"

FL-10.6-LZP-1160-ET3.0

1.10"

6.00"

0.120"

FL-10.6-LZP-1175-ET3.0

1.10"

7.50"

0.120"

FL-10.6-LZP-1175-ET6.0

1.10"

7.50"

0.236"

FL-10.6-LZP-11A0-ET3.0

1.10"

10.0"

0.120"

FL-10.6-LZP-1525-ET3.0

1.500"

2.50"

0.120"

FL-10.6-LZP-1525-ET4.0

1.500"

2.50"

0.160"

FL-10.6-LZP-1530-ET3.0

1.500"

3.00"

0.120"

FL-10.6-LZP-1535-ET3.0

1.500"

3.50"

0.120"

FL-10.6-LZP-1538-ET3.0

1.500"

3.75"

0.120"

FL-10.6-LZP-1540-ET3.0

1.500"

4.00"

0.120"

FL-10.6-LZP-1550-ET2.0

1.500"

5.00"

0.080"

FL-10.6-LZP-1550-ET3.0

1.500"

5.00"

0.120"

FL-10.6-LZP-1550-ET4.0

1.500"

5.00"

0.160"

FL-10.6-LZP-1550-ET5.0

1.500"

5.00"

0.200"

FL-10.6-LZP-1550-ET6.0

1.500"

5.00"

0.236"

FL-10.6-LZP-1550-ET7.6

1.500"

5.00"

0.300"

FL-10.6-LZP-1551-ET7.0

1.500"

5.13"

0.280"

FL-10.6-LZP-1560-ET3.0

1.500"

6.00"

0.120"

FL-10.6-LZP-1574-ET7.6

1.500"

7.45"

0.300"

FL-10.6-LZP-1575-ET3.0

1.500"

7.50"

0.120"

FL-10.6-LZP-1575-ET4.0

1.500"

7.50"

0.160"

FL-10.6-LZP-1575-ET6.0

1.500"

7.50"

0.236"

FL-10.6-LZP-1575-ET7.6

1.500"

7.50"

0.300"

FL-10.6-LZP-1576-ET7.6

1.500"

7.63"

0.300"

FL-10.6-LZP-15A0-ET2.0

1.500"

10.0"

0.080"

FL-10.6-LZP-15A0-ET4.0

1.500"

10.0"

0.160"

FL-10.6-LZP-15A0-ET6.0

1.500"

10.0"

0.160"

FL-10.6-LZP-15A5-ET3.0

1.500"

15.0"

0.120"

FL-10.6-LZP-15B0-ET3.0

1.500"

20.0"

0.120"

FL-10.6-LZP-15B5-ET3.0

1.500"

25.0"

0.120"

FL-10.6-LZP-15C9-ET3.0

1.500"

39.3"

0.120"

FL-10.6-LZP-15E9-ET3.0

1.500"

59.0"

0.120"

FL-10.6-LZP-15X9-ET4.0

1.500"

59.0"

0.160"

FL-10.6-LZP-2050-ET7.6

2.00"

5.0"

0.300"

FL-10.6-LZP-2050-ET9.7

2.00"

5.0"

0.380"

FL-10.6-LZP-2051-ET9.7

2.00"

5.188"

0.380"

FL-10.6-LZP-2074-ET7.9

2.00"

7.45"

0.310"

FL-10.6-LZP-2074-ET9.7

2.00"

7.45"

0.380"

FL-10.6-LZP-2075-ET2.5

2.00"

7.50"

0.100"

FL-10.6-LZP-2075-ET4.9

2.00"

7.50"

0.193"

FL-10.6-LZP-2075-ET7.9

2.00"

7.50"

0.310"

FL-10.6-LZP-2075-ET9.7

2.00"

7.50"

0.380"

FL-10.6-LZP-2076-ET7.6

2.00"

7.560"

0.300"

FL-10.6-LZP-2076-ET9.7

2.00"

7.673"

0.380"

FL-10.6-LZP-2088-ET8.0

2.00"

8.75"

0.315"

FL-10.6-LZP-20A0-ET4.7

2.00"

10.0"

0.185"

FL-10.6-LZP-20A0-ET9.7

2.00"

10.0"

0.380"

FL-10.6-LZP-20A3-ET8.0

2.00"

12.50"

0.315"

FL-10.6-LZP-2588-ET7.87

2.00"

8.75"

0.310"



 Meniscus Lenses



Meniscus lenses form the largest and most popular part of our product range.



l         Optimised meniscus designs

l         Manufactured in high quantities to keep costs low.

l         Quality matches or exceeds any other supplier



Specifications:

Diameter tolerance: +0/-0.1mm

Focal length tolerance: +/-0.5%

Angle of incidence: 0 degree

Transmission: >99.4%

Reflectance: <0.1% per surface

Absorption: <0.2% per surface



The following standard meniscus are available.



Part No.

Material

Diameter

mm

ET

mm

Coating

FL

mm

FL-10.6-5.0ZLF25

ZnSe

12.7

2

AR/AR

25.4

FL-10.6-5.0ZLF38

ZnSe

12.7

2

AR/AR

38.1

FL-10.6-F38.1-D12.7-T2-MN-WT

ZnSe

12.7

2

AR/AR

38.1

FL-10.6-5.1ZLF100

ZnSe

13

2

AR/AR

100

FL-10.6-F100-D13-T2-MN-WT

ZnSe

13

2

AR/AR

100

FL-10.6-6.1ZLF48

ZnSe

15.5

2.5

AR/AR

48

FL-10.6-6.1ZLF110

ZnSe

15.5

2.5

AR/AR

110

FL-10.6-10ZLF25

ZnSe

25.4

2.5

AR/AR

25.4

FL-10.6-10ZLF38

ZnSe

25.4

2.5

AR/AR

38.1

FL-10.6-10ZLF51

ZnSe

25.4

2.5

AR/AR

50.8

FL-10.6-10ZLF63

ZnSe

25.4

2.5

AR/AR

63.5

FL-10.6-10ZLF76

ZnSe

25.4

2.5

AR/AR

76.2

FL-10.6-10ZLF95

ZnSe

25.4

2.5

AR/AR

95.3

FL-10.6-10ZLF102

ZnSe

25.4

2.5

AR/AR

101.6

FL-10.6-10ZLF110

ZnSe

25.4

2.5

AR/AR

110

FL-10.6-10ZLF127

ZnSe

25.4

2.5

AR/AR

127

FL-10.6-F127-D25.4-T2.5-MN-WT

ZnSe

25.4

2.5

AR/AR

127

FL-10.6-10ZLF152

ZnSe

25.4

2.5

AR/AR

152

FL-10.6-F152-D25.4-T2.5-MN-WT

ZnSe

25.4

2.5

AR/AR

152

FL-10.6-10ZLF200

ZnSe

25.4

2.5

AR/AR

200

FL-10.6-10ZLF221

ZnSe

25.4

2.24

AR/AR

221

FL-10.6-10ZLF508

ZnSe

25.4

2.5

AR/AR

508

FL-10.6-11ZLF25

ZnSe

28

3

AR/AR

25.4

FL-10.6-11GLF38

GaAs

28

2.5

Uncoated

38

FL-10.6-11ZLF38

ZnSe

28

3

AR/AR

38.1

FL-10.6-11ZLF50

ZnSe

28

3

AR/AR

50.8

FL-10.6-11HGP50

ZnSe

28

4.2

AR/AR

50.8

FL-10.6-11HGP63

ZnSe

28

4.2

AR/AR

63.5

FL-10.6-11ZLF63

ZnSe

28

3

AR/AR

63.5

FL-10.6-11GLC63

GaAs

28

1.8

AR/AR

63.5

FL-10.6-11ZLF76

ZnSe

28

3

AR/AR

76.2

FL-10.6-11ZLF89

ZnSe

28

3

AR/AR

89

FL-10.6-11ZLF90

ZnSe

28

3

AR/AR

90

FL-10.6-11ZLF95

ZnSe

28

3

AR/AR

95.3

FL-10.6-11HGP95

ZnSe

28

4.2

AR/AR

95.3

FL-10.6-11ZLF100

ZnSe

28

3

AR/AR

100

FL-10.6-11ZLF102

ZnSe

28

3

AR/AR

102

FL-10.6-11ZLF110

ZnSe

28

3

AR/AR

110

FL-10.6-11ZLF127

ZnSe

28

3

AR/AR

127

FL-10.6-11EHGP127

ZnSe

28

6.2

AR/AR

127

FL-10.6-11HGP127

ZnSe

28

4.2

AR/AR

127

FL-10.6-11HLF152

ZnSe

28

3

AR/AR

152

FL-10.6-11HLF190

ZnSe

28

3

AR/AR

190.5

FL-10.6-11HGP190

ZnSe

28

4.2

AR/AR

190.5

FL-10.6-11HLF254

ZnSe

28

3

AR/AR

254

FL-10.6-11HLF762

ZnSe

28

3

AR/AR

762

FL-10.6-11.8HLF750

ZnSe

30

3

AR/AR

750

FL-10.6-12.6HGP89

ZnSe

32

4.2

AR/AR

89

FL-10.6-VTE375

ZnSe

38.05

7.4

AR/AR

95.3

FL-10.6-VTE500

ZnSe

38.05

7.4

AR/AR

127

FL-10.6-VTE750

ZnSe

38.05

7.4

AR/AR

190.5

FL-10.6- VTE900

ZnSe

38.05

7.4

AR/AR

228.6

FL-10.6- VTE1000

ZnSe

38.05

7.4

AR/AR

254

FL-10.6-15ZLF38

ZnSe

38.05

2.4

AR/AR

38.1

FL-10.6-15ZLF50

ZnSe

38.05

3

AR/AR

50.8

FL-10.6-15HGP63

ZnSe

38.05

6.1

AR/AR

63.5

FL-10.6-15ZLF63

ZnSe

38.05

3

AR/AR

63.5

FL-10.615ZLF75

ZnSe

38.05

2.93

AR/AR

75

FL-10.6-15ZLF76

ZnSe

38.05

3

AR/AR

76.2

FL-10.6-15ZLF80

ZnSe

38.05

3

AR/AR

80

FL-10.6-15ZLF89

ZnSe

38.05

3

AR/AR

89

FL-10.6-15HGP95

ZnSe

38.05

6

AR/AR

95

FL-10.6-15ZLF95

ZnSe

38.05

3

AR/AR

95.3

FL-10.6-15ZLF100

ZnSe

38.05

3

AR/AR

100

FL-10.6-15ZLF127

ZnSe

38.05

3

AR/AR

127

FL-10.6-15EHGP127

ZnSe

38.05

7.8

AR/AR

127

FL-10.6-15HGP127

ZnSe

38.05

6.2

AR/AR

127

FL-10.6-15BYS127

ZnSe

38.05

9

AR/AR

127.1

FL-10.6-15HGP150

ZnSe

38.05

6.2

AR/AR

150

FL-10.6-15ZLF152

ZnSe

38.05

3

AR/AR

152

FL-10.6-15EHGP190-BE

ZnSe

38.05

7.87

AR/AR

190

FL-10.6-15HGP190

ZnSe

38.05

6.1

AR/AR

190.5

FL-10.6-15ZLF190

ZnSe

38.05

3

AR/AR

190.5

FL-10.6-15BYS190

ZnSe

38.05

9

AR/AR

190.7

FL-10.6-15BYS196

ZnSe

38.05

9

AR/AR

196

FL-10.6-15HGP254

ZnSe

38.05

6.3

AR/AR

254

FL-10.6-15ZLF254

ZnSe

38.05

3

AR/AR

254

FL-10.6-15ZLF345

ZnSe

38.05

3

AR/AR

345

FL-10.6-15ZLF508

ZnSe

38.05

3

AR/AR

508

FL-10.6-15ZLF750

ZnSe

38.05

3.06

AR/AR

750

FL-10.6-17.5HGP127

ZnSe

44.45

9

AR/AR

127

FL-10.6-17.5HGP190

ZnSe

44.45

9

AR/AR

190

FL-10.6-17.5ZLF127

ZnSe

44.5

3.5

AR/AR

127

FL-10.6-19.7GEN125

Ge

50

1.5

AR/AR-Ge

125

FL-10.6-19.7ZLF127

ZnSe

50

3.5

AR/AR

127

FL-10.6-19.7EHGP150

ZnSe

50

9.6

AR/AR

150

FL-10.6-20EHGP95

ZnSe

50.8

9.6

AR/AR

95

FL-10.6-20HGP127

ZnSe

50.8

7.87

AR/AR

127

FL-10.6-20ZLF127

ZnSe

50.8

3.5

AR/AR

127

FL-10.6-20EHGP127

ZnSe

50.8

9.6

AR/AR

127

FL-10.6-20EHGP190

ZnSe

50.8

9.6

AR/AR

190.5

FL-10.6- 20ZLF190

ZnSe

50.8

3.5

AR/AR

190.5

FL-10.6-20EHGP198

ZnSe

50.8

9.62

AR/AR

198

FL-10.6-20EHGP254

ZnSe

50.8

9.6

AR/AR

254

FL-10.6-20GEM254

Ge

50.8

4

AR/AR-DUR

254



LMZ Series Meniscus ZnSe Lenses Coated AR-AR @ 10.6 �m



This wide range of CO2 plano-convex lenses have been prepared to fit most OEM, Industrial and Medical laser systems. All have been manufactured to high-quality laser specifications for high-power applications.



Made with laser grade zinc selenide with computer optimized anti-reflection coatings.



Specifications:

Material: ZnSe Laser Grade C.V.D. type

Diameter Tolerances: +0.000", -0.005"

Thickness: �0.010"

Surface Figure: < 1/40 wavelength @ 10.6�m

Centration: < 0.001"

Focal Length Tolerance: �1.0%

Surface Quality: < 40/20 scratch-dig Laser Finish



Spectral Performance:

Standard AR Coating type Both Sides @ 10.6�m (AR)

Absorption: < 0.25 % total

Reflectance: < 0.20% per surface @ 10.6�m

Transmittance: > 99.0% typical

Ultra Low Absorption AR Coating type Both Sides @ 10.6�m (ULA)

Absorption: < 0.15 % total

Reflectance: < 0.25% per surface

Transmittance: > 99.0% typical

Dual Band AR Coating type Both Sides @ 10.6�m and .633�m (DBAR)

Absorption: < 0.30 % total

Reflectance: < 0.25% per surface @ 10.6�m

Transmittance: > 98.5% @ 10.6�m with > 90% @ .633�m



Model Number

Diameter

Focal Length

Edge Thickness

FL-10.6-LMZ-0707-ET2.0

0.750"

0.750"

0.080"

FL-10.6-LMZ-0710-ET2.0

0.750

1.00

0.080

FL-10.6-LMZ-0712-ET2.0

0.750

1.20

0.080

FL-10.6-LMZ-0715-ET2.0

0.750

1.50

0.080

FL-10.6-LMZ-0720-ET2.0

0.750

2.00

0.080

FL-10.6-LMZ-0725-ET2.0

0.750

2.50

0.080

FL-10.6-LMZ-0730-ET2.0

0.750

3.00

0.080

FL-10.6-LMZ-0740-ET2.0

0.750

4.00

0.080

FL-10.6-LMZ-1010-ET2.0

1.00

1.00

0.080

FL-10.6-LMZ-1015-ET3.0

1.00

1.50

0.120

FL-10.6-LMZ-1020-ET3.0

1.00

2.0

0.120

FL-10.6-LMZ-1030-ET3.0

1.00

3.00

0.120

FL-10.6-LMZ-1050-ET3.0

1.00

5.00

0.120

FL-10.6-LMZ-1075-ET3.0

1.00

7.50

0.120

FL-10.6-LMZ-1115-ET2.8

1.10

1.50

0.110

FL-10.6-LMZ-1125-ET3.0

1.10

2.50

0.120

FL-10.6-LMZ-1125-ET6.0

1.10

2.50

0.236

FL-10.6-LMZ-1135-ET3.0

1.10

3.50

0.120

FL-10.6-LMZ-1138-ET2.8

1.10

3.75

0.110

FL-10.6-LMZ-1138-ET3.0

1.10

3.75

0.120

FL-10.6-LMZ-1150-ET2.8

1.10

5.0

0.110

FL-10.6-LMZ-1150-ET3.0

1.10

5.0

0.120

FL-10.6-LMZ-1150-ET4.0

1.10

5.0

0.160

FL-10.6-LMZ-1150-ET6.0

1.10

5.0

0.236

FL-10.6-LMZ-1175-ET2.8

1.10

7.50

0.110

FL-10.6-LMZ-1175-ET4.0

1.10

7.50

0.160

FL-10.6-LMZ-1175-ET6.0

1.10

7.50

0.236

FL-10.6-LMZ-11A0-ET2.8

1.10

10.0

0.110

FL-10.6-LMZ-1520-ET3.0

1.50

2.0

0.120

FL-10.6-LMZ-1525-ET6.0

1.50

2.50

0.236

FL-10.6-LMZ-1530-ET3.0

1.50

3.0

0.120

FL-10.6-LMZ-1538-ET6.0

1.50

3.8

0.236

FL-10.6-LMZ-1538-ET7.4

1.50

3.8

0.291

FL-10.6-LMZ-1550-ET3.0

1.50

5.0

0.120

FL-10.6-LMZ-1550-ET4.0

1.50

5.0

0.160

FL-10.6-LMZ-1550-ET6.0

1.50

5.0

0.236

FL-10.6-LMZ-1550-ET7.4

1.50

5.0

0.291

FL-10.6-LMZ-1550-ET9.0

1.50

5.0

0.354

FL-10.6-LMZ-1575-ET6.0

1.50

7.50

0.236

FL-10.6-LMZ-1575-ET7.4

1.50

7.50

0.291

FL-10.6-LMZ-1575-ET9.0

1.50

7.50

0.354

FL-10.6-LMZ-1590-ET7.4

1.50

9.0

0.291

FL-10.6-LMZ-15A0-ET7.4

1.50

10.0

0.291

FL-10.6-LMZ-2050-ET9.7

2.0

5.0

0.380

FL-10.6-LMZ-2075-ET9.7

2.0

7.50

0.380

FL-10.6-LMZ-20A0-ET9.7

2.0

10.0

0.380



 ZnSe CO2 Negative Laser Focusing Lenses  (Plano-Concave Lenses )



Specifications:

Diameter tolerance: +0/-0.1mm

Focal length tolerance: +/-0.5%

Angle of incidence: 0 degree

Transmission: >99.4%

Reflectance: <0.1% per surface

Absorption: <0.2% per surface



Part number

WL

um

FL

mm

BFL

mm

Dia.

mm

Edge T

mm

FL-10.6-F(20)-D12-T2.0-CC

10.6

-20mm

-20.6

12

2.0

1.      WL-wavelength; FL=focal length; BFL-back focal length.

2. There are too many items and models and welcome to call us or send us an email if you have any further enquiry or question!



Model Number

Diameter

Focal Length

Edge Thickness

FL-10.6-LPCZ-0510-ET3.2

0.500"

-1.000"

0.125"

FL-10.6-LPCZ-0514-ET2.5

0.500"

-1.390"

0.100"

FL-10.6-LPCZ-0520-ET2.0

0.500"

-2.000"

0.080"

FL-10.6-LPCZ-0525-ET2.5

0.500"

-2.500"

0.100"

FL-10.6-LPCZ-0540-ET2.5

0.500"

-4.000"

0.100"

FL-10.6-LPCZ-0610-ET4.6

0.600"

-1.000"

0.180"

FL-10.6-LPCZ-0620-ET3.0

0.600"

-2.000"

0.120"

FL-10.6-LPCZ-0625-ET3.0

0.600"

-2.500"

0.120"

FL-10.6-LPCZ-0640-ET2.4

0.600"

-4.000"

0.095"

FL-10.6-LPCZ-0710-ET5.0

0.750"

-1.000"

0.200"

FL-10.6-LPCZ-0715-ET2.0

0.750"

-1.500"

0.080"

FL-10.6-LPCZ-0720-ET2.5

0.750"

-2.000"

0.100"

FL-10.6-LPCZ-0725-ET2.5

0.750"

-2.500"

"0.100

FL-10.6-LPCZ-0750-ET2.0

0.750"

-5.000"

0.080"

FL-10.6-LPCZ-1014-ET5.0

1.000"

-1.390"

0.200"

FL-10.6-LPCZ-1025-ET4.0

1.000"

-2.500"

0.160"

FL-10.6-LPCZ-1115-ET5.0

1.100"

-1.500"

0.200"

FL-10.6-LPCZ-1125-ET4.0

1.100"

-2.500"

0.160"

FL-10.6-LPCZ-1150-ET3.0

1.100"

-5.000"

0.120"



CO2 Laser Focusing Lenses Used in Branded Lasers


AMADA Focusing Lenses

Our Part No.

Focusing Lenses Part Description

FL-10.6-F127-D38.1-T7.62

(PL-CX)  Dia. 1.5" / FL: 5.0" / ET: .300" (7.62mm)

FL-10.6-F190.5-D38.1-T8

(PL-CX)  Dia. 1.5" / FL: 7.5" / ET: .315" (8.00mm)

FL-10.6-F127-D50.8-T7.87

(PL-CX)  Dia. 2.0" / FL: 5.0" / ET: .310" (7.87mm)

FL-10.6-F190.5-D50.8-T9.65

(PL-CX)  Dia. 2.0" / FL: 7.5" / ET: .380" (9.65mm)

FL-10.6-F190.5-D50.8-T7.87

(PL-CX)  Dia. 2.0" / FL: 7.5� / ET: .310" (7.87mm)



Bystronic Focusing Lenses

Our Part No.

Focusing Lenses Part Description

FL-10.6-F127-D38.1-T5.99-MN

(Men)  Dia. 1.5" / FL: 5.0" / ET: .236" (5.99mm)

FL-10.6-F127-D38.1-T8.99-MN

(Men)  Dia. 1.5" / FL: 5.0" / ET: .354" (8.99mm)

FL-10.6-F190.5-D38.1-T5.99-MN

(Men)  Dia. 1.5" / FL: 7.5" / ET: .236" (5.99mm)

FL-10.6-F190.5-D38.1-T8.99-MN

(Men)  Dia. 1.5" / FL: 7.5" / ET: .354" (8.99mm



CINCINNATI Focusing Lenses

Our Part No.

Focusing Lenses Part Description

FL-10.6-F130.3-D38.1-T7.11

(PL-CX) Dia. 1.5" / FL: 5.13� / ET: .280" (7.11mm)

FL-10.6-F193.8-D38.1-T7.62

(PL-CX) Dia. 1.5" / FL: 7.63" / ET: .300" (7.62mm)

FL-10.6-F190.5-D50.8-T9.65

(PL-CX) Dia. 2.0" / FL: 7.50" / ET: .380" (9.65mm)

FL-10.6-F127-D50.8-T9.65

(PL-CX) Dia. 2.0" / FL: 5.00"/ ET: .380" (9.65mm)



MAZAK Focusing Lenses

Our Part No.

Focusing Lenses Part Description

FL-10.6-F127-D38.1-T5.99

(PL-CX)  Dia. 1.5" / FL: 5.0" / ET: .236" (5.99mm)

FL-10.6-F127-D38.1-T7.97

(PL-CX)  Dia. 1.5" / FL: 5.0" / ET: .310" (7.97mm)

FL-10.6-F127-D50.8-T7.87

(PL-CX)  Dia. 2.0" / FL: 5.0" / ET: .314" (7.87mm)

FL-10.6-F127-D50.8-T9.65

(PL-CX)  Dia. 2.0" / FL: 5.0" / ET: .380" (9.65mm)

FL-10.6-F190.5-D50.8-T7.87

(PL-CX)  Dia. 2.0" / FL: 7.5" / ET: .314" (7.87mm)

FL-10.6-F190.5-D50.8-T9.65

(PL-CX)  Dia. 2.0" / FL: 7.5� / ET: .380" (9.65mm)



Mitsubishi Focusing Lenses

Our Part No.

Part Description

FL-10.6-F190.5-D50.8-T7.87

(PL-CX)  Dia. 2.0" / FL: 7.5� / ET: .310" (7.87mm)

FL-10.6-F190.5-D38.1-T8

(PL-CX)  Dia. 1.5" / FL: 7.5" / ET: .315" (8.00mm)

FL-10.6-F127-D50.8-T7.87

(PL-CX)  Dia. 2.0" / FL: 5.0" / ET: .310" (7.87mm)

FL-10.6-F190.5-D50.8-T7.87

(PL-CX)  Dia. 2.0" / FL: 7.5"/ ET: .310" (7.87mm)

FL-10.6-F190.5-D50.8-T9.65

(PL-CX)  Dia. 2.0" / FL: 7.5"/ ET: .380" (9.65mm)



TRUMPF Focusing Lenses

Our Part No.

Part Description

FL-10.6-F127-D38.1-T7.39-MN

(Meniscus) Dia. 1.5" / FL: 5.0" / ET: .291" (7.39mm)

FL-10.6-F190.5-D38.1-T7.39-MN

(Meniscus) Dia. 1.5" / FL: 7.5" / ET: .291" (7.39mm)

FL-10.6-F190.5-D38.1-T7.62

(PL-CX) Dia. 1.5" / FL: 7.5" / ET: .300" (7.62mm)

FL-10.6-F190.5-D38.1-T7.75

(PL-CX) Dia. 1.5" / FL: 7.5" / ET: .305" (7.75mm)

FL-10.6-F127-D38.1-T6.2

(PL-CX) Dia. 1.5" / FL: 5.0" / ET: .244" (6.20mm)



CO2 Laser Focusing Lenses (Aspheric Lenses)


Aspheric Lenses are intended as single-element alternatives to the doublet series and high-performance alternatives to short focal length meniscus lenses.



l  Diffraction limited performance by correcting the spherical aberration that is present with a "best form" meniscus lens

l  More tolerant to small angular misalignments of the beam than plano-convex lenses

l  Can be supplied mounted if required



Specifications:

l  Diameter tolerance: +0/-0.1mm

l  Focal length tolerance: �0.5%

l  Transmission: >99.4%

l  Reflectance: 0.1% per surface

l  Absorption per surface: Typically <0.2%



Part No.

Material

Diameter

ET

Coating

FL

LF-10.6-10ZAL25.4

ZnSe

25.4mm

3mm

AR/AR

25.4mm

LF-10.6-11ZAL25.4

ZnSe

28mm

3mm

AR/AR

25.4mm

LF-10.6-11ZAL38.1

ZnSe

28mm

3mm

AR/AR

38.1mm

LF-10.6-11ZAL50.8

ZnSe

28mm

3mm

AR/AR

50.8mm

LF-10.6-11ZAL63.5

ZnSe

28mm

3mm

AR/AR

63.5mm

LF-10.6-15ZAL127

ZnSe

38.05mm

3mm

AR/AR

127mm

LF-10.6-15ZAL38.1

ZnSe

38.05mm

3mm

AR/AR

38.1mm

LF-10.6-15ZAL50.8

ZnSe

38.05mm

3mm

AR/AR

50.8mm

LF-10.6-15ZAL63.5

ZnSe

38.05mm

3mm

AR/AR

63.5mm

LF-10.6-15ZAL95.3

ZnSe

38.05mm

3mm

AR/AR

95.3mm


YAG laser focusing lenses       ZnSe material     Laser mirror    Dual-focus lenses    Doanload data sheet "Mirrors & Lenses"

Sintec Optronics Pte Ltd

10 Bukit Batok Crescent #07-02 The Spire Singapore 658079

Tel: +65 63167112 Fax: +65 63167113 Whatsapp: +65 91904616  Wechat: C518018

E-mail: sales@sintec.sg,  sales@SintecOptronics.com

URL: http://www.sintec.sg,  http://www.SintecOptronics.com  https://www.facebook.com/sintecoptronics

For more and updated information, please go to our New Websites.
