YAG Laser Focusing Lenses


1. Single-element Focusing Lens



Description of Part Number: FL-xxxx-F-D-T-yy

FL: single-element focusing lens

Xxxx: laser wavelength, 1064nm, 532nm etc.

F: focal length, mm

D: lens diameter, mm

T: lens edge thickness, mm

Yy: others

Coating: di-electric coating at 1064nm.





Part number

wavelength nm

Focal length mm

Dia. mm

Thickness mm

Remark

FL-1064-F14-D20-T2.3

1064

14

20

2.3



FL-1064-F24-D24-T2.1

1064

24

24

2.1



FL-1064-F30-D20-T2.3

1064

30

20

2.3



FL-1064-F35-D22-T2.3

1064

35

22

2.3



FL-1064-F37-D27-T2.5

1064

37

27

2.5



FL-1064-F54-D22-T2.7

1064

54

22

2.7



FL-1064-F54-D28-T3.0

1064

54

28

3.0



FL-1064-F55-D25

1064

55

25





FL-1064-F55-D31-T2.6

1064

55

31

2.6



FL-1064-F57-D27-T2.6

1064

57

27

2.3



FL-1064-F60-D23-T2.1

1064

60

23

2.1



FL-1064-F67-D23-T2.1

1064

67

23

2.1



FL-1064-F69-D23-T2.1

1064

69

23

2.1



FL-1064-F69-D24-T2.2

1064

69

24

2.2



FL-1064-F69-D31-T2.4

1064

69

31

2.4



FL-1064-F72-D36-T1.5

1064

72

36

1.5



FL-1064-F73-D36-T1.6

1064

73

36

1.6



FL-1064-F73-D35-T2.3

1064

73

36

2.3



FL-1064-F75-D25-T3

1064

75

25

3.0



FL-1064-F75-D30

1064

75

30





FL-1064-F75-D32-T3.0

1064

75

32

3.0



FL-1064-F79-D22-T3.5

1064

79

22

3.5



FL-1064-F79-D28-T3.0

1064

79

28

3.0



FL-1064-F79-D34-T2.5

1064

79

34

2.5



FL-1064-F80-D25-T2.3

1064

80

25

2.3



FL-1064-F80-D50-T2.7

1064

80

50

2.7



FL-1064-F81-D50-T2.7

1064

81

50

2.7



FL-1064-F82-D36-T2.4

1064

82

36

2.4



FL-1064-F83-D23-T2.1

1064

83

23

2.1



FL-1064-F85-D31-T2.1

1064

85

31

2.1



FL-1064-F86-D23-T2.3

1064

86

23

2.3



FL-1064-F87-D23-T4.5

1064

87

23

4.5



FL-1064-F87-D25-T4.2

1064

87

25

4.2



FL-1064-F87-D31-T3.2

1064

87

31

3.2



FL-1064-F87-D36-T2.2

1064

87

36

2.2



FL-1064-F88-D48-T2.3

1064

88

48

2.3



FL-1064-F90-D31-T2.3

1064

90

31

2.3



FL-1064-F99-D36-T2.5

1064

99

36

2.5



FL-1064-F100-D25-T3

1064

100

25

3.0



FL-1064-F100-D31-T2.5

1064

100

31

2.5



FL-1064-F104-D35-T2.3

1064

104

35

2.3



FL-1064-F108-D35-T2.9

1064

108

35

2.9



FL-1064-F120-D31-T2.3

1064

120

31

2.3



FL-1064-F124-D22-T4.0

1064

124

22

4.0



FL-1064-F124-D27-T3.6

1064

124

27

3.6



FL-1064-F124-D48-T3.0

1064

124

48

3.0



FL-1064-F126-D53-T3.0

1064

126

53

3.0



FL-1064-F127-D25-T2.3

1064

127

25

2.3



FL-1064-F150-D40-T5.5

1064

150

40

5.5



FL-1064-F155-D27-T3.4

1064

155

27

3.4



FL-1064-F200-D20-T2.5

1064

200

20

2.5


FL-1064-F200-D25-T2.5 1064 200 25 2.5 ex stock
FL-1064-F250-D25-T2.5 1064 250 25 2.5 ex stock

FL-1064-F833-D24-T2.1

1064

833

24

2.1



532nm coating is also available for above dimensions and thus this part number will be FL-532-xxx etc.

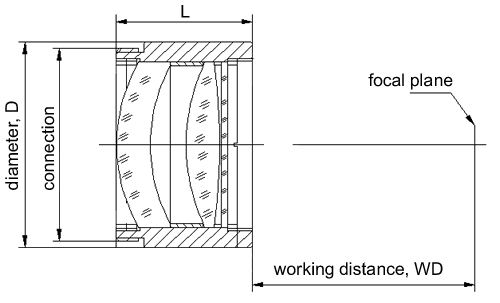

2. Multi-element Focusing Lenses



Multi-element focusing lens consists of a few lenses to obtain better image quality and smaller focused beam diameters. It is mainly used in laser scribing, engraving, laser XY-moving markin, laser welding etc.



Part number description: FLM-xxxx-F-N-D-yy

FLM: multi-element focusing lens

Xxxx: laser wavelength, 1064nm, 532nm, 10.6um etc.

F: focal length, mm

N: number of lenses

D: outside diameter, mm

yy: others





Part number

WL

nm

FL

mm

Aperture

mm

Diffraction

Spot, um

WD

mm

D

mm

Connection

M

LFM-1064-N3-F78-D60-TK

1064

78

43

11

64.7

60

M56×1

LFM-1064-F80-D60-TK

1064

80

40

4

69.5

60

M56×1

LFM-1064-N3-F62-D60-TK

1064

62

43

10

46.7

60

M56×1

LFM-532-N3-F75-D60-TK

532

74

43

12

60.7

60

M56×1

LFM-532-N5-F80-D60-TK

532

80

40

10

49.5

60

M56×1

LFM-532-F80-D60-TK

532

80

40

10

64.5

60

M56×1

LFM-355-N3-F45-D32-TK

355

45

15

8

37.3

32

M30×0.75

LFM-355-N3-F60-D32-TK

355

60

22

8

52.4

32

M30×0.75

WL: wavelength; FL: focal length; WD: working distance; D: outside diameter.
