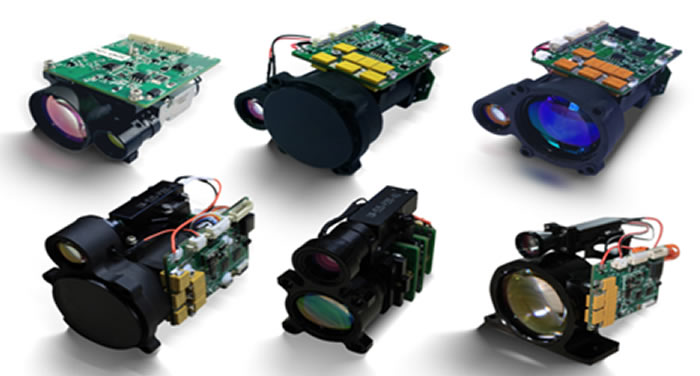

SLY Series Laser Rangefinders
Laser
rangefinder is a kind of equipment to measure the distance of the
target. It can measure the distance information of the target by
detecting the return signal of the emitting laser. This series of
products has mature technology and stable performance, which can be
tested on a variety of static and dynamic targets, and can be equipped
and used on a variety of platforms. Laser rangefinder is used to measure
the range of the target. Its military application can be summarized into
two categories: reconnaissance and fire control. Reconnaissance includes
individual reconnaissance, sea base, road base, air base target
detection and terrain detection. Fire control is mainly used in land air
defense, sea combat, short-range fire control equipment precision
attack, as well as ship and airborne fire control system in long-range
ranging and target attack. According to different combat platforms, the
laser range finder can be applied to the optoelectronic reconnaissance
system of different platforms such as ground vehicle, light portable,
air artillery, missile defense, airborne, shipborne and space detection
as a supporting ranging system. The rangefinder products are
characterized by independent control of core devices, small size and
light weight, mass production, stable performance and easy operation.
1.
3-12km Laser Rangefinders
(1535nm)
This series
rangefinder is based on 1535 nm erbium-doped glass lasers, which are
completely independently developed and protected by patents and
intellectual property rights, and have now reached Class I human eye
safety standards. The product is a single-pulse rangefinder that
features small size, light weight, high-cost performance and
adaptability to multiple platforms. The main functions are: single pulse
range and continuous range, distance selection, front and rear target
display and self-test function, and continuous range frequency
adjustable from 1-10Hz. The series offers different products to meet
different range requirements (3km to 12km).
|
Part number |
SLY-0310MS-01 |
SLY-0410A |
SLY-0510A |
SLY-0610A |
|
Wavelength |
1535nm±5nm |
1535nm±5nm |
1535nm±5nm |
1535nm±5nm |
|
Ranging Distance |
≥3km |
≥4km |
≥5km |
≥6km |
|
Visibility |
＞6km |
＞8km |
＞8km |
＞10km |
|
Laser divergence angle |
≤0.5mrad |
≤0.5mrad |
≤0.5mrad |
≤0.5mrad |
|
Continuous ranging frequency |
1Hz-10Hz (adjustable) |
1Hz-10Hz (adjustable) |
1Hz-10Hz (adjustable) |
1Hz-10Hz (adjustable) |
|
Ranging accuracy |
≤±2m (RMS) |
≤±2m (RMS) |
≤±2m (RMS) |
≤±2m (RMS) |
|
Accurate ranging ratio |
≥98% |
≥98% |
≥98% |
≥98% |
|
Minimum range |
≤20m |
≤20m |
≤20m |
≤30m |
|
Range resolution |
≤30m |
≤30m (Multi Targets) |
≤30m (Multi Targets) |
≤30m (Multi Targets) |
|
Voltage supply |
DC3~15V (Customizable) |
DC9-16V (Customizable) |
DC9-16V (Customizable) |
DC9-16V (Customizable) |
|
Weight |
≤50g |
≤55g |
≤55g |
≤70g |
|
Power consumption |
“Average ≤1.5W(@1Hz); Peak ≤5W” |
“Average ≤1.5W(@1Hz); Peak ≤5W” |
“Average ≤1.5W(@1Hz); Peak ≤5W” |
“Average ≤1.5W;(@1Hz) Peak ≤5W” |
|
Dimension |
≤53*37*24mm |
≤55*41*26mm |
≤55*41*26mm |
≤72*45*35mm |
|
Working temperature |
-40-+60°C |
-40-+60°C |
-40-+60°C |
-40-+60°C |
|
Storage temperature |
-50-+ 70°C |
-50-+ 70°C |
-50-+ 70°C |
-50-+ 70°C |
|
Communication interface |
RS422,115200bps |
RS422，115200bps |
RS422，115200bps |
RS422，115200bps |
|
Part number |
SLY-0810A |
SLY-1010A |
SLY-1210A |
|
Wavelength |
1535nm±5nm |
1535nm±5nm |
1535nm±5nm |
|
Ranging Distance |
≥8km |
≥10km |
≥12km |
|
Visibility |
＞12km |
＞15km |
＞20km |
|
Laser divergence angle |
≤0.3mrad |
≤0.3mrad |
≤0.3mrad |
|
Continuous ranging frequency |
1Hz-10Hz (adjustable) |
1Hz-10Hz (adjustable) |
1Hz-10Hz (adjustable) |
|
Ranging accuracy |
≤±2m (RMS) |
≤ ±2m (RMS) |
≤ ±3m (RMS) |
|
Accurate ranging ratio |
≥98% |
≥98% |
≥98% |
|
Minimum range |
≤30m |
≤50m |
≤50m |
|
Range resolution |
≤30m (Multi Targets) |
≤30m (Multi Targets) |
≤30m (Multi Targets) |
|
Voltage supply |
DC9-16V (Customizable) |
DC9-16V (Customizable) |
DC9-18V (Customizable) |
|
Weight |
≤120g |
≤140g |
≤240g |
|
Power consumption |
“Average ≤1.5W (@1Hz); Peak ≤5W” |
“Average ≤1.5W(@1Hz); Peak ≤5W” |
“Average ≤1.5W (@1Hz); Peak ≤5W” |
|
Dimension |
≤80*47*59mm |
≤83*68*46mm |
≤100*60*70mm |
|
Working temperature |
-40-+60°C |
-40-+60°C |
-40-+60°C |
|
Storage temperature |
-50-+ 70°C |
-50-+ 70°C |
-50-+ 70°C |
|
Communication interface |
RS422，115200bps |
RS422, 115200bps |
RS422, 115200bps |
1.1 Laser
Rangefinders-1535nm, SLY-0310MS-01
Features:
l
Small size and light weight
l
Class I human eye safety standards
l
Stable performance and easy to use
l
Provide customization service
l
Distance measurement for vehicle (2.3*2.3m) over 3km
l
Developed based on 1535nm Er: Glass Laser
Applications:
l
Laser ranging
l
Targeting
l
Photoelectric reconnaissance
|
Part number |
SLY-0310MS-01 |
|
Wavelength |
1535nm±5nm |
|
Main function |
“a.
Single ranging and continuous ranging
b.
Range gate, forward and aft target indication
c.
self-checking function” |
|
Operating range |
“≥3,000m”
(Visibility >
6km;
objective: 2.3*2.3m; reflectivity > 30%; humidity≤80%)”
|
|
Laser divergence angle |
≤0.5mrad |
|
Continuous ranging frequency |
1Hz-10Hz (adjustable) |
|
Ranging accuracy |
≤±2m (RMS) |
|
Accurate ranging ratio |
≥98% |
|
Minimum range |
≤20m |
|
Range resolution |
≤30m |
|
Voltage supply |
DC3~15V (Customizable) |
|
Weight |
≤50g |
|
Power consumption |
“Average ≤1.5W(@1Hz); Peak ≤5W” |
|
Dimension |
≤53*37*24mm |
|
Working temperature |
-40-+60°C |
|
Storage temperature |
-50-+ 70°C |
|
Communication interface |
RS422,115200bps |
1.2 Laser Rangefinders-1535nm, SLY-0410A
Features:
l
Small size and light weight
l
Class I human eye safety standards
l
Stable performance and easy to use
l
Provide customization service
l
Distance measurement for vehicle (2.3m*2.3m) over 4km
l
Developed based on 1535nm Er: Glass Laser
Applications:
l
Laser ranging
l
Targeting
l
Photoelectric reconnaissance
|
Parameters |
SLY-0410A |
|
Wavelength |
1535nm±5nm |
|
Main function |
“a.
Single ranging and continuous ranging
b.
Range gate, forward and aft target indication
c.
self-checking function” |
|
Operating range |
“≥4,000m”
(Visibility>8km;
objective:2.3*2.3m; reflectivity>30%; humidity≤80%)” |
|
Laser divergence angle |
≤0.5mrad |
|
Continuous ranging frequency |
1Hz-10Hz (adjustable) |
|
Ranging accuracy |
≤±2m (RMS) |
|
Accurate ranging ratio |
≥98% |
|
Minimum range |
≤20m |
|
Range resolution |
≤30m (Multi Targets) |
|
Voltage supply |
DC9-16V (Customizable) |
|
Weight |
≤55g |
|
Power consumption |
“Average ≤1.5W(@1Hz); Peak ≤5W” |
|
Dimension |
≤55*41*26mm |
|
Working temperature |
-40-+60°C |
|
Storage temperature |
-50-+ 70°C |
|
Communication interface |
RS422，115200bps |
1.3 Laser Rangefinders-1535nm, SLY-0510A
Features:
l
Small size and light weight
l
Class I human eye safety standards
l
Stable performance and easy to use
l
Provide customization service
l
Distance measurement for vehicle (2.3m*2.3m) over 5km
l
Developed based on 1535nm Er: Glass Laser
Applications:
l
Laser ranging
l
Targeting
l
Photoelectric reconnaissance
|
Parameters |
SLY-5410A |
|
Wavelength |
1535nm±5nm |
|
Main function |
“a.
Single ranging and continuous ranging
b.
Range gate, forward and aft target indication
c.
self-checking function” |
|
Operating range |
“≥5,000m”
(Visibility>8km;
objective:2.3*2.3m; reflectivity>30%; humidity≤80%)” |
|
Laser divergence angle |
≤0.5mrad |
|
Continuous ranging frequency |
1Hz-10Hz (adjustable) |
|
Ranging accuracy |
≤±2m (RMS) |
|
Accurate ranging ratio |
≥98% |
|
Minimum range |
≤20m |
|
Range resolution |
≤30m (Multi Targets) |
|
Voltage supply |
DC9-16V (Customizable) |
|
Weight |
≤55g |
|
Power consumption |
“Average ≤1.5W(@1Hz); Peak ≤5W” |
|
Dimension |
≤55*41*26mm |
|
Working temperature |
-40-+60°C |
|
Storage temperature |
-50-+ 70°C |
|
Communication interface |
RS422，115200bps |
1.4 Laser Rangefinders-1535nm, SLY-0610A
Features:
l
Small size and light weight
l
Class I human eye safety standards
l
Stable performance and easy to use
l
Provide customization service
l
Distance measurement for vehicle (2.3*2.3m) over 6km
l
Developed based on 1535nm Er: Glass Laser
Applications:
l
Laser ranging
l
Targeting
l
Photoelectric reconnaissance
|
Parameters |
SLY-0610A |
|
Wavelength |
1535nm±5nm |
|
Main function |
“a.
Single ranging and continuous ranging
b.
Range gate, forward and aft target indication
c.
self-checking function” |
|
Operating range |
“≥6,000m”
(Visibility >
10km;
objective: 2.3*2.3m; reflectivity > 30%; humidity≤80%)” |
|
Laser divergence angle |
≤0.5mrad |
|
Continuous ranging frequency |
1Hz-10Hz (adjustable) |
|
Ranging accuracy |
≤±2m (RMS) |
|
Accurate ranging ratio |
≥98% |
|
Minimum range |
≤30m |
|
Range resolution |
≤30m (Multi Targets) |
|
Voltage supply |
DC9-16V (Customizable) |
|
Weight |
≤70g |
|
Power consumption |
“Average ≤1.5W;(@1Hz) Peak ≤5W” |
|
Dimension |
≤72*45*35mm |
|
Working temperature |
-40-+60°C |
|
Storage temperature |
-50-+ 70°C |
|
Communication interface |
RS422，115200bps |
1.5 Laser Rangefinders-1535nm, SLY-0810A
Features:
l
Small size and light weight
l
Class I human eye safety standards
l
Stable performance and easy to use
l
Provide customization service
l
Distance measurement for vehicle (2.3*2.3km) over 8km
l
Developed based on 1535nm Er: Glass Laser
Applications:
l
Laser ranging
l
Targeting
l
Photoelectric reconnaissance
|
Part number |
SLY-0810A |
|
Wavelength |
1535nm±5nm |
|
Main function |
“a.
Single ranging and continuous ranging
b.
Range gate, forward and aft target indication
c.
self-checking function” |
|
Operating range |
“≥8,000m”
(Visibility > 12km;
objective: 2.3*2.3m; reflectivity
≥
30%; humidity≤80%)”
|
|
Laser divergence angle |
≤0.3mrad |
|
Continuous ranging frequency |
1Hz-10Hz (adjustable) |
|
Ranging accuracy |
≤±2m (RMS) |
|
Accurate ranging ratio |
≥98% |
|
Minimum range |
≤30m |
|
Range resolution |
≤30m (Multi Targets) |
|
Voltage supply |
DC9-16V (Customizable) |
|
Weight |
≤120g |
|
Power consumption |
“Average ≤1.5W (@1Hz); Peak ≤5W” |
|
Dimension |
≤80*47*59mm |
|
Working temperature |
-40-+60°C |
|
Storage temperature |
-50-+ 70°C |
|
Communication interface |
RS422，115200bps |
1.6 Laser Rangefinders-1535nm, SLY-1010A
Features:
l
Small
size and light weight
l
Class I human eye safety standards
l
Stable performance and easy to use
l
Provide customization service
l
Distance measurement for vehicle (2.3*2.3m) over 10km
l
Developed based on 1535nm Er: Glass Laser
Applications:
l
Laser ranging
l
Targeting
l
Photoelectric reconnaissance
|
Parameters |
SLY-1010A |
|
Wavelength |
1535nm±5nm |
|
Main function |
“a.
Single ranging and continuous ranging
b.
Range gate, forward and aft target indication
c.
self-checking function” |
|
Operating range |
“≥10,000m”
(Visibility > 15km;
objective: 2.3*2.3m; reflectivity > 30%; humidity≤80%)”
|
|
Laser divergence angle |
≤0.3mrad |
|
Continuous ranging frequency |
1Hz-10Hz (adjustable) |
|
Ranging accuracy |
≤
±2m (RMS) |
|
Accurate ranging ratio |
≥98% |
|
Minimum range |
≤50m |
|
Range resolution |
≤30m (Multi Targets) |
|
Voltage supply |
DC9-16V (Customizable) |
|
Weight |
≤140g |
|
Power consumption |
“Average ≤1.5W(@1Hz) ; Peak ≤5W” |
|
Dimension |
≤83*68*46mm |
|
Working temperature |
-40-+60°C |
|
Storage temperature |
-50-+ 70°C |
|
Communication interface |
RS422, 115200bps |
1.7 Laser Rangefinders-1535nm, SLY-1210A
Features:
l
Small
size and light weight
l
Class I human eye safety standards
l
Stable performance and easy to use
l
Provide customization service
l
Distance measurement for vehicle (2.3*2.3m) over 12km
l
Developed based on 1535nm Er: Glass Laser
Applications:
l
Laser ranging
l
Targeting
l
Photoelectric reconnaissance
|
Parameters |
SLY-1210A |
|
Wavelength |
1535nm±5nm |
|
Main function |
“a.
Single ranging and continuous ranging
b.
Range gate, forward and aft target indication
c.
self-checking function” |
|
Operating range |
“≥12,000m”
(Visibility >
20km;
objective: 2.3*2.3m; reflectivity > 30%; humidity≤80%)”
|
|
Laser divergence angle |
≤0.3mrad |
|
Continuous ranging frequency |
1Hz-10Hz (adjustable) |
|
Ranging accuracy |
≤
±3m (RMS) |
|
Accurate ranging ratio |
≥98% |
|
Minimum range |
≤50m |
|
Range resolution |
≤30m (Multi Targets) |
|
Voltage supply |
DC9-18V (Customizable) |
|
Weight |
≤240g |
|
Power consumption |
“Average ≤1.5W (@1Hz); Peak ≤5W” |
|
Dimension |
≤100*60*70mm |
|
Working temperature |
-40-+60°C |
|
Storage temperature |
-50-+ 70°C |
|
Communication interface |
RS422, 115200bps |
2.
15km, 20km (1570nm) Laser
Rangefinders
This series
rangefinder is based on the 1570nm OPO laser developed completely
in-house, protected by patents and intellectual property rights, and has
now met the Class I human eye safety standard. The product is a single
pulse rangefinder with, cost-effective and adaptable to a variety of
platforms. The main functions are: single pulse rangefinder and
continuous rangefinder, distance selection, front and rear target
display and self-test function, continuous rangefinder frequency
adjustable from 1-5Hz. The average power consumption of the product is
less than 50W and the peak power consumption is less than 100W.
|
Part number |
SLY-1505 |
SLY-2005 |
|
Wavelength |
1570nm±5nm |
1570nm±5nm |
|
Ranging distance |
≥15km |
≥20km |
|
Visibility |
＞20km |
＞25km |
|
Laser divergence angle |
≤1mrad |
≤1mrad |
|
Continuous ranging frequency |
1Hz-5Hz (adjustable) |
1Hz-5Hz (adjustable) |
|
Ranging accuracy |
≤5m (RMS) |
≤5m (RMS) |
|
Accurate ranging ratio |
≥98% |
≥98% |
|
Minimum range |
≤200m |
≤200m |
|
Range resolution |
≤50m (Multi Targets) |
≤50m |
|
Voltage supply |
DC 18V~36V |
DC 18V~36V |
|
Weight |
≤1,300g |
≤2,000g |
|
Power consumption |
“Average ≤50W; Peak ≤100W” |
“Average ≤50W; Peak ≤100W” |
|
Dimension |
≤180*64*108mm |
≤207*125*80mm |
|
Working temperature |
-40-+65°C |
-40-+65°C |
|
Storage temperature |
-55-+ 70°C |
-55-+ 70°C |
|
Communication interface |
RS422, 115200bps |
RS422, 115200bps |
2.1 Laser Rangefinders-1570nm, SLY-1505
Features:
l
High reliability
l
Class I human eye safety standards
l
Stable performance and easy to use
l
Provide customization service
l
Distance measurement for vehicle
(2.3*2.3m)
over 15km
l
Developed based on 1570nm OPO laser
Applications:
l
Laser ranging
l
Targeting
l
Photoelectric reconnaissance
|
Parameters |
SLY-1505 |
|
Wavelength |
1570nm±5nm |
|
Main function |
“a.
Single ranging and continuous ranging
b.
Range gate, forward and aft target indication
c.
self-checking function” |
|
Operating range |
“For vehicle (2.3*2.3m):
≥15,000m”
“For Human (1.75*0.75m): ≥8,000m” For big target (Building):
≥20,000m)”
(Visibility > 20km; objective: 2.3*2.3m; reflectivity
≥
30%; humidity≤80%)”
|
|
Laser divergence angle |
≤1mrad |
|
Continuous ranging frequency |
1Hz-5Hz (adjustable) |
|
Ranging accuracy |
≤5m
(RMS) |
|
Accurate ranging ratio |
≥98% |
|
Minimum range |
≤200m |
|
Range resolution |
≤50m (Multi Targets) |
|
Voltage supply |
DC
18V~36V |
|
Weight |
≤1,300g |
|
Power consumption |
“Average ≤50W; Peak ≤100W” |
|
Dimension |
≤180*64*108mm |
|
Working temperature |
-40-+65°C |
|
Storage temperature |
-55-+ 70°C |
|
Communication interface |
RS422, 115200bps |
2.2 Laser Rangefinders-1570nm, SLY-2005
Features:
l
High reliability
l
Class I human eye safety standards
l
Stable performance and easy to use
l
Provide customization service
l
Distance measurement for vehicle over 20km
l
Developed based on 1570nm OPO laser
Applications:
l
Laser ranging
l
Targeting
l
Photoelectric reconnaissance
|
Part number |
SLY-2005 |
|
Wavelength |
1570nm±5nm |
|
Main function |
“a.
Single ranging and continuous ranging
b.
Range gate, forward and aft target indication
c.
self-checking function” |
|
Operating range |
“For vehicle (2.3*2.3m):
≥20,000m”
“For Human (1.75*0.75m): ≥9,000m” For big target (Building):
≥25,000m)”
(Visibility > 25km; objective: 2.3*2.3m; reflectivity > 30%;
humidity≤80%)”
|
|
Laser divergence angle |
≤1mrad |
|
Continuous ranging frequency |
1Hz-5Hz (adjustable) |
|
Ranging accuracy |
≤5m
(RMS) |
|
Accurate ranging ratio |
≥98% |
|
Minimum range |
≤200m |
|
Range resolution |
≤50m |
|
Voltage supply |
DC
18V~36V |
|
Weight |
≤2,000g |
|
Power consumption |
“Average ≤50W; Peak ≤100W” |
|
Dimension |
≤207*125*80mm |
|
Working temperature |
-40-+65°C |
|
Storage temperature |
-55-+ 70°C |
|
Communication interface |
RS422, 115200bps |
STDY Series
Laser
Rangefinders
STDY-DA and STDY-YA
series laser rangefinder is compact in design and easy to
integrate. The working light source is 905nm and 1550nm semiconductor
laser diode.
The features are long
service life and low power consumption.
And it is widely
used in the airborne pod, vehicle turntable, handheld observation
instrument, altimeter, telescope, gun sight, gun sight project and other
photoelectric equipment, to meet aviation, ship, vehicle, police,
railway, electric power, communication, geology, construction, fire
protection, forestry, outdoor applications and other applications.
1.
STDY-DA1xxx
series
|
Model |
STDY-DA1000 |
STDY-DA1500 |
|
Wavelength |
905nm |
|
Range |
20m~1000m |
20m~1500m |
|
Ranging accuracy |
≤±2m |
|
Ranging frequency |
1Hz |
|
Accurate rate |
≥98% |
|
Acceptance aperture |
17mm |
|
Connector |
TTL |
|
Supply voltage |
5V±0.5V |
|
Power consumption |
≤2W |
|
Dimension |
45mmx44mmx21mm |
|
Weight |
≤35g |
|
Operating temperature |
-40℃~+55℃ |
2.
STDY-DA2xxx
series
|
Model |
STDY-DA2000 |
STDY-DA2500 |
|
Wavelength |
905nm |
|
Range |
20m~2000m |
30m~2500m |
|
Ranging accuracy |
≤±2m |
|
Ranging frequency |
1Hz |
|
Accurate rate |
≥98% |
|
Acceptance aperture |
17mm |
|
Connector |
TTL |
|
Supply voltage |
5V±0.5V |
|
Power consumption |
≤2W |
|
Dimension |
50.5mmx37mmx22mm |
|
Weight |
≤45g |
|
Operating temperature |
-40℃~+55℃ |
3.
STDY-DA3xxx
series
|
Model |
STDY-DA3000 |
STDY-DA3500 |
|
Wavelength |
905nm |
|
Range |
20m~3000m |
30m~3500m |
|
Ranging accuracy |
≤±2m |
|
Ranging frequency |
1Hz |
|
Accurate rate |
≥98% |
|
Acceptance aperture |
24mm |
|
Connector |
TTL |
|
Supply voltage |
5V±0.5V |
|
Power consumption |
≤2W |
|
Dimension |
50mmx49.5mmx29mm |
|
Weight |
≤65g |
|
Operating temperature |
-40℃~+55℃ |
4.
STDY-YA2xxx
series
|
Model |
STDY-YA2000 |
STDY-YA2500 |
|
Wavelength |
1550nm |
|
Range |
30m~2000m |
30m~2500m |
|
Ranging accuracy |
≤±2m |
|
Ranging frequency |
1Hz |
|
Accurate rate |
≥98% |
|
Acceptance aperture |
17mm |
|
Connector |
TTL |
|
Supply voltage |
5V±0.5V |
|
Power consumption |
≤3W |
|
Dimension |
51mmx37mmx22mm |
|
Weight |
≤45g |
|
Operating temperature |
-40℃~+55℃ |
5.
STDY-YA2xxxA
series
|
Model |
STDY-YA2000A |
STDY-YA2500A |
|
Wavelength |
1550nm |
|
Range |
30m~2000m |
30m~2500m |
|
Ranging accuracy |
≤±2m |
|
Ranging frequency |
1Hz |
|
Accurate rate |
≥98% |
|
Acceptance aperture |
17mm |
|
Connector |
TTL |
|
Supply voltage |
5V±0.5V |
|
Power consumption |
≤3W |
|
Dimension |
50.5mmx45.5mmx29mm |
|
Weight |
≤45g |
|
Operating temperature |
-40℃~+55℃ |
6.
STDY-YA3000 and STDY-YA3000A
|
Model |
STDY-YA3000 |
STDY-YA3000A |
|
Wavelength |
1550nm |
|
Range |
30m-3000m |
|
Ranging accuracy |
≤±2m |
|
Ranging frequency |
1Hz |
|
Accurate rate |
≥98% |
|
Acceptance aperture |
24mm |
|
Connector |
TTL |
|
Supply voltage |
5V±0.5V |
|
Power consumption |
≤3W |
|
Dimension |
51mmx50mmx29mm |
51mmx55mmx40mm |
|
Weight |
≤65g |
|
Operating temperature |
-40℃~+55℃ |

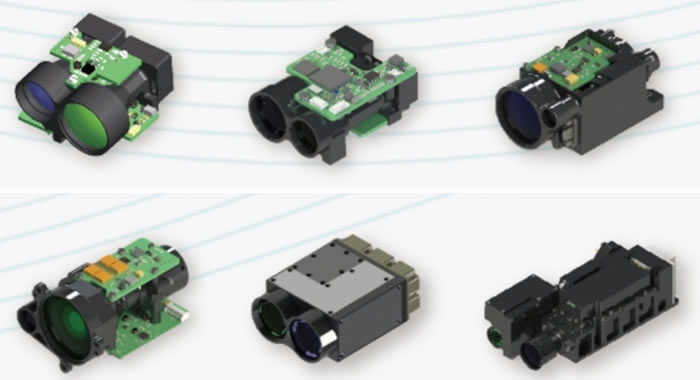

STDY-DYC Series
Small
&
Medium-sized
Laser
Rangefinder

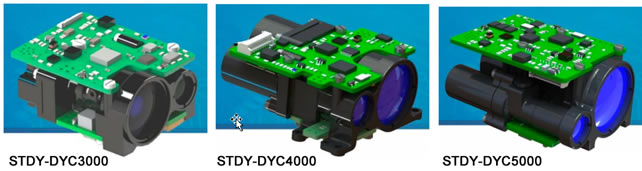

STDY-DYC series
of small and medium-sized laser rangefinders
are
compact, easy to install and operate. The working light source is a
human eye safe band solid state laser.
The features are long
service life and low power consumption. It can provide deep
customization according to different needs.
And it is widely
used in the airborne pod, vehicle turntable, handheld observation
instrument, altimeter, telescope, gun sight, gun sight project and other
photoelectric equipment, to meet aviation, ship, vehicle, police,
railway, electric power, communication, geology, construction, fire
protection, forestry, outdoor applications and other applications.
1.
STDY-DYCx000
series
|
Model |
STDY-DYC3000 |
STDY-DYC4000 |
STDY-DYC5000 |
|
Wavelength |
1535nm |
1535nm |
1535nm |
|
Range |
15m~3000m |
50m~4000m |
50m~5000m |
|
Ranging accuracy |
≤±2m |
≤±2m |
≤±2m |
|
Ranging frequency |
≥1Hz |
≥1Hz |
≥1Hz |
|
Accurate rate |
≥98% |
≥98% |
≥98% |
|
Divergence angle |
≤0.65mrad |
≤0.6mrad |
≤0.7mrad |
|
Acceptance aperture |
18mm |
21mm |
25mm |
|
Connector |
TTL |
RS422 |
RS422 |
|
Supply voltage |
12V±2V |
12V±2V |
12V±2V |
|
Power consumption |
≤2W |
≤3W |
≤3W |
|
Dimension |
50mmx36mmx24mm |
57mmx50mmx30mm |
61mmx43mmx32mm |
|
Weight |
≤56g |
≤75g |
≤85g |
|
Operating temperature |
-40℃~+55℃ |
-40℃~+55℃ |
-40℃~+55℃ |
|
Model |
STDY-DYC6000 |
STDY-DYC7000 |
STDY-DYC8000 |
STDY-DYC9000 |
|
Wavelength |
1535nm |
1535nm |
1535nm |
1535nm |
|
Range |
20m~6000m |
20m~7000m |
80m~8000m |
80m~9000m |
|
Ranging accuracy |
≤±2m |
≤±2m |
≤±2m |
≤±2m |
|
Ranging frequency |
≥1Hz |
≥1Hz |
≥1Hz |
≥1Hz |
|
Accurate rate |
≥98% |
≥98% |
≥98% |
≥98% |
|
Divergence angle |
≤0.3mrad |
≤0.3mrad |
≤0.5mrad |
≤0.5mrad |
|
Acceptance aperture |
34mm |
34mm |
42mm |
42mm |
|
Connector |
RS422 |
RS422 |
RS422 |
RS422 |
|
Supply voltage |
7.5V±1.5V |
7.5V±1.5V |
12V±2V |
12V±2V |
|
Power consumption |
≤2W |
≤2W |
≤3W |
≤3W |
|
Dimension |
80x59x45mm |
80x59x45mm |
86x66x45mm |
86x66x45mm |
|
Weight |
≤120g |
≤120g |
≤145g |
≤145g |
|
Operating temperature |
-40℃~+55℃ |
-40℃~+55℃ |
-40℃~+55℃ |
-40℃~+55℃ |
2.
STDY-DYCx000A
series
|
Model |
STDY-DYC6000A |
STDY-DYC7000A |
|
Wavelength |
1535nm |
|
Range |
20m～6000m |
20m～7000m |
|
Ranging accuracy |
≤±2m |
|
Ranging frequency |
1Hz |
|
Accurate rate |
≥98% |
|
Divergence angle |
≤0.3mrad |
|
Acceptance aperture |
34mm |
|
Connector |
TTL |
|
Supply voltage |
7.5V±1.5V |
|
Power consumption |
≤2W |
|
Dimension |
81mmx57.5mmx41.5mm |
|
Weight |
≤125g |
|
Operating temperature |
-40℃~+55℃ |
3.
STDY-DYC6000B
|
Model |
STDY-DYC6000B |
|
Wavelength |
1535nm |
|
Range |
50m~6000m |
|
Ranging accuracy |
≤±2m |
|
Ranging frequency |
1Hz |
|
Accurate rate |
≥98% |
|
Divergence angle |
≤0.7mrad |
|
Acceptance aperture |
34mm |
|
Connector |
RS422 |
|
Supply voltage |
28V±6V |
|
Power consumption |
≤3W |
|
Dimension |
87mmx52mmx41mm |
|
Weight |
≤195g |
|
Operating temperature |
-40℃~+55℃ |
4.
STDY-DYC100X
and
STDY-DYC100XA
|
Model |
STDY-DYC100X |
STDY-DYC100XA |
|
Wavelength |
1535nm |
|
Range |
50m～10000m |
80m～10000m |
|
Ranging accuracy |
≤±2m |
|
Ranging frequency |
1Hz |
|
Accurate rate |
≥98% |
|
Divergence angle |
≤0.5mrad |
|
Acceptance aperture |
48mm |
|
Connector |
RS422 |
|
Supply voltage |
28V±6V |
|
Power consumption |
≤4W |
|
Dimension |
107mmx84mmx56mm |
|
Weight |
≤230g |
≤290g |
|
Operating temperature |
-40℃~+55℃ |
5.
STDY-DYC
series
medium range finder
STDY-DYC series
of
medium range finders are
compact and
easy to install and operate. The working light source is a human eye
safe band solid state laser.
The features of it are long
service life and low power consumption. It can provide deep
customization according to different needs.
And it is widely
used in the airborne pod, vehicle turntable, handheld observation
instrument, altimeter, telescope, gun sight, gun sight project and other
photoelectric equipment, to meet aviation, ship, vehicle, police,
railway, electric power, communication, geology, construction, fire
protection, forestry, outdoor applications and other applications.
|
Model |
STDY-DYC250X |
STDY-DYC300X |
|
Wavelength |
1535nm |
|
Range |
300m～25000m |
300m～30000m |
|
Ranging accuracy |
≤±5m |
|
Ranging frequency |
1Hz |
|
Accurate rate |
≥98% |
|
Divergence angle |
≤0.4mrad |
|
Acceptance aperture |
48mm |
65mm |
|
Connector |
RS422 |
|
Supply voltage |
28V±6V |
|
Power consumption |
≤10W |
|
Dimension |
245mmx113mmx85mm |
133mmx122mmx76mm |
|
Weight |
≤2100g |
≤1000g |
|
Operating temperature |
-40℃~+55℃ |

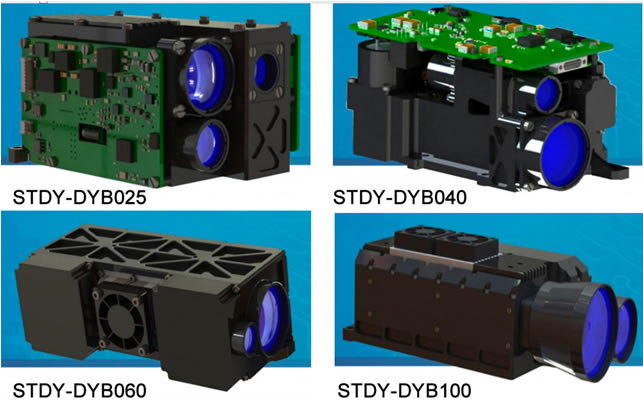

STDY-DYB Series
Small
Laser
Photometer
STDY-DYB
series of small laser photometer is pumped by
semiconductor, which can transmit laser pulse and receive laser echo to
obtain the distance information of the measured target. It emits laser
pulses in a specified precise coding or external synchronous way to
provide semi-active guidance laser spots for laser guided weapons. The
product is suitable for ground reconnaissance equipment, vehicle turret,
ship turret, helicopter and UAV photoelectric load.
|
Model |
STDY-DYB025 |
STDY-DYB040 |
STDY-DYB060 |
STDY-DYB100 |
|
Wavelength |
1064nm |
1064nm |
1064nm |
1064nm |
|
Averag
energy |
≥25mJ |
≥40mJ |
≥60mJ |
≥100mJ |
|
Energy instability |
≤10% |
≤10% |
≤10% |
≤10% |
|
Divergence angle |
≤0.5mrad |
≤0.4mrad |
≤0.4mrad |
≤0.25mrad |
|
Optical axis stability |
≤0.05mrad |
≤0.05mrad |
≤0.05mrad |
≤0.05mrad |
|
Range |
100m~5000m |
300m~5000m |
300m~8000m |
300m~20000m |
|
Irradiation distance |
≥2000m |
≥4000m |
≥5000m |
≥13000m |
|
Exposure frequency |
20Hz |
20Hz |
20Hz |
20Hz |
|
Precise frequency code |
45ms~56ms |
45ms~56ms |
45ms~56ms |
45ms~56ms |
|
Coding accuracy |
±2.5us |
±2.5us |
±2.5us |
±2.5us |
|
Pulse width |
15ns±5ns |
15ns±5ns |
15ns±5ns |
15ns±5ns |
|
Supply voltage |
28V±6V |
28V±6V |
28V±6V |
28V |
|
Weight |
≤450g |
≤1000g |
≤1500g |
≤2800g |
|
Dimension |
91x6851.5mm |
112x62x57mm |
180x100x78mm |
239x116x81mm |
|
Operating temperature |
-40℃~+55℃ |
-40℃~+55℃ |
-40℃~+55℃ |
-40℃~+55℃ |
|
Connector |
RS422 |
RS422 |
RS422 |
RS422 |
|
