          Femto-second Lasers



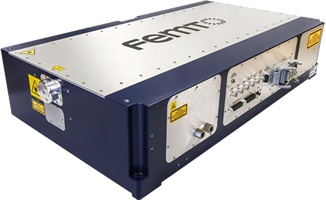

STIM-DE series

Based on patented Fiber Chirped Pulse Amplification (FCPA) technology, the industry-leading FCPA μJewel series offers sufficient pulse energy for selected material processing at a near-infrared wavelength of 1045 nm. Harmonic generation packages, which convert its output to visible and UV wavelengths, are available . The FCPA architecture allows users to choose between high energy operation up to 50 μJ pulses at a repetition rate of 100 kHz or 200 kHz, and high average power of 10 W and 20 W at 1 MHz in the fundamental wavelength. The STIM-DE Series allow for material processing at faster rates, depending on the application requirements.



Features:

- Ideal for transparent fs laser material processing, among other applications

- Proven industrial reliability in the field since 2004 market introduction

- Mechanical reliability complies with MIL-STD-810F and IEC 60601 standards

- Factory set up to 5 MHz repetition rate available

- Naturally induced Air-cooled

- Regulatory certifications available

- Complete software/remote diagnostic testing and in-field configuration



Specifications:

  STIM-DE1050 STIM-DE2020
 Wavelength  1045 5 nm 1045 5 nm
Average Power ≥ 10 W  ≥ 20 W
Pulse Duration ≤ 350 fs  ≤ 350 fs
Pulse Energy ≥ 50 μJ ≥ 20 μJ
M ≤ 1.3 ≤ 1.3
Repetition Rate 200 kHz 1 MHz
Beam Quality M ≤ 1.3
Polarization Horizontal with respect to baseplate
Power Stability ≤ 1% rms after stabilization over 1 ˚C
Output Aperture  Height 55.4 mm
Laser Head Dimensions 666 x 520 x 165 mm
Laser Head Weight ≤ 45 kg
Head Heat Dissipation Max. 100 W
Controller Dimensions 433 x 483 x 222 mm
Controller Weight ≤ 30 kg
Power Consumption Max. 1200 W
Operating Voltage 100-120 or 200-240 VAC
Output Trigger TTL 100 ns pulse
Operating Temperature 20-30 C
Storage Temperature 0-50 C
Warm up time ≤ 60 minutes
Cable Length 3 m

Configurations:

- Pulse Select: Allows users to select up to 15 pre-set repetition rate values; typical pre-select repetition rates range from 100 kHz to 5 MHz

- Pulse Pick: Enables operation from an on-demand single pulse to high repetition rates up to 100 kHz

- Pulse Flex: A combination of Pulse Select and Pulse Pick; offers the possibility to operate the laser from an on-demand single pulse all the way up to 5 MHz

- Harmonic Module: Attachable to the laser head to convert its output to visible and/or UV wavelengths

- Burst mode: Provides bursts of pulses within pre-determined boundary conditions



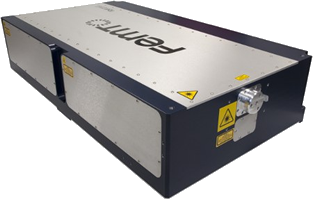

STIM-DX series

The most compact laser form based on patented Fiber Chirped Pulse Amplication (FCPA) technology. The DX Series lasers offer sufficient pulse energy for selected material processing at a near-infrared wavelength of 1045 nm with an ideal compact form factor. Harmonic generation packages, which convert its output to visible and UV wavelengths, are available. The FCPA architecture allows users to choose between high energy operation up to 40 μJ pulses, repetition rate up to 5 MHz, and average power up to 10 W depending on the specific source. The STIM-DX Series allow for material processing at fast rates in a light-weight package.



Features:
- Custom-fit pulse energy and average powers for fs laser material processing applications
- Proven industrial reliability in the field since 2004 market introduction
- Mechanical reliability complies with MIL-STD-810F and IEC 60601 standards
- Factory-set up to 5 MHz repetition rate available
- Naturally induced Air-cooled
- Regulatory certifications available
- Complete software/remote diagnostic testing and in-field configuration



Specification:

  STIM-DX0210 STIM-DX1010 STIM-DX0320 STIM-DX0330 STIM-DX0540
Wavelength 1045 5 nm
Pulse Energy ≥ 10 μJ ≥ 10 μJ ≥ 20 μJ ≥ 30 μJ ≥ 40 μJ
Pulse Duration ≤ 450 fs
Average Power ≥ 2 W ≥ 10 W ≥ 3 W ≥ 3 W ≥ 5 W
M ≤ 1.3
Repetition Rate 100 kHz 1000 kHz 100 kHz 100 kHz 200 kHz
Beam Quality M ≤ 1.3
Polarization Horizontal with respect to baseplate
Power Stability ≤ 1% rms after stabilization over 1 ˚C
Output Aperture Height 55.4 mm
Laser Head Dimensions 550 x 400 x 149 mm
Laser Head Weight ≤ 25 kg
Head Heat Dissipation Max. 80 W
Controller Dimensions 433 x 483 x 222 mm
Controller Weight ≤ 30 kg
Power Consumption Max. 600 W
Operating Voltage 100-120 or 200-240 VAC
Output Trigger TTL 100 ns pulse
Operating Temperature 20-30 C
Storage Temperature 0-50 C
Warm up time ≤ 60 minutes
Cable Length 3 m

Configurations:
- Pulse Select: Allows users to select up to 15 pre-set repetition rate values; typical pre-select repetition rates range from 100 kHz to 5 MHz
- Pulse Pick: Enables operation from an on-demand single pulse to high repetition rates up to 100 kHz
- Pulse Flex: A combination of Pulse Select and Pulse Pick; offers the possibility to operate the laser from an on-demand single pulse all the way up to 5 MHz
- Harmonic Module: Attachable to the laser head to convert its output to visible and/or UV wavelengths
- Burst Mode: Provides bursts of pulses within pre-determined boundary conditions



STIM-FX series

Proprietary Raman-shifting technology that creates a clean pulse shape and spectrum at the unique wavelength of 810 nm makes the STIM-FX series a convenient replacement for the ubiquitous Ti:Sapphire laser. This enables new possibilities for the use of femtosecond lasers in clinical and industrial settings. Since its introduction in 2005, the STIM-FX series has been a reliable workhorse in many applications. It is now available with powers up to 150 or 200 mW at 810 nm and 1620 nm. Target applications include Terahertz wave generation and detection, multiphoton fluorescence microscopy and second harmonic imaging.



Features:
- HX-150 offers continuously adjustable power at dual wavelengths
- Compact and robust design for easy integration
- Mechanical reliability complies with MIL-STD-810F and IEC 60601-1 standards
- Regulatory certifications available



Specification:

  STIM-FX-100 STIM-FX-150 STIM-HX-150 STIM-GX-200
Center Wavelength 805 15 nm 810 15 nm 810 15 nm 1620 40 nm 1620 40 nm
Average Power  ≥ 100 mW ≥ 150 mW ≥ 150 mW ≥ 200 mW ≥ 200 mW
Pulse Duration ≤ 120 fs ≤ 140 fs ≤ 140 fs ≤ 100 fs ≤ 100 fs
Dimensions (mm) 230 x 193 x 76
Repetition Rate 75 10 MHz
Polarization Horizontal with respect to baseplate Horizontal*
Power Stability ≤ 1% rms after stabilization at 25 ˚C
Output Aperture Height 43 mm
Laser Head Dimensions 230 x 193 x 76 mm
Laser Head Weight  2kg 3kg 2kg
Head Heat Dissipation  <50 W
Controller Dimensions 267 x 267 x 133 mm
Controller Weight 3.5 kg
Power Consumption <250 W
Operating Voltage 100-240 VAC at 50-60 Hz
Operating Temperature 20-30 C
Storage Temperature 0-50 C
Warm up time ≤ 15 minutes
Cable Length 2 m



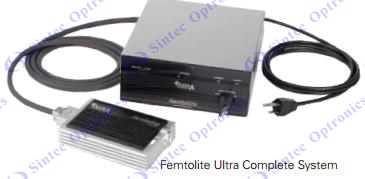

STIM-Femtolite Ultra series

Introduced in 2004, the STIM-Femtolite Ultra is the most compact, reliable Erbium-doped femtosecond fiber laser on the market. It is available in a range of wavelengths and power levels. The Ultra is the descendent of the first commercial femtosecond fiber laser. Together with earlier versions, hundreds of units have been sold around the world, with very low rates of return or failure. No other laser product has the same track record of reliable performance over such long time scales.



Features:
- Compact and robust design for easy integration
- Proven reliability of the STIM-Femolite series since market introduction in 1995
- Meets stringent mechanical reliability requirements
- Complies with IEC 60068-2-27 and 60068-2-6 standards for shock and vibration
- Simple operation by controller panel or 5 V digital input



Specification:

  AX-20 BX-60 CX-20 FX-10
Center Wavelength 780 5 nm 1560 5 nm 780 5 nm 1560 10 nm 810 5 nm
Average Power ≥ 20 mW ≥ 60 mW ≥ 20 mW ≥ 20 mW ≥ 10 mW
Pulse Duration ≤ 100 fs ≤ 110 fs
Dimensions (mm) 142 x 96 x 38
Repetition Rate 50 2 MHz
Polarization Vertical  with respect to baseplate
Power Stability ≤ 1% rms after stabilization  over 1 ˚C
Output Aperture Height 23 mm
Laser Head Dimensions 142 x 96 x 38 mm
Laser Head Weight  0.8 kg
Head Heat Dissipation  Max. 80 W
Controller Dimensions 215 x 200 x 89 mm
Controller Weight 2 kg
Power Consumption <50 W
Operating Voltage 100-120 or 200-240 VAC
Operating Temperature 20-30 C25-35 C
Storage Temperature 0-50 C
Warm up time ≤ 30 minutes
Cable Length 2 m



STIM-FD series

FD Series of laser is designed uniquely to deliver fs laser pulses via an optical fiber cable to user application. The laser application primarily targeting at the imaging application of proteins at 1045 nm. However, this product can serve many other applications where a handy delivery of fs pulses are required in flexible fashion. The first product of the STIM-FD Series, STIM-FD/D-FD-100S, offers over 1 W of average fiber delivered power with 200 fs along with high speed blanking function at less than 1 μs. All one-box design cooled by air allows for easy integration into workstations and laser machines. Target applications include microscopy and second harmonic imaging.


Features:
- Fiber-delivered fs pulse by 3-4 m of optical cable
- Over 1 W of fiber average power
- Integrated high speed pulse modulator
- One-box air cooled package



Specification:

Center Wavelength 1045 5 nm
Average Power ≥ 1.0 W
Pulse Duration ≤ 200 fs
Repetition Rate 50 5 MHz
Power Modulation internal AOM, <1μs
Dimensions (mm) 500 x 540 x 270



STFC-FEMTO series

Our STFC-Femto-25 is a series of powerful industrial femtosecond pulse width lasers offering output powers up to 25 W for high throughput, high quality micromachining. The FEMTO series provides high pulse energies up to 150 μJ of typically 800 fs pulse width at repetition rates selectable between 100 kHz and 2 MHz. The FEMTO series is the only ultra-fast lasers available utilizing the revolutionary Taranis Single Crystal Fiber (SCF) amplifier construction which enables higher energy per pulse, more widely variable repetition rates without the need to lower energy, improved beam quality, more effective smaller packaging



Specifications:

Wavelength 1030nm
Average Power 25W
Pulse Repetition Rate 100kHz to 2MHz
Spatial Mode TEM00 M2 < 1.3
Pulse Duration <1ps
Polarization Ratio >100:1
Electric Supply 100 to 230VAC/ 50 to 60Hz
Beam Diameter 2mm
Warm-Up Time <10min

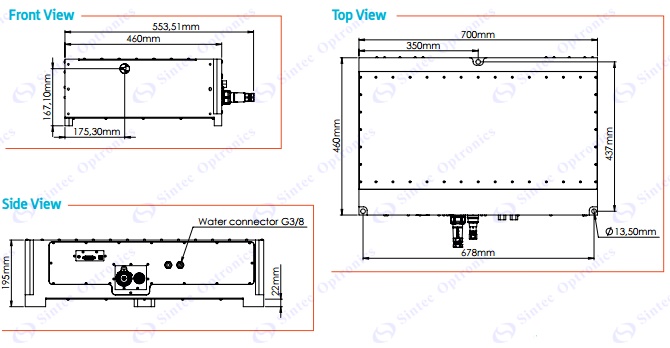

Max Out Dimensions 700x460x195mm3

Typical Data

Repetition rate 100kHz 2000kHz
Average Power 10W 25W
Pulse Energy 100uJ 12.5uJ
Peak Power 100MW 12.5MW



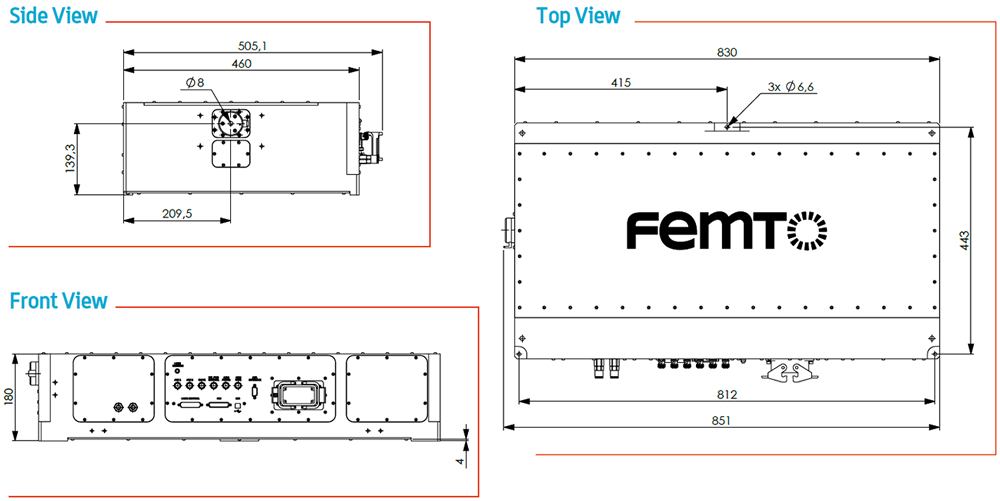

Dimension:



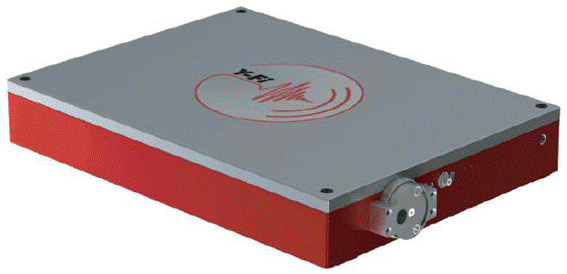

STOF-OG Series Femto-second Lasers

STOF-OG ultra-low-noise solution femtosecond laser module designed for OEM and R&D applications. The features are

* Excellent pulse quality pedestal-free transform-limited soliton pulses
* No Kelly-sidebands no spectral ripple
* Diffraction-limited beam quality
* Lowest phase noise and timing jitter available on market
* Shot noise limited relative intensity noise
* No amplifier built in no ASE noise
* High repeatability and 24/7 operation
* Compact, dust-sealed OEM package
* Plug & play
* Passively air cooled no water cooling
* Low power consumption
* Remote control
* One-button operation no adjustment knobs or screws
* Maintenance free no user-serviceable parts inside or outside laser


Specifications:

Model

STOF-OG-05

STOF-OG-08

STOF-OG-10

STOF-OG-15

STOF-OG-17

Center wavelength

513-535nm

765-785nm

1025-1070nm

1530-1586nm

1580-1700nm

Pulse duration1,2

<100-230fs

<130-200fs

<90-400fs

<100-500fs

<200-300fs

Average power (up to)2

100mW

30mW

250mW

120mW

50mW

Pulse repetition rate2

20MHz-1.3GHz

Pulse energy (up to)2

1.2nJ

0.7nJ

5nJ

2nJ

1nJ

Peak power (up to)

10kW

4.5kW

30kW

15kW

3kW

Spectral bandwidth3

transform-limited (τpΔν~ 0.32) > 18 nm

Output

Collimated free space, M2<1.1(fiber output optional)

PER

>23dB

>23dB

>23dB

>23dB

>23dB

Amplitude noise (10h)

<0.2% rms, <0.5% pk-pk (24h)

Center wavelength drift

<0.1nm pk-pk (24h)

Warm-up time

<10 minutes

<10 minutes

<10 minutes

<10 minutes

<10 minutes

Operation temperature

10C -40C

10C -40C

10C -40C

10C -40C

10C -40C

Storage temperature

-20C -65C

-20C -65C

-20C -65C

-20C -65C

-20C -65C

On/Off cycles

>10 000

>10 000

>10 000

>10 000

>10 000

Power consumption

< 15 W (steady state)

Power supply

90-264VAC, 47-63Hz

Size laser head4

296 x 112 x 54 mm3

Size std. controller

165 x 104 x 44 mm3

Weight laser head4

2.5kg

Weight controller

0.65kg

1.  tunable (requires external adjustable power supply)

2. please inquire for possible combinations of pulse duration, average power, and repetition rate

3. bandwidth to support sub 60 fs available with close to linear chirp

4. exact size and weight depend on pulse repetition rate



Options:

* Linear controller for ultra low noise & timing jitter
< 5 fs rms with low noise controller (1 kHz - 10 MHz)
< 30 fs rms with standard controller (1 kHz - 10 MHz)
* Synchronization to external clockWavelength tunability
* Electrical interface for pump power control
* Piezo controlled cavity length
* Carrier Envelope Phase (CEP) stabilization ready
* Fiber output (PM or SMF)
* UV generation
* Repetition rate tunability
* Internal monitor PD
* Optical isolator



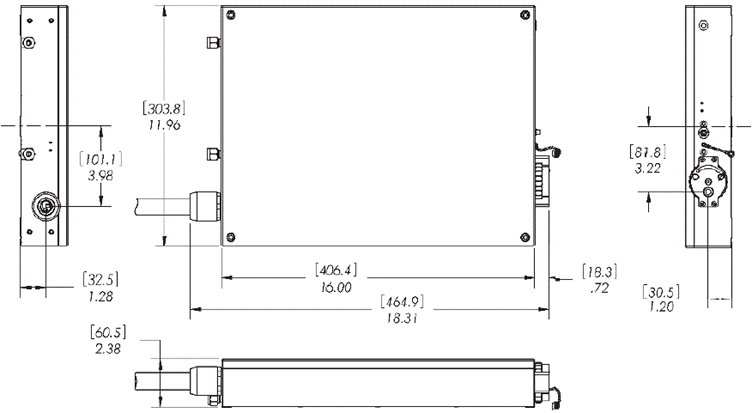

STOF-OG Series High Power Femto-second Lasers

STOF-OG series high power air cooled femtosecond laser module for OEM and R&D applications. The features are:

* Excellent pulse quality pedestal-free transform-limited soliton pulses
* Clean sech2-shaped optical spectrum
* No Kelly-sidebands no spectral ripple
* Diffraction-limited beam quality
* Low amplitude and phase noise
* No amplifier built in no ASE noise
* High repeatability and 24/7 operation
* Compact, dust-sealed OEM package
* Plug & play
* Air cooled no water cooling
* Low power consumption
* Remote control
* One-button operation no adjustment knobs or screws
* Maintenance free no user-serviceable parts inside or outside laser


Specifications:

Model

STOF-OG-05 HP

STOF-OG-10 HP

STOF-OG-08 HP

Center wavelength

514-520nm

1028-1040nm

780-820nm

Pulse duration

<200fs

<200fs

<100fs

Average power (up to)

>1.5W

>3W

>300mW

Pulse repetition rate

40-200MHz

40-200MHz

Pulse energy (up to)

40nJ

80nJ

8nJ

Peak power (up to)

>160kW

>320kW

>60kW

Spectral bandwidth

Transform limited (τp. Δν ~ 0.32)

Transform limited (τp. Δν ~ 0.32)

Output

collimated free space,M2< 1.2

collimated free space,M2< 1.2

PER

>23dB

>23dB

>20dB

Amplitude noise

< 0.5% rms, < 1% pk-pk (1h)

< 0.5% rms, < 1% pk-pk (1h)

Center wavelength drift

< 0.1 nm pk-pk (1h)

< 0.3 nm pk-pk (1h)

Pointing stability

<50urad rms (12h)

<50mrad rms (12h)

Warm-up time

<15 minutes

<15 minutes

<15 minutes

Operation temperature

18C -32C

18C -32C

18C -32C

Storage temperature

-20C -65C

-20C -65C

-20C -65C

On/Off cycles

>10 000

>10 000

>10 000

Power consumption

< 300W

< 300W

Power supply

24VDC or 90-264VAC, 47-63Hz

24VDC or 90-264VAC, 47-63Hz

Size laser head1

240 x 330 x 125 mm3

260 x 420 x 125 mm3

System weight1

12kg

16kg

1.  exact size and weight depend on pulse repetition rate




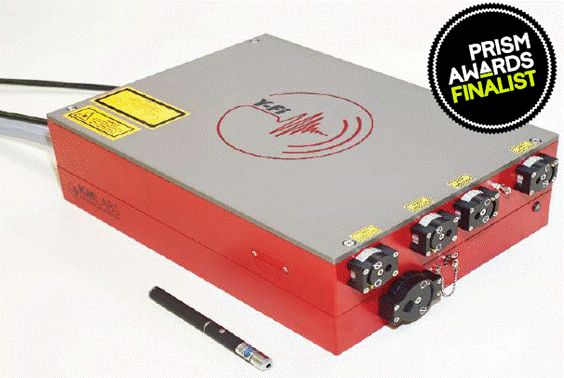

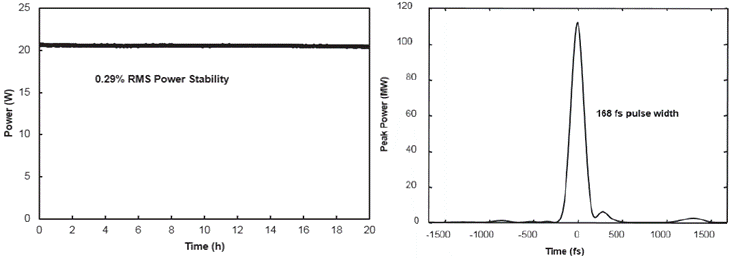

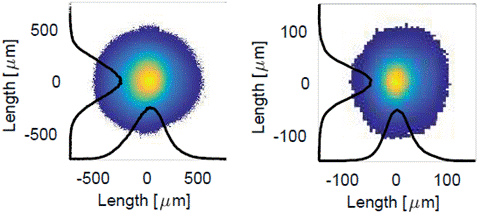

STOF-OG Series High Energy Femto-second Lasers

STOF-OG high energy compact 1-um amplified femtosecond laser for OEM and R&D applications. The features are:

* Excellent pulse quality

* Close to diffraction-limited beam quality

* Low ASE background
* Burst mode
* Variable repetition rate
* Variable pulse energy
* High repeatability and 24/7 operation
* Complete remote control / user interface
* One-button operation
* Plug & play no installation required
* Compact, dust-sealed OEM package
* Lightweight mountable in any direction
* Low power consumption
* Closed-loop chiller included
* Maintenance free no user-serviceable parts inside or outside laser


Specifications:

Model

STOF-OG-10 XP

Options

* Synchronization to
external clock
* Circular polarization
* Picosecond operation
* Second harmonic
* Third harmonic
* Forth harmonic
* Different form factor is available on request





Center wavelength

1030nm

Pulse duration

<400fs

Average power (up to)

4W

Pulse repetition rate

Single shot-1MHz

Pulse energy (up to)

>40uJ up to 100kHz, >20uJ up to 200kHz

Peak power (up to)

80MW

Spectral bandwidth

<6nm

Output

collimated free space,M2< 1.2

Ellipticity

<1.1

PER

>20dB, horizontal

Amplitude noise

< 1% rms, (12h)

Energy contrast

23dB

Pointing stability

<50urad rms (12h)

Beam height

44.5mm

Warm-up time

<10 minutes

Specs guarranteed

18C -32C

Storage temperature

-20C -65C

Size laser

260 x 420 x 125 mm

Size controller

447 x 281 x 134 mm (19/4U rack mount)

Weight laser

16kg

Power supply

90-264VAC, 47-63Hz

Power consumption

< 500W

Interfaces

RS232, Ethernet

1 exact size and weight depend on pulse repetition rate



  Ti:Sapphire Ultrashort Pulse Laser         High-Average-Power Femtosecond Laser     Pico-second Lasers

Sintec Optronics Pte Ltd

10 Bukit Batok Crescent #07-02 The Spire Singapore 658079

Tel: +65 63167112 Fax: +65 63167113

E-mail: sales@sintec.sg sales@SintecOptronics.com

URL: http://www.sintec.sghttp://www.SintecOptronics.com

For more and updated information, please go to our New Websites.
