          Pico-second Lasers



STHR-OL series

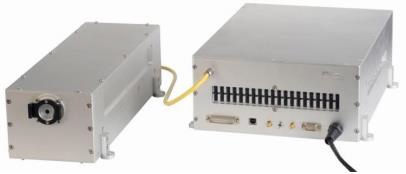

The STHR-OL series, Low-Power Picosecond Ultrafast Lasers, Robust and affordable, it produces high energy pulses with durations below 10 ps. The laser is based on a hybrid optical amplifier architecture that combines the advantages of fiber laser technology with solid state diode pumped multi-pass amplifiers. Compact and water-cooled, this laser is low maintenance and never needs realignment. Available in 3 standard wavelengths, special specification can be customized, this laser is ideal for fast, high precision material processing at an affordable price.



Features:
<10 picosecond pulses

Long term power stability < 3%rms

High beam quality with M2 ≤ 1.3

Serial Interface



Specification:

Parameters STHR-OL-355-0.7 STHR-OL-1064-2
Average Power >0.7W@100KHz >2W@500KHz
Wavelength 355nm 1064nm
Pulse Width <10ps <10ps
Pulse Repetition Rate 50kHz-1000kHz 50kHz-1000kHz
Spatial Mode M2≤1.3 M2≤1.3
Working Material Nd:YVO4 Nd:YVO4
Beam-pointing <25μrad <25μrad
Beam Roundness ≥85% ≥90%
Beam Diameter ≤1.0mm ≤1.5mm
Beam Divergence ≤2mrad ≤2mrad
Pulse Stability ≤2%rms ≤2%rms
Long-Term Stability ≤3%rms ≤3%rms
Ambient Temperature 18-35℃ 18-35℃
Cooling Water Water
Polarization Ratio Vertical, >1000:1 Vertical, >1000:1
Power Consumption 700W 700W
Classification Class 4 Class 4



Our STHR-OL series, Mid-power and High-power Picosecond Ultrafast Lasers is a compact and powerful, hybrid fiber/free space amplified ultrafast laser. With pulses shorter than 10ps, this laser is ideal for fast, high precision micro-machining and material processing of any material. The robust STHR-OL combines the advantages of fiber laser technology with solid state diode pumped free space amplification. Compact and water-cooled, this laser is low maintenance and easy to integrate with other equipment. Available with single or multiple wavelength combinations.



Features:
<10 picosecond pulses

Long term power stability < 3%rms

High beam quality with M2 ≤ 1.3

Serial Interface



Parameters STHR-OL-1064-10 (Mid Power) STHR-OL-1064-50 (High Power)
Average Power >10W@500KHz >50W@500KHz
Wavelength 1064nm 1064nm
Pulse Width <10ps <10ps
Pulse Repetition Rate 50kHz-1000kHz 50kHz-1000kHz
Spatial Mode M2≤1.3 M2≤1.3
Working Material Nd:YVO4 Nd:YVO4
Beam-pointing <25μrad <25μrad
Beam Roundness ≥90% ≥90%
Beam Diameter ≤1.5mm ≤1.5mm
Beam Divergence ≤2mrad ≤2mrad
Pulse Stability ≤2%rms ≤2%rms
Long-Term Stability ≤3%rms ≤3%rms
Ambient Temperature 18-35℃ 18-35℃
Cooling Water Water
Polarization Ratio Vertical, >1000:1 Vertical, >1000:1
Power Consumption 1000W 1000W
Classification Class 4 Class 4

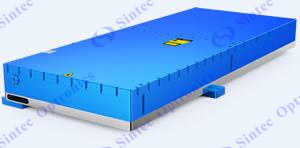

STFC-PICO series

Our STFC-PICO is a series of powerful industrial lasers. It emits picosecond pulses (<10 ps) with excellent beam quality, in a compact package. The PICO series uses the well proven Taranis Single Crystal Fiber (SCF) technology for greater design simplicity, ruggedness and adjustable parameters. This laser tool is designed for micromachining. It can be operated at user selected repetition rate ranging from 200 kHz to 2 MHz depending on the process needs. By selecting the repetition rate, the user can favor pulse peak power above 10 MW or average power up to 60W, while keeping high and constant beam quality. The PICO series is available at three average power levels: 12 W, 35 W and 60 W.



Specifications:

Wavelength 1030nm
Average Power Available at 12W, 25W, and 60W
Pulse Repetition Rate 200kHz to 2MHz
Spatial Mode TEM00 M2 < 1.3
Pulse Duration <10ps
Average power Stability over 8 hours <2% at 1030nm and 500kHz
Polarization Ratio >100:1
Electric Supply 100 to 230VAC/ 50 to 60Hz
Beam Diameter 2mm
Warm-Up Time <10min
Max Out Dimensions 700x460x195mm3

Typical Data

Repetition rate 200kHz 400kHz 1000kHz 2000kHz
Average Power 14W 22W 50W 60W
Pulse Energy 70uJ 55uJ 50uJ 30uJ
Peak Power 12MW 9MW 8.5kHz 5MW

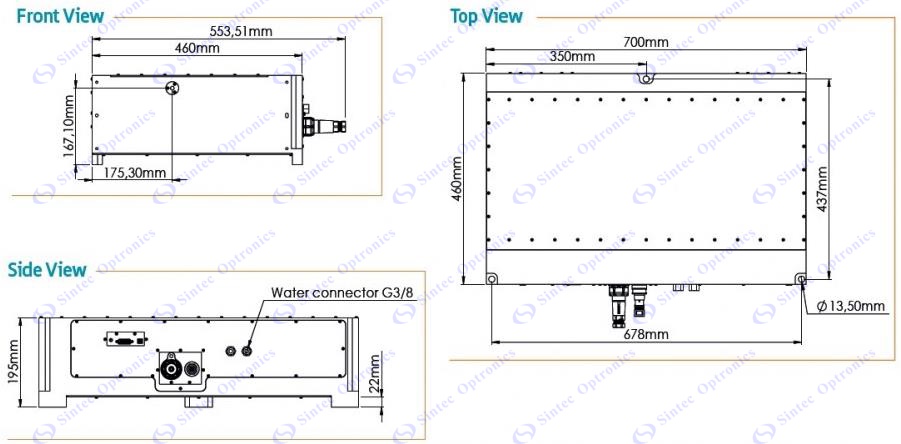

Dimension:

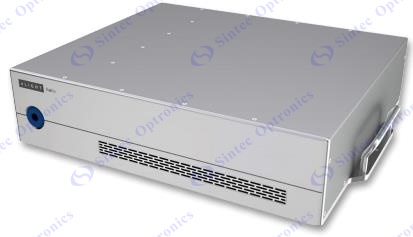

STNL Helix Series Fiber Lasers

STNL Helix picosecond fiber laser is the industrys first cost-effective solution for high precision micro-materials processing. Designed to meet the highest quality and reliability standards for maintenance-free 24/7 industrial operation, the air-cooled system provides a near-diffraction-limited, high peak-power, short pulsed beam at 1064 nm. The small footprint of the laser head coupled with an intuitive user interface allows for ease of integration into any laser machine tool.
The platform leverages industry-leading diode and fiber technology to deliver a high-performance pulsed fiber laser solution:
     - High brightness, ultra-reliable fiber-coupled diodes
     - fiber provides unmatched beam quality and stability capable of achieving multi-hundred kW peak power
     - Proprietary seed technology that enables ultra stable, configurable pulses with highly flexible parameters including burst mode,

       pulse duration and repetition rate
This fiber laser platform is designed and manufactured to meet the high performance and high-reliability requirements of 24/7 industrial production.



Features:

Burst mode

Burst shaping

High peak power (300 kW)

Configurable pulse widths from 50 ps to 400 ps

User selectable repetition rates from 50 kHz to 10 MHz

Air-cooled

Flexible modular design enables high user uptime

Near diffraction-limited beamh quality pulses



Applications:

Sapphire scribing

Stealth dicing

Glass processing

FPD processing

Flex circuit patterning

Semiconductor processing

Marking and engraving



Specifications:

Model STNL-Helix-15 STNL-Helix-25
Pulse energy 15uJ 15uJ
Output peak power 300kW 300kW
Output average power VS repetition rate 1.5W@100kHz
3.75W@250kHz
7.5W@500kHz
11.25W@750kHz
15W@1000kHz
18.75W@1250kHz
22.5W@1500kHz
25W@1700kHz
Pulse width 50ps 5ps
Center wavelength 1064nm 2nm 1064nm 2nm
Power variation <=2% rms <=2% rms
Beam diameter 2mm 2mm
Beam divergence 5mrad 5mrad
M2 1.2 1.2

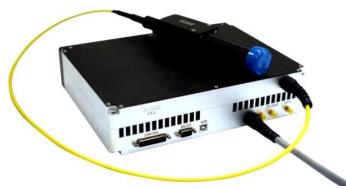

STOF-GK series Pico-second Lasers

STOF-GK series low-noise picosecond laser module designed for OEM and R&D applications.



Features:

         Pedestal-free high quality pulses

         Clean and narrow optical spectrum no ripple

         Very low amplitude and phase noise

         No amplifier built in no ASE noise

         Diffraction limited beam

         High repeatability and 24/7 operation

         Compact, dust-sealed OEM package

         Plug & play

         Passively air cooled no water cooling

         Low power consumption

         Remote control

         One-button operation no adjustment knobs or screws

         Maintenance free no user-serviceable parts inside or outside laser



Specifications:

Model

STOF-GK-10

STOF-GK-15

Center wavelength

1030-1064nm

1530-1575nm

Pulse duration

1-15ps

<5ps

Average power (up to)

15mW

150mW

Pulse repetition rate

40MHz-10GHz

40MHz-10GHz

Spectral bandwidth

<2nm

<5nm

Output1

Collimated free space, M2<1.1

Collimated free space, M2<1.1

PER

>20dB

>20dB

Amplitude noise

<0.2% rms, <0.5% pk-pk (24h)

<0.2% rms, <0.5% pk-pk (24h)

Center wavelength drift

<0.1nm pk-pk (24h)

<0.1nm pk-pk (24h)

Warm-up time

<10 minutes

<10 minutes

Specs guaranteed

10C -40C

10C -40C

Storage temperature

-20C -65C

-20C -65C

On/Off cycles

>10 000

>10 000

Size laser head2

296 x 112 x 54 mm3

296 x 112 x 54 mm3

Size std. controller

165 x 104 x 40 mm3

165 x 104 x 40 mm3

Power consumption

< 15 W

< 15 W

Power supply

90-264VAC, 47-63Hz

90-264VAC, 47-63Hz

Weight laser head

2.5 kg

2.5 kg

Weight controller

0.65 kg

0.65 kg

1 fiber output is available as an option

2 exact size and weight depend on the pulse repetition rate, data for 80MHz version



Options:

         Synchronization to external clock for ultralow timing jitter

         Electrical interface for pump power control

         Piezo controlled cavity length

         Repetition rate tunability

         Wavelength tunability

         Internal monitor PD

         Optical isolator

         On request: Integration of user-defined opto-electronic devices (e.g. THz emitter or speciality fibers)



Technical data:



STOF-GK series High Power Pico-second Lasers

STOF-GK series high power 1-um picosecond laser module designed for OEM and R&D applications.



Features:

         Pedestal-free high quality pulses

         Clean optical spectrum no spectral ripple

         Low amplitude and phase noise

         No amplifier built in no ASE noise

         High repeatability and 24/7 operation

         Compact, dust-sealed OEM package

         Plug & play

         Lightweight mountable in any orientation

         Low power consumption

         Remote control

         One-button operation no adjustment knobs or screws

         Maintenance free no user-serviceable parts inside or outside laser



Specifications:

Model

STOF-GK-10 HPND

STOF-GK-10 HPYB

Center wavelength

1064nm

1030nm

Pulse duration

<15ps

1-7ps

Average power (up to)

>3W

>3W

Pulse repetition rate

40-250MHz

40-250MHz

Pulse energy (up to)

80nJ

80nJ

Spectral bandwidth

<0.6nm

<1.3nm

Output

Collimated free space, M2<1.2

Collimated free space, M2<1.2

PER

>23dB

>23dB

Amplitude noise

<0.5% rms, <1% pk-pk (1h)

<0.5% rms, <1% pk-pk (1h)

Center wavelength drift

<0.1nm (1h)

<0.1nm (1h)

Pointing stability

<50 urad rms (12h)

<50 urad rms (12h)

Warm-up time

<15 minutes

<15 minutes

Specs guaranteed

-18C -32C

-18C -32C

Storage temperature

-20C -65C

-20C -65C

On/Off cycles

>10 000

>10 000

Size laser head1

240 x 330 x 125 mm3

240 x 330 x 125 mm3

Power consumption

< 300 W

< 300 W

Power supply

24VDC or 90-264VAC, 47-63Hz

24VDC or 90-264VAC, 47-63Hz

System weight1

12 kg

12 kg

1 Exact size and weight depend on the pulse repetition rate



Options:

         Synchronization to external clock for ultralow timing jitter

         Electrical interface for pump power control

         Piezo controlled cavity length

         Repetition rate tunability

         Internal monitor PD

         Optical isolator

         SHG, THG, FHG

         Other pulse repetition rates are available on request



Technical data:




STOF-KT Series Pico-second Lasers

STOF-KT series versatile picosecond laser module designed for OEM and R&D applications.



Features:

         Variable pulse repetition rate

         Pulse on demand trigger input

         High pulse quality

         Narrow optical spectrum

         High repeatability and 24/7 operation

         Compact, dust-sealed OEM package

         Lightweight mountable in any direction

         Air cooled no water cooling

         Low power consumption

         Remote control

         Plug & play one-button operation no adjustment knobs or screws

         Maintenance free no user-serviceable parts inside or outside laser



Specifications:

Model

STOF-KT-05

STOF-KT-08

STOF-KT-10

STOF-KT-15

Center wavelength

515/532nm

775nm

1030/1064nm

1550nm

Average power (up to)1

50mW

50mW

500mW

500mW

Pulse repetition rate1

25kHz-100MHz

25kHz-100MHz

25kHz-100MHz

25kHz-100MHz

Pulse energy (up to) 1

20nJ

20nJ

100nJ

100nJ

Peak power (up to)

0.8kW

0.8kW

4kW

4kW

Pulse duration

Sub20ps-1ns

Sub20ps-1ns

Sub20ps-1ns

Sub20ps-1ns

Spectral bandwidth (down to)

0.1nm

0.1nm

0.1nm

0.1nm

Output

PM fiber or collimated free space, M2<1.1

PER

>17dB

>17dB

>17dB

>17dB

Timing jitter

<3ps

<3ps

<3ps

<3ps

Amplitude noise (10h)

<4% rms

<4% rms

<4% rms

<4% rms

Warm-up time

<15 minutes

<15 minutes

<15 minutes

<15 minutes

Specs guaranteed

15C -35C

15C -35C

15C -35C

15C -35C

Storage temperature

-20C -65C

-20C -65C

-20C -65C

-20C -65C

Power consumption

< 40 W

< 40 W

< 40 W

< 40 W

Power supply2

24VDC

24VDC

24VDC

24VDC

Typical size3

374 x 184 x 32 mm3

Typical weight3

2 kg

2 kg

2 kg

2 kg

1 Please inquire for possible combinations of average power and pulse repetition rate and pulse energy

2 optional 90 - 264 VAC, 47 - 63 Hz

3 exact size and weight depend on model



Technical data:




STOF-KT Series High Power Pico-second Lasers

STOF-KT versatile high power picosecond laser module designed for OEM and R&D applications.



Features:

         Variable pulse repetition rate

         Pulse on demand / burst mode

         High pulse quality

         Narrow optical spectrum

         High repeatability and 24/7 operation

         Compact, dust-sealed OEM package

         Air cooled

         Remote control

         Plug & play one-button operation no adjustment knobs or screws

         Maintenance free no user-serviceable parts inside or outside laser



Specifications:

Model

STOF-KT-05 HP

STOF-KT-08 HP

STOF-KT-10 HP

STOF-KT-15 HP

Center wavelength

532nm

775nm

1064nm

1550nm

Average power (up to)1

5W

3W

20W

7W

Pulse repetition rate1

25kHz-100MHz Variable

Pulse energy (up to) 1

10uJ

1uJ

20uJ

3uJ

Peak power (up to)

500kW

40kW

1MW

100kW

Pulse duration

Sub20ps-1ns

Sub20ps-1ns

Sub20ps-1ns

Sub20ps-1ns

Spectral bandwidth (down to)

0.1nm

0.1nm

0.1nm

0.1nm

Output

Collimated free space, M2<1.6

PER

>23dB

>23dB

>23dB

>23dB

Amplitude noise (10h)

<4% rms

<4% rms

<4% rms

<4% rms

Timing jitter

<3ps

<3ps

<3ps

<3ps

Warm-up time

<15 minutes

<15 minutes

<15 minutes

<15 minutes

Operation temperature

18C -32C

18C -32C

18C -32C

18C -32C

Storage temperature

-20C -65C

-20C -65C

-20C -65C

-20C -65C

Power consumption

< 300 W

< 300 W

< 300 W

< 300 W

Power supply

90-264VAC, 47-63Hz

Size laser head2

300 x 330 x 71 mm3

Size controller2

447 x 281 x 134 mm3 (19/4U rack mount)

Weight laser head2

7kg

Weight controller2

14 kg

1 please inquire for possible combinations of average power, pulse energy and repetition rate

2 exact size and weight depend on model



UV Options:

Model

STOF-KT-02 HP

STOF-KT-03 HP

Center wavelength

266nm

355nm

Average power (up to)1

0.5W

2W

Pulse energy (up to)1

0.5uJ

2uJ



Technical data:




STOF-KT Series High Energy Pico-second Lasers

STOF-KT versatile high energy picosecond laser system designed for OEM and R&D applications.



Features:

         Variable pulse repetition rate

         Trigger input

         Diffraction limited beam

         Narrow optical spectrum

         No ASE background

         High repeatability and 24/7 operation

         Lightweight mountable in any direction

         Compact, dust-sealed OEM package

         Complete remote control

         Plug & play one-button operation no adjustment knobs or screws

         Maintenance free no user-serviceable parts inside or outside laser



Specifications:

Model

STOF-KT-02 XP

STOF-KT-03 XP

STOF-KT-05 XP

STOF-KT-10 XP

Center wavelength

266nm

355nm

532nm

1064nm

Average power (up to)1

0.5W

1.8W

3.3W

6W

Pulse repetition rate1

Single shot-1MHz Variable

Pulse energy (up to) 1

20uJ

75uJ

140uJ

250uJ

Pulse duration

<50ps

<50ps

<50ps

<50ps

Spectral bandwidth (down to)

1nm

1nm

1nm

1nm

Output

Collimated free space, M2<1.2

PER

>23dB

>23dB

>23dB

>23dB

Amplitude noise (10h)

<4% rms

<4% rms

<4% rms

<4% rms

Timing jitter

<3ps

<3ps

<3ps

<3ps

Warm-up time

<15 minutes

<15 minutes

<15 minutes

<15 minutes

Operation temperature

18C -32C

18C -32C

18C -32C

18C -32C

Storage temperature

-15C -65C

-20C -65C

-20C -65C

-20C -65C

Power consumption

< 600 W

< 600 W

< 600 W

< 600 W

Power supply

24VDC, 25A

Size laser head2

420 x 260 x 125 mm3

Size controller2

No external controller

System weight2

14kg

Interfaces

RS232, Ethernet

1 please inquire for possible combinations of average power, pulse energy and repetition rate

2 exact size and weight depend on model



Options:

         Short pulses < 20 ps

         Long pulses up to 1 ns

         Burst mode - programmable pulse sequence with arbitrary amplitude

         Pulse on demand



Technical data (STOF-KT-10 XP):



STOF-PL Series Picosecend Laser Diode System

STOF-PL series Picosecond gain switched laser diode module for OEM and R&D applications.



Features:

         High pulse quality no satellite pulse and minimized pulse tail

         Variable pulse repetition rate single shot to 100 MHz

         Pulse on demand

         Wavelengths from 375 2000 nm

         High repeatability and 24/7 operation

         Compact, dust-sealed OEM package

         External and internal trigger

         Simple user interface

         Plug & play

         Air cooled

         Remote control

         Maintenance free no user-serviceable parts inside or outside laser



Specifications:

Model

STOF-PL-xxx

Center wavelength1

375nm-2um

Pulse duration2

20ps-1ns variable

Pulse peak power2

25-1000mW

Pulse repetition rate

Single shot 120MHz

Output

Free space or fiber output

PER

>23dB

Timing jitter

<3ps rms

Warm-up time

<5 minutes

Size laser head

95 x 31 x 147 mm3

Size controller

235 x 88 x 326 mm3

Power consumption

< 15 W

Weight laser head

0.45 kg

Weight controller

2.5 kg

1 all commercially available laser diode wavelengths in this range

2 depending on center wavelength regime



Options

         Single mode or multi mode fiber output, fiber collimator with or w/o microfocus

         Thermal wavelength tuning

         Converter TTL to NIM level for trigger-out

         Narrow spectral line-width DFB-laser

         Single box OEM package



Data of STOF-PL-xx with center wavelength of 405nm





STGS series PM Pico-second Pulsed Fiber Laser

STGS series PM Pico-second pulsed fiber laser is a new product recently launched by Sintec Optronics. This ultrafast fiber laser uses self-developed gain-switching technology which results higher long term reliability than the traditional passively mode-locked technique. Combined with all-fiber PM amplifier structure, the system becomes more compact and more reliable. High performance makes this laser suitable for LED wafer scribing and ultrafast material processing.



Features:

         Gain-switching seed laesr

         All-fiber system

         5W @ 1064nm and 500kHz

         Repetition rate: 50-500kHz

         Single pulse energy up to 10uJ

         Beam quality M2<1.3

         Cost effective



Technical specifications:

Model

STGS01

Power

Up to 5W (500kHz)

Spatial mode

TEM00(M2<1.3)

Central wavelength

1060nm

Power stability

< 1 % over 8 hrs

Repetition rate

50-500kHz (optional)

Fundamental pulse width

150-200ps

Beam ellipticity

<10%

Computer interface

RS232

Sync (trigger) output

SMA

Cooling

Integrated air cooling

Power requirements

100-240V, 50/60Hz

Dimensions (L*W*H)

413mm*269mm*142mm & 366mm*132mm*104mm

Weight

<20kg

Output

Free space



STYS series Pico-second Pulsed Fiber Lasers

STYS-10-0.15 Pico-second pulsed fiber laser is a new product recently launched by Sintec Optronics. This ultrafast fiber laser is used for material micromachining. This ps fiber laser uses self-designed highly reliable seed laser which results longer lifetime and higher reliability than the traditional passively mode-locked technique, which makes it ideal for economical ownership and high precision for micro-processing.

Features:

   Gain-switching seed laser

   All-fiber system

   Burst function available

   10W@500kHz

   Repetition rate: 50-500kHz

   RPulse width: <150ps

   Single pulse energy up to 10uJ

   Beam quality M2<1.3

   CDust Proof design

Application:

   HB LED chip dicing

   Sapphire substrate dicing

   Glass dicing

   MEMS chip dicing

   Thin film dicing

   LCD repair

   Silicon wafer dicing



Technical Specification:

Model

STYS-10-0.15

Power Up to 10W (@500kHz)
Spatial Mode TEM00 (M2<1.3)
Central Wavelength 1064nm
Power Stability <1% over 8 hours
Repetition Rate 50-500kHz (optional)
(customized Burst Function <50ns sub pulses separation)
Fundamental pulse width  ~150ps
Beam ellipticity <10%
Beam diameter 1 - 2mm
Polarization Unipolarized (Linear polarized on request)
Fiber length 0.5m
PC Interface RS232
Sync (trigger) output SMA
Cooling Integrated Air cooling

Power requirements

100-240V, 50/60Hz

Dimension (L*W*H)

340*260*125mm & 366*132*104mm

Weight

<20kg



STYS-15-0.1 is for cold-processing micro-machining application. With the peak power of up to 60kW, pulse width of 500ps (100ps@5MHz) and burst function, Pico-15-0.1 is the unique fiber laser system for Lion-Battery foil cutting, marking on various metal, hole drilling, ITO and other micromachining application. PicoYL-15-0.1 has the DB25 and USB control functions.

Features:

   <3us Switch on/off

   Pulse width: 500ps (100ps@5MHz)

   Burst function available:1~16

   Simmer function

   Peak power up to 60kW

Application:

   Lion-Battery Foil Cutting

   Metal Marking

   ITO Removing

   CIGS Marking

   Thin-film removing



Technical Specification:

Model

STYS-15-0.1

Power Up to 15W (@5MHz)
Spatial Mode M2<1.3
Central Wavelength 1064nm
Power Stability <3% over 8 hours
Repetition Rate 100-5000kHz (optional)
(Burst Function 1-16 sub pulses of 50MHz)
Fundamental pulse width  ~500ps
Pulse Energy Up to 150uJ
Beam diameter 5 - 7mm
Polarization Random (Linear polarized on request)
Fiber length 0.8m
Max Peak Power 60kW
Cooling Integrated Air cooling

Power requirements

100-240V, 50/60Hz

Dimension (L*W*H)

300mm*245mm*70mm

Weight

<8kg



STPS Series Picosecond Seed Laser

The ultra short-pulse picosecond fiber seed laser is the latest research result from Sintec optronics Technology. It is the ideal sources for ultra-short pulse fiber amplifier system, solid travelling wave amplifier system and regenerative amplifier system. This product using advance mode locks technology to produce mode lock pulse at around10 picoseconds. The pulse width can be customized according to customer requirement. With built-in power supply system it is convenient to use just it by supplying 220V to it.

Features:
-> Polarize
-> High pulse extinction ratio
-> Excellent beam quality
-> High anti-reflection

Application:
-> Pico-second solid travelling wave amplifier
-> Seed source for regenerative amplifier
-> Seed source for ultra-short pulse amplifier system



Specification:

Model

ST-PS-10

Center Wavelength

1064.25nm

Pulse width

<10ps

Average Power (peak)

>10mW

Pulse repetitive rate

20MHz

Spectral Bandwidth

<0.5nm

Polarization ration

>100:1

Beam Quality

M2<1.1



  Femto-second Lasers



Sintec Optronics Pte Ltd

10 Bukit Batok Crescent #07-02 The Spire Singapore 658079

Tel: +65 63167112 Fax: +65 63167113

E-mail: sales@sintec.sg sales@SintecOptronics.com

URL: http://www.sintec.sghttp://www.SintecOptronics.com

For more and updated information, please go to our New Websites.
