         New Products             AOM Driver: N21xxx-yAM



The N21xxx-yAM OEM Module Is A RF Driver With Analog Modulation Input And maximum 2 Watt Output Into A 50 Ohm Load. The model number is described as follows:


xxx
= a fixed frequency of between 27 and 300 MHz crystal controlled.

y = 0.4, 1, or 2 Watts output
A
= Analog Modulation
M
= OEM Module



PARAMETER

SPECIFICATION

Output Frequency (xxx)

27 to 300 MHz + 0.01% Quartz Stabilized, set at factory

Spurious Levels

-50 dBc Maximum

Harmonic Distortion

-15 dBc Maximum

Analog Input

+ 1 Volt into 50 Ohms (+ 1 Volt = Full RF Power; 0 Volt = Minimum RF Power)

Extinction Ratio

50 dB Minimum

RF Rise

20 ns Maximum

PRF

10 to 90 %

Fall Time

20 ns Maximum

PRF

90 to 10 %

RF Output Power (y)

0.4, 1 or 2 Watts Nominal, Adjustable, Factory Set.

Output Impedance

50 Ohms Nominal

Supply Voltage

+ 24 VDC + 0.5 Volt

Supply Current

1 Amp Maximum

MAXIMUM RATINGS



Supply Voltage

+ 28 Volts

Power Output

No DC Feedback Allowed

Case Temperature

+ 550C. The Driver Must Be Attached to an Adequate Heatsink.

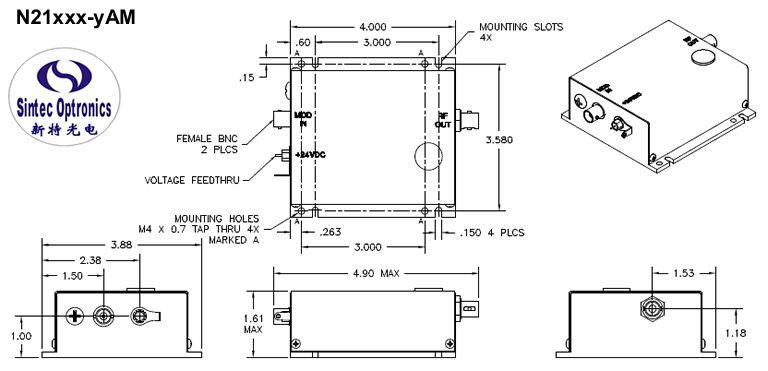

CONNECTORS & MECHANICAL



RF Output Connector

BNC Female

Modulation Input Connector

BNC Female

Power Supply Connections

Vcc: Solder Post; Return: Ground Lug

Physical Size

4.8" L x 1.61" H x 3.87" W
