         List of Products             Zoom Beam Expanders


STS Series Zoom Beam Expanders

  • for collimation of high power lasers

  • variable magnification from 1x up to 8x

  • additional 8 "click into place points� guarantee best

  • reproduction of magnification

  • high pointing stability < 1 mrad

  • Galilei-design

  • available with and without adjustable divergence

  • UV beam expander made completely from quartz material

  • max. exit pupil depending on the model f30mm or f50mm

Our zoom beam expanders (or called as variable beam expander) are highly corrected 4-lens element systems. The version with divergence adjustment is very user friendly, as the magnification setting and the divergence setting are independent from each other, i.e. the divergence remains unchanged while changing the expansion factor. In addition, the total length of the beam expanders remain constant during zooming and/or divergence setting. For remote controlled setting, we developed motorized versions of our zoom beam expanders. A motor adapter can be incorporated to drive the mechanics used for magnification setting.



1850nm - 1980nm - FUSED SILICA

part number

part number motorized

magnification

max. entrance

[mm]

max. length*

[mm]

max. outside[mm]

thread

Adjustable divergence

STS-5310/159

STS-M5310/159

1.0-3.0x

10

85.2

47

C-mount

yes

STS-5311/159

STS-M5311/159

1.0-3.0x

10

85.5

47

M30x1

Yes



1030 nm - 1090 nm - FUSED SILICA

part number

part number motorized

magnification

max. entrance

[mm]

max. length*

[mm]

max. outside[mm]

thread

Adjustable divergence

STS-5310/328

STS-M5310/328

1.0-3.0x

10.5

85.2

47

C-mount

yes

STS-5311/328

STS-M5311/328

1.0-3.0x

10

85.2

47

M30x1

Yes

STS-5312/328

--

1.0-3.0x

10

230.2

80

M30x

Yes

STS-5076/328

STS-M5076/328

1.0-8.0x

10

162.6

58

C-mount

yes



515 nm - 545 nm - FUSED SILICA

part number

part number motorized

magnification

max. entrance

[mm]

max. length*

[mm]

max. outside[mm]

thread

Adjustable divergence

STS-5310/292

STS-M5310/292

1.0x - 3.0x

10.5

85.2

47.0

C-Mount

yes

STS-5311/292

STS-M5311/292

1.0x - 3.0x

10

85.2

47.0

M30x1

Yes

STS-5312/292*

--

1.2x - 3.0x

10

230.2

80.0

M30x1

Yes

STS-5076/292

STS-M5076/292

1.0x - 8.0x

10

162.0

58.0

C-Mount

yes



355 nm -FUSED SILICA

part number

1064nm

standard

part number motorized

magnification

max. entrance

[mm]

max. length*

[mm]

max. outside[mm]

thread

Adjustable divergence

STS-5310/075

STS-M5310/075

1.0x - 3.0x

10.5

85.2

47.0

C-Mount

yes

STS-5311/075

STS-M5311/075

1.0x - 3.0x

10.0

85.2

47.0

M30x1

Yes

STS-5075/075

STS-M5075/075

1.0x - 8.0x

10.0

162.0

58.0

C-Mount

Yes



266 nm - FUSED SILICA

part number

1064nm

standard

part number motorized

magnification

max. entrance

[mm]

max. length*

[mm]

max. outside[mm]

thread

Adjustable divergence

STS-5075/199

STS-M5075/199

1.0x - 8.0x

10.0

162.0

58.0

C-Mount

yes

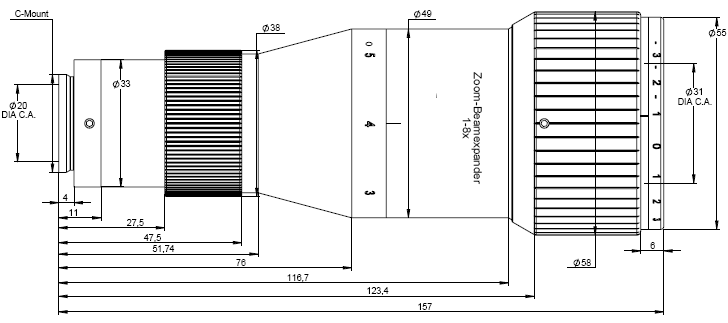

1064 nm - OPTICAL GLASS

part number

1064nm

standard

part number motorized

magnification

max. entrance

[mm]

max. length*

[mm]

max. outside[mm]

thread

Adjustable divergence

STS-2075/126

STS-M2075/126

1.0x - 8.0x

30.0

157.0

58.0

C-Mount

yes

STS-2076/126

STS-M2076/126

1.0x - 8.0x

50.0

158.5

77.0

C-Mount

Yes





532 nm - OPTICAL GLASS

part number

1064nm

standard

part number motorized

magnification

max. entrance

[mm]

max. length*

[mm]

max. outside[mm]

thread

Adjustable divergence

STS-2075/121

STS-M2075/121

1.0x - 8.0x

30.0

157.0

58.0

C-Mount

yes

STS-2076/121

STS-M2076/121

1.0x - 8.0x

50.0

158.5

77.0

C-Mount

Yes

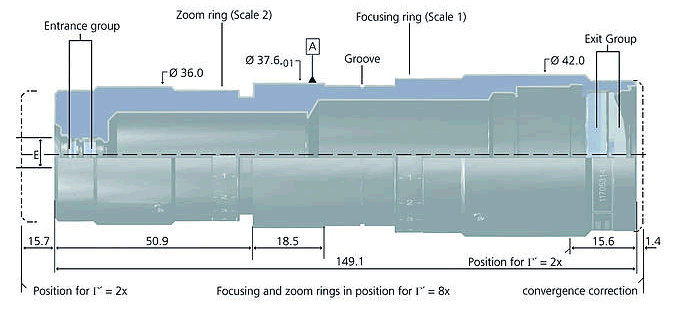

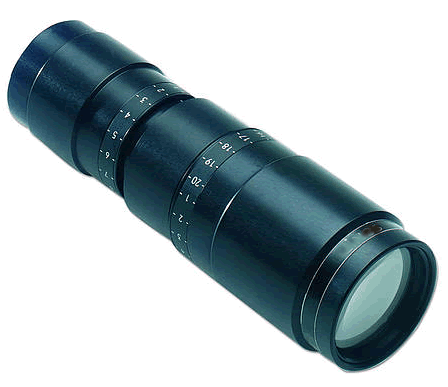

VBE Series Zoom Beam Expanders



  • Continuous variation of magnification 2x ... 8x possible

  • Wavelengths 355 nm, 405 nm, 532 nm, 633/780/830 nm or 1064 nm

  • Settings of zoom and focusing scales according to product specific graph

  • Mounting in customer machine at surface [A]

  • Consideration of convergence correction at maximum setting of movable lens elements



Order No.

Wavelength (nm)

Magnification factor

Max. entrance beam (mm)

Max. exit beam (mm)

Lens elements

Mounting diameter or thread (mm)

VBE4401-402-000-20

355

2 ... 8x variable

3.4*

31

4

37.6

VBE4401-380-000-20

405

2 ... 8x variable

6.0*

31

4

37.6

VBE4401-446-000-20

532

2 ... 8x variable

4.0*

31

4

37.6

VBE4401-257-000-20

532

2 ... 8x variable

8.0*

31

4

37.6

VBE4401-258-000-20

633/780/ 830

2 ... 8x variable

8.0*

31

4

37.6

VBE4401-359-000-20

1064

2 ... 8x variable

4.0*

31

4

37.6

VBE4401-256-000-20

1064

2 ... 8x variable

8.0*

31

4

37.6

* Beyond defined zoom factors, the entrance beam is max. 31 mm / zoom factor.



Power Zoom Beam Expander � Motorized





For challenging applications, our fully motorized high precision system Power Zoom can be used. These industry-proven systems offer outstanding repeatability and reliability in divergence and magnification adjustment.







1064 nm - MOTORIZED - FUSED SILICA

part number

1064nm

standard

part number low absorption

magnification

max. entrance

[mm]

length

[mm]

max. outside[mm]

thread

Adjustable divergence

STS-3976/126

STS-3976/328

1.0x - 8.0x

30.0

200.3

160.0x70.5

mounting plate

yes

STS-2076/121

STS-2076/121

1.0x - 8.0x

50.0

158.5

77.0

C-Mount

Yes

The max. beam is 6 mm respectively limited by the magnification factor.



532 nm MOTORIZED - FUSED SILICA

part number

1064nm

standard

part number low absorption

magnification

max. entrance

[mm]

length

[mm]

max. outside[mm]

thread

Adjustable divergence

STS-3976/121

STS-3976/292

1.0x - 8.0x

30.0

200.3

160x70.5

mounting plate

yes

The max. beam is 6 mm respectively limited by the magnification factor.



355 nm -  MOTORIZED -  FUSED SILICA

part number

magnification

max. entrance

[mm]

length

[mm]

max. outside

[mm]

thread

Adjustable divergence

STS-3975/075

1.0x - 8.0x

30.0

200.3

160x70.5

mounting plate

yes

The max. beam is 6 mm respectively limited by the magnification factor.



266 nm - MOTORIZED -  FUSED SILICA

part number

magnification

max. entrance

[mm]

length

[mm]

max. outside

[mm]

thread

Adjustable divergence

STS-3975/199

1.0x - 8.0x

30.0

200.3

160x70.5

mounting plate

yes

The max. beam is 6 mm respectively limited by the magnification factor.



1064 nm - MOTORIZED - OPTICAL GLASS

part number

magnification

max. entrance

[mm]

length

[mm]

max. outside

[mm]

thread

Adjustable divergence

STS-3975/126

1.0x - 8.0x

30.0

200.3

160x70.5

mounting plate

yes

The max. beam is 6 mm respectively limited by the magnification factor.



532 nm - MOTORIZED - OPTICAL GLASS

part number

magnification

max. entrance

[mm]

length

[mm]

max. outside

[mm]

thread

Adjustable divergence

STS-3975/121

1.0x - 8.0x

30.0

200.3

160x70.5

mounting plate

yes

The max. beam is 6 mm respectively limited by the magnification factor.

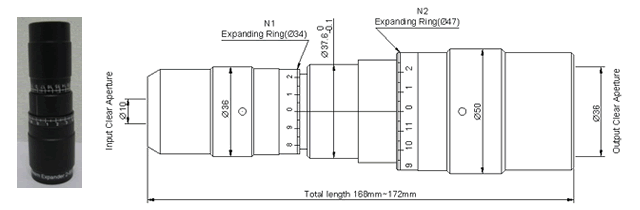

Zoom Beam Expanders for CO2 Laser



Specifications

l  For collimation of CO2 laser power<1.5KW/cm2

l  Variable magnifications 2X-8X

l  Galilei Design

l  Adjustable divergence







Part No.

Magnification

Input CA (mm)

Output CA (mm)

Length (mm)

BXZ-10.6-1-4X-W

1X-4X

18

48

135

BXZ-10.6-2-6X-W

2X-6X

16

96

205.78-212.37

BXZ-9.4-2-8X-W

2X-8X

10

36

168-172

BXZ-10.6-2-8X-W

2X-8X

10

36

168-172
