Thermoelectric cooling modules are
operated based on the principle of Peltier effect. Due to low
weight, small size and relatively high cooling power, they are
particularly suitable for cooing tests where space is limited.
Besides, the cooling module is a solid state heat pump.
Therefore, it is free of maintenance, noiseless, function in any
position, insensitiveness to shock and vibration. In addition,
the direction of heat flow can be reversed by changing the
polarity of the power sources and the cooling power can be easily
adjusted by altering the current strength. Thermoelectric cooling
modules can be widely used in medical instruments, laboratory
apparatus, industry consumer products and so on.

1. Single stage
thermoelectric cooling module
|
del
|
Imax
(A)
|
Vmax(V)
|
Qmax (W)
|
D Tmax(oC)
|

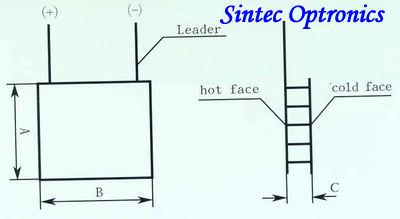

A =B (mm)
|
C (mm)
|
|
TES1-00725
|
2.5 |
0.8
|
1.2
|
67 |
8
|
4.0 |
|
TES1-01725
|
2.5 |
2.0
|
2.8
|
67 |
12
|
4.0 |
|
TES1-03125
|
2.5
|
3.6
|
5.2
|
67
|
15
|
4.0
|
|
TES1-07125
|
2.5 |
8.2
|
12.1
|
67 |
23
|
4.0 |
|
TES1-12725
|
2.5 |
14.7
|
21.6
|
67 |
30
|
4.0 |
|
TES1-00730
|
3.0 |
0.8
|
1.5
|
67 |
8
|
3.6 |
|
TES1-01730
|
3.0 |
2.0
|
3.6
|
67 |
12
|
3.6 |
|
TES1-03130
|
3.0
|
3.6
|
6.6
|
67
|
15
|
3.6
|
|
TES1-07130
|
3.0 |
8.2
|
15.2
|
67 |
23
|
3.6 |
|
TES1-12730
|
3.0 |
14.7
|
27.2
|
67 |
30
|
3.6 |
|
TES1-00739
|
3.9 |
0.8
|
1.8
|
67 |
8
|
3.2 |
|
TES1-01739
|
3.9 |
2.0
|
4.5
|
67 |
12
|
3.2 |
|
TES1-03139
|
3.9
|
3.6
|
8.2
|
67
|
15
|
3.2
|
|
TES1-07139
|
3.9 |
8.2
|
18.8
|
67 |
23
|
3.2 |
|
TES1-12739
|
3.9 |
14.7
|
33.7
|
67 |
30
|
3.2 |
|
TEC1-00704
|
4.0 |
0.8
|
1.8
|
67 |
10
|
4.7 |
|
TEC1-01704
|
4.0 |
2.0
|
4.5
|
67 |
15
|
4.7 |
|
TEC1-03104
|
4.0
|
3.6
|
8.3
|
67
|
20
|
4.7
|
|
TEC1-07104
|
4.0 |
8.2
|
19.0
|
67 |
30
|
4.7 |
|
TEC1-12704
|
4.0 |
14.7
|
34
|
67 |
40
|
4.7 |
|
TEC1-00706
|
6.0 |
0.8
|
2.9
|
67 |
10
|
3.7 |
|
TEC1-01706
|
6.0 |
2.0
|
7.1
|
67 |
15
|
3.7 |
|
TEC1-03106
|
6.0
|
3.6
|
13.0
|
67
|
20
|
3.7
|
|
TEC1-07106
|
6.0 |
8.2
|
29.8
|
67 |
30
|
3.7 |
|
TEC1-12706
|
6.0 |
14.7
|
53.3
|
67 |
40
|
3.7 |
|
TEC1-00708
|
8.0 |
0.8
|
4.0
|
67 |
10
|
3.4 |
|
TEC1-01708
|
8.0 |
2.0
|
9.9
|
67 |
15
|
3.4 |
|
TEC1-03108
|
8.0
|
3.6
|
18.0
|
67
|
20
|
3.4
|
|
TEC1-07108
|
8.0 |
8.2
|
41.3
|
67 |
30
|
3.4 |
|
TEC1-12708
|
8.0 |
14.7
|
73.9
|
67 |
40
|
3.4 |
|
TEC1-00709
|
9.0 |
0.8
|
4.5
|
67 |
15
|
4.7 |
|
TEC1-01509
|
9.0 |
1.7
|
9.6
|
67 |
30/15
|
4.7 |
|
TEC1-01709
|
9.0 |
2.0
|
10.9
|
67 |
22
|
4.7 |
|
TEC1-03109
|
9.0
|
3.6
|
19.9
|
67
|
30
|
4.7
|
|
TEC1-07109
|
9.0 |
8.2
|
45.6
|
67 |
44
|
4.7 |
|
TEC1-12709
|
9.0 |
14.7
|
81.6
|
67 |
62
|
4.7 |
|
TEC1-00714
|
14.0 |
0.8
|
6.6
|
67 |
15
|
4.6 |
|
TEC1-01514
|
14.0 |
1.7
|
14.1
|
67 |
30/15
|
4.6 |
|
TEC1-01714
|
14.0 |
2.0
|
16.0
|
67 |
22
|
4.6 |
|
TEC1-03114
|
14.0
|
3.6
|
29.3
|
67
|
30
|
4.6
|
|
TEC1-07114
|
14.0 |
8.2
|
67.1
|
67 |
44
|
4.6 |
|
TEC1-12714
|
14.0 |
14.7
|
120.0
|
67 |
62
|
4.6 |
|
TEC1-01743
|
43.0
|
2.0
|
51.0
|
67
|
50
|
8.3
|
|
TEC1-03140
|
39.0
|
3.6
|
83.4
|
67
|
55
|
5.8
|
|
TEC1-03160
|
60.0
|
3.6
|
128.6
|
67
|
55
|
5.0
|
2.
Multi stage thermoelectric cooling module
|
Model |
Hot face temp (Th=27oC) |
Dimension (mm) |
|
Imax (A) |
Vmax(V) |
Qmax (W) |
DTmax(oC) |
Bottom |
Top |
Height |
|
A1 |
B1 |
A2 |
B2 |
C |
|
TES2-00917 |
1.7 |
0.9 |
0.3 |
90 |
2.50 |
2.50 |
4.00 |
4.00 |
3.80 |
|
TES2-02415 |
1.5 |
2.1 |
1.0 |
85 |
4.00 |
4.00 |
6.60 |
6.60 |
3.80 |
|
TES2-04820 |
2.1 |
3.8 |
3.1 |
81 |
11.5 |
11.5 |
15.0 |
15.0 |
6.60 |
|
TEC2-04804 |
4.0 |
3.8 |
6.0 |
81 |
15.0 |
15.0 |
20.0 |
20.0 |
7.20 |
|
TEC2-08803 |
3.1 |
8.4 |
5.2 |
90 |
15.0 |
15.0 |
30.0 |
30.0 |
9.20 |
|
TEC2-08805 |
4.6 |
8.4 |
9.0 |
88 |
15.0 |
15.0 |
30.0 |
30.0 |
7.40 |
|
TEC2-10204 |
4.3 |
8.6 |
12.7 |
85 |
20.0 |
20.0 |
30.0 |
30.0 |
7.20 |
|
TEC2-14403 |
3.5 |
15.0 |
6.0 |
92 |
15.0 |
15.0 |
40.0 |
40.0 |
9.20 |
|
TEC2-15803 |
3.2 |
8.4 |
12.0 |
90 |
20.0 |
20.0 |
40.0 |
40.0 |
9.20 |
|
TEC2-18006 |
6.0 |
15.5 |
34.5 |
83 |
40.0 |
40.0 |
40.0 |
40.0 |
7.50 |
|
TES3-05518 |
1.8 |
3.8 |
1.5 |
96 |
8.0 |
8.0 |
15.0 |
15.0 |
9.90 |
|
TES3-22918 |
1.8 |
15.4 |
6.5 |
96 |
15.0 |
15.0 |
30.0 |
30.0 |
9.50 |
|
TES3-11904 |
3.5 |
7.7 |
6.5 |
97 |
15.0 |
15.0 |
30.0 |
30.0 |
10.4 |
|
TES3-16503 |
3.0 |
14.0 |
6.5 |
105 |
10.0 |
10.0 |
40.0 |
40.0 |
13.6 |
|
TES3-22904 |
3.5 |
15.4 |
12.6 |
96 |
20.0 |
20.0 |
40.0 |
40.0 |
10.4 |
|
TES4-12617 |
1.7 |
7.9 |
1.7 |
110 |
8.0 |
8.0 |
23.0 |
23.0 |
12.5 |
|
TES4-24613 |
1.3 |
14.6 |
2.9 |
107 |
11.5 |
11.5 |
30.0 |
30.0 |
14.0 |
|
TEC4-24603 |
3.1 |
14.6 |
6.8 |
107 |
15.0 |
15.0 |
40.0 |
40.0 |
18.8 |
|
TES5-25316 |
1.6 |
14.5 |
1.7 |
118 |
8.0 |
8.0 |
30.0 |
30.0 |
15.4 |
|
TEC5-25303 |
3.0 |
14.5 |
3.4 |
118 |
10.0 |
10.0 |
40.0 |
40.0 |
16.9 |
|
TEC6-25505 |
3.0 |
14.5 |
1.2 |
131 |
5.0 |
5.0 |
40.0 |
40.0 |
20.1 |
