 Acousto-optic beam deflectors (AOBD) offer precise
angular control of an optical beam using RF drive frequency tuning. Up
to two thousand spots can be resolved over an angular range of a few
degrees for 1D and 2D scanning as well as beam deflection through a
fixed angle. The scan speed can be as fast as a few microseconds.
Beam deflectors offer highly uniform diffraction efficiency across the
full scan angle, with consistent power throughput for scanning
applications such as material processing and digital imaging. We
manufacture devices based on tellurium dioxide crystals grown in-house
for visible and near-infrared (NIR) wavelength applications. For optimal
transmission in the ultraviolet (UV) we offer fused silica and crystal
quartz products. For broad bandwidth applications, we use a longitudinal
mode approach with a phased array of piezoelectric elements within the
transducer. We achieve high efficiency with slow shear deflection using
parallel tangents off-axis interaction. |
|
|
|
Our standard models are below: |
|
Model |
Wavelength |
Scan Angle |
Active Aperture |
Operating Frequency |
Optical Material |
|
AOBD 4200-UV |
266 nm |
10.3 mrad |
1.0x60.0 mm |
135-265 MHz |
Fused silica |
|
AOBD 4170 |
355 nm |
4.9 mrad |
7 mm |
130-210 MHz |
Crystalline quartz |
|
AOBD 4100-UV |
364 nm |
29.5 mrad |
4.0x14.0 mm |
75-125 MHz |
Tellurium dioxide |
|
AOBD 4090-7 |
440-530 nm |
44 mrad |
8.5 mm |
60-115 MHz |
Tellurium dioxide |
|
AOBD 4200-VI |
442-488 nm |
29.5 mrad |
4.8 mm |
150-250 MHz |
Tellurium dioxide |
|
AOBD 4100-VI |
488 nm |
39.5 mrad |
4.0-14 mm |
75-125 MHz |
Tellurium dioxide |
|
AOBD 4080-13 |
635 nm |
8.2 mrad |
2 mm |
76-84 MHz |
Tellurium dioxide |
|
AOBD 4055-4 |
780-980 nm |
44.3 mrad |
3.5x14 mm |
35-70 MHz |
Tellurium dioxide |
|
AOBD 4210-IR |
830 nm |
27.6 mrad |
2.0-6.0 mm |
140-280 MHz |
Tellurium dioxide |
|
AOBD 4090-6 |
1064 nm |
56 mrad |
2 mm |
72.5-107.5 MHz |
Tellurium dioxide |
|
AOBD 4075-IR |
1065-1100 nm |
8.1 mrad |
2.5 mm |
59-91 MHz |
Tellurium dioxide |
|
AOBD 4070 |
9.4 μm |
60 mrad |
9 mm |
50-90 MHz |
Germanium |
|
|
|
|

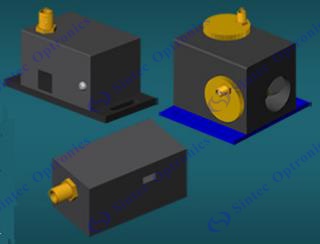

STBR series beam deflectors |
|
STBR series Acousto-Optic Deflectors (AODs)
combined with RF drivers are specially designed for high-speed scanning
applications such as laser recording, optical scanning, signal
processing, etc. The AOD changes the diffraction angle of an input laser
beam and its angular position is linearly proportional to the RF
frequency, so that the higher the frequency, the larger the diffracted
angle. |
 |
|
Our standard models are below: |
| Model # |
Wavelength Range (nm)
|
Active Aperture (mm)
|
Time bandwidth |
Product 3dB Bandwidth (MHz)
|
Deflection angle (deg.)
|
DE (%) |
| TED-130-60 |
380-1600 |
1.0 x 4.2 |
60 |
60 |
0.44 |
70 |
| TED-200-100 |
380-1600 |
1.0 x 4.2 |
100 |
100 |
0.8 |
70 |
| TED-320-200 |
380-1600 |
0.5 x 9.0 |
400 |
200 |
1.69 |
60 |
|
TED-400-200 |
380-1600 |
0.5 x
5.0 |
200 |
200 |
1.69 |
50 |
| TED10-100-60-.488 |
488 |
3.0 x 7.0 |
600 |
60 |
2.5 |
>75 |
| TED20-100-60-.488 |
488 |
3.0 x 14.0 |
1200 |
60 |
2.5 |
>70 |
| TED10-100-50-.532 |
532 |
3.0 x 7.0 |
500 |
50 |
3.0 |
>70 |
| TED20-100-50-.532 |
532 |
3.0 x 14.0 |
1000 |
50 |
3.0 |
>70 |
| TED10-75-50-.633 |
633 |
3.0 x 7.0 |
500 |
50 |
3.0 |
>75 |
| TED20-75-50-.633 |
633 |
3.0 x 14.0 |
1000 |
50 |
3.0 |
>70 |
| TED10-60-40-.800 |
800 |
3.0 x 7.0 |
400 |
40 |
2.0 |
>70 |
| TED20-60-40-.800 |
800 |
3.0 x 14.0 |
800 |
40 |
2.0 |
>65 |
| TED10-50-30-1.06 |
1060 |
3.0 x 7.0 |
300 |
30 |
2.7 |
>75 |
| TED20-50-30-1.06 |
1060 |
3.0 x 14.0 |
600 |
30 |
2.7 |
>70 |
| GPD-250-100 |
633 |
0.75 x 5.0 |
70 |
100 |
0.57 |
70 |
| GPD2-250-100 |
633 |
0.75 x 13.0 |
200 |
100 |
0.57 |
40 |
| GPD-350-200 |
633 |
0.75 x 5.0 |
140 |
200 |
1.15 |
40 |
| GPD2-350-200 |
633 |
0.75 x 13.0 |
400 |
200 |
1.15 |
35 |
| GPD-650-300 |
633 |
0.18 x 5.0 |
210 |
300 |
2.25 |
40 |
| GPD-800-400-SC |
600-1600 |
0.18 x 4.2 |
400 |
400 |
4.3 |
30 |
| GPD2-800-400-SC |
600-1600 |
0.18 x 8.4 |
800 |
400 |
4.3 |
25 |
| GPD-800-500 |
600-1600 |
0.076 x 5.0 |
350 |
500 |
2.9 |
50 |
| GPD-1500-1000 |
600-1600 |
0.075 x 6.3 |
250 |
1000 |
5.7 |
15-20 |
| LND-2500-1000 |
630/830 |
0.075 x 3.4 |
1000 |
1000 |
10@630nm |
10-15 |
| IPD-200-50 |
1000-2100 |
0.75 x 6.0 |
50 |
50 |
0.65 |
40 |
| IPD-400-150 |
1000-2100 |
0.75 x 6.0 |
150 |
150 |
1.95 |
35 |
| IPD-600-200 |
1000-2100 |
0.18 x 6.0 |
200 |
200 |
2.6 |
30 |
| 2DS-100-45-532 * |
532+/-25 |
10.0 x 10.0 |
675 x 675 |
45 |
2.3 |
>40 |
|
