         Products             PM Combiner

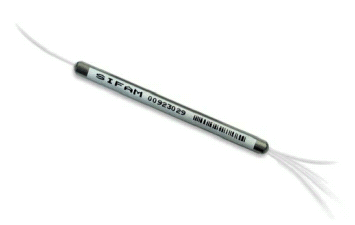

The G&H PM Combiner enables the efficient combination of two orthogonally polarised sources of light such that they are output through the same, single fibre output.



In optical amplifiers this provides a doubling of pump power whilst ensuring pump redundancy should a pump failure occur.



Applications include high power optical amplifiers and undersea systems. All ports consist of polarisation maintaining fibre.



Key Features:

Low insertion loss

High power handling

9xx, 10xx, 14xx and 15xx variants



Applications:

Erbium doped fibre amplifiers (EDFAs)

Raman amplifiers

Undersea systems

Coherent optical communications



Optical Specifications

Parameter



9xx

10xx

14xx

15xx

16xx

Range of available centre

wavelengths1,2



915-999nm

1000-1099nm

1400-1499nm

1500-1599nm

1600-1650nm

Insertion Loss (fast axis)3

Grade M

Max

0.40dB

0.40dB

0.40dB

0.50dB

0.50dB

Grade W

Max

0.60dB

0.60dB

0.60dB

0.70dB

0.70dB

Housing Option



3

3

3

3

3

Dimensions(fxL) for 1x2 & 2x2



3x71mm

Insertion Loss (slow axis)3

Grade M

Max

0.35dB

Grade W

Max

0.40dB

Return Loss / Directivity

Min

50dB

TDL

Typ

0.15dB

Pigtail tensile load

Max

5N

Optical power handling

Max

4W

Fibre type



All ports PM fibre

Pigtail



Primary coated fibre

Operating temperature range



-5 to 75oC

Storage temperature range



-40 to 85oC

1. The centre wavelength may be selected from within the operating wavelength ranges supplied.

2. Other wavelengths are available. Please contact the sales office.

3. Insertion loss at centre wavelength (not including TDL or connector losses).

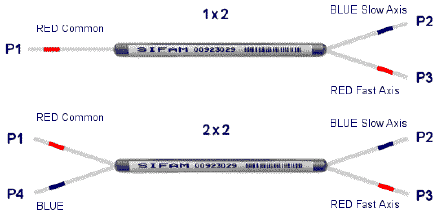

Configuration

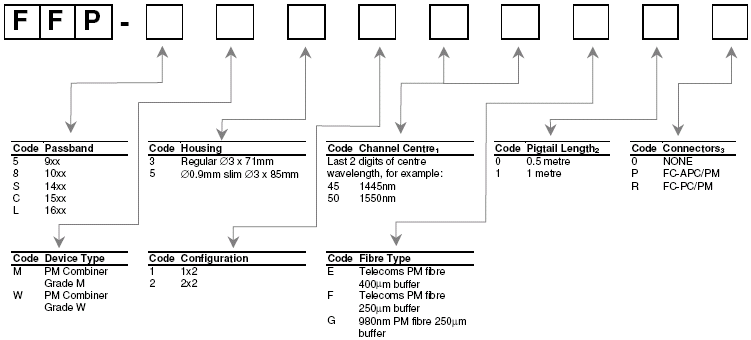

Ordering Code Information

Example: FFP-SM3245F10 (PM Combiner, Grade M, regular housing, 2x2, channel centre = 1445nm,

telecoms PM fibre 250μm buffer, 1m pigtail, no connector)



1. Channel centre must be within the wavelength ranges shown in the Optical Specifications table.

2. Minimum pigtail length. Other pigtail lengths are available on request.

3. Insertion loss in specification table does not include connector loss. Other connectors available on request.


Multimode Power Combiner with PM Signal Feedthrough


G&Hs TFB series Power Combiners provide a high efficiency means of combining light from several multimode sources into one fibre.



G&H proprietary manufacturing techniques allow the precise fusion of input fibres around a central PM polarisation maintaining) signal feedthrough fibre and a PM dual clad output fibre providing high coupling efficiency over a wide pump wavelength range.



Available in standard 3x1 and 7x1configurations, G&H power combiners can be fabricated from a range of industry standard multimode fibres allowing ease of splicing to commercially available laser diodes.



Custom fibre and port configurations are available on request.



Key Features:

All fibre construction

High power design

High Coupling Efficiency

Custom configurations available



Applications:

Cladding pumped fibre lasers

Medical

Industrial

Defence



Optical Specifications1

Parameter

Specification

Specification

Unit

Pump Input Fibre NA

0.15

0.22



Pump Input Wavelength

900 to 1000

900 to 1000

nm

Signal Input Wavelength

1550 or 1064

1550 or 1064

nm

Pump (MM) Transmission Efficiency2

≥ 90 (Typ > 95)

≥ 90

%

Return Loss/Directivity

>40

>40

dB

Operating Temperature

0 to +75

0 to +75

oC

Storage Temperature

-40 to +85

-40 to +85

oC

1. All specifications are for operation at room temperature.

2. Transmission efficiency based 7x1 with 125μm / 0.45NA output fibre and 0.5m pigtails. Reported at 975nm as standard.


Ordering Code Information

Example: TFB-MMM711A70 (7x1 Tapered Fibre Bundle with seven 105/125μm 0.15NA pump inputs, one 125μm 0.45NA output in high power housing with 0.5m pigtails).

1. Maximum housing lengths. Adequate heat-sinking is required for high power operation.

2. Minimum pigtail lengths.


Multimode Power Combiner with PM Signal Feedthrough


G&Hs TFB series Power Combiners provide a high efficiency means of combining light from several multimode sources into one fibre.



G&H proprietary manufacturing techniques allow the precise fusion of input fibres around a central PM polarisation maintaining) signal feedthrough fibre and a PM dual clad output fibre providing high coupling efficiency over a wide pump wavelength range.



Available in a standard (6+1)x1 configuration, the combiner can be fabricated from a range of industry standard fibres for ease of splicing to commercially available laser diodes and fibre applications.



Custom variants using non-standard fibres are available on request.



Key Features:

1.5μm & 1.0μm PM Signal fibres available

All fibre construction

High power design

High Coupling Efficiency

PM Axis maintained

Custom configurations available



Applications:

Cladding pumped fibre lasers

Cladding pumped fibre amplifiers

Telecoms

Medical

Industrial

Defence



Optical Specifications1

Parameter

Specification

Specification

Unit

Pump Input Fibre NA

0.15

0.22



Pump Input Wavelength

900 to 1000

900 to 1000

nm

Signal Input Wavelength

1550 or 1064

1550 or 1064

nm

Pump (MM) Transmission Efficiency2

≥ 90 (Typ > 95)

≥ 90

%

Signal Transmission Efficiency3

≥ 80 (Typ > 85)

≥ 80 (Typ > 85)

%

Signal PER (Polarisation Extinction Ratio)

>20

>20

dB

Return Loss/Directivity

>40

>40

dB

Operating Temperature

0 to +75

0 to +75

oC

Storage Temperature

-40 to +85

-40 to +85

oC

1. All specifications are for operation at room temperature.

2. MM Transmission efficiencies based on typical system mode fill conditions and 0.5m pigtails. Reported at 975nm as standard.

3. Signal (feedthrough) transmission efficiency reported at centre wavelength; specification typical for centre wavelength 15nm (minimum).

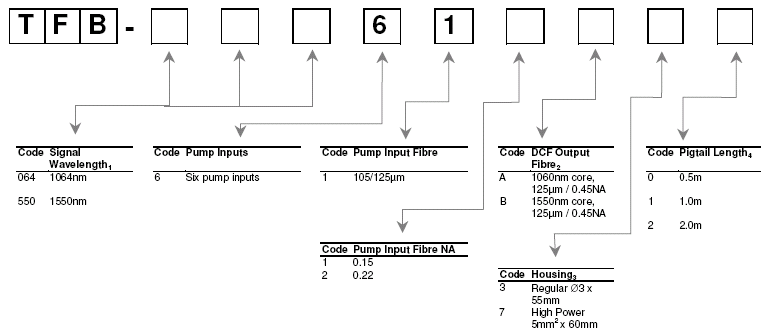

Ordering Code Information

Example: TFB-P50611B30 (6+1x1 Tapered Fibre Bundle with PM 1550nm Signal feedthrough, six 105/125um, 0.15NA pump inputs, 1550nm core DCF Output in regular housing with 0.5m pigtails).

1. Signal wavelengths of 1064nm or 1550nm assume the use of Nufern PM-980-HP and PM-1550-HP (or equivalent) signal feedthrough fibres respectively.

2. Typical mode field diameters are based on ~7.5um for 1064nm and ~10.5um for 1550nm. Fibres are passive.

3. Maximum housing lengths shown. Adequate heat sinking is required for high power operation. For more information please contact the G&H sales team.

4. Minimum pigtail lengths.


Multimode Power Combiner with Signal Feedthrough


G&Hs TFB series Power Combiners provide a high efficiency means of combining light from several multimode sources into one fibre.



G&H proprietary manufacturing techniques allow the precise fusion of input fibres around a central PM polarisation maintaining) signal feedthrough fibre and a PM dual clad output fibre providing high coupling efficiency over a wide pump wavelength range.



Available in a standard (6+1)x1 configuration, the combiner can be fabricated from a range of industry standard fibres for ease of splicing to commercially available laser diodes and fibre applications.



Custom options cover large mode area (LMA) signal feedthrough fibres, dual clad output fibres and port count / configurations and are available on request.



Key Features:

1.5μm & 1.0μm Signal fibres available

All fibre construction

High power design

High Coupling Efficiency

PM Axis maintained

Custom configurations available



Applications:

Cladding pumped fibre lasers

Cladding pumped fibre amplifiers

Telecoms

Medical

Industrial

Defence



Optical Specifications1

Parameter

Specification

Specification

Unit

Pump Input Fibre NA

0.15

0.22



Pump Input Wavelength

900 to 1000

900 to 1000

nm

Signal Input Wavelength

1550 or 1064

1550 or 1064

nm

Pump (MM) Transmission Efficiency2

≥ 90 (Typ > 95)

≥ 90

%

Signal Transmission Efficiency3

≥ 80 (Typ > 85)

≥ 80 (Typ > 85)

%

Signal PER (Polarisation Extinction Ratio)

>20

>20

dB

Return Loss/Directivity

>40

>40

dB

Operating Temperature

0 to +75

0 to +75

oC

Storage Temperature

-40 to +85

-40 to +85

oC

1. All specifications are for operation at room temperature.

2. MM Transmission efficiencies based on typical system mode fill conditions and 0.5m pigtails. Reported at 975nm as standard.

3. Signal (feedthrough) transmission efficiency reported at centre wavelength; specification typical for centre wavelength 15nm (minimum).



Ordering Code Information



Example: TFB-550611B30 (6+1x1 Tapered Fibre Bundle with 1550nm Signal input, six 105/125μm 0.15NA pump inputs, 1550nm core DCF Output in regular housing with 0.5m pigtails).

1. Signal wavelengths of 1064nm or 1550nm assume the use of Corning Hi1060 or SMF-28 (or equivalent) fibres respectively.

2. Typical core diameters are based on ~4μm for 1064nm and ~8μm for 1550nm. Fibres are passive.

3. Maximum housing lengths shown. Adequate heat-sinking is required for high power operation. For more information please contact the G&H sales team.

4. Minimum pigtail lengths.

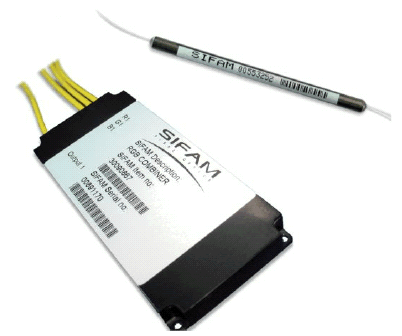

Visible Wavelength Combiner


G&Hs Visible Wavelength Combiners are singlemode optical fibre components and modules. They enable any two or three primary colours in the visible wavelength region to be combined or separated.



Designed for applications in display systems, sensors and biomedical equipment, the combiners utilise G&Hs low loss fused fibre technology.



No light leaves the fibre and therefore no alignment is required; and there are no unwanted reflections. Furthermore the output fibre pigtails may be directly integrated into beam delivery systems.



Combiners are available for either 2 or 3 wavelengths: 2 wavelength combiners combine red/green, blue/green or red/blue. 3 wavelength combiners provide full RGB operation; enabling full colour displays.



All variants are available on a custom basis, so please contact us to discuss your specific requirements.



Key Features:

2 or 3 colour combining or separating

All fibre no lens alignment

No unwanted reflections

Low light loss

High power handling

Custom Product



Applications:

Visible and display systems

Sensors

Biomedical equipment

Research



Two Wavelength Combiner

Parameter

Specification

Unit

Operating wavelengths, Blue/green

457/532

nm

Operating wavelengths, Green/red

532/633

nm

Operating wavelengths, Blue/red

457/633

nm

Channel transmission (Minimum)

90

%

Channel transmission (Typical)

95

%

Fibre type

Speciality singlemode fibre



Housing

Semi-ruggedised housing f5.0 x 85

mm

Operating / storage temperature range

-5 to +75 / -40 to +85

oC



Three Wavelength Combiner

Parameter

Specification

Unit



Red

Green

Blue



Operating wavelengths

630, 633, 655

532

457, 460, 488

nm

Channel transmission (Minimum)

85

85

65

%

Channel transmission (Typical)

90

90

70

%

Fibre type

Speciality singlemode fibre



Fibre cut-off wavelength

43020

nm

Housing

Anodised Aluminium housing 110 x 45 x 10

mm

Operating / storage temperature range

-5 to +75 / -40 to +85

oC
