         List of Products             Manual Adjustable Stages

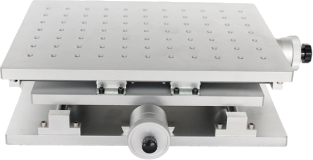

1. XY-axis Stage


Specification

Model

ST-XY-8050

Outline dimension

380*300*95mm

Worksurface dimension

330*250mm

Weight

9.04kg

Travel range

X=80mmY=50mm

Load-bearing

≤30kg

Table screw hole diameter

M6

Hole distance

25mm

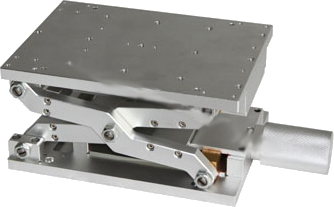

2. Lab Jack





Specification

Model

ST-LJ-120

Worksurface dimension

150*210mm

Weight

7.0kg

Travel range

Z=120mm

Load-bearing

≤30kg

Table screw hole diameter

M6

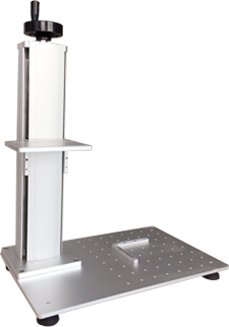

3. Z-axis Stage



Platform Type

ST-PLT-L500

ST-PLT-L550



Specification

Model

ST-PLT-L500

ST-PLT-L550

Lifter

Size

570*160*160mm

630*175*175mm

Weight

4.2kg

9.4kg

Bottom plate

Size

550*340*8mm

550*340*8mm

Weight

4.3kg

4.3kg

Bearing plate



155*115*8mm (standard)

180*155*10mm (standard), can be customized

Lifting range



90-490mm

105-555mm

Total weight



8.5kg

13.7kg

Load



25kg

40kg

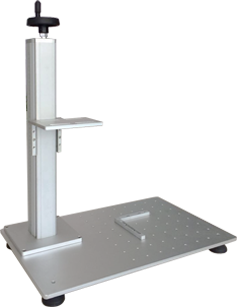

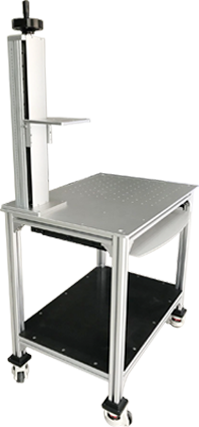

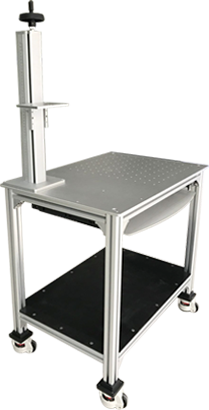

Workstation Type



ST-WLT-L500

ST-WLT-L550

Specification

Model

ST-WLT-L500

ST-WLT-L550

Lifter

Size

570*160*160mm

630*175*175mm

Weight

4.2kg

9.4kg

Desk

Size

750*520*760mm

750*520*760mm

Weight

16kg

16kg

Bearing plate



155*115*8mm (standard)

180*155*10mm (standard), can be customized

Lifting range



90-490mm

105-555mm

Total weight



20.2kg

25.4kg

Load



25kg

40kg

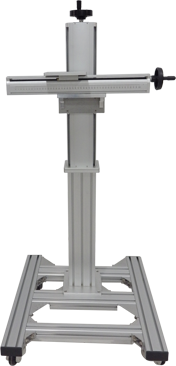

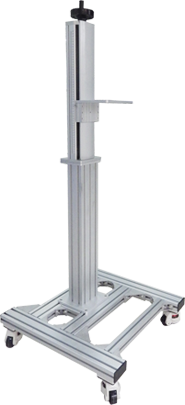

Stand Type

ST-SVLT-HXXX

ST-SVHLT-HXXX

ST-SVHRLT-HXXX



Specification

Model

ST-SVLT-H120

ST-SVLT-H140

ST-SVLT-H160

Lifter

Size

1350*175*175mmm

1550*175*175mm

1750*175*175mm

Weight

15.6kg

16.6kg

17.6kg

Bottom Plate

Size

610*610*130mm

Weight

9.3kg

Lifting range

810-1260mm

1010-1460mm

1210-1660mm

Total weight

24.9kg

25.9kg

26.9kg

Load

40kg



Model

ST-SVHLT-H120

ST-SVHLT-H140

ST-SVHLT-H160

Lifter

Size

1350*175*175mm

1550*175*175mm

1750*175*175mm

Weight

15.6kg

16.6kg

17.6kg

Bottom Plate

Size

610*610*130mm

Weight

9.3kg

Horizontal Plate

Size

570*60*65mm

Weight

4.73kg

Range

130-530mm

Lifting range

810-1260mm

1010-1460mm

1210-1660mm

Total weight

29.63kg

30.63kg

31.63kg

Load

35kg



Model

ST-SVHRLT-H120

ST-SVHRLT-H140

ST-SVHRLT-H160

Lifter

Size

1350*175*175mm

1550*175*175mm

1750*175*175mm

Weight

15.6kg

16.6kg

17.6kg

Bottom Plate

Size

610*610*130mm

Weight

9.3kg

Horizontal Plate

Size

570*100*65mm

Weight

5.23kg

Range

135-540mm

Rotary Support

Size

140*100*10mm



Weight

1.06kg



Angle

0- 360

Lifting range

810-1260mm

1010-1460mm

1210-1660mm

Total weight

31.69kg

32.69kg

33.69kg

Load

35kg

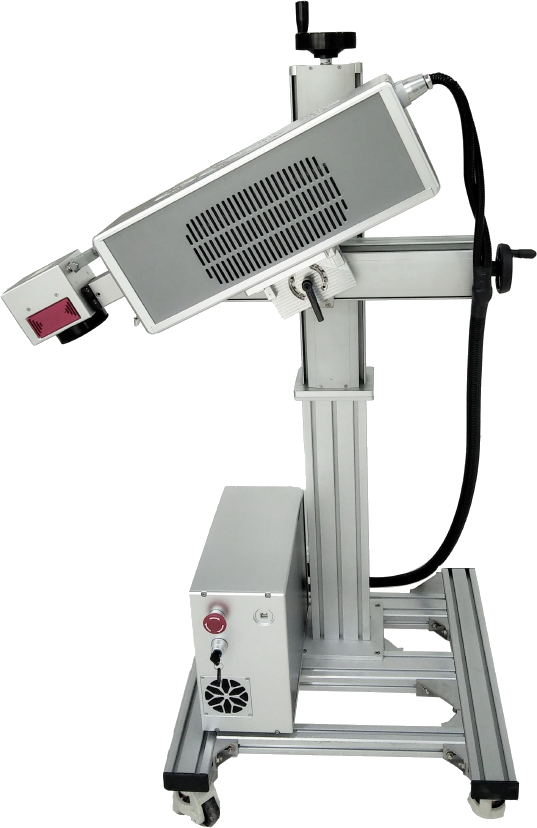

Selection suggestion for Stand type stages



The height from the scan lens to the ground

Specifications of scan lens used

The height from the marking workpiece to the ground

The lowest

The highest

Marking range

Focal length

The lowest

The highest

1.2m Stage

810mm

1260mm

110*110mm

160mm

650mm

1100mm

140*140mm

210mm

600mm

1050mm

200*200mm

290mm

520mm

970mm

1.4m Lifter

1010mm

1460mm

110*110mm

160mm

850mm

1300mm

140*140mm

210mm

800mm

1250mm

200*200mm

290mm

720mm

1170mm

1.6m Lifter

1210mm

1660mm

110*110mm

160mm

1050mm

1500mm

140*140mm

210mm

1000mm

1450mm

200*200mm

290mm

920mm

1370mm



Overall product feature

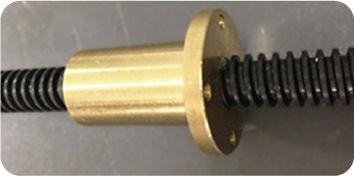

Equipped with precise long copper nut and lead screw to provide wear resistant, long life time and tight occlusion

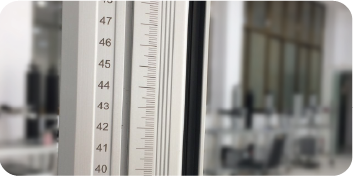

Come with double-side laser marked scale

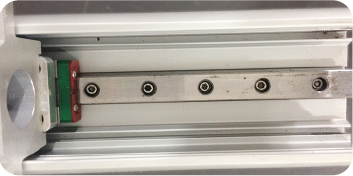

Using precise linear sliding rail to ensure central block does not sway during lifting and maintain the balance while loading

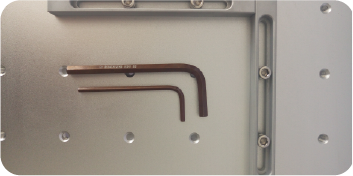

Provide positioning tools for simple workpiece

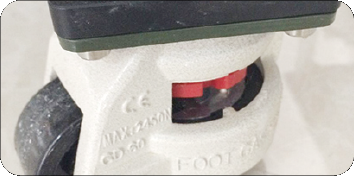

Durable and stable forma wheel is use to ensure the mobility and flexibility

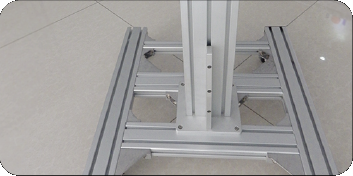

Reinforced block is used to enhance platform rigidity to avoid deformation to occur under stress imbalance
