         List of Products             Lamp Pumped Laser Head (Pump Chamber)

Lamp Pumped Laser Heads

STBASTARMARK65



Laser Systems:

Baasel Lasertechnik Starmark 65W, AB Laser Starmark 65W


Description:
Single-Lamp Pumped Solid-State Laser Chamber used for precision marking & engraving applications.



FREQUENTLY USED CONSUMABLES

Item Part Number

Description

D6000 10100-354

Multi Purpose Filter

LFTSTARMARK 20000-038

Lamp Flow Tube

ST166 80750-009, 131100032, 131100054

Lamp, 20Amp

MR3M100RHC

Rear Mirror HR

MR3M80RHC

Front Mirror 80%

ORKSTARMARK

O-Ring Kit

RFT512C 20000-041

Rod Flow Tube



ASSEMBLIES

Item Part Number

Laser Rail

BASTARMARK

Head Block Assembly (Less Cavity, YAG Rod, Lamp & Carriage)

STBASTARMARK65

Complete Head Block Assembly, 4mm x79mm

GCSTARMARK

Gold Cavity Assembly, Complete

HBASTARMARK

Head Block Assembly (Less YAG Rod, Lamp & Carriage)

ORKSTARMARK

O-Ring Kit

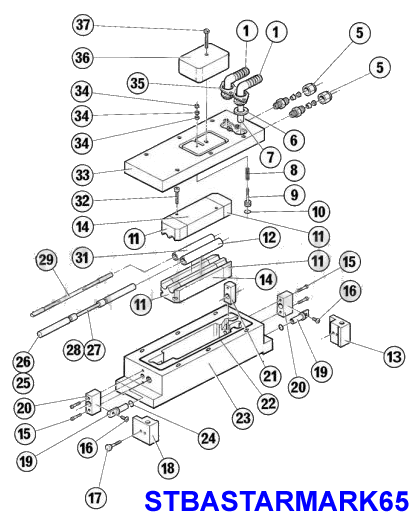

LASER HEADS COMPONENTS

Reference

Item Part Number

Laser Rail

11

CEP6000T

Cavity End Plate, 20000-238

14

GCE600

Gold Cavity Ellipse, 20000-023

16

H110

M5 X 7.5 Button Head

37

H126

M5 X 30 Nylon Pan Head

34

H19

M3 Nut

15

H36

M3 X 20 Socket Cap

38

H41

M3 X 8 Socket Cap

32

H45

M3 X 16 Socket Cap

9

IC212

Ignition Contact, 20000-289

36

ICC212

Ignition Coil Cover, 20000-462

31

LFTSTARMARK

Lamp Flow Tube, 20000-038

23

LHBSTARMARK

Lower Head Block, 20000-543

29

ST166

Krypton Arc Lamp, 20 Amps, 80750-009 (65 Watt)

18

LPP212F

Lamp Pressure Plate, 20000-386

13

LPP212R

Lamp Pressure Plate, Rear, 20000-384

19

LTBA7000

Lamp Terminal Block Assembly, 10000-210

22

ORS212

O-Ring, Silicone, 66200-109

24

ORS9125

O-Ring, Silicone, 66200-108

6

ORW6000

O-Ring Washer, Silicone, 66000-032

12

RFT512C

Rod Flow Tube, 20000-041

20

RPP212

Rod Pressure Plate, 20000-386

21

TLS212

Teflon Light Shield, 20000-240

17

TS212

Thumb Screw

33

UHBSTARMARK

Upper Head Block, 20000-385

1

WF052

Water Fitting, Elbow, 64630-019

5

WF054

Water Fitting, Q-Switch, 64630-047

35

WFCP212

Water Fitting Clamp Plate, 20000-399

7

WFTSTARMARK

Water Fitting Tube, 64700-16

27

YR479

YAG Rod, 4mm X 79mm

28

YR579*

YAG Rod, 5mm X 79mm (Special Upgrade)

25

YRA633

YAG Rod Assembly, Mounted, 50320-033

26

YRA634*

YAG Rod Assembly, Mounted, 5mm 79mm (Special upgrade)



  Lamp-pumped Laser Heads (Pump Chamber)   Download "Detailed Lamp-pumped Laser Heads" (PDF)
