         List of Products             Lamp Pumped Laser Head (Pump Chamber) STBASL114



Laser Systems:

N.E.C. Models SL432G; SL435B; SL411B; SL412G; SL114K; SL475H; S.L.T. CL60



Description:
Single-Lamp Pumped CW Solid-State Laser Chamber used for laser trimming, marking and engraving 40-60 Watts



FREQUENTLY USED CONSUMABLES

Item Part Number

Description

LFTSL114

Lamp Flow Tube

ST545

Lamp

RFTSL114

Rod Flow Tube



ASSEMBLIES

Item Part Number

Laser Rail

BASL114/C

Head Block Assembly (Less Cavity, YAG Rod & Lamp)

STBA1144/C

Complete Head Block Assembly (Fitted With 4mm Rod)

STBASL1143/C

Complete Head Block Assembly (Fitted With 3mm Rod)

GCSL114

Gold Cavity Assembly

HBASL114/C

Head Block Assembly (Less YAG Rod & Lamp)

ORKSL114

O-Ring Kit

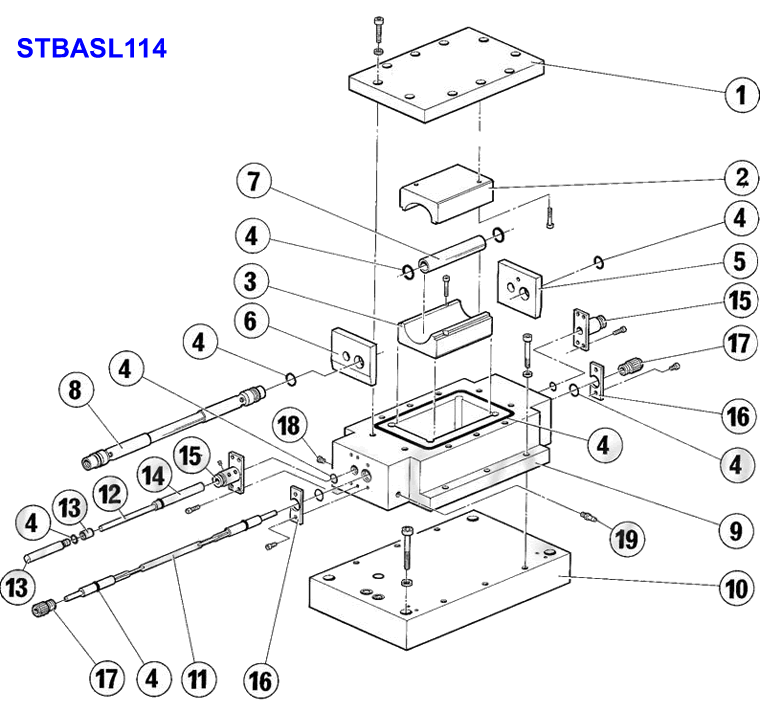

LASER HEADS COMPONENTS

Reference

Item Part Number

Laser Rail

6

CEPSL114L

Cavity End Plate, Left

5

CEPSL114R

Cavity End Plate, Right

15

CPPSL114

Crystal Pressure Plate

3

GCESL114L

Gold Cavity Ellipse, Lower

2

GCESL114U

Gold Cavity Ellipse, Upper

8

LFTSL114

Lamp Flow Tube

9

LHBSL114

Lower Head Block

10

LHCSL114

Lower Head Carriage

11

ST545

Laser Lamp, 20Amps, NEC P/N P2002D

16

LPPSL114L

Lamp Pressure Plate, Left

21

LPPSL114R

Lamp Pressure Plate, Right

4

ORKSL114

O-Ring (Included in Kit)

7

RFTSL114

Rod Flow Tube

17

THRSL114

Threaded Retainer

1

UHBSL114

Upper Head Block

18

WF055

Water Fitting

19

WF056

Water Fitting

20

YR374

YAG Rod,3mm,Unmounted

12

YR474

YAG Rod,4mm, Unmounted

13

YRA432

YAG Rod Assembly, 3mm, Mounted

14

YRA434

YAG Rod Assembly, 4mm, Mounted



  Lamp-pumped Laser Heads (Pump Chamber)   Download "Detailed Lamp-pumped Laser Heads" (PDF)
