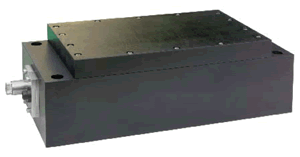

         List of Products             Lamp Pumped Laser Head (Pump Chamber) STBAMERLIN



Laser Systems:

Positive Light Merlin, Spectra Physics Merlin


Description:
Single-Lamp Pumped YLF Solid-State Laser Chamber used for scientific applications.



FREQUENTLY USED CONSUMABLES

Item Part Number

Description

CSA116

Cathode and Anode Socket Assembly

DMP10

DI Cartridge

LFT117CE

Lamp Flow Tube

STQCW324

Lamp

ORKMERLIN

O-Ring Kit



ASSEMBLIES

Item Part Number

Laser Rail

BAMERLIN

Head Block Assembly (Less Cavity Reflector, YLF Rod & Lamp Assembly)

STBAMERLIN

Head Block Assembly Complete (Includes 4mm YLF Rod)

GCA117

Gold Cavity Assembly, Complete

HBAMERLIN

Head Block Assembly (Less YLF Rod & Lamp Assembly)

ORKMERLIN

O-Ring Kit 4mm Rod

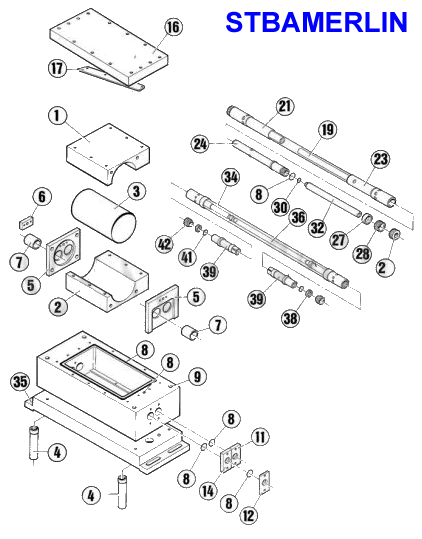

LASER HEADS COMPONENTS

Reference

Item Part Number

Laser Rail

17

CCMERLIN

Upper Head Block Channel Cover

5

CEP114

Cavity End Plate, Gold

2

CH117B

Cavity Reflector, Bottom

1

CH117T

Cavity Reflector, Top

29

CN117ENH

Crystal Nut

39

CSA116

Cathode and Anode Socket Assembly

3

GCE117

Gold Cavity Reflector

14

LEPMERLIN

Lamp End Plate

34

LFT117CE

Lamp Flow Tube, Cerium Doped Quartz

10

LHBMERLIN

Lower Head Block

35

LHCMERLIN

Lower Head Carriage

36

STQCW324

Laser Lamp

12

LPPMERLIN

Lamp Pressure Plate, Front

7

LSSMERLIN

Light Shield Sleeve

8

ORKMERLIN

O-Ring, Silicone

41

ORN804

O-Ring Nitrile (10 Pieces/Packet)

30

ORS4MM

O-Ring Silicone, 4mm

27

PR117

Pressure Ring

32

PT4117ENH

Pressure Tube

38

PW149

Pressure Washer

23

RFT117ENH

Rod Flow Tube

11

RPPMERLIN

Rod Pressure Plate

28

RR117

Retaining Ring

42

TRH150

Threaded Retainer

16

UHBMERLIN

Upper Head Block

4

WFMERLIN

Water Fitting

6

WIB117

Water Inlet Block

19

YLF4115

YLF Rod, 4mm, Un-mounted

21

YLFA4115

YLF Rod Assembly, Complete

24

YRH4117ENH

YAG Rod Holder



  Lamp-pumped Laser Heads (Pump Chamber)   Download "Detailed Lamp-pumped Laser Heads" (PDF)
