         List of Products             Lamp Pumped Laser Head (Pump Chamber) STBALAK101



Laser Systems:

Lasag LAK101, KLS111, LAK100, KLS016


Description:
Single-Lamp Pumped pulsed Solid-State Laser Chamber used for laser cutting, drilling and welding



FREQUENTLY USED CONSUMABLES

Item Part Number

Description

DIRESIN100

DI Resin

ST4605, 64-0114, 64-0116

Lamp, Xenon

LFTLAK101

Lamp Flow Tube

ST5006, 64-0156, 64-0302

Lamp, Krypton

ST6638, 64-0158, 64-0371

Lamp, Xenon

RFTLAK101

Rod Flow Tube



ASSEMBLIES

Item Part Number

Laser Rail

STBALAK101

Complete Head Block Assembly (Specify Lamp Model)

GCLAK101

Gold Cavity Assembly

HBALAK101

Head Block Assembly (Less YAG Rod & Lamp)

ORKLAK101

O-Ring Kit

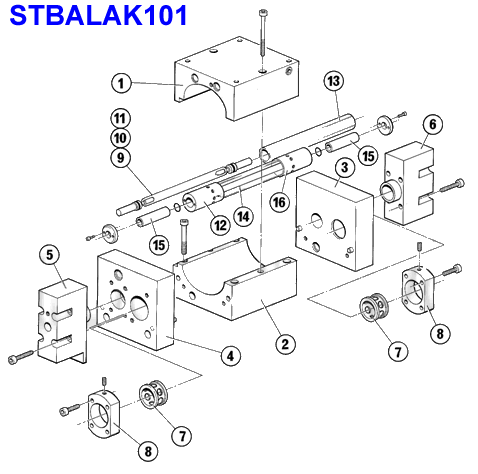

LASER HEADS COMPONENTS

Reference

Item Part Number

Laser Rail

4

CEPLAK101L

Cavity End Plate, Left

3

CEPLAK101R

Cavity End Plate, Right

8

CPPLAK101

Crystal Pressure Plate

2

GCELAK101L

Gold Cavity Reflector, Lower

1

GCELAK101U

Gold Cavity Reflector, Upper

13

LFTLAK101

Lamp Flow Tube

11

ST4605

Laser Lamp, Xenon, 7mm Bore

9

ST5006

Laser Lamp, Krypton, 6mm Bore

10

ST6638

Laser Lamp, Xenon, 6mm Bore

5

LPPLAK101L

Lamp Pressure Plate, Left

6

LPPLAK101R

Lamp Pressure Plate, Right

15

PTLAK101

Pressure Tube, Rod, Ceramic

7

RCSRLAK400

Rod Flow Tube Sealing Ring

12

RFTLAK101

Rod Flow Tube

14

YR201

YAG Rod, 6.35mm Dia, Unmounted

16

YRALAK101

YAG Rod Assembly, Mounted



  Lamp-pumped Laser Heads (Pump Chamber)   Download "Detailed Lamp-pumped Laser Heads" (PDF)
