         List of Products             Lamp Pumped Laser Head (Pump Chamber) STBAHAAS



Laser Systems:

Trumpf Haas Multi Kilowatt Lasers, HL353D, HL556D, HL703D, HL1006D, HL1003D, HL1504D, HL2006D, HL3006D, HL4006D


Description:
Multi-Lamp Pumped Solid-State Laser Chamber used for cutting & material processing applications 250W to 4kW



FREQUENTLY USED CONSUMABLES

Item Part Number

Description

LFTHAAS

Lamp Flow Tube

LFTHAASS

Lamp Flow Tube, Short

ST2000

Lamp, Standard, 01-04-23-00

PW502AR

Protective Window, 50 X 2mm

PW5515AR

Protective Window, 55 X 1.5mm

RFTHAAS

Rod Flow Tube



ASSEMBLIES

Item Part Number

Laser Rail

GCHAAS

Gold Cavity Assembly, Complete

ORKHAAS

O-Ring Kit

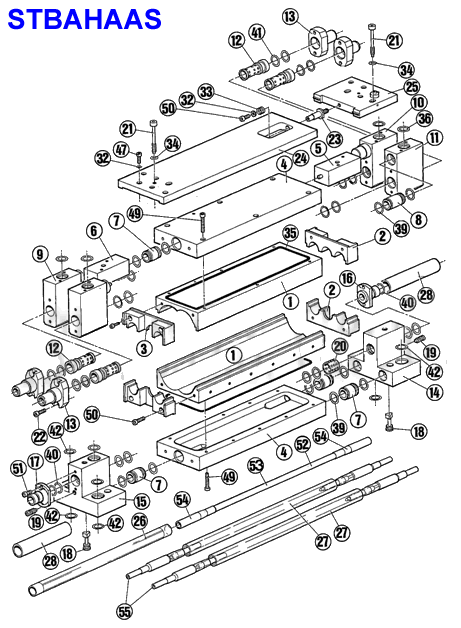

LASER HEADS COMPONENTS

Reference

Item Part Number

Laser Rail

4

CBHAAS

Cooling Block

2

CEPHAASL

Cavity End Plate Left

3

CEPHAASR

Cavity End Plate Right

20

FCHAAS

Flow Controller

1

GCEHAAS

Cavity Ellipse, Gold Plated

23

GPHAAS

Guide Pin

5

LBHAAS

Location Block

12

LFTEHAAS

Lamp Flow Tube End

27

LFTHAAS

Lamp Flow Tube

28

LFTHAASS

Lamp Flow Tube Short

10

LGBHAASLF

Lamp Guide Block Left Front

11

LGBHAASLR

Lamp Guide Block Left Rear

9

LGBHAASR

Lamp Guide Block Right

55

ST2000

Laser Lamp, Standard, 01-04-23-00

22

LPPFSHAAS

Fixing Screw

13

LPPHAAS

Lamp Pressure Plate

24

MTPHAAS

Main Top Plate

47-51

N/A

Various screws

31-34

N/A

Various washers

35-46

ORKHAAS

O-Ring kit

26

RFTHAAS

Rod Flow Tube

21

RGBFSHAAS

Fixing Screw

14

RGBHAASL

Rod Guide Block Left

15

RGBHAASR

Rod Guide Block Right

16

RGHAASL

Rod Guide Left

17

RGHAASR

Rod Guide Right

18

RSHAAS

Rod Support

19

RSLSHAAS

Locking Screw

25

STPHAAS

Sprung Top Plate

7

WP15HAAS

Water Pipe

8

WP23HAAS

Water Pipe

6

WWHAAS

Water Way

52

YR257

YAG Rod

53

YRA257

YAG rod assembly

54

YRH257

YAG Rod Holder
