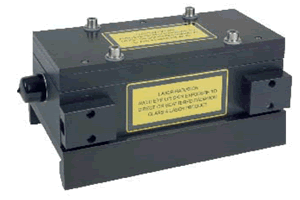

         List of Products             Lamp Pumped Laser Head (Pump Chamber) STBA9725, STBA9754, STBA9755





Laser Systems:

Lasit FlexiMark & EasyMark, 80W, 120W, 150W

Description:
Single Flash-Lamp Pumped Solid-State Laser Chamber used for precision marking, engraving, welding & cutting.







FREQUENTLY USED CONSUMABLES

Item Part Number

Description

LFT630

Lamp Flow Tube

ST218S

Lamp, 30Amp

STQCW336

Lamp, 35Amp

MR3M100RHC

Rear Mirror HR

MR3M80RHC

Front Mirror 80% R

RFT530

Rod Flow Tube



ASSEMBLIES

Item Part Number

Laser Rail

BA960

Head Block Assembly (Less Cavity, YAG Rod, Lamp & Carriage)

STBA9725

Complete Head Block Assembly (Less Carriage) 6.35mm Rod (150W CW)

STBA9725/C

Complete Head Block Assembly, 6.35mm Rod (150W CW)

STBA9754

Complete Head Block Assembly (Less Carriage) 4mm Rod (80W CW)

STBA9754/C

Complete Head Block Assembly, 4mm Rod (80W CW)

STBA9755

Complete Head Block Assembly (Less Carriage) 5mm Rod (120W CW)

STBA9755/C

Complete Head Block Assembly, 5mm Rod (120W CW)

GC530

Gold Cavity Assembly, Complete

HBA960

Head Block Assembly (Less YAG Rod, Lamp & Carriage)

ORK9725

O-Ring Kit 6.35mm Rod

ORK9754

O-Ring Kit 4mm Rod

ORK9755

O-Ring Kit 5mm Rod

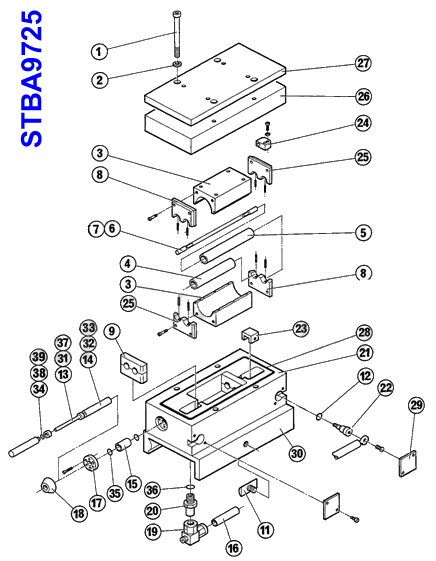

LASER HEADS COMPONENTS

Reference

Item Part Number

Laser Rail

29

CC960

High Voltage Cap

8

CEP530L

Cavity End Plate, Left, Gold Plated

25

CEP530R

Cavity End Plate, Right

11

CLA500

Carriage Locking Assembly

18

DB530

Dust Boot

27

FIN800

Head Sink, Aluminium

3

GCE530

Cavity Ellipse, Gold Plated

1

HB530

Head Bolt, Stainless Steel

2

HBW510

Head Bolt Washer, Nylon

22

HVP960

High Voltage Pin

24

LCBA960L or R

Lamp Contact Block Assembly (includes lamp clip, L= Left, R=Right)

5

LFT630

Lamp Flow Tube

21

LHB960

Lower Head Block

30

LHC800

Head Carriage

6

ST218S

Krypton Arc Lamp, 30 Amps

7

STQCW336

Krypton Arc Lamp, 35 Amps

23

LTB960

Lamp Terminal Block

34

ORT250

O-Ring, Teflon, 6.35mm Rod

39

ORT4MM

O-Ring, Teflon, 4mm Rod

38

ORT5MM

O-Ring, Teflon, 5mm Rod

17

REC950

Rod End Cap

4

RFT530

Rod Flow Tube

15

RG950

Rod Guide

12

SEE KIT

O-Ring, Silicone (Included in Kit)

36

SEE KIT

O-Ring, Silicone (Included in Kit)

35

SEE KIT

O-Ring, Silicone (Included in Kit)

28

SEE KIT

O-Ring, Silicone (Included in Kit)

9

TLSKIT5300

Teflon Light Shield Kit

26

UHB960

Upper Head Block

20

WF012

Water Fitting 3/4" - 16 x 1/2"

19

WF021

Elbow Water Fitting, 1/2"

16

WF041

Water Fitting, 12.7mm, Stainless Steel

31

YR5108

YAG Rod, Crystal Only, 5 x 108mm Rod

13

YR530

YAG Rod, Crystal Only, 6.35x105mm Rod

37

YR715

YAG Rod, Crystal Only, 4 x 108mm Rod

14

YRA9525

YAG Rod Assembly, Mounted, 6.35mm Rod

33

YRA954

YAG Rod Assembly, 4mm Rod, Mounted

32

YRA955

YAG Rod Assembly, 5mm Rod, Mounted



  Lamp-pumped Laser Heads (Pump Chamber)   Download "Detailed Lamp-pumped Laser Heads" (PDF)
