         List of Products             Lamp Pumped Laser Head (Pump Chamber) STBA9560/C





Laser Systems:

Laser Applications 9560; T.L.T. 800



Description:

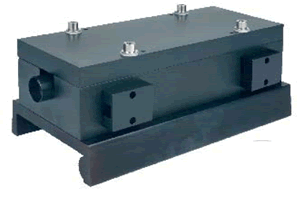

Single-Lamp Pumped Solid-State Laser Chamber used for laser trimming & diamond processing applications 18W TEMoo







FREQUENTLY USED CONSUMABLES

Item Part Number

Description

D8832

DI Cartridge

LC570

Lamp Clip, Gold

LFT520X

Lamp Flow Tube

ST4491S

Lamp, 30Amp

MR3M100RHC

Rear Mirror HR

MR3M80RHC

Front Mirror 80% R

MR3M90RHC

Front Mirror 90% R

PF10

Particle Filter, 10

RFT9560

Rod Flow Tube



ASSEMBLIES

Item Part Number

Laser Rail

BA9560

Head Block Assembly (Less Cavity, YAG Rod, Lamp & Carriage)

STBA9560

Head Block Assembly, Complete (Less Carriage)

STBA9560/C

Complete Head Block Assembly

GC9560

Gold Cavity Assembly, Complete

HBA9560

Head Block Assembly (Less YAG Rod, Lamp & Carriage)

ORK9560

O-Ring Kit

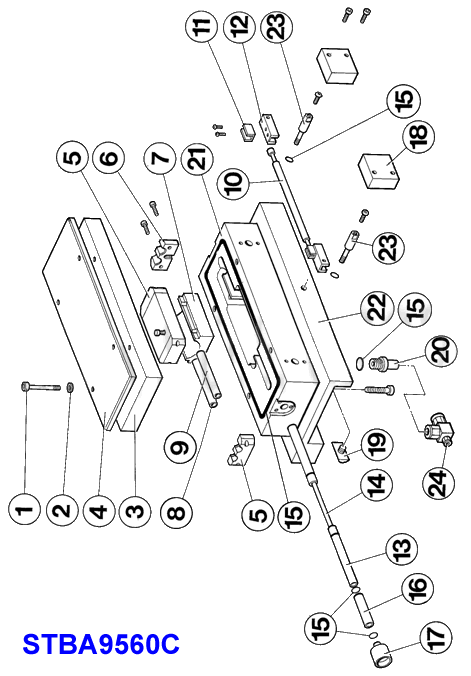

LASER HEADS COMPONENTS

Reference

Item Part Number

Laser Rail

18

CC9560

Cable Cap, Insulator

5

CEP9560L

Cavity End Plate, Left Lower & Right Upper, Gold Plated

6

CEP9560R

Cavity End Plate, Lower Right & Upper Left, Gold Plated

19

CLA500

Carriage Locking Assembly

4

FIN9555

Heat Sink, Aluminium

7

GCE9555

Cavity Ellipse, Gold Plated

1

HB510

Head Bolt, Stainless Steel

2

HBW510

Head Bolt Washer, Nylon

23

HVP9560

High Voltage Pin

11

LC570

Lamp Clip, Gold

9

LFT520X

Lamp Flow Tube

21

LHB9560

Lower Head Block

22

LHC9560

Head Carriage

10

ST4491S

Krypton Arc Lamp, 40 Amps

12

LTB9560

Lamp Terminal Block

15

ORK9560

O-Ring, Silicone (Included in Kit)

17

REC9560

Rod End Cap

8

RFT9560

Rod Flow Tube

16

RG9560

Rod Guide

3

UHB9560

Upper Head Block

20

WF012

Water Fitting 3/4 - 16. 1/2", Stainless Steel

24

WF021

Elbow Fitting 1/2" for Q-Switch

14

YR512

YAG Rod 4mm Dia, Unmounted, TEMoo

13

YRA512

YAG Rod Assembly, Mounted



  Lamp-pumped Laser Heads (Pump Chamber)   Download "Detailed Lamp-pumped Laser Heads" (PDF)
