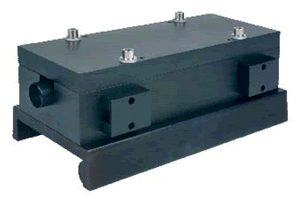

         List of Products             Lamp Pumped Laser Head (Pump Chamber) STBA9555/C





Laser Systems:

Laser Applications 9555; Quantrad Blazer; Galaxy; Comet



Description:
Single-Lamp Pumped Solid-State Laser Chamber used for precision marking & material processing applications � 80 Watts.







FREQUENTLY USED CONSUMABLES

Item Part Number

Description

D8832

DI Cartridge

LC570

Lamp Clip, Gold

LFT9555

Lamp Flow Tube

ST550S

Lamp

MR3M100RHC

Rear Mirror HR

MR3M80RHC

Front Mirror 80% R

MR3M90RHC

Front Mirror 90% R

PF10

Particle Filter, 10�

RFT9555

Rod Flow Tube



ASSEMBLIES

Item Part Number

Laser Rail

BA9555

Head Block Assembly (Less Cavity, YAG Rod, Lamp & Carriage)

STBA9555

Head Block Assembly, Complete (Less Carriage)

STBA9555/C

Complete Head Block Assembly

GC9555

Gold Cavity Assembly, Complete

HBA9555

Head Block Assembly (Less YAG Rod, Lamp & Carriage)

ORK9555

O-Ring Kit

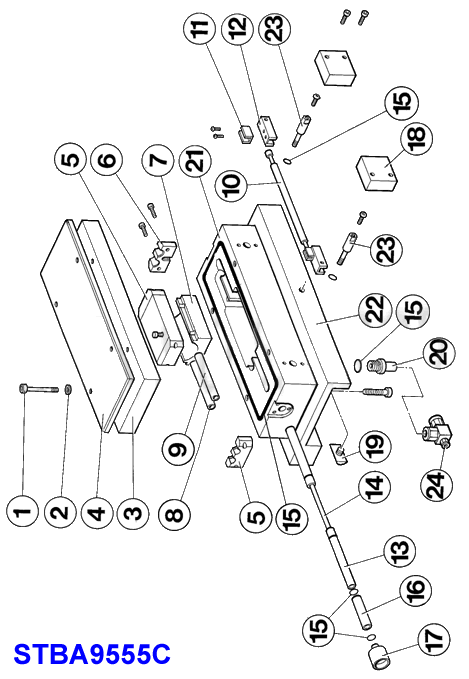

LASER HEADS COMPONENTS

Reference

Item Part Number

Laser Rail

18

CC9560

Cable Cap, Insulator

5

CEP9555L

Cavity End Plate, Left Lower & Right Upper, Gold Plated

6

CEP9555R

Cavity End Plate, Lower Right & Upper Left, Gold Plated

19

CLA500

Carriage Locking Assembly

4

FIN9555

Heat Sink, Aluminium

7

GCE9555

Cavity Ellipse, Gold Plated

1

HB510

Head Bolt, Stainless Steel

2

HBW510

Head Bolt Washer, Nylon

23

HVP9555

High Voltage Pin

11

LC570

Lamp Clip, Gold

9

LFT9555

Lamp Flow Tube

21

LHB9555

Lower Head Block

22

LHC9555

Head Carriage

10

ST550S

Krypton Arc Lamp, 40 Amps

12

LTB9555

Lamp Terminal Block

15

ORK9555

O-Ring, Silicone (Included in Kit)

17

REC9555

Rod End Cap

8

RFT9555

Rod Flow Tube

16

RG9555

Rod Guide

3

UHB9555

Upper Head Block

20

WF012

Water Fitting 3/4 - 16. 1/2", Stainless Steel

24

WF021

Elbow Fitting 1/2" for Q-Switch

14

YR9555

YAG Rod 5mm Dia, Unmounted

13

YRA9555

YAG Rod Assembly, Mounted



  Lamp-pumped Laser Heads (Pump Chamber)   Download "Detailed Lamp-pumped Laser Heads" (PDF)
