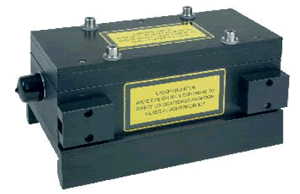

         List of Products             Lamp Pumped Laser Head (Pump Chamber) STBA8955, STBA8956



Laser Systems:

Quantum Laser Maximark II, Lasit Fleximark & EasyMark & S.E.I. 120W



Description:
Single Flash-Lamp Pumped Solid-State Laser Chamber used for precision marking and deep engraving.





FREQUENTLY USED CONSUMABLES

Item Part Number

Description

LFT630

Lamp Flow Tube

STQCW336

Lamp, 35Amp

LVB5000

Lamp V-Block

MR3M100RHC

Rear Mirror HR

MR3M80RHC

Front Mirror 80% R

RFT530

Rod Flow Tube



ASSEMBLIES

Item Part Number

Laser Rail

BA950

Head Block Assembly (Less Cavity, YAG Rod, Lamp & Carriage)

STBA8955

Complete Head Block Assembly (Less Carriage)

STBA8955/C

Complete Head Block Assembly, 5mm Rod (120W)

STBA8956

Complete Head Block Assembly (Less Carriage)

STBA8956/C

Complete Head Block Assembly, 6.35mm Rod (150W)

GC530

Gold Cavity Assembly, Complete

HBA950

Head Block Assembly (Less YAG Rod, Lamp & Carriage)

ORK8955

O-Ring Kit 4mm Rod

ORK8956

O-Ring Kit 5mm Rod

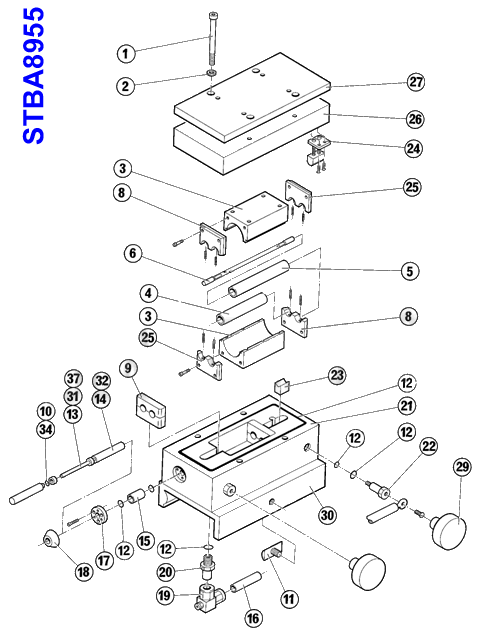

LASER HEADS COMPONENTS

Reference

Item Part Number

Laser Rail

29

CC5000

Cable Cap

8

CEP530L

Cavity End Plate, Left, Gold Plated

25

CEP530R

Cavity End Plate, Right

11

CLA500

Carriage Locking Assembly

18

DB530

Dust Boot

27

FIN800

Head Sink, Aluminium

3

GCE530

Cavity Ellipse, Gold Plated

1

HB530

Head Bolt, Stainless Steel

2

HBW510

Head Bolt Washer, Nylon

22

HVP258

High Voltage Pin

24

LCA500

Lamp Clamp Assembly

5

LFT630

Lamp Flow Tube

21

LHB950

Lower Head Block

30

LHC800

Head Carriage

7

STQCW336

Krypton Arc Lamp, 35 Amps

23

LVB5000

Lamp V- Block

34

ORT250

O-Ring, Teflon, 6.35mm Rod

10

ORT5MM

O-Ring, Teflon 5mm Rod

17

REC950

Rod End Cap

4

RFT530

Rod Flow Tube

15

RG950

Rod Guide

12

SEE KIT

O-Ring, Silicone (Included in Kit)

9

TLSKIT5300

Teflon Light Shield Kit

26

UHB850

Upper Head Block

20

WF012

Water Fitting 3/4" - 16 x 1/2"

19

WF021

Elbow Water Fitting, 1/2" for Q-Switch

16

WF041

Water Fitting, 12.7mm, Stainless Steel

13

YR5108

YAG Rod, Crystal Only, 5x108mm Rod

31

YR530

YAG Rod, Crystal Only, 6.35 x 105mm Rod

32

YRA9525

YAG Rod Assembly, 6.35mm Rod, Mounted

14

YRA955

YAG Rod Assembly, Mounted, 5mm Rod



  Lamp-pumped Laser Heads (Pump Chamber)   Download "Detailed Lamp-pumped Laser Heads" (PDF)
