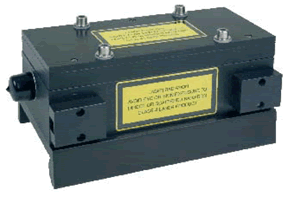

         List of Products             Lamp Pumped Laser Head (Pump Chamber) STBA854/C





Laser Systems:

Quantum Laser Maximark, Lasit Fleximark, Easymark, SEI 80W


Description:
Single Flash-Lamp Pumped Solid-State Laser Chamber used for precision marking and engraving







FREQUENTLY USED CONSUMABLES

Item Part Number

Description

LFT630

Lamp Flow Tube

ST218S

Lamp, 30 Amp

LVB5000

Lamp V-Block

MR3M100RHC

Rear Mirror HR

MR3M80RHC

Front Mirror 80% R

RFT530

Rod Flow Tube



ASSAMBLIES

Item Part Number

Laser Rail

BA854

Head Block Assembly (Less Cavity, YAG Rod, Lamp & Carriage)

STBA854

Head Block Assembly (Less Carriage)

STBA854/C

Complete Head Block Assembly

GC530

Gold Cavity Assembly, Complete

HBA854

Head Block Assembly (Less YAG Rod, Lamp & Carriage)

ORK804

O-Ring Kit 6.35mm Rod

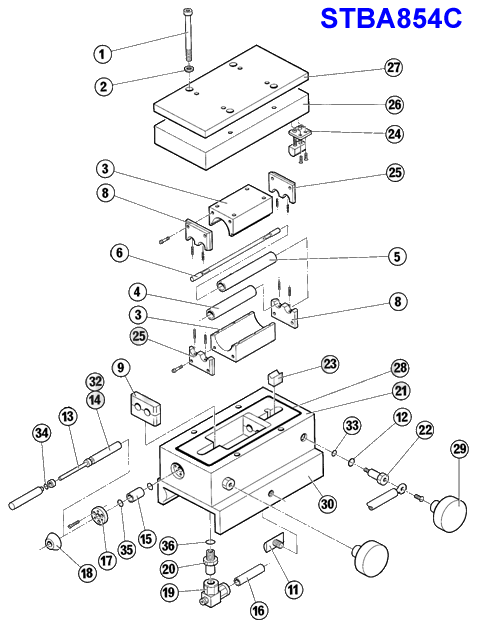

LASER HEADS COMPONENTS

Reference

Item Part Number

Laser Rail

29

CC5000

Cable Cap

8

CEP530L

Cavity End Plate, Left, Gold Plated

25

CEP530R

Cavity End Plate, Right

11

CLA500

Carriage Locking Assembly

18

DB510

Dust Boot

27

FIN800

Head Sink, Aluminium

3

GCE530

Cavity Ellipse, Gold Plated

1

HB530

Head Bolt, Stainless Steel

2

HBW510

Head Bolt Washer, Nylon

22

HVP258

High Voltage Pin

24

LCA500

Lamp Clamp Assembly

5

LFT630

Lamp Flow Tube

21

LHB850

Lower Head Block

30

LHC800

Head Carriage

6

ST218S

Krypton arc Lamp, 30 Amps

23

LVB5000

Lamp V- Block

12

ORK804

O-Ring, Silicone (Included in Kit)

34

ORT4MM

O-Ring, Teflon, 4mm Rod

17

REC510

Rod End Cap

4

RFT530

Rod Flow Tube

15

RG800

Rod Guide

9

TLSKIT5300

Teflon Light Shield Kit

26

UHB850

Upper Head Block

20

WF012

Water Fitting 3/4" - 16 x 1/2"

19

WF021

Elbow Water Fitting, 1/2" for Q-Switch

16

WF041

Water Fitting, 12.7mm, Stainless Steel

13

YR4105

YAG Rod, Crystal Only, 4mm Rod

14

YRA4105

YAG Rod Assembly, Mounted, 4mm Rod



  Lamp-pumped Laser Heads (Pump Chamber)   Download "Detailed Lamp-pumped Laser Heads" (PDF)
