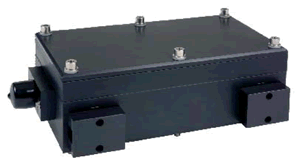

         List of Products             Lamp Pumped Laser Head (Pump Chamber) STBA818/C



Laser Systems:

Lee Laser Model 815; 818; 825; 825S; 825ST; General Scanning Hi-mark 400, HM800; HM6000

Description:
Single-Lamp Pumped Solid-State Laser Chamber used for precision marking & engraving applications.



FREQUENTLY USED CONSUMABLES

Item Part Number

Description

D700

DI Cartridge

LFT718

Lamp Flow Tube

ST9300

Lamp 30 Amp

MR3M100RHC

Rear Mirror HR

MR3M80RHC

Front Mirror 80%

MR3M90RHC

Front Mirror 90%

RFT818

Rod Flow Tube



ASSAMBLIES

Item Part Number

Laser Rail

BA818

Head Block Assembly (Less Cavity, YAG Rod, Lamp & Carriage)

STBA815

Head Block Assembly, Complete (Less Carriage), Multimode

STBA815/C

Complete Head Block Assembly, Multimode

STBA818

Head Block Assembly, Complete (Less Carriage), TEMoo

STBA818/C

Complete Head Block Assembly, TEMoo

GC818

Gold Cavity Assembly, Complete (Less Teflon Light Shields)

GCA818

Gold Cavity Assembly, Complete (Includes Teflon Light Shields)

HBA818

Head Block Assembly (Less YAG Rod, Lamp & Carriage)

ORK818

O-Ring Kit



LASER HEADS COMPONENTS

Reference

Item Part Number

Laser Rail

6

CEP818L

Cavity End Plate Left, Gold Plated

29

CEP818R

Cavity End Plate, Gold, Right, Gold Plated

19

CLA708

Carriage Locking Assembly

27

DB818

Dust Boot

4

FIN818

Heat Sink, Aluminium

11

GCE718

Cavity Ellipse, Gold Plated

2

H2

Stainless Steel Washer

3

H4

Nylon Washer

38

H79

Stainless Steel Spilt Washer

1

HB708

Head Bolt, Stainless Steel

13

HVP818

High Voltage Pin

7

LC708

Lamp Contact Band, Gold

15

LCB818L

Lamp Contact Block, Left

14

LCB818R

Lamp Contact Block, Right

8

LFT718

Lamp Flow Tube

17

LHB818

Lower Head Block

18

LHC818

Lower Head Carriage

10

ST9300

Krypton Arc Lamp, 30 Amps

36

LMBS555

Lamp Mounting Block Screw

32

LS708L

Teflon Light Shield, Lower

30

LS708U

Teflon Light Shield, Upper

16

LTB818L

Lamp Terminal Block, Left

33

LTB818R

Lamp Terminal Block, Right

12

ORK818

O-Ring (Included in Kit)

28

ORK818

O-Ring (Included in Kit)

24

ORK818

O-Ring (Included in Kit)

20

ORK818

O-Ring (Included in Kit)

26

REC818

Rod End Cap

9

RFT818

Rod Flow Tube, Doped

25

RG818

Rod Guide

34

TLS718L

Teflon Light Shield, Lower

31

TLS718U

Teflon Light Shield, Upper

5

UHB818

Upper Head Block

35

WF016

Elbow Fitting 5/8" Nylon, Q-Switch

37

WF022

Water Fitting Reducer, O.D.

21

WFO49

Water Fitting 5/8" O.D., Stainless Steel

39

YR715

YAG Rod, 4mm Dia, Unmounted, Multimode

22

YR718

YAG Rod, 4mm Dia., Unmounted, TEMoo

40

YRA815

YAG Rod Assembly, Mounted, Multimode

23

YRA818

YAG Rod Assembly, Mounted, TEMoo



  Lamp-pumped Laser Heads (Pump Chamber)   Download "Detailed Lamp-pumped Laser Heads" (PDF)
