Laser Systems:
Lee Laser Model 803; 808; 812; Chicago Laser CLS39;
CLS907; CLS947; CLS977; CLS977; CLS907; CLS960; Spectra Physics,
Universal Laser Systems Inc., General Scanning LSD W724, TLSI W670
Description:

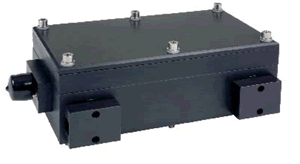

Single-Lamp Pumped Solid-State Laser Chamber used for precision marking
& engraving applications.
FREQUENTLY USED CONSUMABLES
|
Item Part Number |
Description |
|
D700 |
DI Cartridge |
|
D8832 (Chicago Laser) |
DI Cartridge |
|
LFT708 |
Lamp Flow Tube |
|
ST4462S |
Lamp 30Amp |
|
ST708S |
Lamp 20 Amp |
|
MR3M100RHC |
Rear Mirror HR |
|
MR3M90RHC |
Front Mirror 90% |
|
RFT812 |
Rod Flow Tube |
ASSAMBLIES
|
Item Part Number |
Laser Rail |
|
BA812 |
Head Block Assembly (Less Cavity, YAG Rod, Lamp &
Carriage) |
|
STBA808 |
Head Block Assembly, Complete (Less Carriage)
TEM00 |
|
STBA808/C |
Complete Head Block Assembly, TEM00 |
|
STBA812 |
Head Block Assembly, Complete (Less Carriage) |
|
STBA812/C |
Complete Head Block Assembly |
|
GC812 |
Gold Cavity Assembly, Complete (Less Teflon Light
Shields) |
|
GCA812 |
Gold Cavity Assembly, Complete (Includes Teflon
Light Shields) |
|
HBA812 |
Head Block Assembly (Less YAG Rod, Lamp &
Carriage) |
|
ORK812 |
O-Ring Kit |

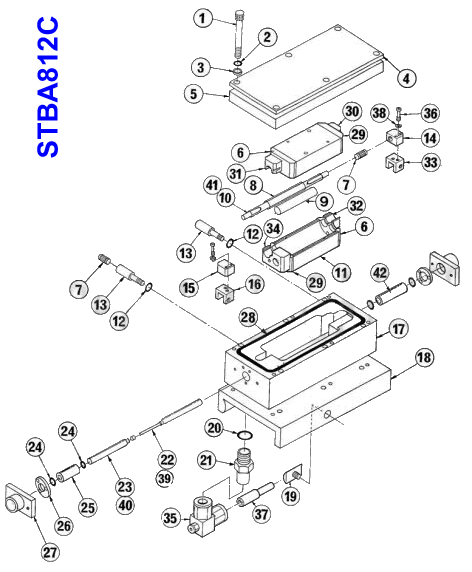

LASER HEADS COMPONENTS
|
Reference |
Item Part Number |
Laser Rail |
|
6 |
CEP818L |
Cavity End Plate Left, Gold Plated |
|
29 |
CEP818R |
Cavity End Plate, Gold, Right, Gold Plated |
|
19 |
CLA708 |
Carriage Locking Assembly |
|
27 |
DB812 |
Dust Boot |
|
4 |
FIN812 |
Heat Sink, Aluminium |
|
11 |
GCE708 |
Cavity Ellipse, Gold Plated |
|
2 |
H2 |
Stainless Steel Washer |
|
3 |
H4 |
Nylon Washer |
|
38 |
H79 |
Stainless Steel Spilt Washer |
|
1 |
HB708 |
Head Bolt, Stainless Steel |
|
13 |
HVP818 |
High Voltage Pin |
|
7 |
LC708 |
Lamp Contact Band, Gold |
|
15 |
LCB818L |
Lamp Contact Block, Left |
|
14 |
LCB818R |
Lamp Contact Block, Right |
|
8 |
LFT708 |
Lamp Flow Tube |
|
17 |
LHB812 |
Lower Head Block |
|
18 |
LHC812 |
Lower Head Carriage |
|
10 |
ST4462S |
Krypton Arc Lamp, 30 Amps |
|
41 |
ST708S |
Krypton Arc Lamp, 20 Amps |
|
36 |
LMBS555 |
Lamp Mounted Block Screw |
|
32 |
LS708L |
Teflon Light Shield, Lower |
|
30 |
LS708U |
Teflon Light Shield, Upper |
|
16 |
LTB818L |
Lamp Terminal Block, Left |
|
33 |
LTB818R |
Lamp Terminal Block, Right |
|
12 |
ORK812 |
O-Ring (Included in Kit) |
|
28 |
ORK812 |
O-Ring (Included in Kit) |
|
24 |
ORK812 |
O-Ring (Included in Kit) |
|
20 |
ORK812 |
O-Ring (Included in Kit) |
|
26 |
REC718 |
Rod End Cap |
|
9 |
RFT812 |
Rod Flow Tube, Doped |
|
42 |
RG812 |
Rod Guide, Long |
|
25 |
RG818 |
Rod Guide, Short |
|
34 |
TLS718L |
Teflon Light Shield, Lower |
|
31 |
TLS718U |
Teflon Light Shield, Upper |
|
5 |
UHB812 |
Upper Head Block |
|
35 |
WF016 |
Elbow Fitting 5/8" Nylon, Q-Switch |
|
37 |
WF022 |
Water Fitting Reducer �� O.D. |
|
21 |
WF049 |
Water Fitting 5/8" O.D., Stainless Steel |
|
39 |
YR479 |
YAG Rod, 4mm Dia, Unmounted, Multimode |
|
22 |
YR512 |
YAG Rod, 4mm Dia., Unmounted, TEMoo |
|
23 |
YRA808 |
YAG Rod Assembly, Mounted, TEMoo |
|
40 |
YRA812 |
YAG Rod Aseembly, Mounted, Multimode |
|
