         List of Products             Lamp Pumped Laser Head (Pump Chamber) STBA747



Laser Systems:

Laser Optronic Model 747



Description:
Single-Lamp Pumped Solid-State Laser Chamber used for laser trimming and marking applications � 30 Watts



FREQUENTLY USED CONSUMABLES

Item Part Number

Description

D2002

D.I. Cartridge

LFT747

Lamp & Rod Flow Tube

ST747

Lamp

MR1M100RHC

Rear Mirror HR

MR1M90RHC

Front Mirror 90% R

PF10

Particle Filter, 10�



ASSAMBLIES

Item Part Number

Laser Rail

HBA747

Head Block Assembly

ORK747

O-Ring Kit

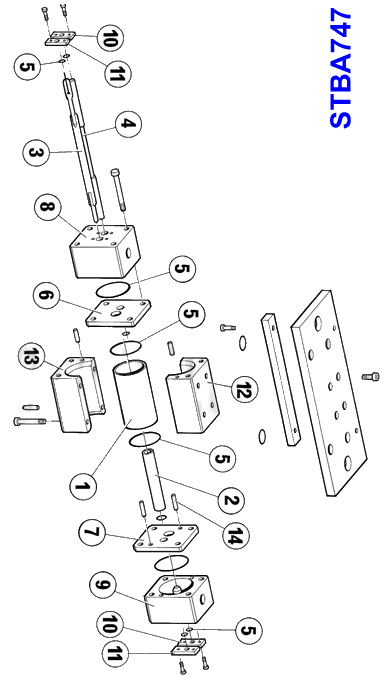

LASER HEADS COMPONENTS

Reference

Item Part Number

Laser Rail

8

CEB747A

Cavity End Block, Cathode

9

CEB747B

Cavity End Block, Anode

6

CEP747A

Cavity End Plate, Inlet, Gold

7

CEP747B

Cavity End Plate, Outlet, Gold

13

CH747B

Cavity Reflector Holder, Bottom

12

CH747T

Cavity Reflector Holder, Top

10

CPP747

Crystal Pressure Plate

14

DOWEL747

Dowel, Stainless Steel

1

GCE747

Gold Cavity Reflector

2

LFT747

Lamp Flow Tube

3

ST747

Laser Lamp, 2.5kW

11

LPP747

Lamp Pressure Plate

5

ORK747

O-Rings (Included in Kit)

4

YRA747

YAG Rod Assembly, 4mm Dia., Mounted


  Lamp-pumped Laser Heads (Pump Chamber)   Download "Detailed Lamp-pumped Laser Heads" (PDF)
