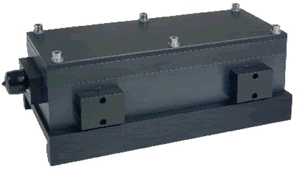

         List of Products             Lamp Pumped Laser Head (Pump Chamber) STBA718/C



Laser Systems:

Lee Laser Model 715, 718; General Scanning Hi-Mark 400


Description:

Single-Lamp Pumped Solid-State Laser Chamber used for precision marking & engraving applications.





FREQUENTLY USED CONSUMABLES

Item Part Number

Description

D700

DI Cartridge

LFT718

Lamp Flow Tube

ST9300

Lamp, 30Amp

MR3M100RHC

Rear Mirror HR

MR3M80RHC

Front Mirror 80%

MR3M90RHC

Front Mirror 90%

RFT718

Rod Flow Tube



ASSAMBLIES

Item Part Number

Laser Rail

BA718

Head Block Assembly (Less Cavity, YAG Rod, Lamp & Carriage)

STBA718

Head Block Assembly, Complete (Less Carriage)

STBA718/C

Complete Head Block Assembly

GC718

Gold Cavity Assembly, Complete (Less Teflon Light Shields)

GCA718

Gold Cavity Assembly, Complete (Includes Teflon Light Shields)

HBA718

Head Block Assembly (Less YAG Rod, Lamp & Carriage)

ORK718

O-Ring Kit

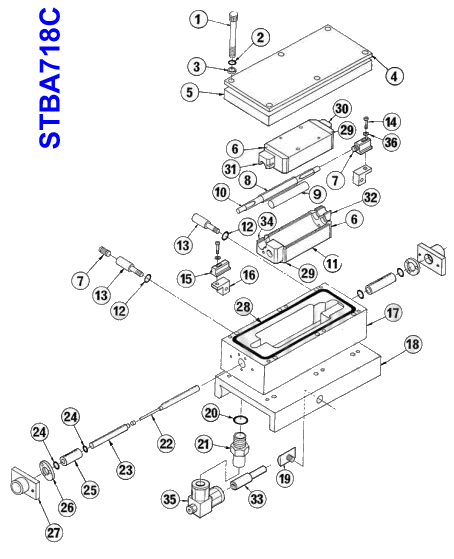

LASER HEADS COMPONENTS

Reference

Item Part Number

Laser Rail

6

CEP708L

Cavity End Plate, Left, Gold

29

CEP708R

Cavity End Plate, Right, Gold

19

CLA500

Carriage Locking Assembly

27

DB718

Dust Boot

4

FIN718

Heat Sink, Aluminium

11

GCE718

Cavity Ellipse, Gold

2

H2

Stainless Steel Washer

3

H4

Nylon Washer

36

H79

Stainless Steel Spilt Washer

1

HB708

Head Bolt, Stainless Steel

13

HVP708

High Voltage Pin

7

LC708

Lamp Contact Band, Gold

15

LCB708

Lamp Contact Block

8

LFT718

Lamp Flow Tube

17

LHB718

Lower Head Block

18

LHC718

Lower Head Carriage

10

ST9300

Krypton Arc Lamp, 30 Amps

14

LMBS555

Lamp, Mounting Block, Screw

32

LS708L

Telfon Light Shield, Lower (Sold as TLS708KIT)

30

LS708U

Teflon Light Shield, Upper (Sold as TLS708KIT)

16

LTB708

Lamp Terminal Block

12

ORK718

O-Rings (Included in Kit)

28

ORK718

O-Ring (Included in Kit)

24

ORK718

O-Ring (Included in Kit)

20

ORK718

O-Ring (Included in Kit)

26

REC718

Rod End Cap

9

RFT718

Rod Flow Tube, Doped

25

RG708

Rod Guide

34

TLS718L

Teflon Light Shield, Lower (Sold as TLS718KIT)

31

TLS718U

Teflon Light Shield, Upper (Sold as TLS718KIT)

5

UHB718

Upper Head Block

35

WF016/2

Elbow Fitting 5/8" Nylon, Q-Switch Barb

33

WF022

Water Fitting, Reducer 1/2" O.D

21

WF049

Water Fitting 5/8" O.D., Stainless Steel

22

YR718

YAG Rod, 4mm Dia., Unmounted

23

YRA718

YAG Rod Assembly, Mounted



  Lamp-pumped Laser Heads (Pump Chamber)   Download "Detailed Lamp-pumped Laser Heads" (PDF)
