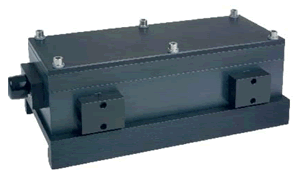

         List of Products             Lamp Pumped Laser Head (Pump Chamber) STBA708/C



Laser Systems:

Lee Laser Model 708; Chicago Laser CLS39;CLS977; CLS907, CLS960; TLSI & General Scanning L.S.D. W614, W670; Spectra Physics 3000


Description:
Single-Lamp Pumped Solid-State Laser Chamber used for precision marking & engraving applications.



FREQUENTLY USED CONSUMABLES

Item Part Number

Description

D7000

DI Cartridge

D8832 (Chicago Laser)

DI Cartridge

LFT708

Lamp Flow Tube

ST4462S

Lamp, 30Amp

ST708S

Lamp, 20Amp

MR3M100RHC

Rear Mirror, HR

MR3M90RHC

Front Mirror

RFT712

Rod Flow Tube



ASSAMBLIES

Item Part Number

Laser Rail

BA708

Head Block Assembly (Less Cavity, YAG Rod, Lamp & Carriage)

STBA708

Head Block Assembly, Complete (Less Carriage)

STBA708/C

Complete Head Block Assembly

GC708

Gold Cavity Assembly, Complete (Less Teflon Light Shields)

GCA708

Gold Cavity Assembly, Complete (Includes Teflon Light Shields)

HBA708

Head Block Assembly (Less YAG Rod, Lamp & Carriage)

ORK708

O-Ring Kit

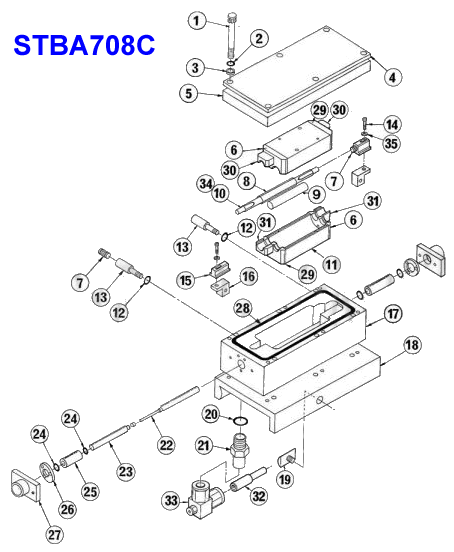

LASER HEADS COMPONENTS

Reference

Item Part Number

Laser Rail

6

CEP708L

Cavity End Plate, Left, Gold

29

CEP708R

Cavity End Plate, Right, Gold

19

CLA500

Carriage Locking Assembly

27

DB708

Dust Boot

4

FIN708

Heat Sink, Aluminium

11

GCE708

Cavity Ellipse, Gold

2

H2

Stainless Steel Washer

3

H4

Nylon Washer

35

H79

Stainless Steel Split Washer

1

HB708

Head Bolt, Stainless Steel

13

HVP708

High Voltage Pin

7

LC708

Lamp Contact Band, Gold

15

LCB708

Lamp Contact Block

8

LFT708

Lamp Flow Tube

17

LHB708

Lower Head Block

18

LHC708

Lower Head Carriage

34

ST4462S

Laser Lamp, 30 Amps

10

ST708S

Laser Lamp, High Stability, 20 Amps

14

LMBS555

Lamp, Mounting Block, Screw

31

LS708L

Teflon Light Shield, Upper (Sold as TLS708KIT)

30

LS708U

Teflon Light Shield, Upper (Sold as TLS708KIT)

16

LTB708

Lamp Terminal Block

20

ORK708

O-Ring (Included in Kit)

12

ORK708

O-Rings (Included in Kit)

28

ORK708

O-Ring (Included in Kit)

24

ORK708

O-Ring (Included in Kit)

26

REC708

Rod End Cap

9

RFT712

Rod Flow Tube, Doped

25

RG708

Rod Guide

5

UHB708

Upper Head Block

33

WF016/2

Elbow Fitting 5/8" Nylon, Q-Switch Barb

32

WF022

Water Fitting, Reducer 1/2" O.D

21

WF049

Water Fitting 5/8" O.D., Stainless Steel

22

YR512

YAG Rod, 4mm Dia., TEMoo, Un-mounted

23

YRA708

YAG Rod Assembly, TEMoo Mounted



  Lamp-pumped Laser Heads (Pump Chamber)   Download "Detailed Lamp-pumped Laser Heads" (PDF)
