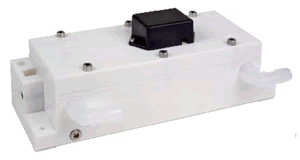

         List of Products             Lamp Pumped Laser Head (Pump Chamber) STBA7000



Laser Systems:

Craford Laserstar 7000


Description:
Single-Flash Lamp Pumped Solid-State Laser Chamber used for precision spot welding applications.



FREQUENTLY USED CONSUMABLES

Item Part Number

Description

FP7000

Lamp Flow Plate

ST8623, 405-2460-406

Flash Lamp (7000 Series)

ST8624 405-2460-405

Flash Lamp (Old Model)

ORK7000

O-Ring Kit



ASSAMBLIES

Item Part Number

Laser Rail

BA7000

Head Block Assembly (Less Cavity, YAG Rod Assembly & Lamp)

STBA7000

Complete Head Block Assembly, 101-00-1001

GC7000

Gold Cavity Assembly, Complete

HBA7000

Head Block Assembly (Less YAG Rod Assembly & Lamp)

ORK7000

O-Ring Kit

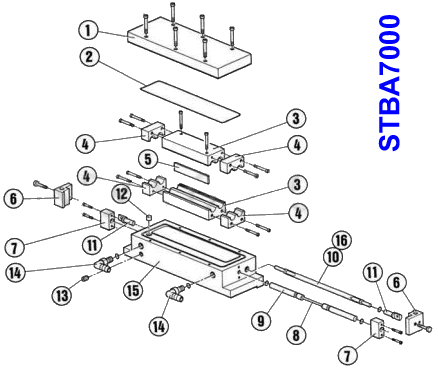

LASER HEADS COMPONENTS

Reference

Item Part Number

Laser Rail

4

CEP7000

Cavity End Plate, 01-10005

5

FP7000

Flow Plate, 01-10089

3

GCE7000

Cavity Ellipse, Gold Plated, 01-11003

6

LEC7000

Lamp End Cap, 01-10008

15

LHB7000

Lower Head Block, 01-10001

12

LHBPLUG

Plug, Lower Head Block, 01-10006

13

LHBPLUGHEX

Plug, Hex Socket, Stainless, 92-53911-125

16

ST8623

Lamp, High Performance (7000 Series)

10

ST8624

Lamp, Standard, (Old Model)

11A

LTB700

Lamp Terminal Block (Less Lamp Band)

11

LTBA7000

Lamp Terminal Block, Includes lamp band, 01-13019

2

ORS7000

O-Ring, Silicone, 466-6312

7

REC7000

Rod End Cap, 01-10007

1

UHB7000

Upper Head Block, 01-10002

14

WF7000

Elbow Fitting, Nylon, 463-001

8

YR254

YAG Rod 6.35mm, Un-Mounted

9

YRA7000

YAG Rod Assy, Mounted, 101-00-1015



  Lamp-pumped Laser Heads (Pump Chamber)   Download "Detailed Lamp-pumped Laser Heads" (PDF)
