Laser Systems:
Control Laser Script 100; Signature 100 & 512 Plus,
Sahajanand Laser
Description:

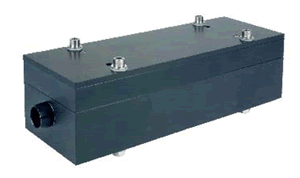

Single-Lamp Pumped Solid-State Laser Chamber used for
marking deep engraving & hall marking jewellery applications � 120
Watts.
FREQUENTLY USED CONSUMABLES
|
Item Part Number |
Description |
|
D8822 |
DI Cartridge |
|
LFT612PLUS |
Lamp & Rod Flow Tube |
|
ST6645 |
Lamp |
|
LVB612PLUS |
Lamp V-block |
|
MR3M100RHC |
Rear Mirror HR |
|
MR3M80RHC |
Front Mirror 80% R |
|
MR3M90RHC |
Front Mirror 90% R |
|
PF10 |
Particle Filter |
ASSAMBLIES
|
Item Part Number |
Laser Rail |
|
BA612PLUS |
Head Block Assembly (Less Cavity, YAG Rod & Lamp) |
|
STBA612PLUS |
Head Block Assembly, Complete |
|
GC612PLUS |
Gold Cavity Assembly, Complete |
|
HBA612PLUS |
Head Block Assembly (Less YAG Rod & Lamp) |
|
ORK512 |
O-Ring Kit |

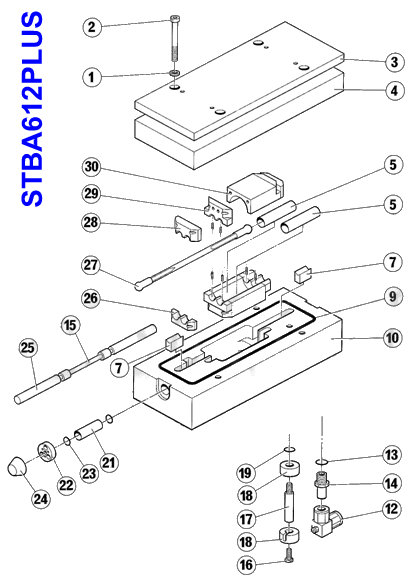

LASER HEADS COMPONENTS
|
Reference |
Item Part Number |
Laser Rail |
|
29 |
CEP510 |
Cavity End Plate, Gold Plated |
|
24 |
DB510 |
Dust Boot |
|
3 |
FIN612PLUS |
Heat Sink, Aluminium |
|
30 |
GCE612PLUS |
Cavity Ellipse, Gold Plated |
|
2 |
HB612 |
Head Bolt, Stainless Steel |
|
1 |
HBW510 |
Head Bolt Washer, Nylon |
|
18 |
HVI510 |
High Voltage Insulator (2 pces) |
|
17 |
HVP510 |
High Voltage Pin |
|
34 |
LC510 |
Lamp Retaining Clip, Gold - Not Shown |
|
33 |
LCA512 |
Lamp Clamp - Not Shown |
|
5 |
LFT612PLUS |
Lamp and Rod Flow Tube |
|
10 |
LHB612PLUS |
Lower Head Block |
|
27 |
ST6645 |
Krypton Arc Lamp |
|
35 |
STF612 |
Lamp Lifter - Not Shown |
|
26 |
LSP612PLUS |
Lower Light Shield, Stainless Steel |
|
7 |
LVB612PLUS |
Lamp V-block |
|
19 |
ORK512 |
O-Ring, Silicone (Included in Kit) |
|
9 |
ORK512 |
O-Ring, Silicone (Included in Kit) |
|
23 |
ORK512 |
O-Ring, Silicone (Included in Kit) |
|
13 |
ORK512 |
O-Ring, Silicone (Included in Kit) |
|
22 |
REC510 |
Rod End Cap |
|
21 |
RG510 |
Rod Guide |
|
16 |
SNY632 |
Nylon Screw, 6-32 x 1/4" |
|
4 |
UHB612PLUS |
Upper Head Block |
|
28 |
USP612PLUS |
Upper Light Shield, Stainless Steel |
|
14 |
WF013 |
Water Fitting, 3/4 - 16 x 5/8" |
|
12 |
WF016 |
Water Fitting, Head Block & Q-Switch |
|
15 |
YR718 |
YAG Rod, 4mm Dia, Unmounted |
|
25 |
YRA2700 |
YAG Rod Assembly, Mounted |
|
