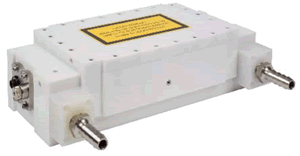

         List of Products             Lamp Pumped Laser Head (Pump Chamber) STBA6117



Laser Systems:

Quantronix 117 150Watt


Description:
Single-Lamp Pumped Solid-State Laser Chamber used for precision marking, engraving and cutting Applications.



FREQUENTLY USED CONSUMABLES

Item Part Number

Description

ASA116

Anode Socket Assembly

CSA116

Cathode Socket Assembly

D8811

DI Cartridge

LFT117

Lamp Flow Tube, Pyrex

LFT117CE

Lamp Flow Tube, Ce doped quartz

ST117LL

Laser Lamp Long Life, 400Hrs

ST749

Laser Lamp Extra Long Life 600Hrs



ASSEMBLIES

Item Part Number

Laser Rail

BA117

Head Block Assembly (Less Cavity Reflector, YAG Rod & Lamp Assembly)

STBA6117

Complete Head Block Assembly (Includes 6.35mm Rod), Multimode

GCA117

Gold Cavity Assembly, Complete

HBA117

Head Block Assembly (Less YAG Rod & Lamp Assembly)

ORK6117

O-Ring Kit for 6.35mm Rod

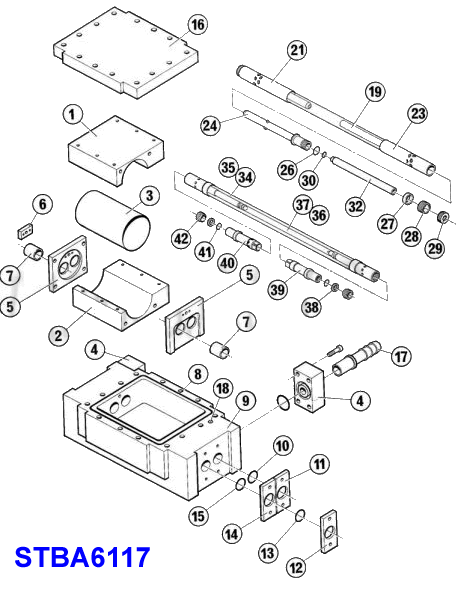

LASER HEADS COMPONENTS

Reference

Item Part Number

Laser Rail

40

ASA116

Anode Socket Assembly

5

CEP114

Cavity End Plate

2

CH117B

Cavity Reflector, Bottom

1

CH117T

Cavity Reflector, Top

4

CM114

Coolant Manifold Required for Water Fittings

29

CN117

Crystal Nut

11

CPP114

Crystal Pressure Plate, Front

39

CSA116

Cathode Socket Assembly

3

GCE117

Gold Cavity Reflector

14

LEP114

Lamp End Plate

34

LFT117

Lamp Flow Tube

35

LFT117CE

Lamp Flow Tube, Cerium Doped Quartz

9

LHB117

Lower Head Block

36

ST117LL

Laser Lamp, Long Life 400Hrs

37

ST749

Laser Lamp, Extra Long Life 600Hrs

12

LPP114

Lamp Pressure Plate, Front

7

LS117

Light Shield Sleeve

8

ORK6117

O-Ring, Silicone (Included in Kit)

31

ORK6117

O-Ring Silicone, 6.35mm

41

ORN804

O-Ring Nitrile (10PCES/PKT)

27

PR116

Pressure Ring

33

PT1176

Presure Tube, 6.35mm

38

PW149

Pressure Washer

23

RFT117

Rod Flow Tube

28

RR116

Retaining Ring

42

THR150

Threaded Retainer

16

UHB117

Upper Head Block

17

WF033

Water Fitting for Coolant Manifold CM114

6

WIB117

Water Inlet Block

19

YR530

YAG Rod, 6.35mm, Unmounted, Multimode

22

YRA1176

YAG Rod Assembly Complete, 6.35mm Rod, Multimode

25

YRH11725

YAG Rod Holder, 6.35mm Rod



  Lamp-pumped Laser Heads (Pump Chamber)   Download "Detailed Lamp-pumped Laser Heads" (PDF)
