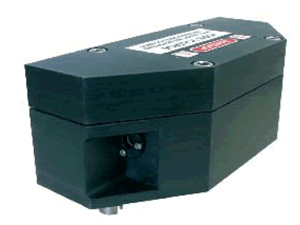

         List of Products             Lamp Pumped Laser Head (Pump Chamber): STBA573



Laser Systems:

ESI 3573, Spectra Physics 3000, 3400



Description:
Single-Lamp Pumped Solid-State Laser Chamber used for laser trimming & precision marking applications � 18 Watts TEMoo











FREQUENTLY USED CONSUMABLES

Item Part Number

Description

D8822

DI Cartridge

LC570

Lamp Clip, Gold

LFT570

Lamp Flow Tube

ST570S

Lamp

MR3M100R2MCXHC

Rear Mirror, HR, 2MCX

MR3M100RHC

Rear Mirror, HR

MR3M80C75HC

Front Mirror, 80% R, 1MCC

MR3M80RHC

Front Mirror, 80% R

PF10/20

Particle Filter, 10�

RFT573

Rod Flow Tube



ASSAMBLIES

Item Part Number

Laser Rail

BA571

Head Block Assembly (Less Cavity, YAG Rod & Lamp)

STBA573

Complete Head Block Assembly, TEMoo

GC573

Gold Cavity Assembly, Complete

HBA573

Head Block Assembly (Less YAG Rod & Lamp)

ORK570

O-Ring Kit

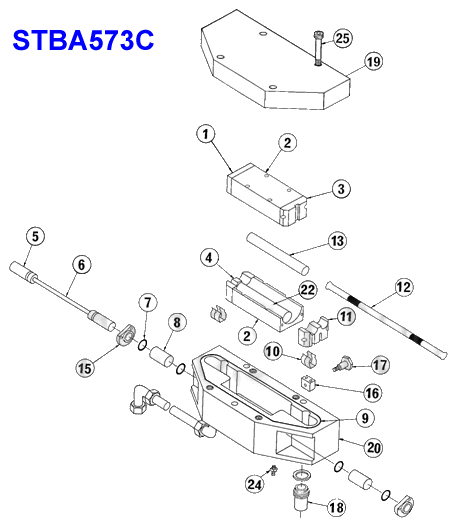

LASER HEADS COMPONENTS

Reference

Item Part Number

Laser Rail

1

CEP573L

Upper Cavity Plate, Left, Gold Plated

11

CEP573L

Lower Cavity Plate, Left, Gold Plated

3

CEP573R

Upper Cavity Plate Right, Gold Plated

4

CEP573R

Lower Cavity Plate, Right, Gold Plated

2

GCE570

Gold Cavity Ellipse, Gold Plated

25

HB571

Head Bolt Short 5/16�-18x1.25�

17

HVP570

High Voltage Pin

10

LC570

Lamp Clip

13

LFT570

Lamp Flow Tube

20

LHB571

New Style Head Block Threaded For Short Head Bolts

12

ST570S

Krypton Arc Lamp

16

LTB570

Lamp Terminal Block

9

ORK570

O-Ring, Silicone (Included in Kit)

7

ORK570

O-Ring, Silicone (Included in Kit)

15

REC570

Rod End Cap

22

RFT573

Rod Flow Tube

8

RG570

Rod Guide

19

UHB570

Upper Head Block

18

WF018

Water Fitting, Stainless Steel

24

WF024

Miniature Q-Switch Water Fitting

6

YR512

YAG Rod, 4mm Dia, TEMoo

5

YRA573

YAG Rod Assembly, 4m m Dia Rod, TEMoo



  Lamp-pumped Laser Heads (Pump Chamber)   Download "Detailed Lamp-pumped Laser Heads" (PDF)
