         List of Products             Lamp Pumped Laser Head (Pump Chamber) STBA570



Laser Systems:

ESI 44, 80, 4000A, 4200, 2000, 3570, 3571, 3572, Spectra Physics 3000 (Old Style Head Block for use with long head bolts)



Description:

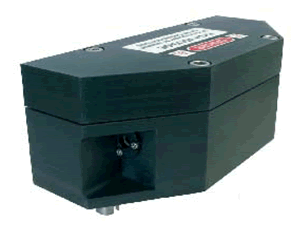

Single-Lamp Pumped Solid-State Laser Chamber used for laser trimming & precision marking applications 15 Watts







FREQUENTLY USED CONSUMABLES

Item Part Number

Description

D8822

DI Cartridge

LC570

Lamp Clip, Gold

LFT570

Lamp & Rod Flow Tube

ST570S

Lamp

MR3M100R2MCXHC

Rear Mirror, HR, 2MCX

MR3M100RHC

Rear Mirror, HR

MR3M80C75HC

Front Mirror, 80% R, 1MCC

MR3M80RHC

Front Mirror, 80% R

PF10/20

Particle Filter, 10



ASSAMBLIES

Item Part Number

Laser Rail

BA570

Head Block Assembly (Less Cavity, YAG Rod & Lamp)

STBA570

Complete Head Block Assembly, TEMoo

GC570

Gold Cavity Assembly, Complete

HBA570

Head Block Assembly (Less YAG Rod & Lamp)

ORK570

O-Ring Kit



LASER HEADS COMPONENTS

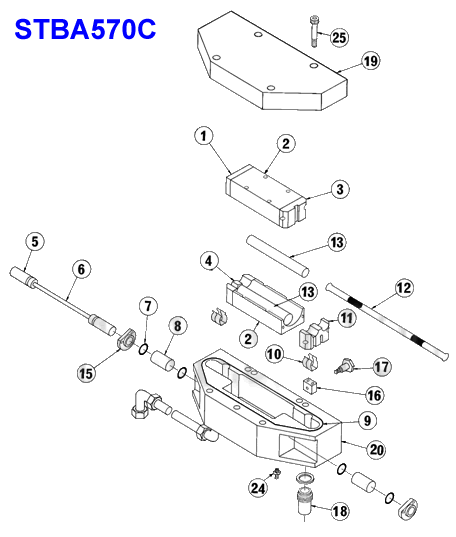

Reference

Item Part Number

Laser Rail

11

CEP570L

Lower Cavity Plate, Left Gold Plated

1

CEP570L

Upper Cavity Plate, Left, Gold Plated

4

CEP570R

Lower Cavity Plate, Right, Gold Plated

3

CEP570R

Upper Cavity Plate, Right, Gold Plated

2

GCE570

Gold Cavity Ellipse, Gold Plated

25

HB570

Head Bolt Long, M8 x 80mm

17

HVP570

High Voltage Pin

10

LC570

Lamp Clip

13

LFT570

Lamp and Rod Flow Tube

20

LHB570

Lower Head Block

12

ST570S

Krypton Arc Lamp

16

LTB570

Lamp Terminal Block

9

ORK570

O-Ring, Silicone (Included in Kit)

7

ORK570

O-Ring, Silicone (Included in Kit)

15

REC570

Red End Cap

8

RG570

Rod Guide

19

UHB570

Upper Head Block

18

WF018

Water Fitting, Stateless Steel

24

WF024

Miniature Q-Switch Water Fitting

6

YR258

YAG Rod, 3mm Dia, TEMoo

5

YRA570

YAG Rod Assembly, 3mm Dia Rod, TEMoo
