         List of Products             Lamp Pumped Laser Head (Pump Chamber) STBA530/C



Laser Systems:

Holobeam 2660, Control Laser 531, 532, 534, 536, 630



Description: Single-Lamp Pumped Solid-State Laser Chamber used for cutting & marking applications 150 Watts



FREQUENTLY USED CONSUMABLES

Item Part Number

Description

D8822

DI Cartridge

LFT530

Lamp Flow Tube

ST532S

Lamp, 40Amp 140-145V

MR3M100RHC

Rear Mirror HR

MR3M80RHC

Front Mirror 80% R

PF9

Particle Filter

RFT530

Rod Flow Tube



ASSAMBLIES

Item Part Number

Laser Rail

BA530

Head Block Assembly (Less Cavity, YAG Rod, Lamp & Carriage)

STBA530

Head Block Assembly, Complete (Less Carriage)

STBA530/C

Complete Head Block Assembly

GC530

Gold Cavity Assembly, Complete

HBA530

Head Block Assembly (Less YAG Rod, Lamp & Carriage)

ORK530

O-Ring Kit

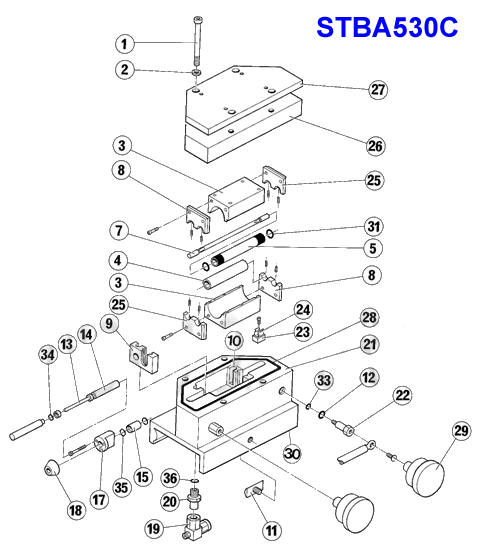

LASER HEADS COMPONENTS

Reference

Item Part Number

Laser Rail

8

CEP530L

Cavity End Plate, Left, Gold Plated

25

CEP530R

Cavity End Plate, Right

11

CLA500

Carriage Locking Assembly

18

DB530

Dust Boot

3

GCE530

Cavity Ellipse, Gold Plated

1

HB510

Head Bolt, Stainless Steel

2

HBW510

Head Bolt Washer, Nylon

22

HVP258

High Voltage Pin

24

LC258

Lamp Clip, Gold Plated

5

LFT530

Lamp Flow Tube

21

LHB530

Lower Head Block

7

ST532S

Krypton Arc Lamp, 40 Amps 140-145v

23

LTB258

Lamp Terminal Block

12

ORK530

O-Ring, Silicone (Included in Kit)

6

ORK530

O-Ring, Silicone (Included in Kit)

17

REC530

Rod End Cap Extention

4

RFT530

Rod Flow Tube

15

RG530

Rod Guide

10

TLS530L

Teflon Light Shield, Left

9

TLS530R

Teflon Light Shield, Right

20

WF012

Water Fitting 3/4- 16 x 1/2" Stainless Steel

19

WF021

Water Fitting, 1/2" Water Pump & Q-Switch

13

YR530

YAG Rod, Crystal Only, 6.35mm Rod

14

YRA530

YAG Rod Assembly, Mounted



  Lamp-pumped Laser Heads (Pump Chamber)   Download "Detailed Lamp-pumped Laser Heads" (PDF)
