Laser Systems:
Control Laser 512, 513, H-514, Instamark, Script, ESI 44,
Teradyne W11, Chicago Laser CLS37, Laser Applications, Quantrad, Siemens
Silamatic, JEC
Description:

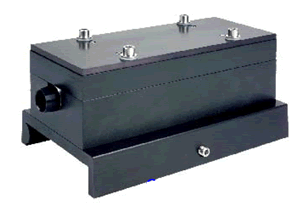

Single-Lamp Pumped Solid-State Laser Chamber used for laser trimming &
marking applications � 60 Watts
FREQUENTLY USED CONSUMABLES
|
Item Part Number |
Description |
|
D8822 |
DI Cartridge |
|
LC510 |
Lamp Clip, Gold |
|
LFT512 |
Lamp & Rod Flow Tube |
|
ST512AS |
Lamp, 20Amp |
|
MR3M100RHC |
Rear Mirror HR |
|
MR3M80RHC |
Front Mirror 80% R |
|
MR3M90RHC |
Front Mirror 90% R |
|
PF10 |
Particle Filter |
ASSAMBLIES
|
Item Part Number |
Laser Rail |
|
BA512 |
Head Block Assembly (Less Cavity, YAG Rod, Lamp &
Carriage) |
|
STBA479 |
Head Block Assembly, Complete (Less Carriage),
Multimode |
|
STBA479/C |
Complete Head Block Assembly, Multimode |
|
STBA512 |
Head Block Assembly, Complete (Less Carriage) |
|
STBA512/C |
Complete Head Block Assembly, TEMoo |
|
GC512 |
Gold Cavity Assembly, Complete |
|
HBA512 |
Head Block Assembly (Less YAG Rod, Lamp &
Carriage) |
|
ORK512 |
O-Ring Kit |

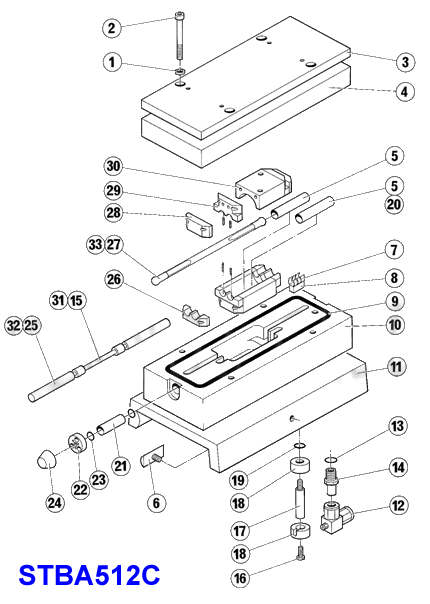

LASER HEADS COMPONENTS
|
Reference |
Item Part Number |
Laser Rail |
|
23 |
ORK512 |
O-Ring, Silicone (Included in Kit) |
|
22 |
REC510 |
Rod End Cap |
|
20 |
RFT512C |
Rod Flow Tube, Doped |
|
21 |
RG510 |
Rod Guide |
|
16 |
SNY632 |
Nylon Screw, 6-32x 1/4" |
|
4 |
UHB512 |
Upper Head Block |
|
28 |
USP510 |
Upper Light Shield, Stainless Steel |
|
14 |
WF013 |
Water Fitting, 3/4 - 16 x 5/8" Stainless Steel |
|
12 |
WF016 |
Water Fitting, Head Block & Q-Switch |
|
31 |
YR479 |
YAG Rod, 4mm Dia, Unmounted, Multimode |
|
15 |
YR512 |
YAG Rod, 4mm Dia, Unmounted, TEMoo |
|
32 |
YRA479 |
YAG Rod Assembly, Mounted, Multimode |
|
25 |
YRA512 |
YAG Rod Assembly, Mounted, TEMoo |
|
29 |
CEP510 |
Cavity End Plate, Gold Plated |
|
6 |
CLA500 |
Carriage Locking Assembly |
|
24 |
DB510 |
Dust Boot |
|
3 |
FIN512 |
Heat Sink, Aluminium |
|
30 |
GCE512 |
Cavity Ellipse, Gold Plated |
|
2 |
HB510 |
Head Bolt, Stainless Steel |
|
1 |
HBW510 |
Head Bolt Washer, Nylon |
|
18 |
HVI510 |
High Voltage Insulator (2 pces) |
|
17 |
HVP510 |
High Voltage Pin |
|
7 |
LC510 |
Lamp Clip, Gold Plated |
|
5 |
LFT512 |
Lamp and Rod Flow Tube |
|
10 |
LHB5I2 |
Lower Head Block |
|
11 |
LHC512 |
Head Carriage |
|
27 |
ST512AS |
Krypton Arc Lamp (20 Amps 145-155v) |
|
33 |
ST512BS |
Krypton Arc Lamp (20 Amps 155-165V) |
|
26 |
LSP510 |
Lower Light Shield, Stainless Steel |
|
8 |
LTB510 |
Lamp Terminal Block |
|
19 |
ORK512 |
O-Ring, Silicone (Included in Kit) |
|
13 |
ORK512 |
O-Ring, Silicone (Included in Kit) |
|
