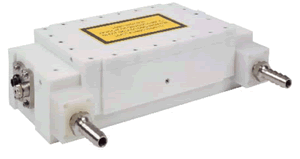

         List of Products             Lamp Pumped Laser Head (Pump Chamber) STBA4117YLF



Laser Systems:

Quantronix Nd:YLF Model 4217


Description:
High Stability Single-Lamp Pumped Solid-State Laser Chamber used for precision material processing for Scientific and Industrial applications.



FREQUENTLY USED CONSUMABLES

Item Part Number

Description

ASA116

Anode Socket Assembly

CSA116

Cathode Socket Assembly

D8811

DI Cartridge

LFT117

Lamp Flow Tube, Pyrex

LFT117CE

Lamp Flow Tube, Ce doped quartz

ST117LL

Laser Lamp, Long Life, 400Hrs

ST749

Laser Lamp, Extra Long Life 600Hrs

PF30

Particle Filter



ASSEMBLIES

Item Part Number

Laser Rail

BA117

Head Block Assembly (Less Cavity Reflector, YLF Rod & Lamp Assemblies)

STBA4117YLF

Complete Head Block Assembly (Includes 4mm YLF Rod)

GCA117

Gold Cavity Assembly, Complete

HBA117

Head Block Assembly (Less YLF Rod & Lamp Assemblies)

ORK4117

O-Ring Kit for 4mm Rod



NEW UP-GRADE ASSEMBLIES

Item Part Number

Laser Rail

RFTA1174ENH

Rod Assy Complete, less 4mm YLF Rod

YLFA4115

YLF Rod Assy complete, fitted with new hardware yielding low noise and enhanced performance, 4mm x 115mm YLF rod

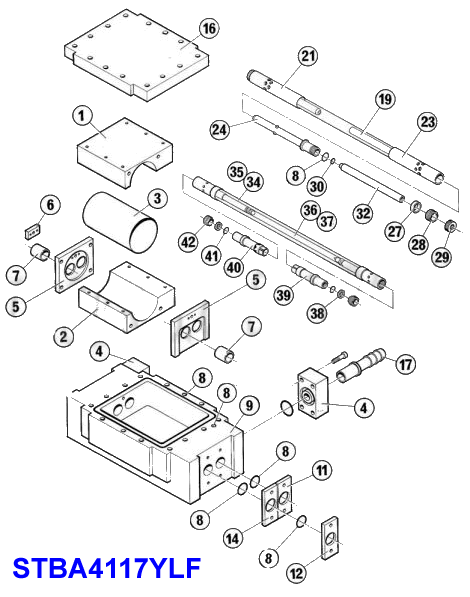

LASER HEADS COMPONENTS

Reference

Item Part Number

Laser Rail

40

ASA116

Anode Socket Assembly

5

CEP114

Cavity End Plate

2

CH117B

Cavity Reflector Holder, Bottom

1

CH117T

Cavity Reflector Top

4

CM114

Coolant Manifold Required for Nylon Water Fittings

29

CN116

Crystal Nut

11

CPP114

Crystal Pressure Plate, Front

39

CSA116

Cathode Socket Assembly

3

GCE117

Gold Cavity Reflector

14

LEP114

Lamp End Plate

34

LFT117

Lamp Flow Tube

35

LFT117CE

Lamp Flow Tube, Cerium Doped Quartz

9

LHB117

Lower Head Block

36

ST117LL

Laser Lamp, Long Life 400 Hrs

37

ST749

Laser Lamp, Extra Long Life, 800 Hrs

12

LPP114

Lamp Pressure Plate, Front

7

LS117

light shield Sleeve

8

ORK4117

O-Ring, Silicone (Included in Kit)

41

ORN804

O-Ring Nitrile (10PCES/PKT)

30

ORS4MM

O-Ring Silicone, 4mm

27

PR116

Pressure Ring

32

PT1174

Pressure Tube, 4mm

38

PW149

Pressure Washer

23

RFT117

Rod Flow Tube

28

RR116

Retaining Ring

42

THR150

Threaded Retainer

16

UHB117

Upper Head Block

17

WF033

Water Fitting, Stainless Steel

6

WIB117

Water Inlet Block

19

YLF117

YLF Rod, 4mm x 104mm (Old Model)

21

YLFA4115

YLF Rod Assembly Complete, 4mm x 115mm (New Model)

24

YRH1174

YLF Rod Holder, 4mm



  Lamp-pumped Laser Heads (Pump Chamber)   Download "Detailed Lamp-pumped Laser Heads" (PDF)
